MA70-BLPZZ (1988)
Toyota Supra
Production
Aug 1988
-
Aug 1990
Engine
7MGTEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )JZA70,MA70

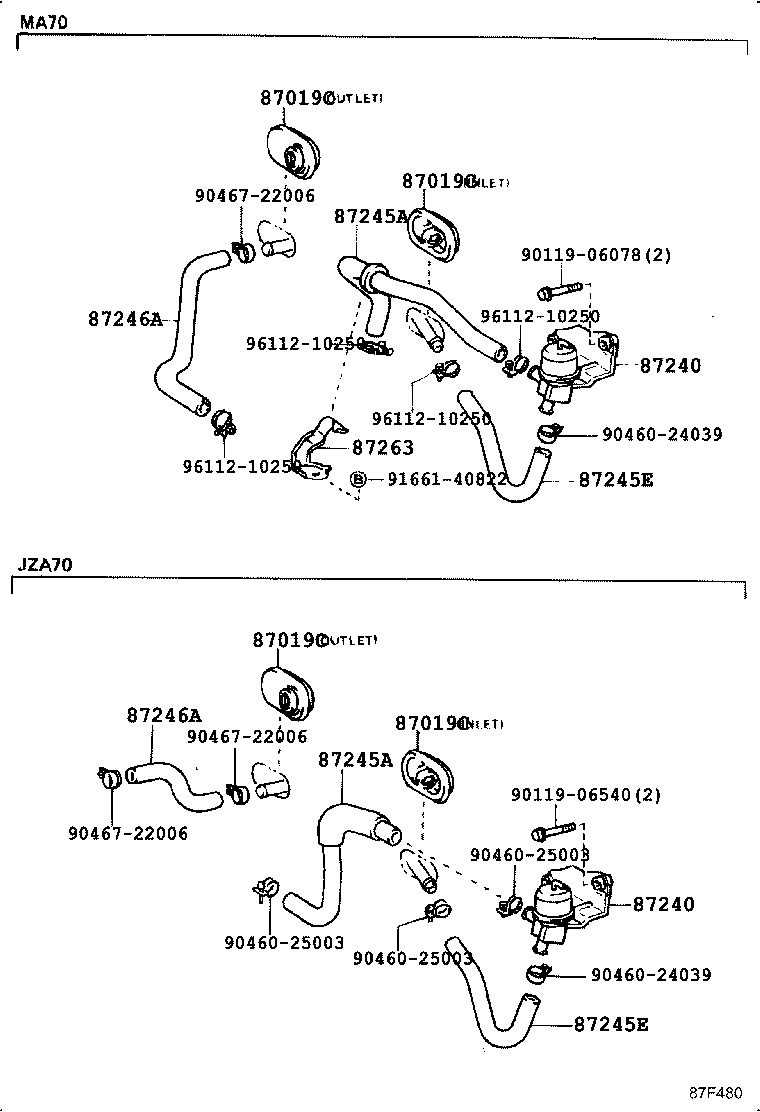

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01272 |
GA70,JZA70,MA70 INLET |
1 | ||
| 90480-01337 |
GA70,JZA70,MA70 OUTLET |
1 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01272 |
GA70,JZA70,MA70 INLET |
1 | ||
| 90480-01337 |
GA70,JZA70,MA70 OUTLET |
1 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01272 |
GA70,JZA70,MA70 INLET |
1 | ||
| 90480-01337 |
GA70,JZA70,MA70 OUTLET |
1 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01272 |
GA70,JZA70,MA70 INLET |
1 | ||
| 90480-01337 |
GA70,JZA70,MA70 OUTLET |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-24020 |
GA70,JZA70,MA70 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-24020 |
GA70,JZA70,MA70 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-24180 |
MA70 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-24180 |
MA70 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-24130 |
GA70,JZA70,MA70 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-24130 |
GA70,JZA70,MA70 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-24190 |
MA70 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-24190 |
MA70 |
1 | ||
| 87263 - BRACKET, HEATER WATER PIPE, NO.1 | ||||
| 87263-14170 |
MA70 |
1 | ||
| Common parts | ||||
| 90119-06078 | ||||
| 90119-06540 | ||||
| 90460-24039 | ||||
| 90460-25003 | ||||
| 90467-22006 | ||||
| 91661-40822 | ||||
| 96112-10250 | ||||
