MA70-BLPZZ (1988)

Toyota Supra

Production Aug 1988 - Aug 1990
Engine 7MGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9008)

Click highlighted areas on diagram

OVERDRIVE

diagram 84722E 85420B 85420D 85420D 89427A 89531 9011906187 9161160816 9351013010 9461110300
Part # Description Qty Price
84722E - SWITCH, TRANSMISSION CONTROL
84722-1408001

GA70,MA70..4FC

BLACK,TRIM1#,3#,8#

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTL,GTT)

NO.3

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTL,GTT)

NO.3

 3
Common parts
90119-06187
91611-60816
93510-13010
94611-10300

(8808- )

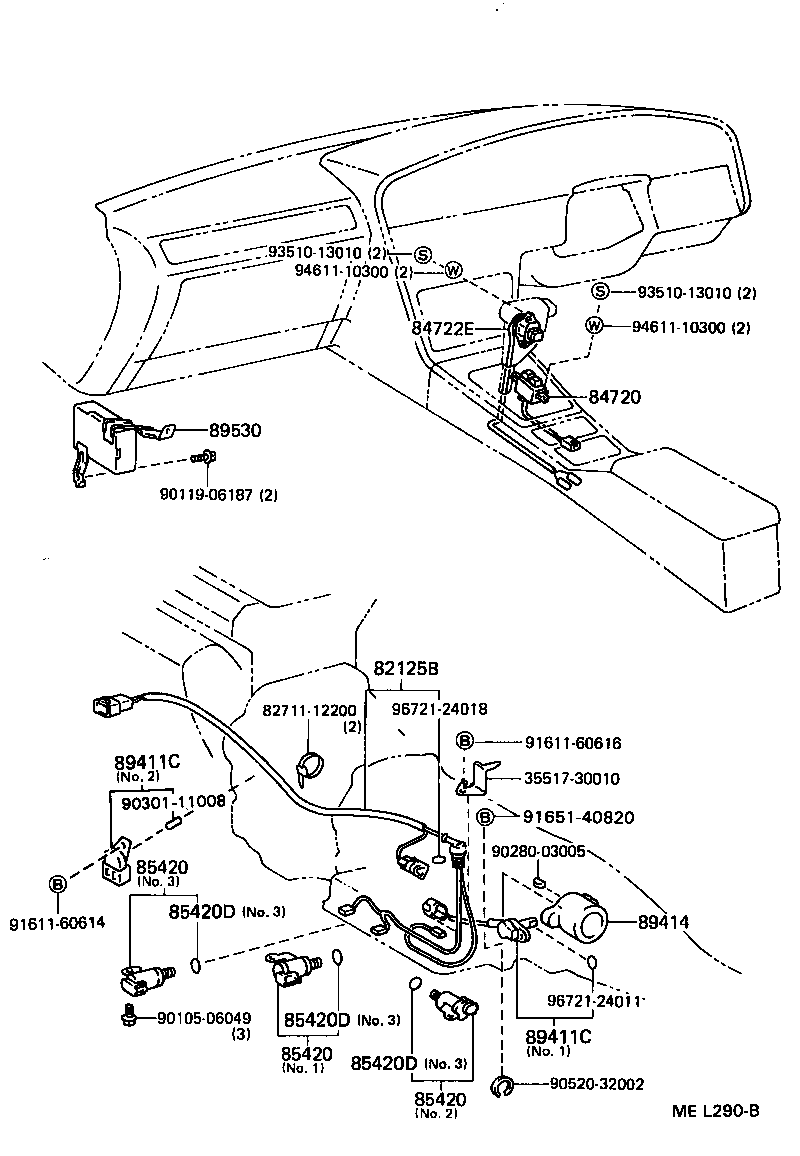

Click highlighted areas on diagram

ECT

diagram 3551730010 82125B 8271112200 84720 84722E 85420 85420 85420 85420D 85420D 85420D 89411C 89411C 89414 89530 9010506049 9011906187 9028003005 9030111008 9052032002 9161160614 9161160616 9165140820 9351013010 9351013010 9461110300 9461110300 9672124011 9672124018
Part # Description Qty Price
82125B - WIRE, TRANSMISSION
82125-24060

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTT)

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-14071

GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR)

 1
84722E - SWITCH, TRANSMISSION CONTROL
84722-1408001

GA70,MA70..4FC

BLACK,TRIM1#,3#,8#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-30110

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTL,GTT)

NO.3,AISIN

 1
85420-22080

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTL,GTT)

NO.1 OR NO.2

 2
85420-30120

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTL,GTT)

NO.3,NIPPONDENSO

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-30110

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTL,GTT)

NO.3,AISIN

 1
85420-22080

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTL,GTT)

NO.1 OR NO.2

 2
85420-30120

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTL,GTT)

NO.3,NIPPONDENSO

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-30110

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTL,GTT)

NO.3,AISIN

 1
85420-22080

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTL,GTT)

NO.1 OR NO.2

 2
85420-30120

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTL,GTT)

NO.3,NIPPONDENSO

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTL,GTT)

NO.3

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTL,GTT)

NO.3

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTL,GTT)

NO.3

 3
89411C - SENSOR, SPEED
89411-22061

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTT)

NO.1

 1
89411-22060

GA70,MA70..4FC..(GT,GTT)

NO.1

 1
89411C - SENSOR, SPEED
89411-22061

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTT)

NO.1

 1
89411-22060

GA70,MA70..4FC..(GT,GTT)

NO.1

 1
89414 - ROTOR, SENSOR
89414-30020

GA70,MA70..4FC..(GT,GTT)

 1
89414-30021

GA70..WIB..5F;GA70,MA70..4FC..(GT,GTT)

 1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-14370

MA70..4FC

 1
Common parts
35517-30010
82711-12200
90105-06049
90119-06187
90280-03005
90301-11008
90520-32002
91611-60614
91611-60616
91651-40820
93510-13010
94611-10300
96721-24011
96721-24018
