MA70-BLPVZ (1988)
Toyota Supra
Production
Aug 1988
-
Aug 1990
Engine
7MGTEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

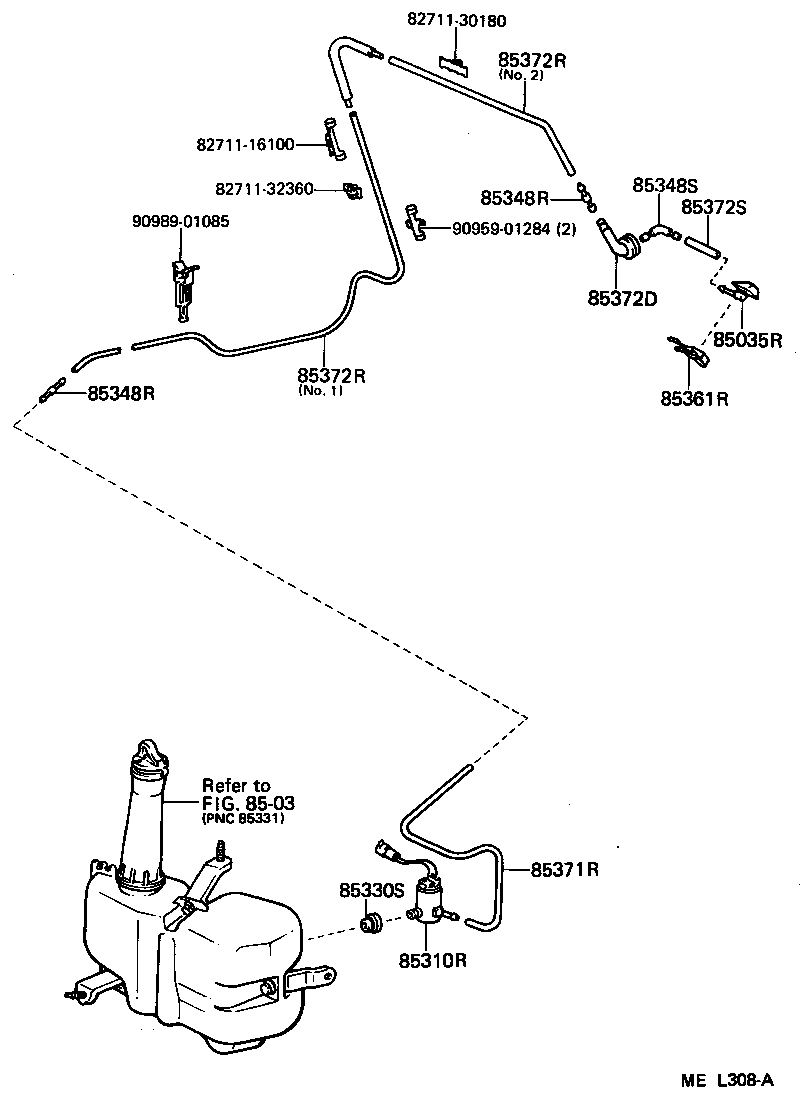

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85035-14340 |
GA70,JZA70,MA70 |
1 | ||
| 85310R - MOTOR ASSY, REAR WASHER | ||||
| 85310-22080 |
GA70,JZA70,MA70 |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 90099-32089 |
GA70,JZA70,MA70 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GA70,JZA70,MA70 |
2 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GA70,JZA70,MA70 |
2 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
GA70,JZA70,MA70 |
1 | ||
| 85361R - HOLDER, REAR WASHER | ||||
| 85342-14160 |
GA70,JZA70,MA70 |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
GA70,JZA70,MA70 長さ=1000 |
1 | ||
| 85372D - GROMMET, REAR WASHER HOSE | ||||
| 85372-14030 |
GA70,JZA70,MA70 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33543 |
GA70,JZA70,MA70 *H,L=3540,NO.1 |
1 | ||
| 90446-07001 |
GA70,JZA70,MA70 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33543 |
GA70,JZA70,MA70 *H,L=3540,NO.1 |
1 | ||
| 90446-07001 |
GA70,JZA70,MA70 NO.2 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33299 |
GA70,JZA70,MA70 長さ=1000 |
1 | ||
| Common parts | ||||
| 82711-16100 | ||||
| 82711-30180 | ||||
| 82711-32360 | ||||
| 90959-01284 | ||||
| 90989-01085 | ||||
| Linked diagrams | ||||
| 8503 | ||||
