MA70-BLPVZ (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 7MGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )

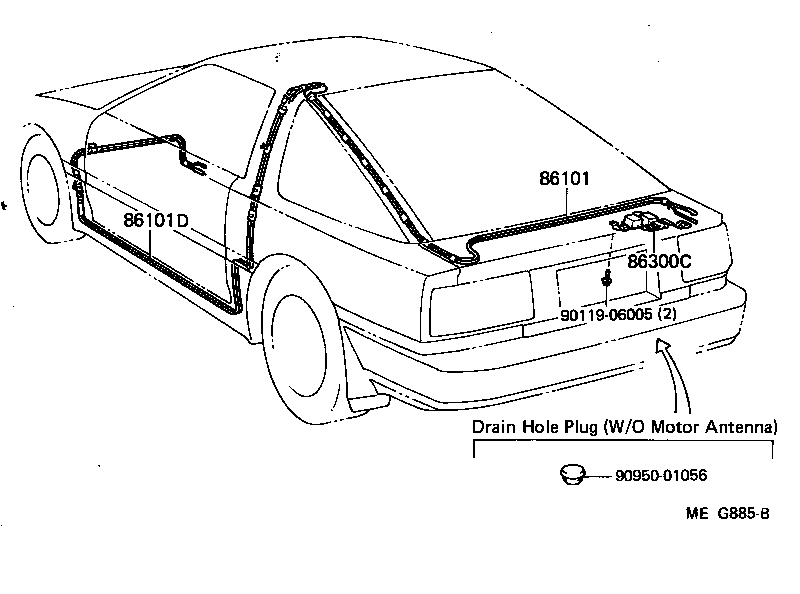

Click highlighted areas on diagram

diagram 86101 86101D 86300C 9011906005 9095001056
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-14370

GA70,MA70

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86203-14090

GA70,MA70..G,GT,GTT

W/DISC PLAYER

 1
86203-14091

GA70,MA70..G,GT,GTL,GTT

W/DISC PLAYER

 1
86101-14380

GA70,MA70

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-14340

GA70,MA70

 1
86300-14341

GA70,MA70

 1
Common parts
90119-06005
90950-01056
