MA70-BLPVZ (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 7MGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

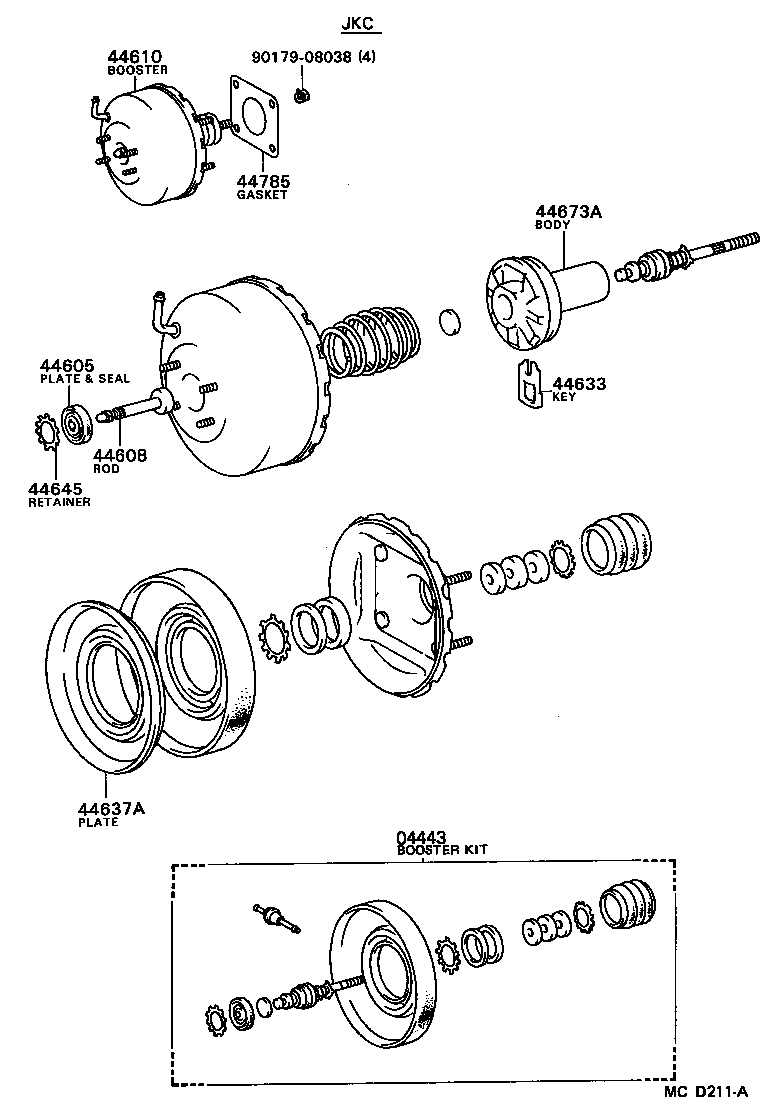

ILLUST NO. 1 OF 2(8602- )G,S

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-24060

GA70,MA70..GTL,GTT

 1
04443-14500

GA70,MA70..GTL,GTT

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-20810

GA70,MA70..GT,GTL,GTT

 1
44610 - BOOSTER ASSY, BRAKE
44610-14720

GA70,MA70..GTL,GTT

 1
44610-24060

GA70,MA70..GTL,GTT

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-20810

GA70,MA70..GT,GTL,GTT

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-28300

GA70,MA70..GTL,GTT

 1
44673A - BODY, BOOSTER VALVE
44673-20810

GA70,MA70..GT,GTL,GTT

 1
44785 - GASKET, BRAKE BOOSTER
44785-30020

GA70,MA70

 1
Common parts
90179-08038

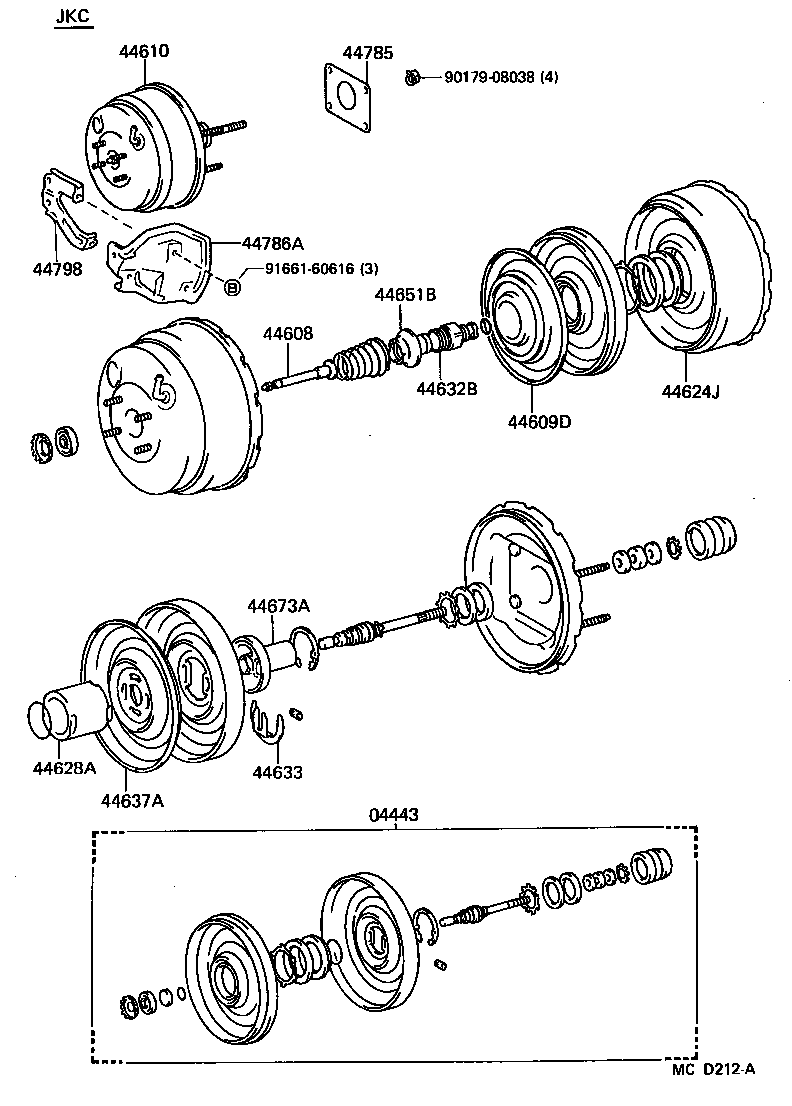

ILLUST NO. 1 OF 2(8602- )GT,GTL,GTT

Click highlighted areas on diagram

diagram 04443 44608 44609D 44610 44624J 44628A 44632B 44633 44637A 44651B 44673A 44785 44786A 44798 9017908038 9166160616
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-24060

GA70,MA70..GTL,GTT

 1
04443-14500

GA70,MA70..GTL,GTT

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-20810

GA70,MA70..GT,GTL,GTT

 1
44609D - PLATE & RETAINER SUB-ASSY, BOOSTER
44609-28300

GA70,MA70..GTL,GTT

 1
44610 - BOOSTER ASSY, BRAKE
44610-14720

GA70,MA70..GTL,GTT

 1
44610-24060

GA70,MA70..GTL,GTT

 1
44624J - PLATE, BOOSTER CENTER
44624-28300

GA70,MA70..GTL,GTT

 1
44628A - BODY, BOOSTER CENTER
44628-20810

GA70,MA70..GT,GTL,GTT

 1
44632B - HUB, BOOSTER REACTION DISK
44632-20810

GA70,MA70..GT,GTL,GTT

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-20810

GA70,MA70..GT,GTL,GTT

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-28300

GA70,MA70..GTL,GTT

 1
44651B - NUT, BOOSTER
44651-20810

GA70,MA70..GT,GTL,GTT

 1
44673A - BODY, BOOSTER VALVE
44673-20810

GA70,MA70..GT,GTL,GTT

 1
44785 - GASKET, BRAKE BOOSTER
44785-30020

GA70,MA70

 1
44786A - INSULATOR, BRAKE BOOSTER HEAT
44786-14030

GA70,MA70..GTL,GTT

 1
44798 - BRACKET, HEAT INSULATOR, NO.3
44798-14030

GA70,MA70..GTL,GTT

 1
Common parts
90179-08038
91661-60616

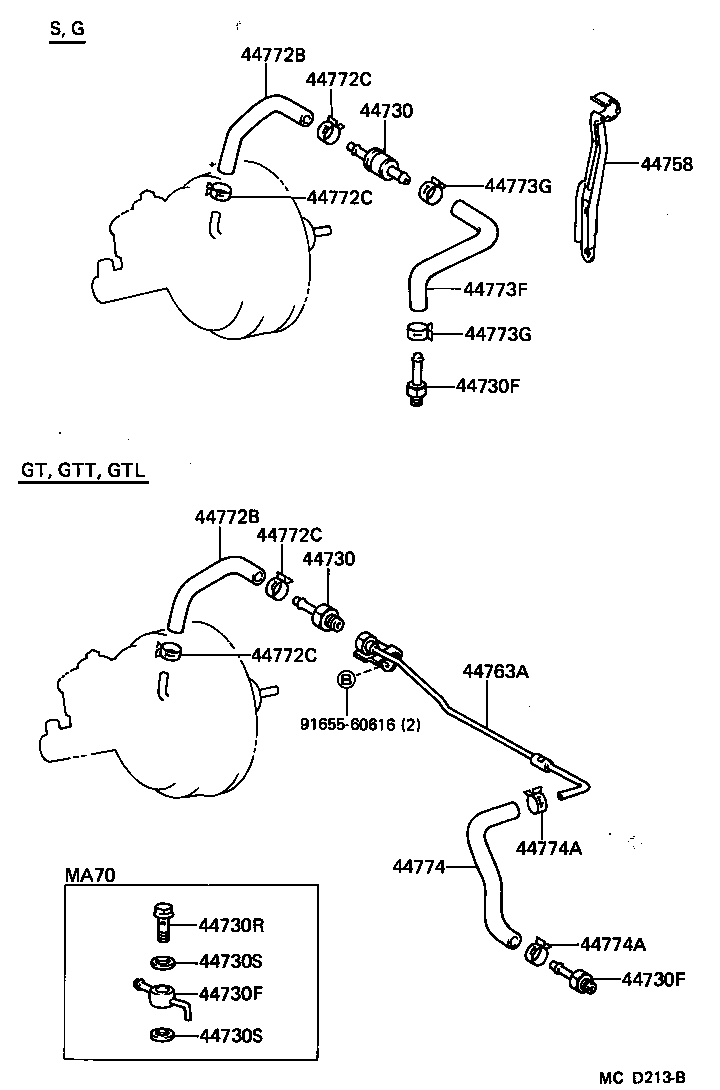

ILLUST NO. 2 OF 2(8602- )

Click highlighted areas on diagram

diagram 44730 44730 44730F 44730F 44730F 44730R 44730S 44730S 44758 44763A 44772B 44772B 44772C 44772C 44772C 44772C 44773F 44773G 44773G 44774 44774A 44774A 9165560616
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

GA70,MA70..GT,GTL,GTT

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

GA70,MA70..GT,GTL,GTT

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09120

MA70

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09120

MA70

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09120

MA70

 1
44730R - BOLT, UNION(FOR VACUUM HOSE UNION)
90401-12012

MA70

 1
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005

MA70

 2
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005

MA70

 2
44763A - TUBE, HOSE TO HOSE, NO.1
44763-14040

MA70

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-14180

GA70,MA70..GTL,GTT

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-14180

GA70,MA70..GTL,GTT

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

GA70,MA70

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

GA70,MA70

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

GA70,MA70

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

GA70,MA70

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-14030

MA70

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16002

GA70,MA70..GT,GTL,GTT

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16002

GA70,MA70..GT,GTL,GTT

 2
Common parts
91655-60616

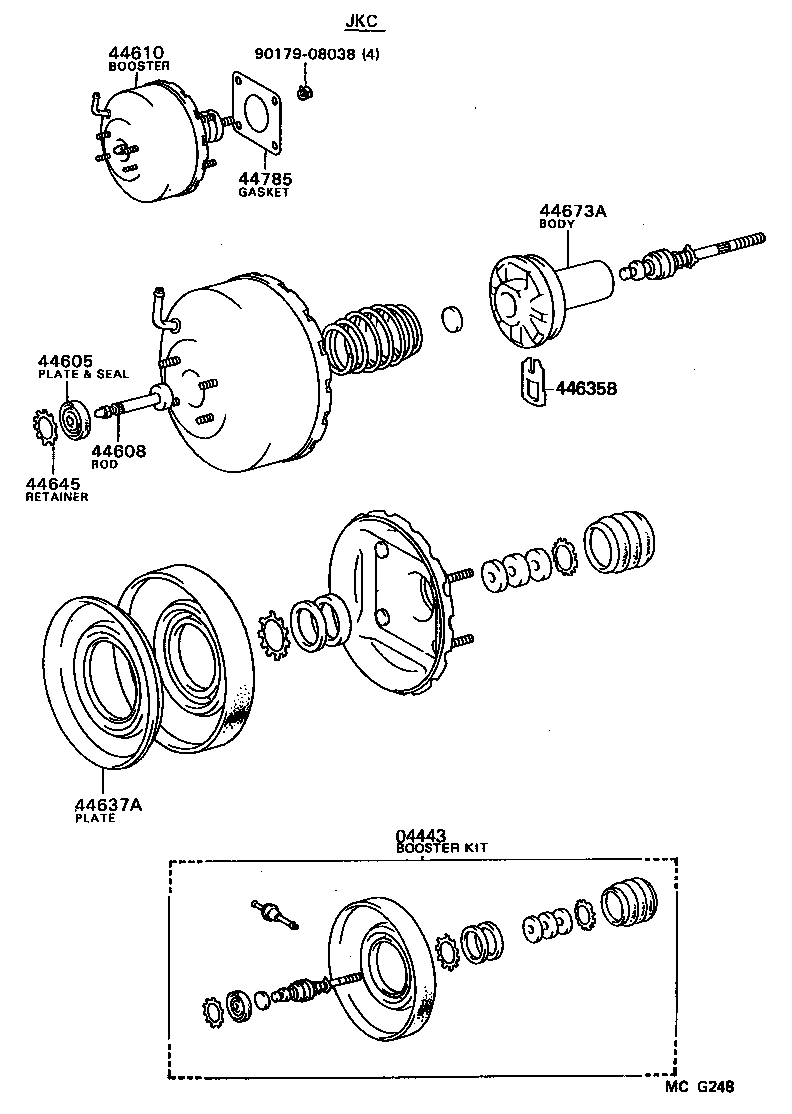

ILLUST NO. 1 OF 2(8808-9008)G

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44635B 44637A 44645 44673A 44785 9017908038
Part # Description Qty Price
Common parts
90179-08038
