MA70-BLPVZ (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 7MGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )4FC..G,GT,S

Click highlighted areas on diagram

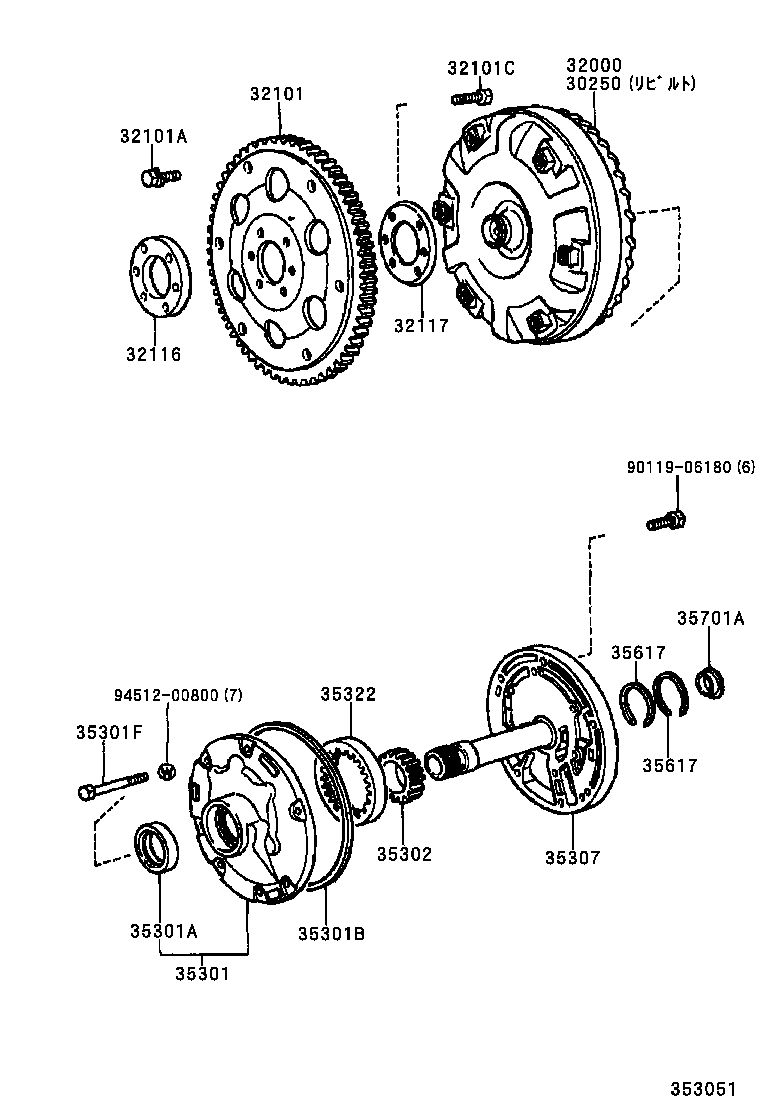

diagram 30250 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35302 35307 35322 35617 35617 35701A 9011906180 9451200800
Part # Description Qty Price
30250 - CONVERTER ASSY, TORQUE, REBUILT
30250-14120

MA70..4FC

 1
32000 - CONVERTER ASSY, TORQUE
32000-14120

MA70..4FC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-14051

MA70..4FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09010

GA70,MA70..4FC..(GTL,GTT)

*9−1.25PX12.8−9

 1
90119-09009

GA70,MA70..4FC..(GTL,GTT)

*9−1.25PX12.8−8.8

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90109-10037

MA70..4FC

*10−1.25PX18−12

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-30011

MA70..4FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-30011

MA70..4FC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-30040

GA70,MA70..4FC..(GTL,GTT)

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38029

GA70,MA70..4FC..(GTL,GTT)

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99033

GA70,MA70..4FC..(GTL,GTT)

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08091

GA70,MA70..4FC..(GTL,GTT)

*8−1.25PX35−35

 1
35307 - SHAFT SUB-ASSY, STATOR
35370-30031

GA70,MA70..4FC..(GTL,GTT)

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-32050

GA70,MA70..4FC..(GTL,GTT)

厚さ=9.456−9.474

 1
35322-32020

GA70,MA70..4FC..GTT

厚さ=9.465−9.440

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020

GA70,MA70..4FC..(GTL,GTT)

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020

GA70,MA70..4FC..(GTL,GTT)

 2
Common parts
90119-06180
94512-00800

(8602- )4FC..GTL,GTT

Click highlighted areas on diagram

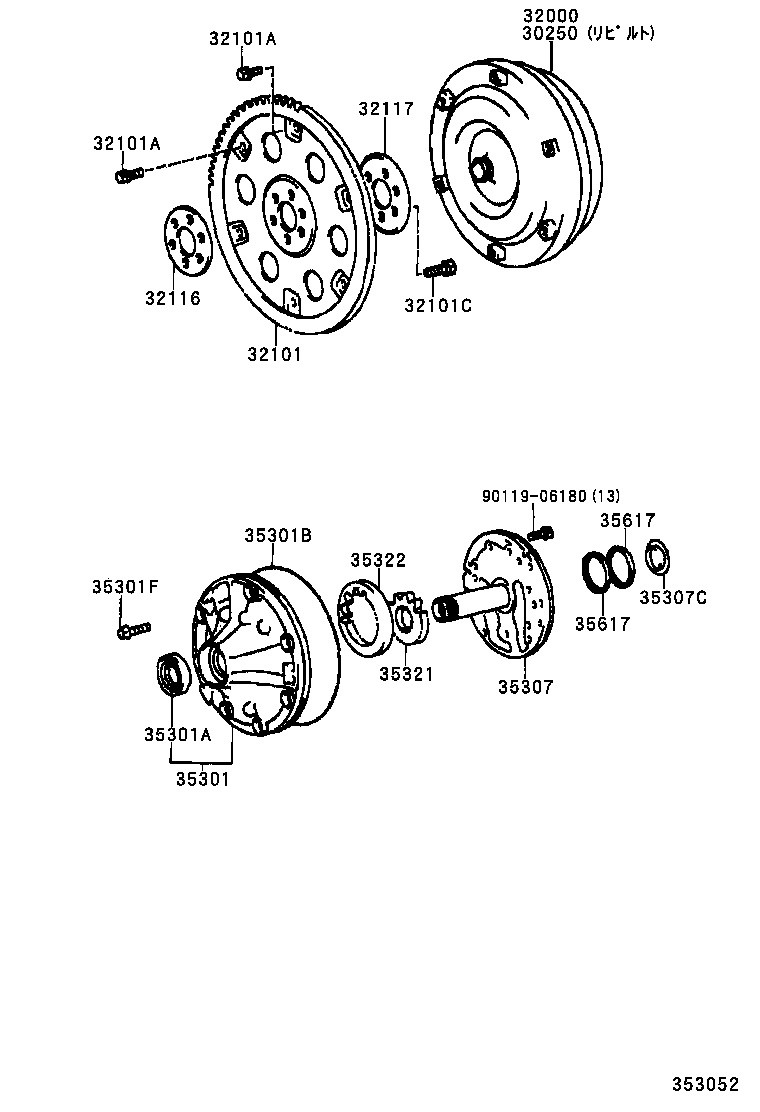

diagram 30250 32000 32101 32101A 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35307 35307C 35321 35322 35617 35617 9011906180
Part # Description Qty Price
30250 - CONVERTER ASSY, TORQUE, REBUILT
30250-14120

MA70..4FC

 1
32000 - CONVERTER ASSY, TORQUE
32000-14120

MA70..4FC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-14051

MA70..4FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09010

GA70,MA70..4FC..(GTL,GTT)

*9−1.25PX12.8−9

 1
90119-09009

GA70,MA70..4FC..(GTL,GTT)

*9−1.25PX12.8−8.8

 5
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09010

GA70,MA70..4FC..(GTL,GTT)

*9−1.25PX12.8−9

 1
90119-09009

GA70,MA70..4FC..(GTL,GTT)

*9−1.25PX12.8−8.8

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90109-10037

MA70..4FC

*10−1.25PX18−12

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-30011

MA70..4FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-30011

MA70..4FC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-30040

GA70,MA70..4FC..(GTL,GTT)

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38029

GA70,MA70..4FC..(GTL,GTT)

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99033

GA70,MA70..4FC..(GTL,GTT)

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08091

GA70,MA70..4FC..(GTL,GTT)

*8−1.25PX35−35

 1
35307 - SHAFT SUB-ASSY, STATOR
35370-30031

GA70,MA70..4FC..(GTL,GTT)

 1
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-30020

GA70,MA70..4FC..(GTL,GTT)

厚さ=3.7

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-32020

GA70,MA70..4FC..GTT

厚さ=9.465−9.440

 1
35321-32050

GA70,MA70..4FC..(GTL,GTT)

厚さ=9.456−9.474

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-32050

GA70,MA70..4FC..(GTL,GTT)

厚さ=9.456−9.474

 1
35322-32020

GA70,MA70..4FC..GTT

厚さ=9.465−9.440

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020

GA70,MA70..4FC..(GTL,GTT)

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020

GA70,MA70..4FC..(GTL,GTT)

 2
Common parts
90119-06180

(8808-9008)4FC..G

Click highlighted areas on diagram

A42DL

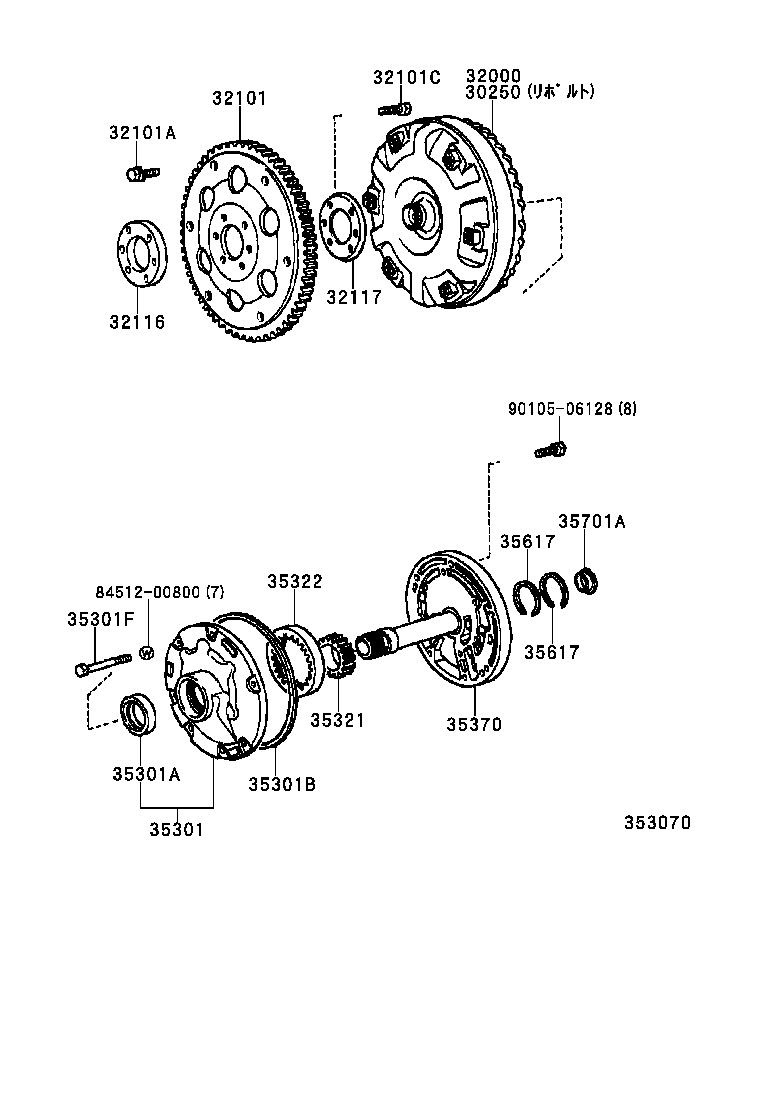

diagram 30250 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35321 35322 35370 35617 35617 35701A 8451200800 9010506128
Part # Description Qty Price
Common parts
84512-00800
90105-06128
