MA70-BLMZZ (1988)
Toyota Supra

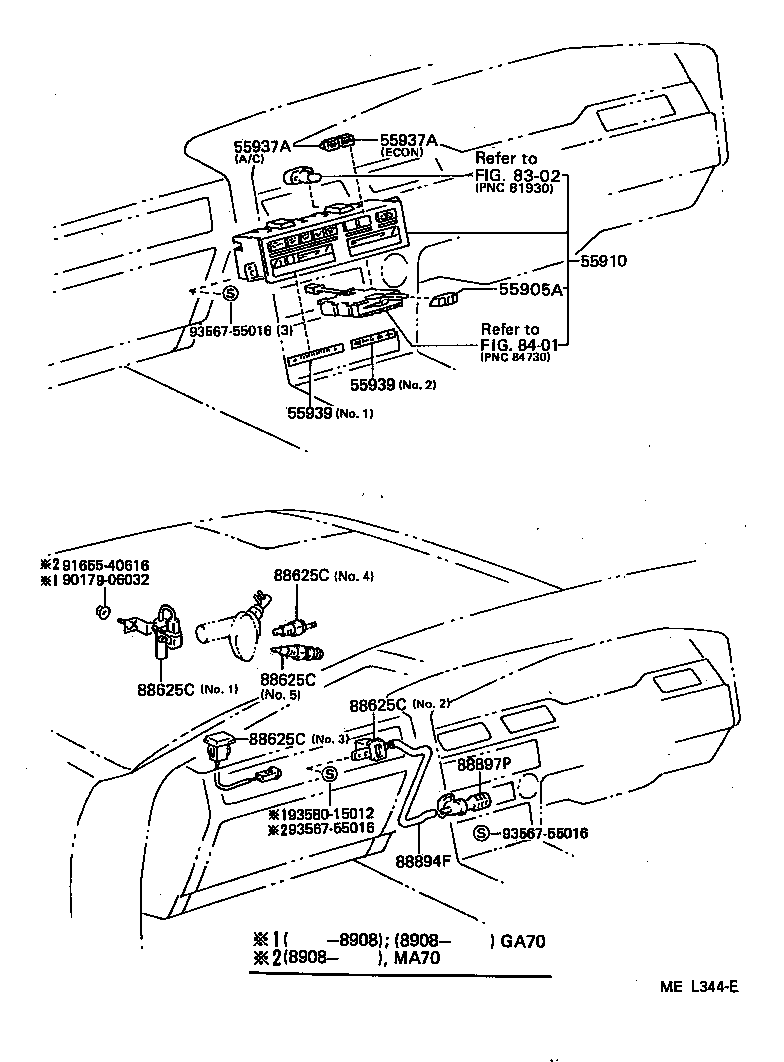

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-14190 |
GA70,JZA70,MA70 |
2 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55900-14440 |
GA70,MA70 |
1 | ||
| 55900-14460 |
GA70,MA70 ｱﾘ(ｵｰﾄｴｱｺﾝ) |
1 | ||
| 55937A - KNOB, COOLER CONTROL LEVER | ||||
| 55905-14180 |
GA70,MA70 ECON |
1 | ||
| 55905-14170 |
GA70,MA70 A/C |
1 | ||
| 55937A - KNOB, COOLER CONTROL LEVER | ||||
| 55905-14180 |
GA70,MA70 ECON |
1 | ||
| 55905-14170 |
GA70,MA70 A/C |
1 | ||
| 55939 - ORNAMENT, HEATER CONTROL | ||||
| 81942-14120 |
GA70,MA70 NO.1 |
1 | ||
| 81942-14130 |
GA70,MA70 NO.2 |
1 | ||
| 55939 - ORNAMENT, HEATER CONTROL | ||||
| 81942-14120 |
GA70,MA70 NO.1 |
1 | ||
| 81942-14130 |
GA70,MA70 NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-14090 |
MA70;GA70..GT NO.2 |
1 | ||
| 88790-14110 |
MA70;GA70..GT NO.1 |
1 | ||
| 88625-20140 |
MA70;GA70..GT NO.3 |
1 | ||
| 88790-24090 |
MA70 NO.5 |
1 | ||
| 88790-24090 |
GA70..GT;GA70,MA70..WIB NO.5 |
1 | ||
| 88790-24110 |
GA70,MA70..WIB NO.4 |
1 | ||
| 88790-24110 |
MA70 NO.4 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-14090 |
MA70;GA70..GT NO.2 |
1 | ||
| 88790-14110 |
MA70;GA70..GT NO.1 |
1 | ||
| 88625-20140 |
MA70;GA70..GT NO.3 |
1 | ||
| 88790-24090 |
MA70 NO.5 |
1 | ||
| 88790-24090 |
GA70..GT;GA70,MA70..WIB NO.5 |
1 | ||
| 88790-24110 |
GA70,MA70..WIB NO.4 |
1 | ||
| 88790-24110 |
MA70 NO.4 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-14090 |
MA70;GA70..GT NO.2 |
1 | ||
| 88790-14110 |
MA70;GA70..GT NO.1 |
1 | ||
| 88625-20140 |
MA70;GA70..GT NO.3 |
1 | ||
| 88790-24090 |
MA70 NO.5 |
1 | ||
| 88790-24090 |
GA70..GT;GA70,MA70..WIB NO.5 |
1 | ||
| 88790-24110 |
GA70,MA70..WIB NO.4 |
1 | ||
| 88790-24110 |
MA70 NO.4 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-14090 |
MA70;GA70..GT NO.2 |
1 | ||
| 88790-14110 |
MA70;GA70..GT NO.1 |
1 | ||
| 88625-20140 |
MA70;GA70..GT NO.3 |
1 | ||
| 88790-24090 |
MA70 NO.5 |
1 | ||
| 88790-24090 |
GA70..GT;GA70,MA70..WIB NO.5 |
1 | ||
| 88790-24110 |
GA70,MA70..WIB NO.4 |
1 | ||
| 88790-24110 |
MA70 NO.4 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-14090 |
MA70;GA70..GT NO.2 |
1 | ||
| 88790-14110 |
MA70;GA70..GT NO.1 |
1 | ||
| 88625-20140 |
MA70;GA70..GT NO.3 |
1 | ||
| 88790-24090 |
MA70 NO.5 |
1 | ||
| 88790-24090 |
GA70..GT;GA70,MA70..WIB NO.5 |
1 | ||
| 88790-24110 |
GA70,MA70..WIB NO.4 |
1 | ||
| 88790-24110 |
MA70 NO.4 |
1 | ||
| 88894F - HOSE, AIR | ||||
| 88669-14010 |
GA70,MA70 |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88897-14010 |
GA70,JZA70,MA70 |
1 | ||
| Common parts | ||||
| 90179-06032 | ||||
| 91655-40616 | ||||
| 93567-55016 | ||||
| 93580-15012 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

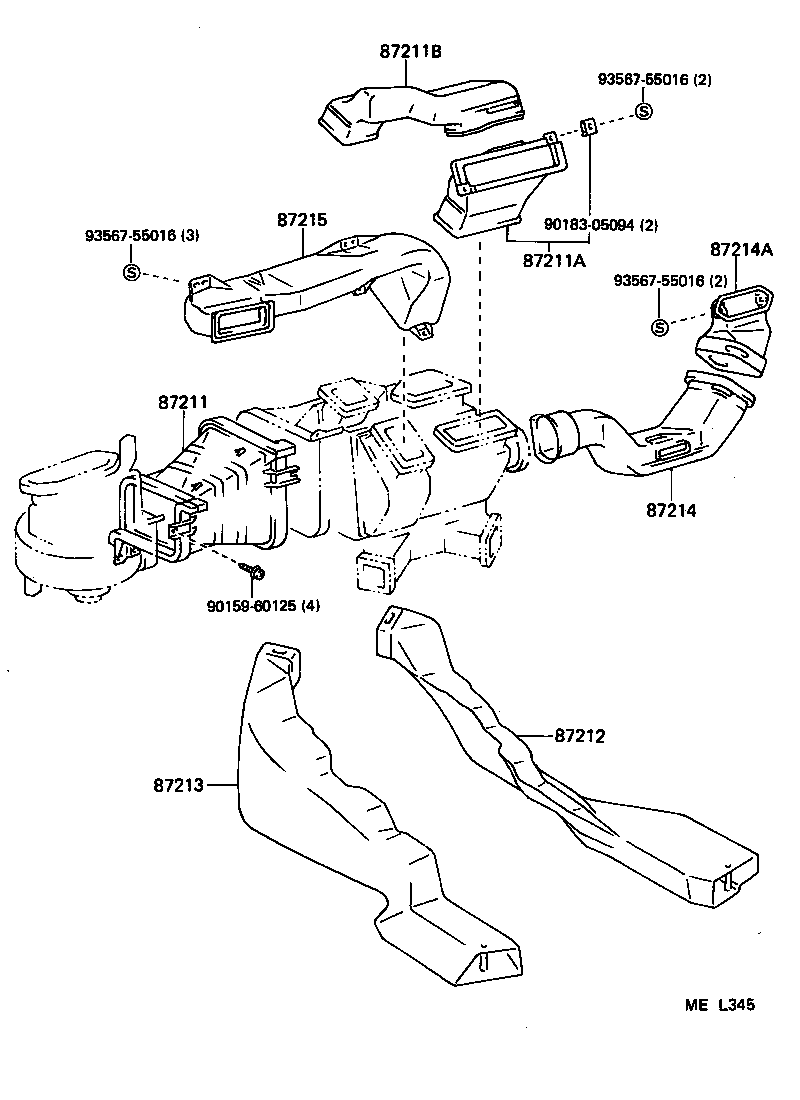

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-24040 |
GA70,MA70 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 55845-14180 |
GA70,JZA70,MA70 |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 55847-14080 |
GA70,JZA70,MA70 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-14050 |
GA70,JZA70,MA70..G,GT,GTL,GTT,GTTR |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-14020 |
GA70,JZA70,MA70..G,GT,GTL,GTT,GTTR |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55844-14150 |
GA70,JZA70,MA70 |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 55843-14130 |
GA70,JZA70,MA70 |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55846-14110 |
GA70,JZA70,MA70 |
1 | ||
| Common parts | ||||
| 90159-60125 | ||||
| 90183-05094 | ||||
| 93567-55016 | ||||
