MA70-BLMVZ (1988)
Toyota Supra

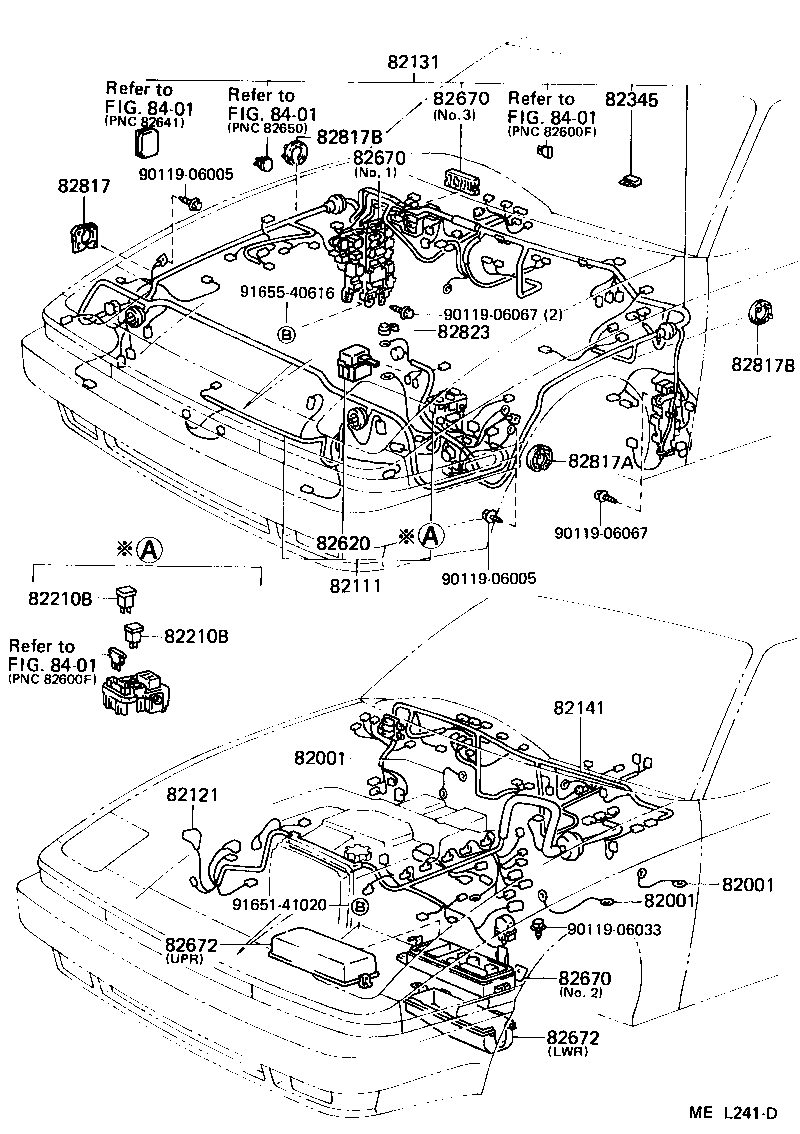

ILLUST NO. 1 OF 4(8808-9008)MA70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07308 |
MA70;GA70..GT TO ENGINE |
1 | ||
| 90980-07268 |
GA70,MA70 TO EXTENSION |
1 | ||
| 90980-07176 |
GA70,JZA70,MA70 TO CLUTCH |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07308 |
MA70;GA70..GT TO ENGINE |
1 | ||
| 90980-07268 |
GA70,MA70 TO EXTENSION |
1 | ||
| 90980-07176 |
GA70,JZA70,MA70 TO CLUTCH |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07308 |
MA70;GA70..GT TO ENGINE |
1 | ||
| 90980-07268 |
GA70,MA70 TO EXTENSION |
1 | ||
| 90980-07176 |
GA70,JZA70,MA70 TO CLUTCH |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1B170 |
MA70..GTL,GTT |
1 | ||
| 82111-1B171 |
MA70 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-14510 |
MA70..5F..(GTL,GTT) |
1 | ||
| 82121-14511 |
MA70..5F |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1D020 |
MA70..5F..(GTL,GTT) |
1 | ||
| 82131-1D021 |
MA70..5F |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-14871 |
MA70 |
1 | ||
| 82141-14861 |
MA70..GTT ﾅｼ(TEMS) |
1 | ||
| 82141-14870 |
MA70..GTL,GTT |
1 | ||
| 82210B - FUSIBLE LINK | ||||
| 90982-08223 |
MA70 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08202 |
MA70 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08203 |
MA70 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08254 |
MA70 120A,ｵｽ端子,白 |
1 | ||
| 90982-08189 |
GA70,JZA70,MA70 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08190 |
MA70..GTL,GTT;GA70,JZA70..G,GT,GTL 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08253 |
MA70 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
MA70 80A,ｵｽ端子,黒 |
1 | ||
| 82210B - FUSIBLE LINK | ||||
| 90982-08223 |
MA70 30A,ｵｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08202 |
MA70 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08203 |
MA70 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08254 |
MA70 120A,ｵｽ端子,白 |
1 | ||
| 90982-08189 |
GA70,JZA70,MA70 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08190 |
MA70..GTL,GTT;GA70,JZA70..G,GT,GTL 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08253 |
MA70 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
MA70 80A,ｵｽ端子,黒 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
GA70;MA70..5F..(GTL,GTT) |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-24020 |
MA70 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82671-14020 |
GA70,JZA70,MA70 NO.3 |
1 | ||
| 82671-24010 |
GA70,JZA70,MA70 NO.2 |
1 | ||
| 82671-20030 |
GA70,JZA70,MA70 NO.1 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82671-14020 |
GA70,JZA70,MA70 NO.3 |
1 | ||
| 82671-24010 |
GA70,JZA70,MA70 NO.2 |
1 | ||
| 82671-20030 |
GA70,JZA70,MA70 NO.1 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82671-14020 |
GA70,JZA70,MA70 NO.3 |
1 | ||
| 82671-24010 |
GA70,JZA70,MA70 NO.2 |
1 | ||
| 82671-20030 |
GA70,JZA70,MA70 NO.1 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-24010 |
GA70,JZA70,MA70 下側 |
1 | ||
| 82672-24060 |
MA70 上側 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-24010 |
GA70,JZA70,MA70 下側 |
1 | ||
| 82672-24060 |
MA70 上側 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24150 |
MA70 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-24100 |
GA70,JZA70,MA70 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-24110 |
GA70,JZA70,MA70 |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-24110 |
GA70,JZA70,MA70 |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-24030 |
MA70 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06033 | ||||
| 90119-06067 | ||||
| 91651-41020 | ||||
| 91655-40616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

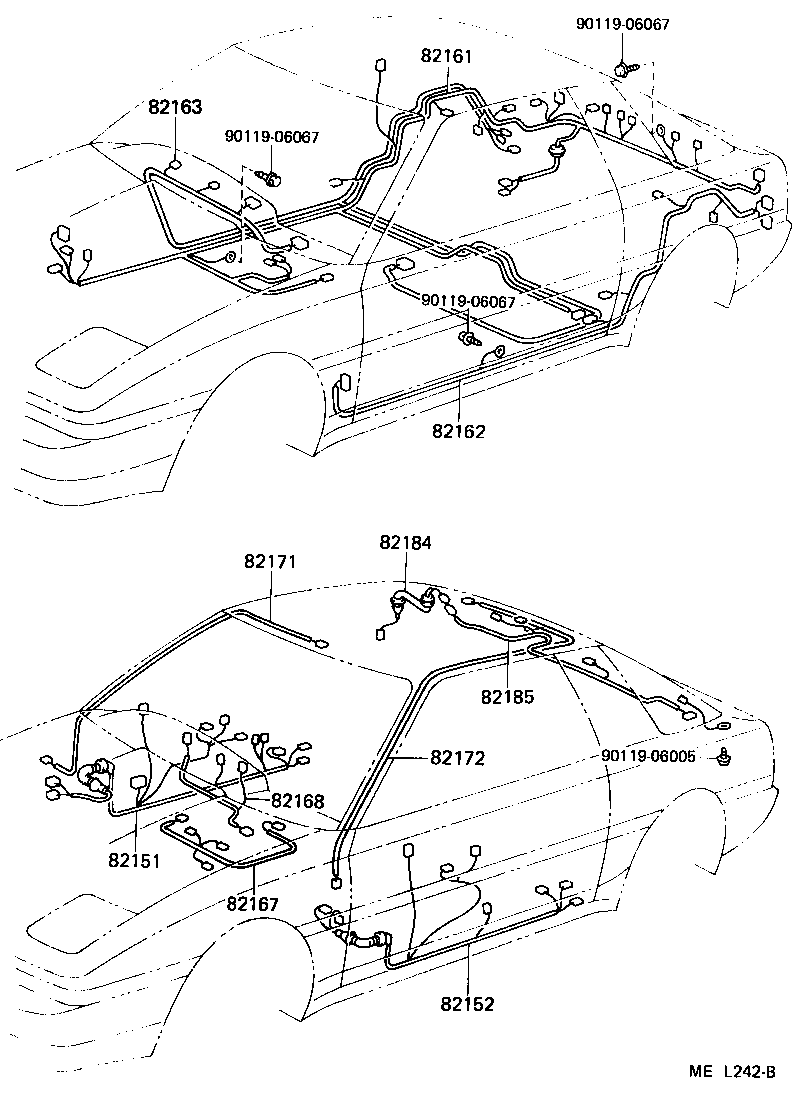

ILLUST NO. 2 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-14440 |
MA70 |
1 | ||
| 82151-14411 |
MA70..GTT ﾅｼ(TEMS) & ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82151-14430 |
MA70 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82151-14421 |
MA70..GTT ﾅｼ(TEMS) |
1 | ||
| 82151-14441 |
MA70 |
1 | ||
| 82151-14431 |
MA70 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-14360 |
MA70 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152-14370 |
GA70,MA70..GT,GTL,GTT,GTTL |
1 | ||
| 82152-14361 |
MA70 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152-14371 |
GA70,MA70..GT,GTL,GTT |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-14770 |
GA70,MA70 |
1 | ||
| 82161-14771 |
GA70,MA70..WIB |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-14071 |
MA70 |
1 | ||
| 82162-14070 |
MA70..GTL,GTT |
1 | ||
| 82162-14061 |
MA70..GTT ﾅｼ(TEMS) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-14070 |
JZA70,MA70..GTL,GTT |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82167-24030 |
GA70,JZA70,MA70..G,GT,GTL,GTT,GTTL |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-14210 |
GA70,JZA70,MA70..LB |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-14080 |
GA70,JZA70,MA70 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-14160 |
GA70,JZA70,MA70 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||

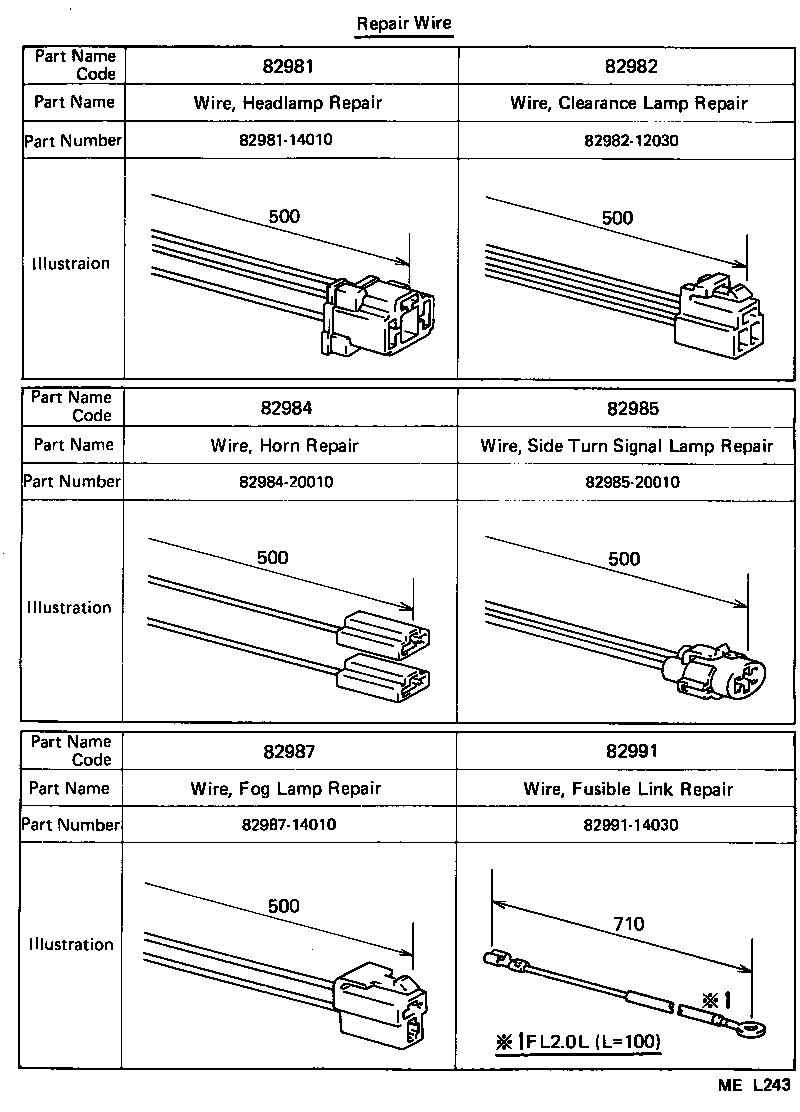

ILLUST NO. 3 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-14010 |
GA70,JZA70,MA70 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-12030 |
GA70,JZA70,MA70 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
GA70,JZA70,MA70 |
1 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-20010 |
GA70,JZA70,MA70 |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-14010 |
GA70,JZA70,MA70 |
1 | ||
| Common parts | ||||
| 82981-14010 | ||||
| 82982-12030 | ||||
| 82984-20010 | ||||
| 82985-20010 | ||||
| 82987-14010 | ||||
| 82991-14030 | ||||
ILLUST NO. 4 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-22020 | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-14560 | ||||
| 82711-1A210 | ||||
| 82711-1B020 | ||||
| 82711-22620 | ||||
| 82711-24060 | ||||
| 82711-24070 | ||||
| 82711-24220 | ||||
| 82711-24230 | ||||
| 82711-24240 | ||||
| 82711-24290 | ||||
| 82711-24310 | ||||
| 82711-24330 | ||||
| 82711-24370 | ||||
| 82711-30130 | ||||
| 82711-32360 | ||||
| 82711-95015 | ||||
| 82715-22280 | ||||
| 82715-30160 | ||||
| 90461-06303 | ||||
| 90461-08312 | ||||
| 90463-10012 | ||||
| 90949-01217 | ||||
ILLUST NO. 4 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-22030 | ||||
| 82711-12120 | ||||
| 82711-17260 | ||||
| 82711-22270 | ||||
| 82711-24040 | ||||
| 82711-2A090 | ||||
| 82711-2A130 | ||||
| 82711-2B660 | ||||
| 82715-22200 | ||||
| 82819-14230 | ||||
| 90467-09043 | ||||

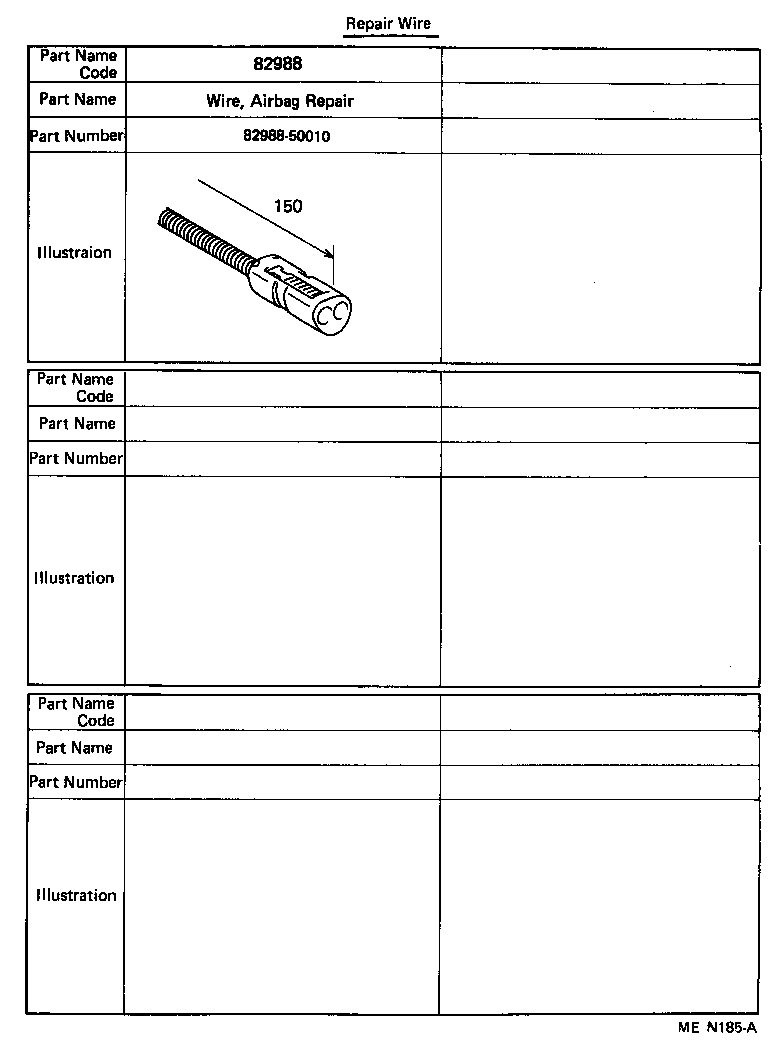

ILLUST NO. 3 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82988-50010 | ||||
