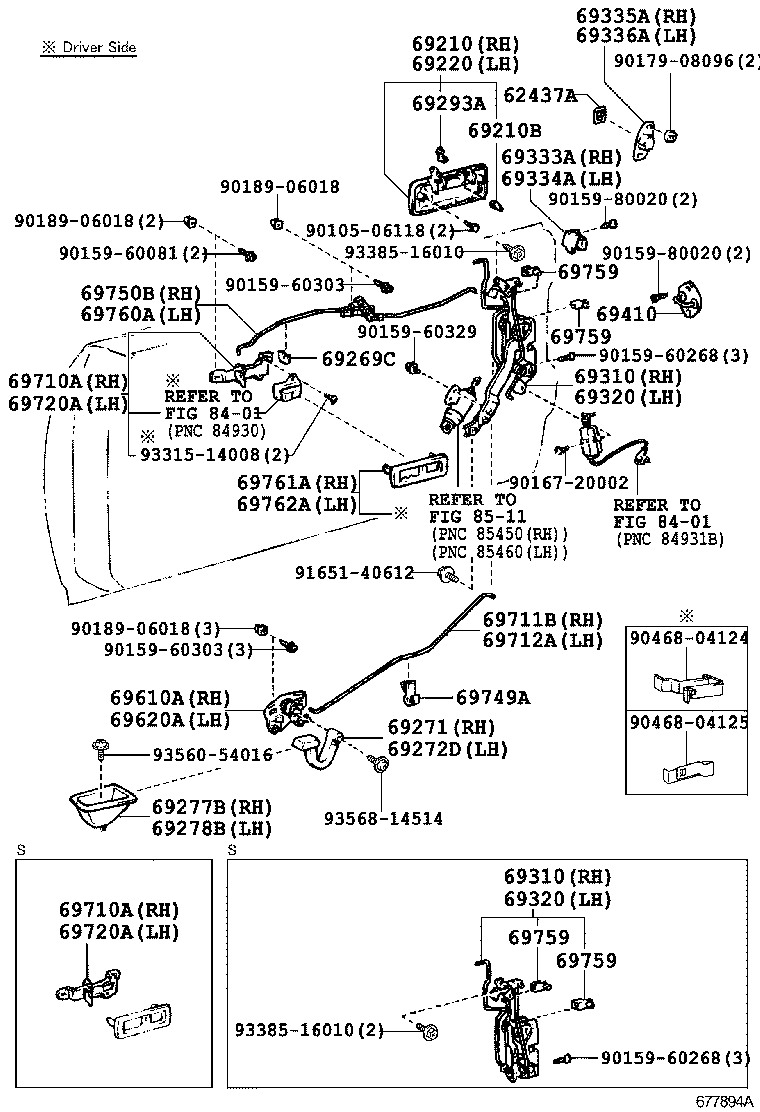

MA70-BLMVZ (1988)
Toyota Supra
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-1409021 |
GA70,MA70..G,GT,GTL,GTT BLACK MICA,206 |
1 | ||
| 69210-1409034 |
GA70,MA70..G,GT,GTL,GTT BLUE METALLIC/MICA,8E3 |
1 | ||
| 69210-1409028 |
GA70,MA70..G,GT,GTL,GTT SUPER WHITE 3,043 |
1 | ||
| 69210-1409013 |
GA70,MA70..G,GT,GTL,GTT GRAY M.,167 |
1 | ||
| 69210-1409054 |
GA70,MA70 DARK BLUE M.M.,8G5 |
1 | ||
| 69210-1409032 |
GA70,MA70..G,GT,GTL,GTT RED MICA,3H4 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
GA70,JZA70,MA70 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-1410013 |
GA70,MA70..G,GT,GTL,GTT GRAY M.,167 |
1 | ||
| 69220-1410021 |
GA70,MA70..G,GT,GTL,GTT BLACK MICA,206 |
1 | ||
| 69220-1410028 |
GA70,MA70..G,GT,GTL,GTT SUPER WHITE 3,043 |
1 | ||
| 69220-1410032 |
GA70,MA70..G,GT,GTL,GTT RED MICA,3H4 |
1 | ||
| 69220-1410034 |
GA70,MA70..G,GT,GTL,GTT BLUE METALLIC/MICA,8E3 |
1 | ||
| 69220-1410054 |
GA70,MA70 DARK BLUE M. M.,8G5 |
1 | ||
| 69269C - SEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR) | ||||
| 69289-12010 |
GA70,JZA70,MA70 |
2 | ||
| 69271 - HANDLE, FRONT DOOR INSIDE, RH | ||||
| 69271-2009012 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 69271-2009013 |
GA70,MA70..G,GT,GTL,GTT MEDIUM GRAY,TRIM1# |
1 | ||
| 69271-2009004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 69272D - HANDLE, FRONT DOOR INSIDE, LH | ||||
| 69272-2006004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 69272-2006012 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 69272-2006013 |
GA70,MA70..G,GT,GTL,GTT MEDIUM GRAY,TRIM1# |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-1404004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 69277-1404003 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 69277-1404002 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-1401004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 69278-1401003 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 69278-1401002 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12050 |
GA70,JZA70,MA70 左側 |
1 | ||
| 69293-12060 |
GA70,JZA70,MA70 右側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-14350 |
GA70,JZA70,MA70 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-14350 |
GA70,JZA70,MA70 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-14310 |
GA70,JZA70,MA70 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-14310 |
GA70,JZA70,MA70 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-12050 |
GA70,JZA70,MA70 |
2 | ||
| 69610A - CONTROL ASSY, FRONT DOOR LOCK REMOTE, RH | ||||
| 69610-14030 |
GA70,JZA70,MA70 |
1 | ||
| 69620A - CONTROL ASSY, FRONT DOOR LOCK REMOTE, LH | ||||
| 69620-14030 |
GA70,JZA70,MA70 |
1 | ||
| 69710A - LEVER ASSY, FRONT DOOR LOCK CONTROL, RH | ||||
| 69710-1407003 |
GA70,MA70 MEDIUM GRAY METALLIC,TRIM1# |
1 | ||
| 69710-1407004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 69710-1407002 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 69710A - LEVER ASSY, FRONT DOOR LOCK CONTROL, RH | ||||
| 69710-1407003 |
GA70,MA70 MEDIUM GRAY METALLIC,TRIM1# |
1 | ||
| 69710-1407004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 69710-1407002 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-14090 |
GA70,JZA70,MA70 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-14090 |
GA70,JZA70,MA70 |
1 | ||
| 69720A - LEVER ASSY, FRONT DOOR LOCK CONTROL, LH | ||||
| 69720-2006013 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 69720-2006004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 69720-2006012 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 69720A - LEVER ASSY, FRONT DOOR LOCK CONTROL, LH | ||||
| 69720-2006013 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 69720-2006004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 69720-2006012 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-20020 |
GA70,JZA70,MA70 |
2 | ||
| 69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-14010 |
GA70,JZA70,MA70 |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24050 |
GA70,JZA70,MA70 LOCKING LINK,RH |
1 | ||
| 69759-24060 |
GA70,JZA70,MA70 LOCKING LINK,LH |
1 | ||
| 69759-20200 |
GA70,JZA70,MA70 OPEN LINK,LH |
1 | ||
| 69759-20190 |
GA70,JZA70,MA70 OPEN LINK,RH |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24050 |
GA70,JZA70,MA70 LOCKING LINK,RH |
1 | ||
| 69759-24060 |
GA70,JZA70,MA70 LOCKING LINK,LH |
1 | ||
| 69759-20200 |
GA70,JZA70,MA70 OPEN LINK,LH |
1 | ||
| 69759-20190 |
GA70,JZA70,MA70 OPEN LINK,RH |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24050 |
GA70,JZA70,MA70 LOCKING LINK,RH |
1 | ||
| 69759-24060 |
GA70,JZA70,MA70 LOCKING LINK,LH |
1 | ||
| 69759-20200 |
GA70,JZA70,MA70 OPEN LINK,LH |
1 | ||
| 69759-20190 |
GA70,JZA70,MA70 OPEN LINK,RH |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24050 |
GA70,JZA70,MA70 LOCKING LINK,RH |
1 | ||
| 69759-24060 |
GA70,JZA70,MA70 LOCKING LINK,LH |
1 | ||
| 69759-20200 |
GA70,JZA70,MA70 OPEN LINK,LH |
1 | ||
| 69759-20190 |
GA70,JZA70,MA70 OPEN LINK,RH |
1 | ||
| 69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69760-14010 |
GA70,JZA70,MA70 |
1 | ||
| 69761A - BEZEL, DOOR LOCK CONTROL KNOB, RH | ||||
| 69761-1401004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 69761-1401012 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 69761-1401013 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 69762A - BEZEL, DOOR LOCK CONTROL KNOB, LH | ||||
| 69762-1402004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 69762-1402013 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 69762-1402012 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90105-06118 | ||||
| 90159-60081 | ||||
| 90159-60268 | ||||
| 90159-60303 | ||||
| 90159-60329 | ||||
| 90159-80020 | ||||
| 90167-20002 | ||||
| 90179-08096 | ||||
| 90189-06018 | ||||
| 90468-04124 | ||||
| 90468-04125 | ||||
| 91651-40612 | ||||
| 93315-14008 | ||||
| 93385-16010 | ||||
| 93560-54016 | ||||
| 93568-14514 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8511 | ||||
