MA70-BLMVZ (1988)
Toyota Supra

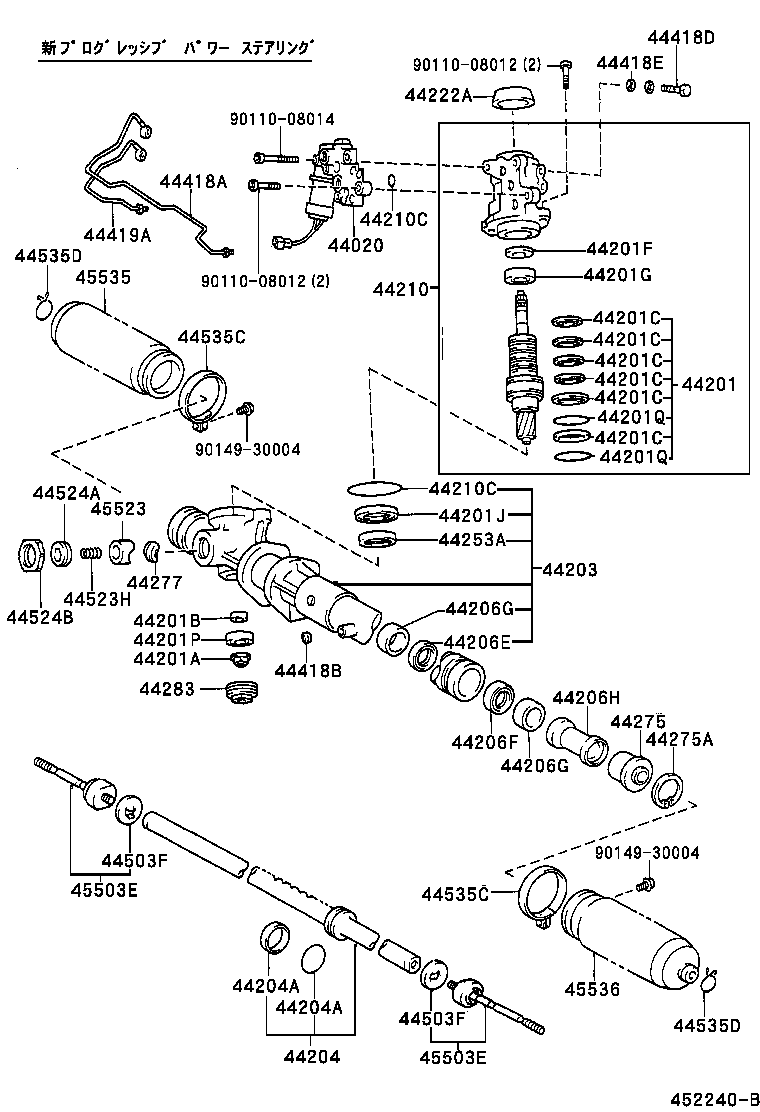

ILLUST NO. 2 OF 2(8808- )GTL,GTT,GTTL,GTTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE | ||||
| 44020-14020 |
GA70,MA70..GTL,GTT,GTTL |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-14140 |
MA70 |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 94184-61200 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-12030 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33005 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR OD=36.4 |
4 | ||
| 90562-50001 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33005 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR OD=36.4 |
4 | ||
| 90562-50001 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33005 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR OD=36.4 |
4 | ||
| 90562-50001 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33005 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR OD=36.4 |
4 | ||
| 90562-50001 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33005 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR OD=36.4 |
4 | ||
| 90562-50001 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33005 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR OD=36.4 |
4 | ||
| 90562-50001 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
2 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19006 |
GA70,JZA70,MA70 |
1 | ||
| 44201G - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19002 |
GA70,JZA70,MA70 |
1 | ||
| 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) | ||||
| 90363-30054 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12008 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
1 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-45002 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
2 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-45002 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
2 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-24020 |
JZA70,MA70 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-24020 |
JZA70,MA70 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-40001 |
MA70 外側 |
1 | ||
| 90301-36004 |
JZA70,MA70 内側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-40001 |
MA70 外側 |
1 | ||
| 90301-36004 |
JZA70,MA70 内側 |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-26007 |
MA70 |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-26007 |
MA70 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-27012 |
JZA70,MA70 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-27012 |
JZA70,MA70 |
1 | ||
| 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90561-27001 |
JZA70,MA70 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-14170 |
MA70 |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-11009 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR ID=11.8 |
3 | ||
| 90301-57003 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR ID=57.5 |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-11009 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR ID=11.8 |
3 | ||
| 90301-57003 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR ID=57.5 |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-32020 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-30005 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-24020 |
JZA70,MA70 |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-53002 |
JZA70,MA70 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-20020 |
GA70,JZA70,MA70 |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-12010 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-24020 |
GA70,MA70..GTL,GTT,GTTL |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04003 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
2 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-12017 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
2 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-12247 |
JZA70,MA70 KOJIMA |
4 | ||
| 90430-12013 |
JZA70,MA70 MURO KIN |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-24020 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
1 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14007 |
GA70,JZA70,MA70 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14007 |
GA70,JZA70,MA70 |
2 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23007 |
GA70,JZA70,MA70 |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
GA70,JZA70,MA70 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01082 |
JZA70,MA70 右側 |
1 | ||
| 90461-10709 |
JZA70,MA70 左側 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01082 |
JZA70,MA70 右側 |
1 | ||
| 90461-10709 |
JZA70,MA70 左側 |
1 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
GA70,JZA70,MA70 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
GA70,JZA70,MA70 |
2 | ||
| 45503E - END SUB-ASSY, STEERING RACK | ||||
| 45503-29175 |
GA70,JZA70,MA70 |
2 | ||
| 45503E - END SUB-ASSY, STEERING RACK | ||||
| 45503-29175 |
GA70,JZA70,MA70 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-20020 |
GA70,JZA70,MA70 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-14040 |
GA70,JZA70,MA70 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-24020 |
JZA70,MA70 |
1 | ||
| Common parts | ||||
| 90110-08012 | ||||
| 90110-08014 | ||||
| 90149-30004 | ||||

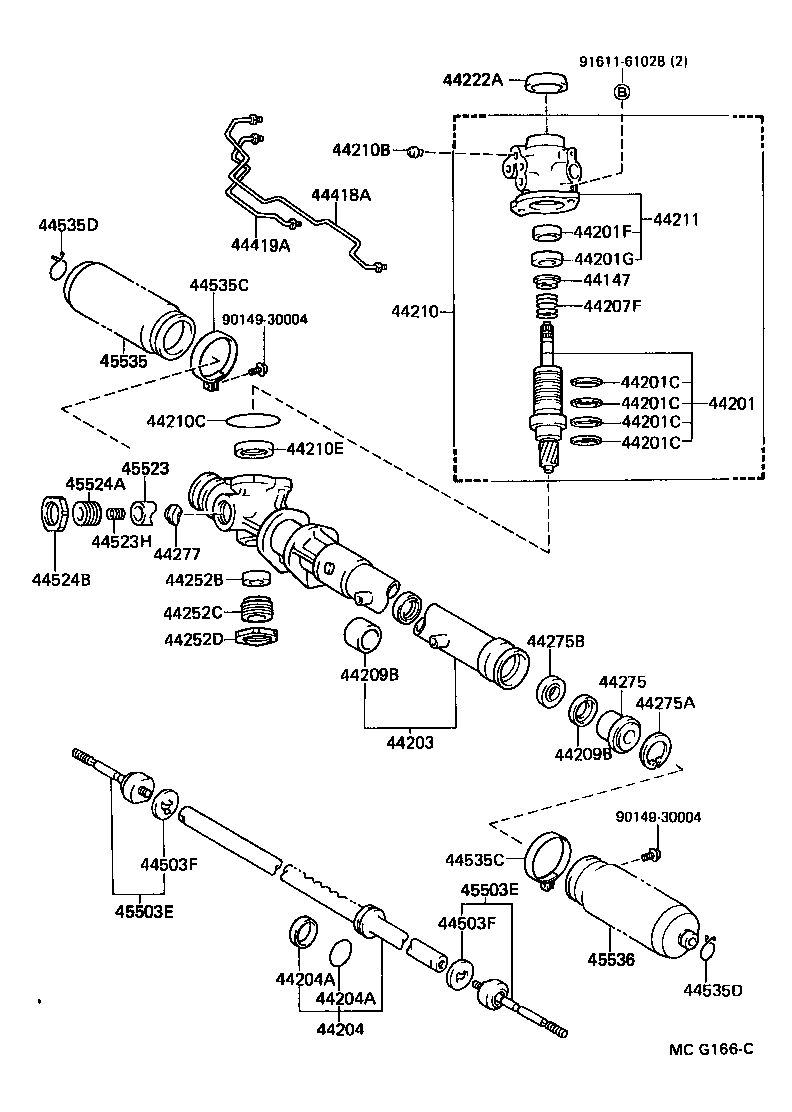

ILLUST NO. 2 OF 2(8808- )G,GT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-14140 |
MA70 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33005 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR OD=36.4 |
4 | ||
| 90562-50001 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33005 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR OD=36.4 |
4 | ||
| 90562-50001 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33005 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR OD=36.4 |
4 | ||
| 90562-50001 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33005 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR OD=36.4 |
4 | ||
| 90562-50001 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
2 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19006 |
GA70,JZA70,MA70 |
1 | ||
| 44201G - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19002 |
GA70,JZA70,MA70 |
1 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-24020 |
JZA70,MA70 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-24020 |
JZA70,MA70 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-40001 |
MA70 外側 |
1 | ||
| 90301-36004 |
JZA70,MA70 内側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-40001 |
MA70 外側 |
1 | ||
| 90301-36004 |
JZA70,MA70 内側 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-14170 |
MA70 |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-11009 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR ID=11.8 |
3 | ||
| 90301-57003 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR ID=57.5 |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-32020 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-24020 |
JZA70,MA70 |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-53002 |
JZA70,MA70 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-20020 |
GA70,JZA70,MA70 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-24020 |
GA70,MA70..GTL,GTT,GTTL |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-24020 |
GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR |
1 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14007 |
GA70,JZA70,MA70 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14007 |
GA70,JZA70,MA70 |
2 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23007 |
GA70,JZA70,MA70 |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
GA70,JZA70,MA70 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01082 |
JZA70,MA70 右側 |
1 | ||
| 90461-10709 |
JZA70,MA70 左側 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01082 |
JZA70,MA70 右側 |
1 | ||
| 90461-10709 |
JZA70,MA70 左側 |
1 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
GA70,JZA70,MA70 |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
GA70,JZA70,MA70 |
2 | ||
| 45503E - END SUB-ASSY, STEERING RACK | ||||
| 45503-29175 |
GA70,JZA70,MA70 |
2 | ||
| 45503E - END SUB-ASSY, STEERING RACK | ||||
| 45503-29175 |
GA70,JZA70,MA70 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-20020 |
GA70,JZA70,MA70 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 45524-16010 |
GA70,JZA70,MA70 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-14040 |
GA70,JZA70,MA70 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-24020 |
JZA70,MA70 |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91611-61028 | ||||

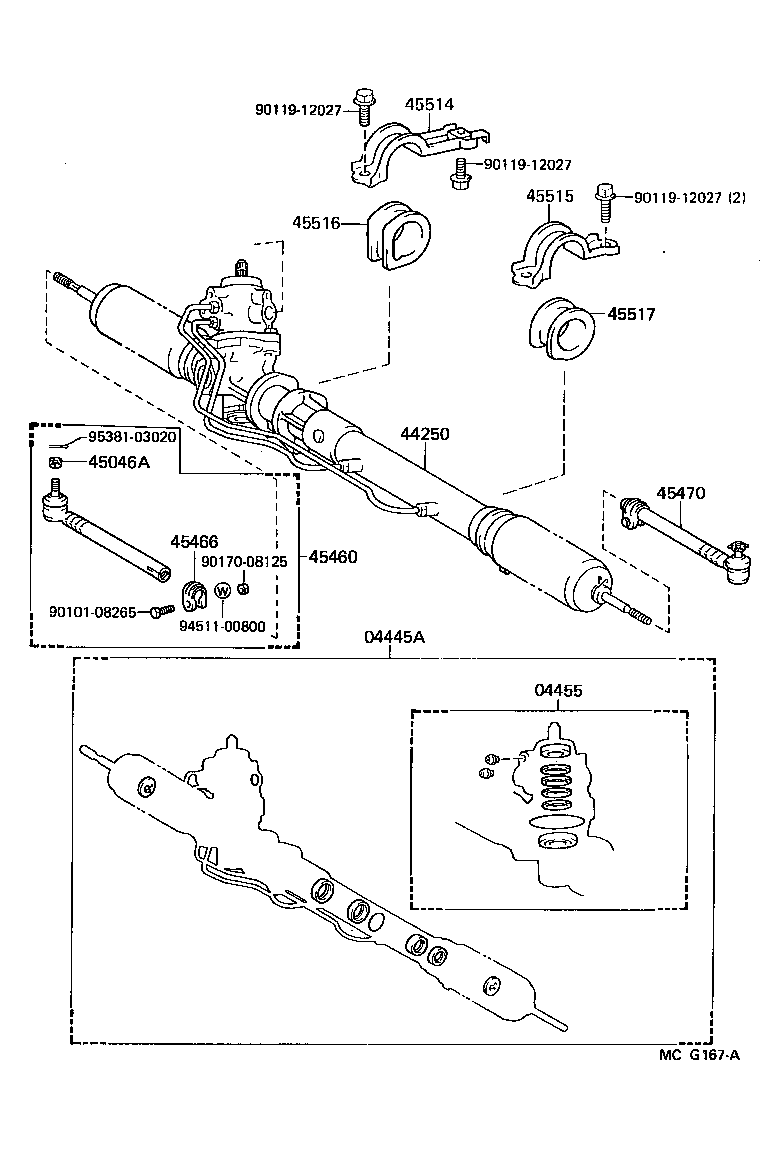

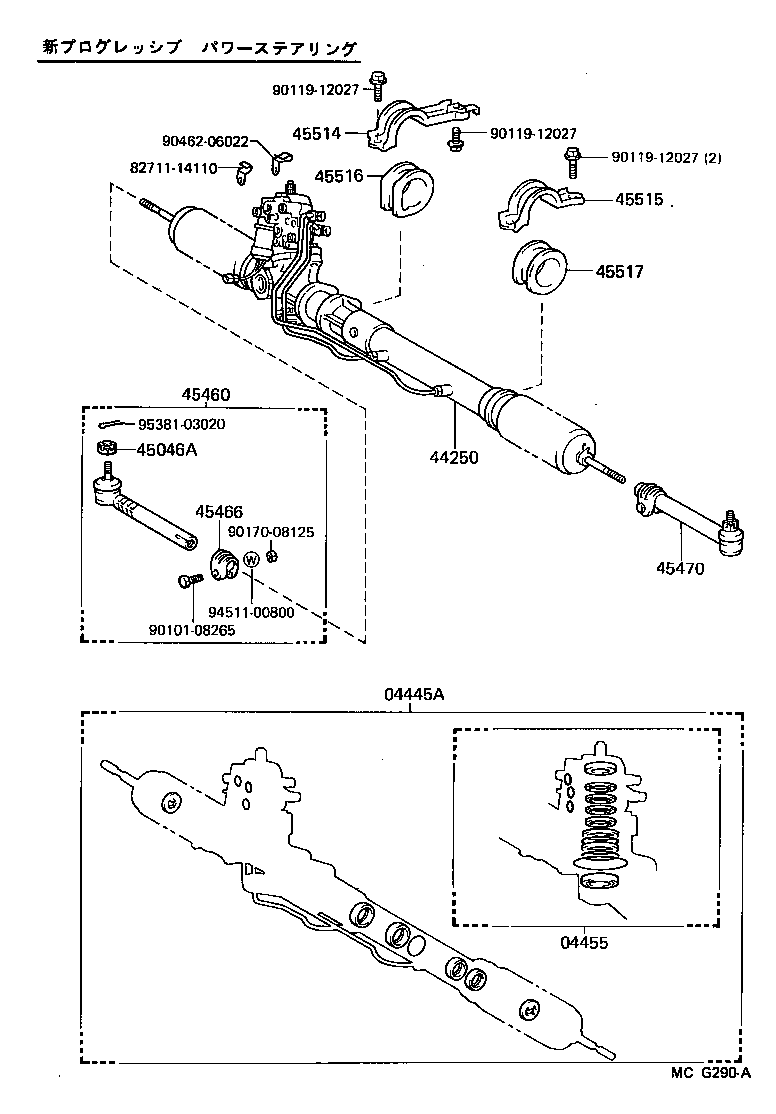

ILLUST NO. 1 OF 2(8808- )G,GT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-14020 |
JZA70,MA70 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-14010 |
JZA70,MA70 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-14160 |
MA70 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
GA70,JZA70,MA70 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19225 |
GA70,JZA70,MA70 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
GA70,JZA70,MA70 |
2 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19225 |
GA70,JZA70,MA70 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14050 |
GA70,JZA70,MA70 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14070 |
GA70,JZA70,MA70 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-14010 |
GA70,MA70 |
1 | ||
| 45516-14020 |
GA70,MA70 |
1 | ||
| 45516-14020 |
MA70 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-24020 |
JZA70,MA70 |
1 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90119-12027 | ||||
| 90170-08125 | ||||
| 94511-00800 | ||||
| 95381-03020 | ||||
ILLUST NO. 1 OF 2(8808- )GTL,GTT,GTTL,GTTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-14020 |
JZA70,MA70 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-14010 |
JZA70,MA70 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-14160 |
MA70 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
GA70,JZA70,MA70 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19225 |
GA70,JZA70,MA70 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
GA70,JZA70,MA70 |
2 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19225 |
GA70,JZA70,MA70 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14050 |
GA70,JZA70,MA70 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14070 |
GA70,JZA70,MA70 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-14010 |
GA70,MA70 |
1 | ||
| 45516-14020 |
GA70,MA70 |
1 | ||
| 45516-14020 |
MA70 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-24020 |
JZA70,MA70 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90101-08265 | ||||
| 90119-12027 | ||||
| 90170-08125 | ||||
| 90462-06022 | ||||
| 94511-00800 | ||||
| 95381-03020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
