MA70-BJPVZ (1988)
Toyota Supra
Production
Aug 1988
-
Aug 1990
Engine
7MGTEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808-9008)MA70

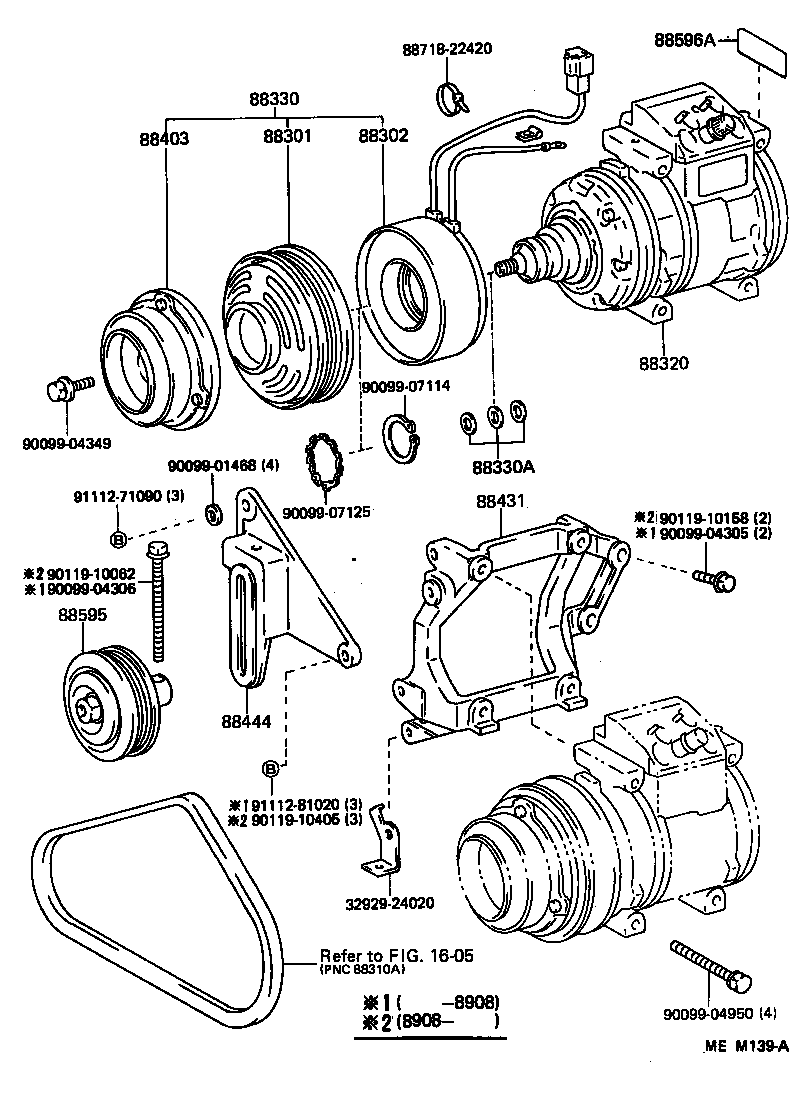

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-12160 |
GA70,MA70 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14120 |
MA70 |
1 | ||
| 88411-14111 |
GA70,MA70 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-14560 |
MA70 |
1 | ||
| 88320-14521 |
MA70 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14181 |
GA70,MA70 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
MA70 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
GA70,MA70 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-24070 |
MA70 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-24010 |
MA70 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-17010 |
GA70,MA70 |
1 | ||
| 88596A - PLATE, CAUTION | ||||
| 88356-12010 |
MA70 |
1 | ||
| Common parts | ||||
| 32929-24020 | ||||
| 88718-22420 | ||||
| 90099-01468 | ||||
| 90099-04305 | ||||
| 90099-04306 | ||||
| 90099-04349 | ||||
| 90099-04950 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90119-10062 | ||||
| 90119-10158 | ||||
| 90119-10405 | ||||
| 91112-71090 | ||||
| 91112-81020 | ||||
| Linked diagrams | ||||
| 1605 | ||||
