MA70-BJPVZ (1988)
Toyota Supra
(8808- )AET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62103A - INSULATOR SUB-ASSY, COWL SIDE, RH | ||||
| 62105-14050 |
GA70,JZA70,MA70 |
1 | ||
| 62104A - INSULATOR SUB-ASSY, COWL SIDE, LH | ||||
| 62106-14050 |
GA70,JZA70,MA70 |
1 | ||
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62101-1417003 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 62101-1417004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 62101-1417002 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62102-1422103 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 62102-1422104 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 62102-1422102 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 62117A - COVER, COWL SIDE TRIM SERVICE HOLE | ||||
| 62117-2403014 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 62117-2403003 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 62117-2403002 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-1405104 |
GA70,MA70..G,GT,GTL,GTT DARK BLUE,TRIM8# |
1 | ||
| 62210-1405102 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 62210-1405103 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-1405103 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 62220-1405102 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 62220-1405104 |
GA70,MA70..G,GT,GTL,GTT DARK BLUE,TRIM8# |
1 | ||
| 62361 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH | ||||
| 62361-14060 |
GA70,JZA70,MA70..AET |
1 | ||
| 62362 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH | ||||
| 62362-14060 |
GA70,JZA70,MA70..AET |
1 | ||
| 62363 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR RH | ||||
| 62371-14060 |
GA70,JZA70,MA70..AET |
1 | ||
| 62364 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR LH | ||||
| 62372-14060 |
GA70,JZA70,MA70..AET |
1 | ||
| 62383C - WEATHERSTRIP, ROOF SIDE RAIL, NO.3 RH | ||||
| 62383-14050 |
GA70,MA70..AET |
1 | ||
| 62384C - WEATHERSTRIP, ROOF SIDE RAIL, NO.3 LH | ||||
| 62384-14050 |
GA70,MA70..AET |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-1427104 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 62471-1427103 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 62471-1427102 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 62471H - PLUG, HOLE(FOR ROOF SIDE INNER GARNISH) | ||||
| 90950-0150313 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
2 | ||
| 90950-0150304 |
GA70,MA70..G,GT,GTL,GTT BLUE,TRIM8# |
2 | ||
| 90950-0150312 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
2 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-1424102 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 62472-1424103 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 62472-1424104 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-1B09004 |
MA70..GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 62510-1B09104 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 62510-1B09102 |
MA70 MAROON,TRIM3# |
1 | ||
| 62510-1B10003 |
MA70..GTL,GTT ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 62510-1B09003 |
MA70..GTL,GTT MEDIUM GRAY,TRIM1# |
1 | ||
| 62510-1B09103 |
MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 62510-1B09002 |
MA70..GTL,GTT MAROON,TRIM3# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-1B09004 |
MA70..GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 62510-1B09104 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 62510-1B09102 |
MA70 MAROON,TRIM3# |
1 | ||
| 62510-1B10003 |
MA70..GTL,GTT ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 62510-1B09003 |
MA70..GTL,GTT MEDIUM GRAY,TRIM1# |
1 | ||
| 62510-1B09103 |
MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 62510-1B09002 |
MA70..GTL,GTT MAROON,TRIM3# |
1 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-1B08002 |
MA70..GTL,GTT MAROON,TRIM3# |
1 | ||
| 62520-1B08004 |
MA70..GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 62520-1B08003 |
MA70..GTL,GTT MEDIUM GRAY,TRIM1# |
1 | ||
| 62520-1B09003 |
MA70..GTL,GTT ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 62520-1B08104 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 62520-1B08102 |
MA70 MAROON,TRIM3# |
1 | ||
| 62520-1B08103 |
MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-1B08002 |
MA70..GTL,GTT MAROON,TRIM3# |
1 | ||
| 62520-1B08004 |
MA70..GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 62520-1B08003 |
MA70..GTL,GTT MEDIUM GRAY,TRIM1# |
1 | ||
| 62520-1B09003 |
MA70..GTL,GTT ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 62520-1B08104 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 62520-1B08102 |
MA70 MAROON,TRIM3# |
1 | ||
| 62520-1B08103 |
MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 62517B - BASE, QUARTER TRIM, FRONT RH | ||||
| 62517-1407003 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 62517-1407002 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 62517-1407004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 62518B - BASE, QUARTER TRIM, FRONT LH | ||||
| 62518-1405004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 62518-1405003 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 62518-1405002 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 62533A - BRACKET, QUARTER TRIM CLAMP | ||||
| 62533-14070 |
GA70,JZA70,MA70 |
4 | ||
| 62533A - BRACKET, QUARTER TRIM CLAMP | ||||
| 62533-14070 |
GA70,JZA70,MA70 |
4 | ||
| 62561C - CLIP (FOR ROCKER PANEL INNER PROTECTOR) | ||||
| 90467-0805601 |
GA70,MA70..G,GT,GTL,GTT BLACK,TRIM1#,3#,8# |
4 | ||
| 62561C - CLIP (FOR ROCKER PANEL INNER PROTECTOR) | ||||
| 90467-0805601 |
GA70,MA70..G,GT,GTL,GTT BLACK,TRIM1#,3#,8# |
4 | ||
| 62561D - PROTECTOR, ROCKER PANEL, INNER FRONT RH | ||||
| 62561-14091 |
GA70,JZA70,MA70 |
1 | ||
| 62562D - PROTECTOR, ROCKER PANEL, INNER FRONT LH | ||||
| 62562-14091 |
GA70,JZA70,MA70 |
1 | ||
| 62633D - COVER, QUARTER TRIM BASE, FRONT RH | ||||
| 62633-1403102 |
MA70..GTL,GTT MAROON,TRIM3# |
1 | ||
| 62633-1403103 |
MA70..GTL,GTT MEDIUM GRAY,TRIM1# |
1 | ||
| 62633-1403202 |
MA70 MAROON,TRIM3# |
1 | ||
| 62633-1403104 |
MA70..GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 62633-1404003 |
JZA70..GTL;MA70..GTL,GTT ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),LIGHT GRAY,TRIM1# |
1 | ||
| 62633-1403204 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 62633-1403203 |
MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 62634D - COVER, QUARTER TRIM BASE, FRONT LH | ||||
| 62634-1403104 |
MA70..GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 62634-1403102 |
MA70..GTL,GTT MAROON,TRIM3# |
1 | ||
| 62634-1403103 |
MA70..GTL,GTT MEDIUM GRAY,TRIM1# |
1 | ||
| 62634-1403202 |
MA70 MAROON,TRIM3# |
1 | ||
| 62634-1404003 |
JZA70..GTL;MA70..GTL,GTT ｱﾘ(ﾚｻﾞ- ｼ-ﾄ),LIGHT GRAY,TRIM1# |
1 | ||
| 62634-1403204 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 62634-1403203 |
MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 63217F - MOULDING, REMOVABLE ROOF, RH | ||||
| 63217-1401003 |
GA70,MA70..AET MEDIUM GRAY METALLIC,TRIM1# |
1 | ||
| 63217-1401002 |
GA70,MA70..AET MAROON METALLIC,TRIM3# |
1 | ||
| 63217-1401004 |
GA70,MA70..AET DEEP BLUE,TRIM8# |
1 | ||
| 63218F - MOULDING, REMOVABLE ROOF, LH | ||||
| 63218-1401002 |
GA70,MA70..AET MAROON METALLIC,TRIM3# |
1 | ||
| 63218-1401004 |
GA70,MA70..AET DEEP BLUE,TRIM8# |
1 | ||
| 63218-1401003 |
GA70,MA70..AET MEDIUM GRAY METALLIC,TRIM1# |
1 | ||
| 64393 - GRILLE, REAR SPEAKER, NO.2 RH | ||||
| 64393-1403002 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 64393-1403003 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 64393-1403004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 64394 - GRILLE, REAR SPEAKER, NO.2 LH | ||||
| 64394-1402004 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 64394-1402003 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 64394-1402002 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-1412104 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| 67913-1412103 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 67913-1412102 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67913-1412103 |
GA70,MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 67913-1412102 |
GA70,MA70..G,GT,GTL,GTT MAROON,TRIM3# |
1 | ||
| 67913-1412104 |
GA70,MA70..G,GT,GTL,GTT DEEP BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 67771-14040 | ||||
| 67771-14050 | ||||
| 90167-40029 | ||||
| 90167-45002 | ||||
| 90168-40008 | ||||
| 90168-40012 | ||||
| 90168-40083 | ||||
| 90179-06068 | ||||
| 90189-04099 | ||||
| 90468-04118 | ||||
| 90468-05060 | ||||
| 90468-06038 | ||||
| 90468-06062 | ||||
| 90468-25004 | ||||
| 90959-01237 | ||||
| 90959-01245 | ||||
| 93560-55014 | ||||

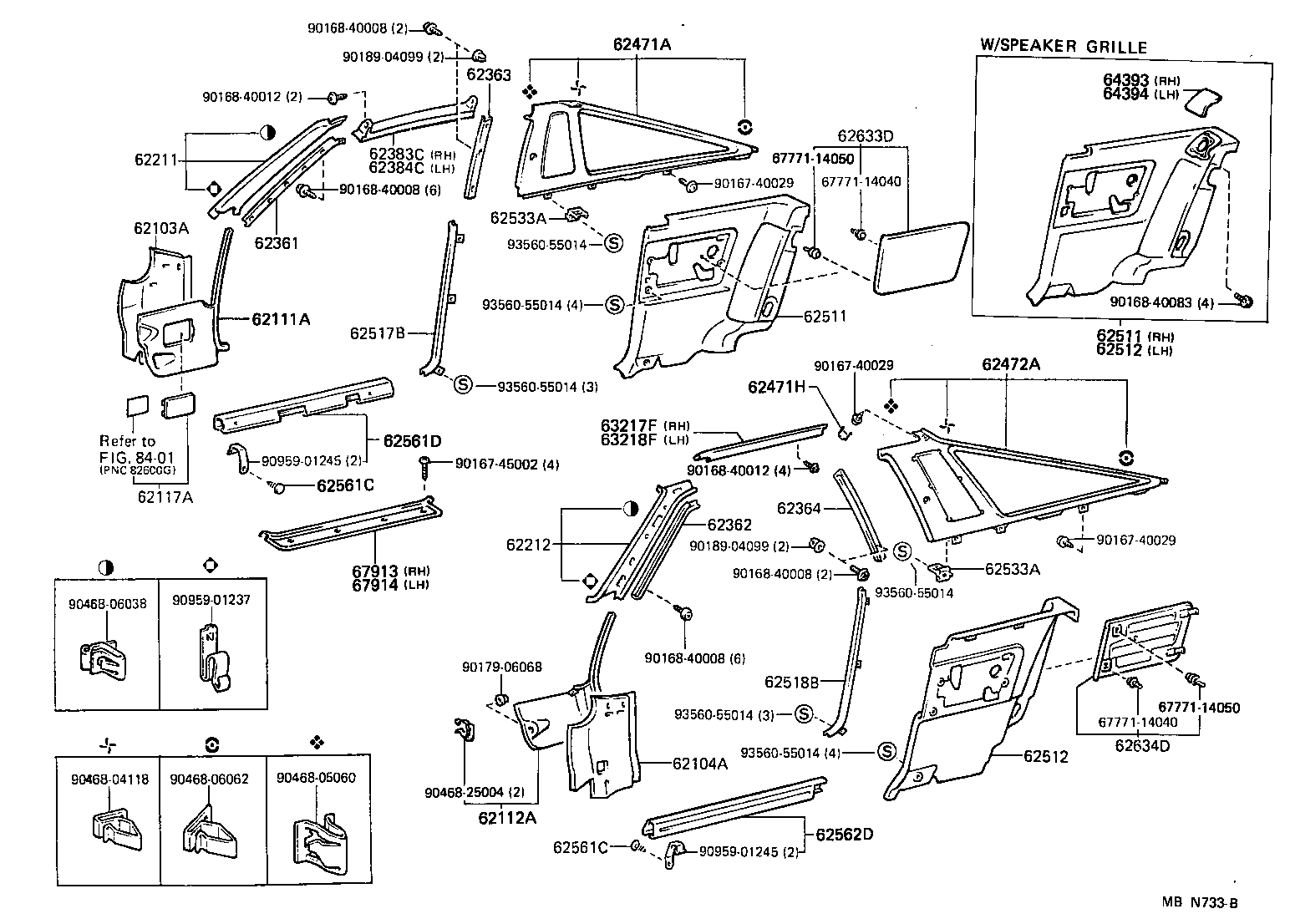

| Linked diagrams | ||||
| 8401 | ||||
