MA70-BJPVZ (1988)
Toyota Supra
(8808- )4FC..GT,GTL,GTT,GTTR
A340E,A342E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-72002 |
GA70,MA70..4FC..(GT,GTL,GTT) CTR,ID=72.5 |
1 | ||
| 90301-39002 |
GA70,MA70..4FC..(GT,GTL,GTT) INNER,ID=39.95 |
1 | ||
| 90301-99016 |
GA70,MA70..4FC..(GT,GTL,GTT) OUTER,ID=117.0 |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-72002 |
GA70,MA70..4FC..(GT,GTL,GTT) CTR,ID=72.5 |
1 | ||
| 90301-39002 |
GA70,MA70..4FC..(GT,GTL,GTT) INNER,ID=39.95 |
1 | ||
| 90301-99016 |
GA70,MA70..4FC..(GT,GTL,GTT) OUTER,ID=117.0 |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-72002 |
GA70,MA70..4FC..(GT,GTL,GTT) CTR,ID=72.5 |
1 | ||
| 90301-39002 |
GA70,MA70..4FC..(GT,GTL,GTT) INNER,ID=39.95 |
1 | ||
| 90301-99016 |
GA70,MA70..4FC..(GT,GTL,GTT) OUTER,ID=117.0 |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-35001 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-30011 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-35010 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-14010 |
JZA70,MA70..4FC |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35606-35010 |
JZA70,MA70..4FC |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-65005 |
GA70,MA70..4FC..(GT,GTL,GTT) INNER,ID=65 |
1 | ||
| 90301-65005 |
MA70..4FC |
1 | ||
| 90301-99016 |
MA70..4FC OUTER,ID=117 |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-65005 |
GA70,MA70..4FC..(GT,GTL,GTT) INNER,ID=65 |
1 | ||
| 90301-65005 |
MA70..4FC |
1 | ||
| 90301-99016 |
MA70..4FC OUTER,ID=117 |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-58001 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-14010 |
JZA70,MA70..4FC |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-14010 |
JZA70,MA70..4FC |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-14010 |
JZA70,MA70..4FC |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-14010 |
JZA70,MA70..4FC |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-14010 |
JZA70,MA70..4FC |
6 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-40010 |
GA70,JZA70,MA70..4FC..(GTL,GTT,GTTR) |
4 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-40010 |
GA70,JZA70,MA70..4FC..(GTL,GTT,GTTR) |
4 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-40010 |
GA70,JZA70,MA70..4FC..(GTL,GTT,GTTR) |
4 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-40010 |
GA70,JZA70,MA70..4FC..(GTL,GTT,GTTR) |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
JZA70,MA70..4FC 厚さ=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
JZA70,MA70..4FC 厚さ=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
JZA70,MA70..4FC 厚さ=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
JZA70,MA70..4FC 厚さ=1.8 |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-32010 |
JZA70,MA70..4FC 厚さ=1.8 |
6 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-30011 |
JZA70,MA70..4FC 厚さ=2.3 |
1 | ||
| 35647-14010 |
JZA70,MA70..4FC 厚さ=3.0 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-30011 |
JZA70,MA70..4FC 厚さ=2.3 |
1 | ||
| 35647-14010 |
JZA70,MA70..4FC 厚さ=3.0 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-30011 |
JZA70,MA70..4FC 厚さ=2.3 |
1 | ||
| 35647-14010 |
JZA70,MA70..4FC 厚さ=3.0 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-30011 |
JZA70,MA70..4FC 厚さ=2.3 |
1 | ||
| 35647-14010 |
JZA70,MA70..4FC 厚さ=3.0 |
3 | ||
| 35635 - FLANGE, FORWARD CLUTCH | ||||
| 35635-30010 |
GA70,MA70..4FC..(GT,GTL,GTT) 厚さ=3.60 |
1 | ||
| 35635-30020 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=4.20,ﾏｰｸ 63 |
1 | ||
| 35635-30030 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=4.40,ﾏｰｸ 64 |
1 | ||
| 35635-50060 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=3.00,ﾏｰｸ 61 |
1 | ||
| 35635-50010 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=4.00,ﾏｰｸ 42 |
1 | ||
| 35635-50050 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=3.20,ﾏｰｸ 60 |
1 | ||
| 35635-50020 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=3.80,ﾏｰｸ 44 |
1 | ||
| 35635-50040 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=3.40,ﾏｰｸ 45 |
1 | ||
| 35672 - PLATE, CLUTCH CUSHION | ||||
| 35672-30010 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90521-99001 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-30071 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=3.4 |
1 | ||
| 35675-30081 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=3.3 |
1 | ||
| 35675-30091 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=3.2 |
1 | ||
| 35675-30101 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=3.1 |
1 | ||
| 35675-30120 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=3.7 |
1 | ||
| 35675-30051 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=3.6 |
1 | ||
| 35675-30061 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=3.5 |
1 | ||
| 35675-30111 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 厚さ=3.0 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90521-99032 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35686 - WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT) | ||||
| 35686-30010 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-30062 |
MA70..4FC |
1 | ||
| 35701B - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR) | ||||
| 90374-25005 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-30110 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35701J - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT) | ||||
| 90374-33001 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
3 | ||
| 35810B - BAND ASSY, 2ND COAST BRAKE | ||||
| 35810-30020 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35810C - PIN (FOR 2ND COAST BRAKE BAND) | ||||
| 90249-07011 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN) | ||||
| 96160-00500 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35815 - COVER, 2ND COAST BRAKE | ||||
| 35815-30010 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) | ||||
| 90521-60002 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35821A - PISTON, 2ND COAST BRAKE | ||||
| 35821-30020 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON) | ||||
| 90201-06557 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-26024 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 外側 |
1 | ||
| 90501-27009 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 内側 |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-26024 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 外側 |
1 | ||
| 90501-27009 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 内側 |
1 | ||
| 35821H - RING, E (FOR 2ND COAST BRAKE PISTON) | ||||
| 96160-00500 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35822A - ROD, 2ND COAST BRAKE PISTON | ||||
| 35822-32020 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 長さ=72.4 |
1 | ||
| 35822-32010 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) 長さ=70.9 |
1 | ||
| 35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL | ||||
| 35865-30010 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
(8808-9008)4FC..G
A42DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-30011 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-35010 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-30062 |
MA70..4FC |
1 | ||
| 35701B - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR) | ||||
| 90374-25005 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-30110 |
GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR) |
1 | ||

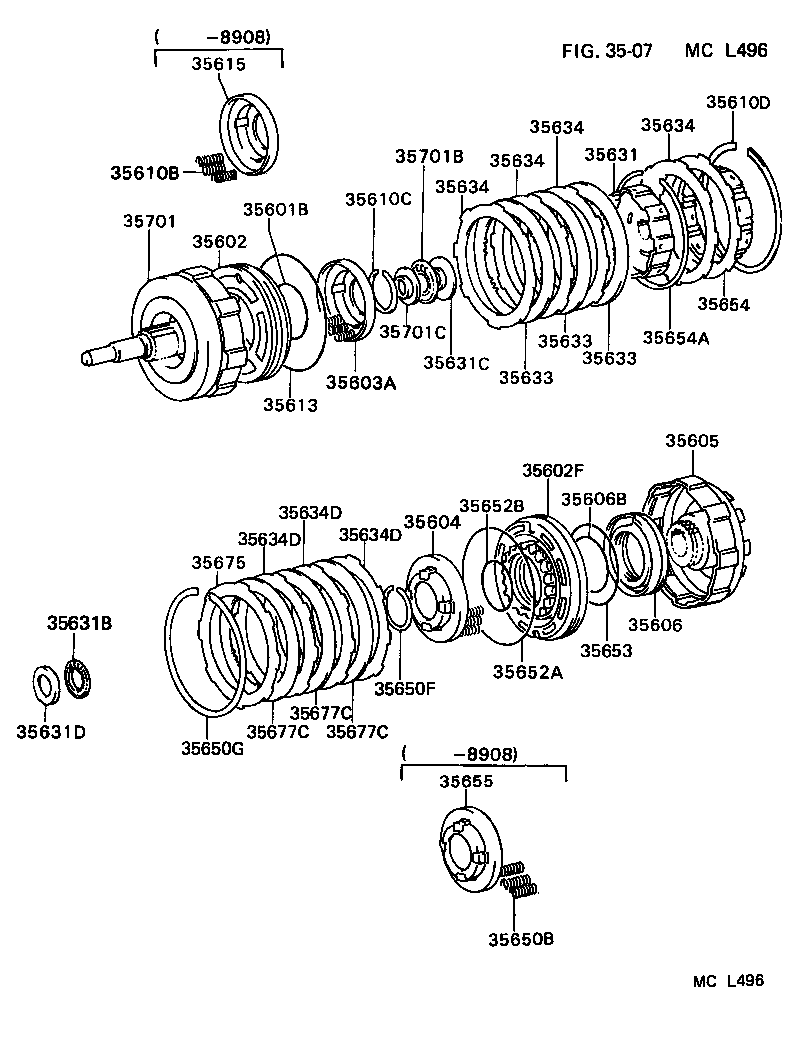

| Linked diagrams | ||||
| 3507 | ||||
