MA70-BJPVZ (1986)

Toyota Supra

Production Jun 1986 - Aug 1988
Engine 7MGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9008)4FC..G

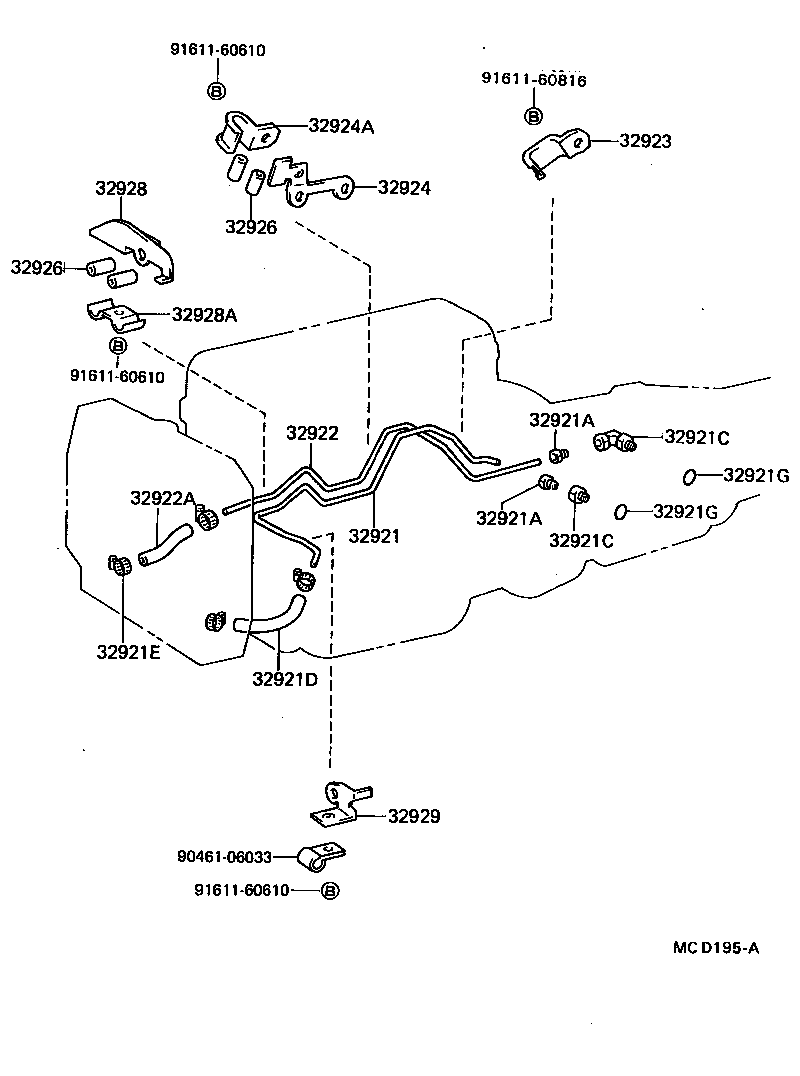

Click highlighted areas on diagram

A42DL

diagram 32921 32921A 32921A 32921C 32921C 32921D 32921E 32921G 32921G 32922 32922A 32923 32924 32924A 32926 32926 32928 32928A 32929 9046106033 9161160610 9161160610 9161160610 9161160816
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-14220

MA70

HOSE ID=7.3

 1
32921-14221

MA70..4FC

HOSE ID=9.2

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16020

GA70,MA70..4FC..(GTL,GTT)

FR

 1
90407-16009

GA70,MA70..4FC..(GTL,GTT)

RR

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16020

GA70,MA70..4FC..(GTL,GTT)

FR

 1
90407-16009

GA70,MA70..4FC..(GTL,GTT)

RR

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17066

MA70..4FC

ID=9.2

 1
90445-16017

MA70

ID=7.3

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90467-16013

MA70..4FC

 4
90460-18002

GA70,MA70..4FC

 4
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

GA70,MA70..4FC..(GTL,GTT)

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

GA70,MA70..4FC..(GTL,GTT)

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-14220

MA70

HOSE,ID=7.3

 1
32922-14221

MA70..4FC

HOSE,ID=9.2

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-16022

GA70,MA70..4FC

ID=7.3

 1
90445-17065

MA70..4FC

ID=9.2

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-14030

MA70..4FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

GA70,MA70..4FC..(GTL,GTT)

長さ=35,内径=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

GA70,MA70..4FC..(GTL,GTT)

長さ=35,内径=10

 2
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32929-14010

MA70..4FC

 1
32929-24050

MA70..4FC

W/COOLER

 1
Common parts
90461-06033
91611-60610
91611-60816
