MA70-BJMZZ (1988)
Toyota Supra

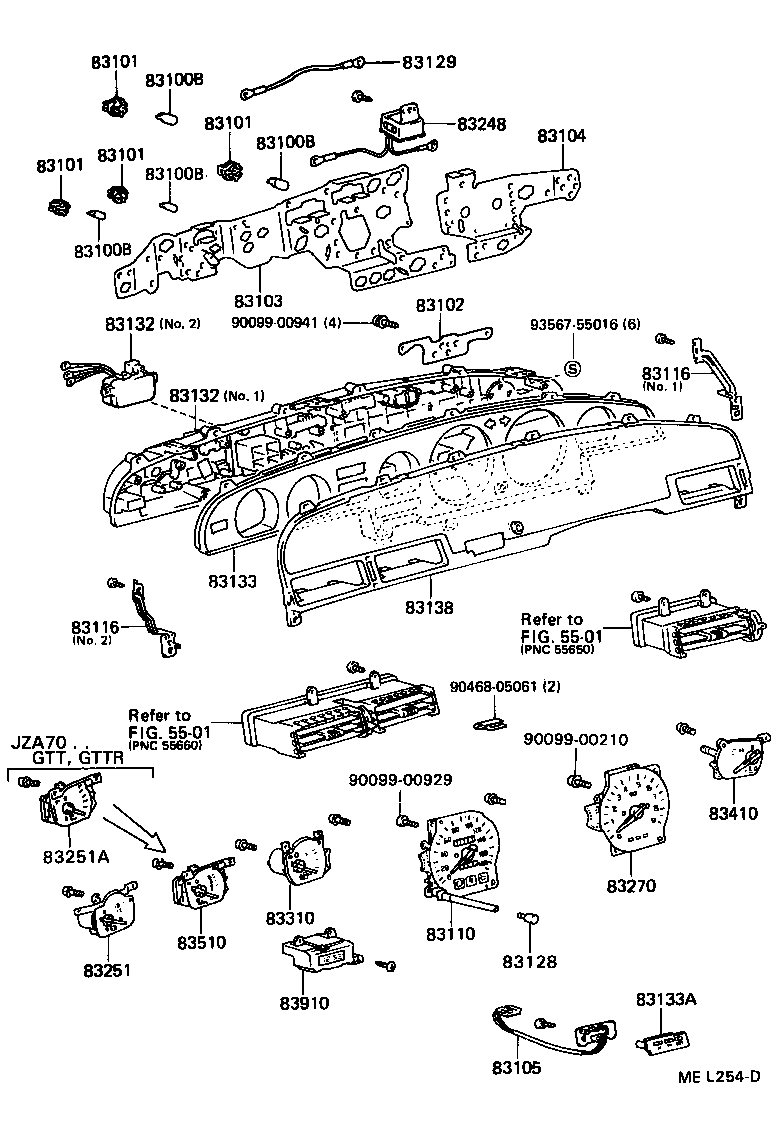

ILLUST NO. 1 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
GA70,JZA70,MA70 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,SOCKET:83101-14040 |
1 | ||
| 90981-11018 |
GA70,JZA70,MA70 12V 1.2W ｿｹｯﾄ無し,SOCKET=83101-14040 |
1 | ||
| 83109-24020 |
GA70,JZA70,MA70 12V 3.4W ｷｬｯﾌﾟ付き,SOCKET:83101-14030 |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
GA70,JZA70,MA70 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,SOCKET:83101-14040 |
1 | ||
| 90981-11018 |
GA70,JZA70,MA70 12V 1.2W ｿｹｯﾄ無し,SOCKET=83101-14040 |
1 | ||
| 83109-24020 |
GA70,JZA70,MA70 12V 3.4W ｷｬｯﾌﾟ付き,SOCKET:83101-14030 |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
GA70,JZA70,MA70 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,SOCKET:83101-14040 |
1 | ||
| 90981-11018 |
GA70,JZA70,MA70 12V 1.2W ｿｹｯﾄ無し,SOCKET=83101-14040 |
1 | ||
| 83109-24020 |
GA70,JZA70,MA70 12V 3.4W ｷｬｯﾌﾟ付き,SOCKET:83101-14030 |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
GA70,JZA70,MA70 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,SOCKET:83101-14040 |
1 | ||
| 90981-11018 |
GA70,JZA70,MA70 12V 1.2W ｿｹｯﾄ無し,SOCKET=83101-14040 |
1 | ||
| 83109-24020 |
GA70,JZA70,MA70 12V 3.4W ｷｬｯﾌﾟ付き,SOCKET:83101-14030 |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GA70,JZA70,MA70 BULB=12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GA70,JZA70,MA70 BULB=12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GA70,JZA70,MA70 BULB=12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GA70,JZA70,MA70 BULB=12V 1.4W |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1J200 |
JZA70..GTL;MA70..GTL,GTT |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-1B280 |
MA70..GTL,GTT |
1 | ||
| 83104 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3 | ||||
| 83247-1J550 |
GA70..5F..GT;GA70,MA70..G,GTTL |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-14110 |
GA70,JZA70,MA70 NO.1 |
1 | ||
| 83116-14130 |
GA70,JZA70,MA70 NO.2 |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-14110 |
GA70,JZA70,MA70 NO.1 |
1 | ||
| 83116-14130 |
GA70,JZA70,MA70 NO.2 |
1 | ||
| 83129 - WIRE, METER | ||||
| 83129-14230 |
MA70..GTL,GTT;GA70..5F..GTT;GA70..LB..4FC..GTT |
1 | ||
| 83129-14230 |
GA70,MA70..WIB |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1J830 |
JZA70..GTL;MA70..GTL,GTT |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1J830 |
JZA70..GTL;MA70..GTL,GTT |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-14620 |
GA70,MA70..G,GTTL |
1 | ||
| 83133-14600 |
JZA70..GTL;MA70..GTL,GTT |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-14820 |
JZA70..GTL;MA70..GTL,GTT |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1B210 |
JZA70..GTL;MA70..GTL,GTT |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-14100 |
JZA70..GTL;MA70..GTL,GTT |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-14340 |
JZA70..GTL;MA70..GTL,GTT |
1 | ||
| Common parts | ||||
| 90099-00210 | ||||
| 90099-00929 | ||||
| 90099-00941 | ||||
| 90468-05061 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5501 | ||||

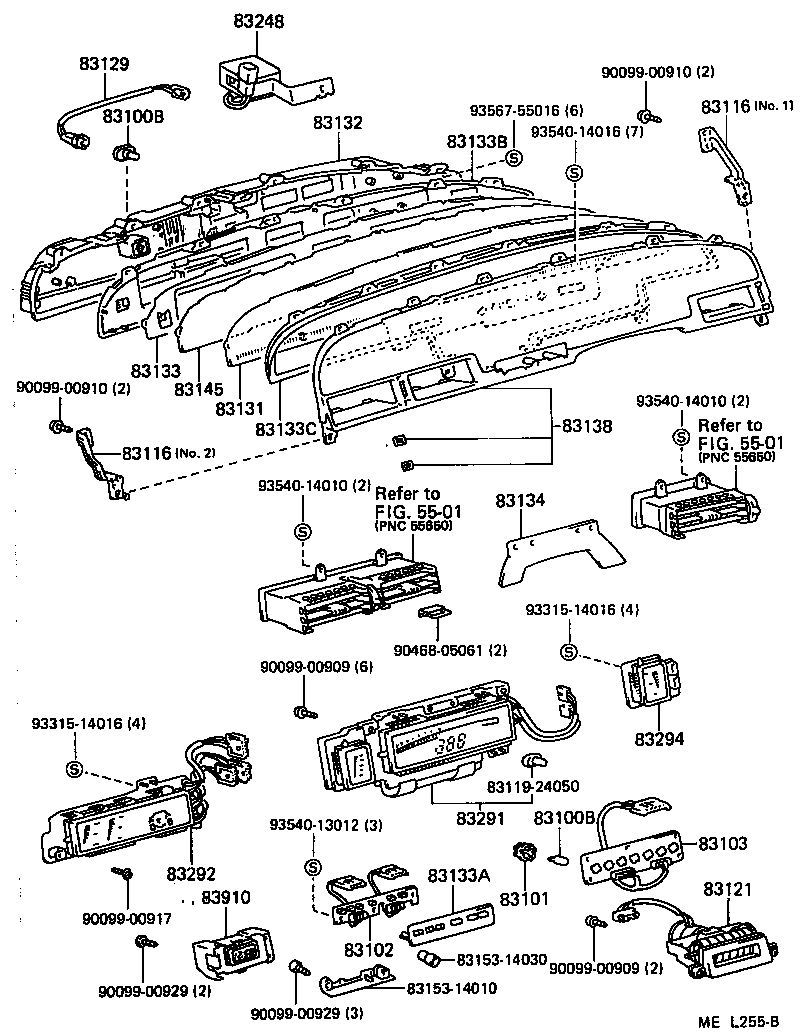

ILLUST NO. 1 OF 3(8808- )
ﾃﾞｼﾞﾀﾙ ｽﾋﾟｰﾄﾞﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
GA70,JZA70,MA70 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,SOCKET:83101-14040 |
1 | ||
| 90981-11018 |
GA70,JZA70,MA70 12V 1.2W ｿｹｯﾄ無し,SOCKET=83101-14040 |
1 | ||
| 83109-24020 |
GA70,JZA70,MA70 12V 3.4W ｷｬｯﾌﾟ付き,SOCKET:83101-14030 |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
GA70,JZA70,MA70 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,SOCKET:83101-14040 |
1 | ||
| 90981-11018 |
GA70,JZA70,MA70 12V 1.2W ｿｹｯﾄ無し,SOCKET=83101-14040 |
1 | ||
| 83109-24020 |
GA70,JZA70,MA70 12V 3.4W ｷｬｯﾌﾟ付き,SOCKET:83101-14030 |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GA70,JZA70,MA70 BULB=12V 1.4W |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1J200 |
JZA70..GTL;MA70..GTL,GTT |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-1B280 |
MA70..GTL,GTT |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-14110 |
GA70,JZA70,MA70 NO.1 |
1 | ||
| 83116-14130 |
GA70,JZA70,MA70 NO.2 |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-14110 |
GA70,JZA70,MA70 NO.1 |
1 | ||
| 83116-14130 |
GA70,JZA70,MA70 NO.2 |
1 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-14270 |
MA70..GTL,GTT;GA70..5F..GTT;GA70..LB..4FC..GTT |
1 | ||
| 83129 - WIRE, METER | ||||
| 83129-14230 |
MA70..GTL,GTT;GA70..5F..GTT;GA70..LB..4FC..GTT |
1 | ||
| 83129-14230 |
GA70,MA70..WIB |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-1J730 |
MA70..GTL,GTT |
1 | ||
| 83131-1J830 |
MA70 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1J830 |
JZA70..GTL;MA70..GTL,GTT |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-14620 |
GA70,MA70..G,GTTL |
1 | ||
| 83133-14600 |
JZA70..GTL;MA70..GTL,GTT |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-14820 |
JZA70..GTL;MA70..GTL,GTT |
1 | ||
| 83133B - PLATE, COMBINATION METER, NO.3 | ||||
| 83133-14800 |
MA70..GTL,GTT;GA70..5F..GTT;GA70..LB..4FC..GTT |
1 | ||
| 83133-14800 |
GA70,MA70..WIB |
1 | ||
| 83133C - PLATE, COMBINATION METER,NO.4 | ||||
| 83133-1B730 |
MA70..GTL,GTT;GA70..5F..GTT;GA70..LB..4FC..GTT |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-14050 |
MA70..GTL,GTT;GA70..5F..GTT;GA70..LB..4FC..GTT |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1B210 |
JZA70..GTL;MA70..GTL,GTT |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-14230 |
MA70..GTL,GTT;GA70..5F..GTT;GA70..LB..4FC..GTT |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-14100 |
JZA70..GTL;MA70..GTL,GTT |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-14012 |
MA70 |
1 | ||
| 83291-14011 |
MA70..GTL,GTT |
1 | ||
| 83292 - COMPUTER, COMBINATION GAGE | ||||
| 83292-14011 |
MA70..GTL,GTT |
1 | ||
| 83294 - COMPUTER, TEMPERATURE RECEIVER GAGE | ||||
| 83294-14011 |
MA70..GTL,GTT;GA70..5F..GTT;GA70..LB..4FC..GTT |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-14340 |
JZA70..GTL;MA70..GTL,GTT |
1 | ||
| Common parts | ||||
| 83119-24050 | ||||
| 83153-14010 | ||||
| 83153-14030 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90468-05061 | ||||
| 93315-14016 | ||||
| 93540-13012 | ||||
| 93540-14010 | ||||
| 93540-14016 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 2 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90094-90408 | ||||
| 90099-00182 | ||||
| 90099-00210 | ||||
| 90099-00211 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00934 | ||||
| 90099-00939 | ||||
| 90099-00941 | ||||
| 93315-14016 | ||||
| 93540-13010 | ||||
| 93540-14010 | ||||
| 93540-14016 | ||||
| 93540-14025 | ||||
| 93540-14036 | ||||
ILLUST NO. 3 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83121A - SENSOR, SPEED | ||||
| 83181-14010 |
MA70..GTL,GTT;GA70..5F..GTT;GA70..LB..4FC..GTT |
1 | ||
| 83121A - SENSOR, SPEED | ||||
| 83181-14010 |
MA70..GTL,GTT;GA70..5F..GTT;GA70..LB..4FC..GTT |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-14800 |
GA70,JZA70,MA70..5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-14800 |
GA70,JZA70,MA70..5F |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-14751 |
MA70..GTL,GTT |
1 | ||
| 83710-14711 |
GA70,MA70..G,GT,GTTL |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-14751 |
MA70..GTL,GTT |
1 | ||
| 83710-14711 |
GA70,MA70..G,GT,GTTL |
1 | ||
| Common parts | ||||
| 83791-14190 | ||||
| 83791-14191 | ||||
| 83791-14200 | ||||
| 83791-14230 | ||||
