MA70-BJMZZ (1988)
Toyota Supra
ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-14060 |
GA70,JZA70,MA70 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-14220 |
GA70,JZA70,MA70 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-90K00 |
GA70,JZA70,MA70 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19426 |
GA70,JZA70,MA70 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
GA70,JZA70,MA70 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
GA70,JZA70,MA70 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
GA70,JZA70,MA70 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-24020 |
GA70,JZA70,MA70 |
1 | ||
| 77201J - GASKET(FOR FUEL TANK INLET PIPE) | ||||
| 77169-14010 |
GA70,JZA70,MA70 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 77049-14040 |
GA70,JZA70,MA70 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77209-14080 |
GA70,JZA70,MA70 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-14120 |
GA70,JZA70,MA70..WIB |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-14070 |
GA70,JZA70,MA70 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-20010 |
GA70,JZA70,MA70 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08019 |
GA70,JZA70,MA70 |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
GA70,JZA70,MA70 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
GA70,JZA70,MA70 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-14050 |
GA70,JZA70,MA70..WIB |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
GA70,JZA70,MA70 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
GA70,JZA70,MA70 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
GA70,JZA70,MA70 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-16011 |
GA70,JZA70,MA70 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-14070 |
GA70,JZA70,MA70 右側 |
1 | ||
| 77602-14050 |
GA70,JZA70,MA70 左側 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-14070 |
GA70,JZA70,MA70 右側 |
1 | ||
| 77602-14050 |
GA70,JZA70,MA70 左側 |
1 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-14050 |
GA70,JZA70,MA70 |
2 | ||
| 77614B - BRACKET, FUEL TANK BAND, NO.2 | ||||
| 77614-14030 |
GA70,JZA70,MA70 |
1 | ||
| 77615 - BRACKET, FUEL TANK BAND, NO.3 | ||||
| 77615-14010 |
GA70,JZA70,MA70 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-14090 |
GA70,JZA70,MA70 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77641-24010 |
GA70,JZA70,MA70 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-14090 |
GA70,JZA70,MA70 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-14090 |
GA70,JZA70,MA70 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-14110 |
GA70,JZA70,MA70 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-14110 |
GA70,JZA70,MA70 |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-14070 |
GA70,JZA70,MA70 |
1 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-14040 |
GA70,JZA70,MA70 |
1 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-14020 |
GA70,JZA70,MA70 |
1 | ||
| Common parts | ||||
| 90119-06140 | ||||
| 90119-06150 | ||||
| 90119-10427 | ||||
| 90159-50157 | ||||
| 90159-50218 | ||||
| 90159-60135 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90179-12016 | ||||
| 90183-06065 | ||||
| 90189-06006 | ||||
| 90240-08020 | ||||
| 90386-01004 | ||||
| 90461-06177 | ||||
| 90468-14004 | ||||
| 90468-20007 | ||||
| 90959-01256 | ||||
| 91655-60820 | ||||
| 93319-14010 | ||||
| 93385-15014 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6709 | ||||

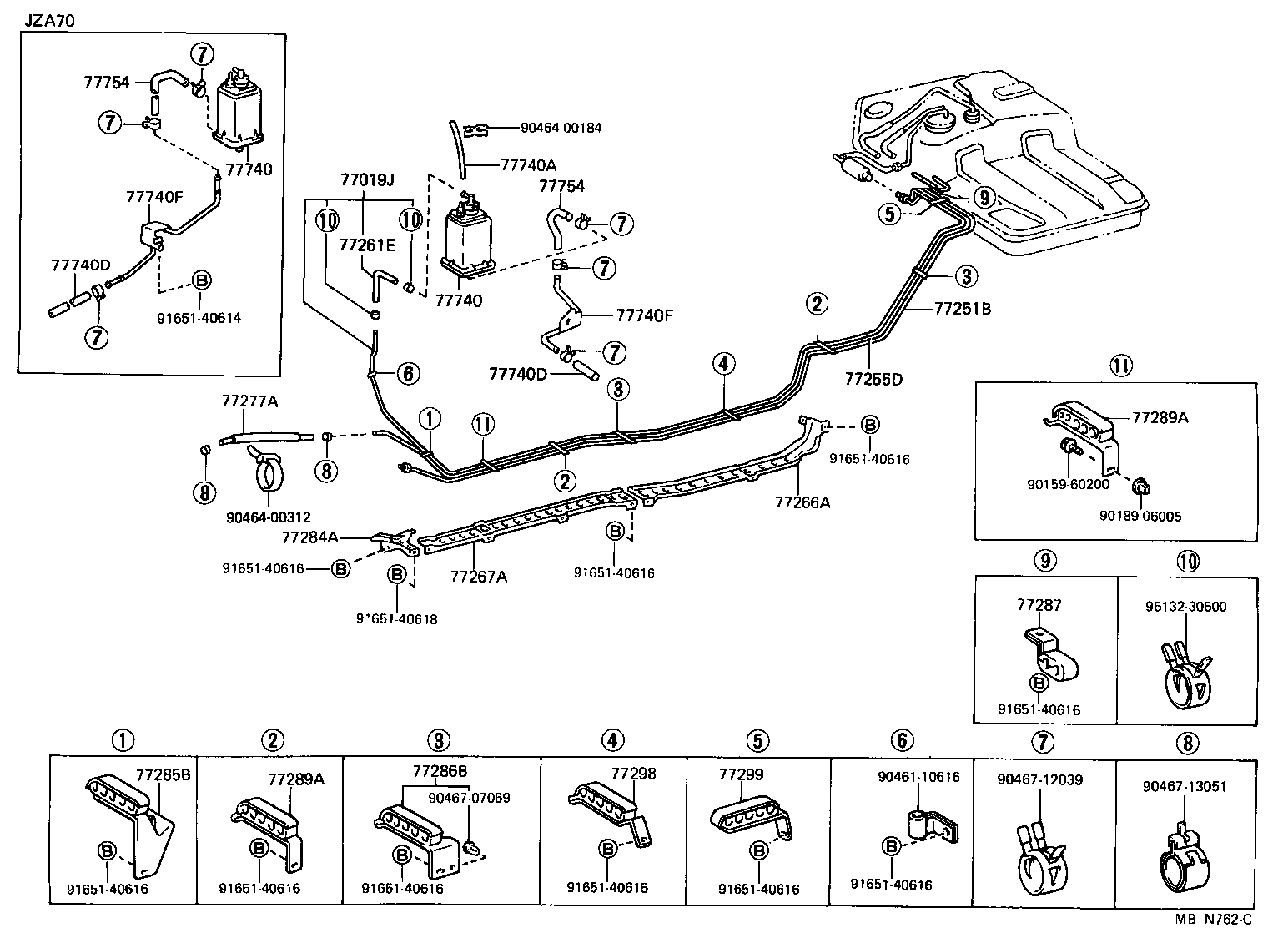

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-14100 |
GA70,JZA70,MA70 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-14390 |
GA70,JZA70,MA70 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-14400 |
MA70 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77249-14050 |
GA70,JZA70,MA70 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-14040 |
GA70,JZA70,MA70 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-14010 |
GA70,JZA70,MA70 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-42030 |
MA70 *H,L=430 |
1 | ||
| 23271-42010 |
MA70 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-14010 |
GA70,JZA70,MA70 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-14020 |
GA70,JZA70,MA70 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-14010 |
GA70,JZA70,MA70 |
2 | ||
| 77287 - SUPPORT, TANK TO CANISTER TUBE, NO.1 | ||||
| 77287-14010 |
GA70,JZA70,MA70 |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-14020 |
GA70,JZA70,MA70 |
3 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-14020 |
GA70,JZA70,MA70 |
3 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77298-14010 |
GA70,JZA70,MA70 |
1 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-14010 |
GA70,JZA70,MA70 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-14240 |
GA70,JZA70,MA70 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-14240 |
GA70,JZA70,MA70 |
1 | ||
| 77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER) | ||||
| 90445-12121 |
GA70,MA70 長さ=200 |
1 | ||
| 77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER) | ||||
| 90445-12121 |
GA70,MA70 長さ=200 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-24020 |
GA70,MA70 |
1 | ||
| 77264-24011 |
GA70,MA70 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-24020 |
GA70,MA70 |
1 | ||
| 77264-24011 |
GA70,MA70 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-24011 |
GA70,MA70 長さ=350 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-24011 |
GA70,MA70 長さ=350 |
1 | ||
| Common parts | ||||
| 90159-60200 | ||||
| 90189-06005 | ||||
| 90461-10616 | ||||
| 90464-00184 | ||||
| 90464-00312 | ||||
| 90467-07069 | ||||
| 90467-12039 | ||||
| 90467-13051 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40618 | ||||
| 96132-30600 | ||||
