MA70-BJMZZ (1988)

Toyota Supra

Production Aug 1988 - Aug 1990
Engine 7MGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

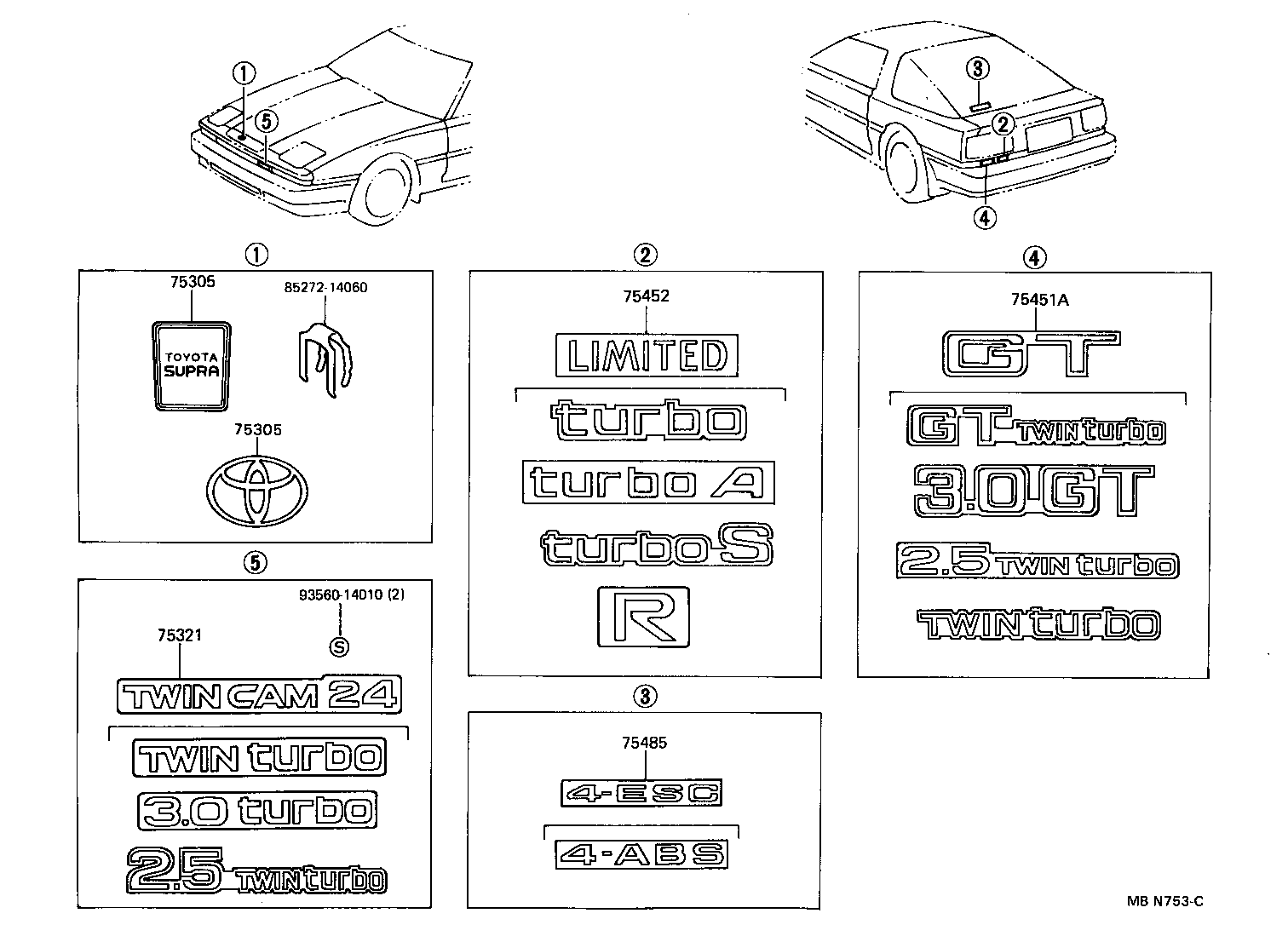

Click highlighted areas on diagram

diagram 75305 75305 75321 75451A 75452 75485 8527214060 9356014010
Part # Description Qty Price
75305 - EMBLEM, HOOD
75331-14110

GA70,MA70

 1
75305 - EMBLEM, HOOD
75331-14110

GA70,MA70

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-14780

MA70

3.0 TURBO

 1
75451A - EMBLEM, LOWER BACK PANEL, NO.1
75451-14100

MA70..GTL,GTT

3.0 GT

 1
75452 - EMBLEM, LOWER BACK PANEL, NO.2
75452-14010

JZA70,MA70..GTL

LIMITED

 1
75485 - PLATE, BACK WINDOW NAME
75485-22040

GA70..GT;GA70..NOB..5F..GTT;GA70..LB..NOB..4FC..GTT;GA70,MA70..WIB..(GTL,GTT)

4−ESC

 1
Common parts
85272-14060
93560-14010
