JZA80-ALPZZ (1993)
Toyota Supra
Production
May 1993
-
May 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )4FC..TWT

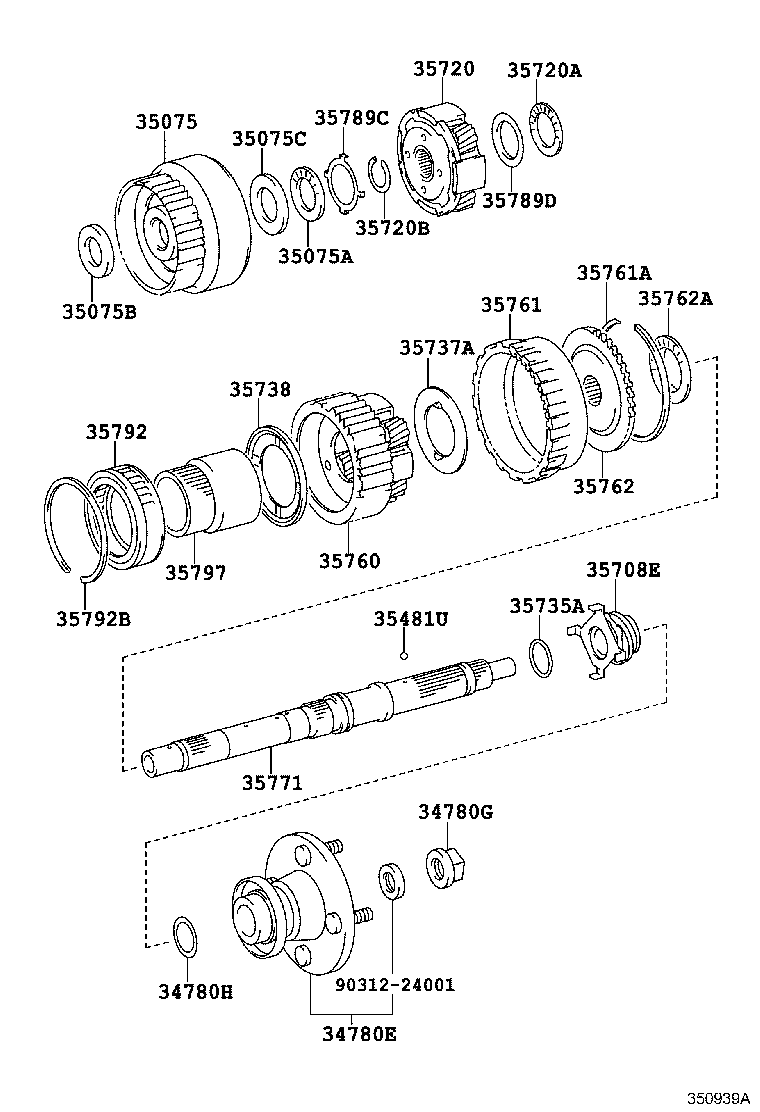

Click highlighted areas on diagram
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34780E - YOKE ASSY, FLANGE (FOR AUTOMATIC TRANSMISSION) | ||||
| 34780-14020 |
JZA80..4FC..TWT |
1 | ||
| 34780G - NUT (FOR ATM FRANGE YOKE) | ||||
| 90179-22018 |
JZA80..4FC..TWT |
1 | ||
| 34780H - WASHER, PLATE (FOR ATM FLANGE YOKE) | ||||
| 90201-30005 |
JZA80..4FC..TWT |
2 | ||
| 35075 - GEAR SUB-ASSY, FRONT PLANETARY RING | ||||
| 35075-30020 |
JZA80..4FC..TWT |
1 | ||
| 35075A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING | ||||
| 90374-49004 |
JZA80..4FC..TWT |
1 | ||
| 35075B - RACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR FRO | ||||
| 35789-30120 |
JZA80..4FC |
1 | ||
| 35075C - RACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR RR) | ||||
| 35789-30210 |
JZA80..4FC..TWT |
1 | ||
| 35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM) | ||||
| 90360-06004 |
JZA80..4FC..(GZ,RZ,SZ) |
1 | ||
| 35708E - GEAR SUB-ASSY, SPEEDOMETER DRIVE | ||||
| 35708-50020 |
JZA80..4FC..TWT |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-30100 |
JZA80..4FC..TWT |
1 | ||
| 35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR | ||||
| 90374-35005 |
JZA80..4FC..TWT |
1 | ||
| 35720B - RING, SHAFT SNAP (FOR FRONT PLANETARY GEAR) | ||||
| 90520-24029 |
JZA80..4FC..TWT |
1 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-30020 |
JZA80..4FC |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-30030 |
JZA80..4FC |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35739-30030 |
JZA80..4FC |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35705-14010 |
JZA80..4FC..TWT |
1 | ||
| 35761 - GEAR, REAR PLANETARY RING | ||||
| 35761-50010 |
JZA80..4FC..TWT |
1 | ||
| 35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR) | ||||
| 90521-99024 |
JZA80..4FC |
1 | ||
| 35762 - FLANGE, REAR PLANETARY RING GEAR | ||||
| 35762-50010 |
JZA80..4FC |
1 | ||
| 35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG | ||||
| 90374-39001 |
JZA80..4FC |
1 | ||
| 35771 - SHAFT, OUTPUT | ||||
| 35771-14040 |
JZA80..4FC..TWT |
1 | ||
| 35789C - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT) | ||||
| 35789-30240 |
JZA80..4FC..TWT |
1 | ||
| 35789D - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR) | ||||
| 35789-30200 |
JZA80..4FC..TWT |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-14020 |
JZA80..4FC |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-87001 |
JZA80..4FC |
1 | ||
| 35797 - RACE, 1 WAY CLUTCH INNER | ||||
| 35797-50010 |
JZA80..4FC |
1 | ||
| Common parts | ||||
| 90312-24001 | ||||
