JZA80-ALPVZ (1995)

Toyota Supra

Production May 1995 - Aug 2002
Engine 2JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9709- )

Click highlighted areas on diagram

3-SPOKE, W(*80)

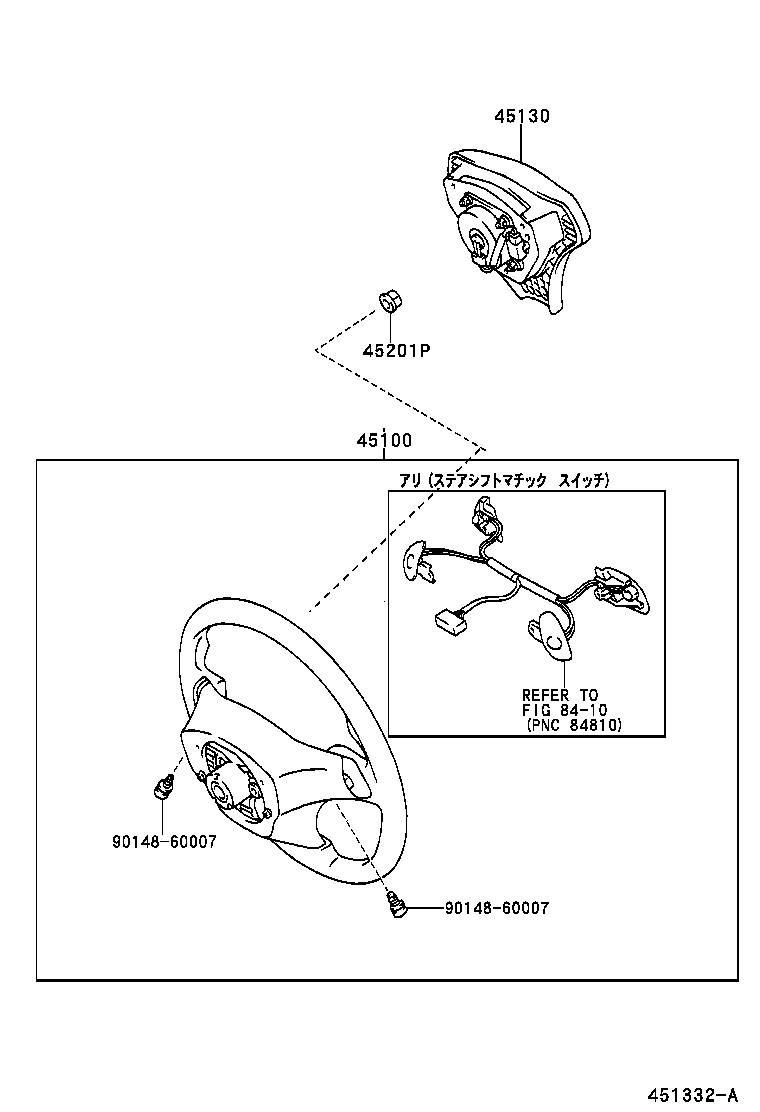

diagram 45100 45130 45201P 8410 9014860007 9014860007
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-14580C0

JZA80..RZ,SZR

3本ｽﾎﾟｰｸ,BLACK,TRIM2#

 1
45100-14550C0

JZA80..RZ,SZ,SZR

4本ｽﾎﾟｰｸ,ｱﾘ(*80 & ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ),BLACK,TRIM2#

 1
45100-14560C0

JZA80..RZ,SZ,SZR

3本ｽﾎﾟｰｸ,BLACK,TRIM2#

 1
45100-14580C0

JZA80..RZS,SZ

3本ｽﾎﾟｰｸ,ｶﾜﾏｷ,BLACK,TRIM2#

 1
45100-14570C0

JZA80..RZ,SZ,SZR

3本ｽﾎﾟｰｸ,ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ),BLACK,TRIM2#

 1
45100-14590C1

JZA80..RZS,SZ

3本ｽﾎﾟｰｸ,BLACK,TRIM2#

 1
45100-14600C0

JZA80..RZ,SZ,SZR

4本ｽﾎﾟｰｸ,ｱﾘ(*80),BLACK,TRIM2#

 1
45100-14600C0

JZA80..RZS

4本ｽﾎﾟｰｸ,BLACK,TRIM2#

 1
45100-14620C0

JZA80..RZ,SZR

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80),BLACK,TRIM2#

 1
45100-14670C0

JZA80..4FC..TWT

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(ｽﾃｱｼﾌﾄﾏﾁﾂｸ ｽｲﾂﾁ),BLACK,TRIM2#

 1
45100-14610C0

JZA80..RZS,SZ

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLACK,TRIM2#

 1
45100-14660C0

JZA80..RZ,SZR

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80),BLACK,TRIM2#

 1
45130 - BUTTON ASSY, HORN
45130-14330C0

JZA80

BLACK,TRIM2#

 1
45130-14300C0

JZA80..RZS,SZ;JZA80..6F..RZ

ｱﾘ(*80),BLACK,TRIM2#

 1
45130-14300C0

JZA80..(4FC,5F)..(RZ,SZR)

ｱﾘ(*80 & ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ),BLACK,TRIM2#

 1
45130-14360C0

JZA80

BLACK,TRIM2#

 1
45130-14320C0

JZA80..RZ,RZS,SZ,SZR

BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

JZA80

 1
Common parts
90148-60007
Linked diagrams
8410
