Toyota Supra JZA80 WIRING & CLAMP

JZA80-ALPVF (1993)

Toyota Supra

Production May 1993 - Aug 2002

Engine 2JZGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

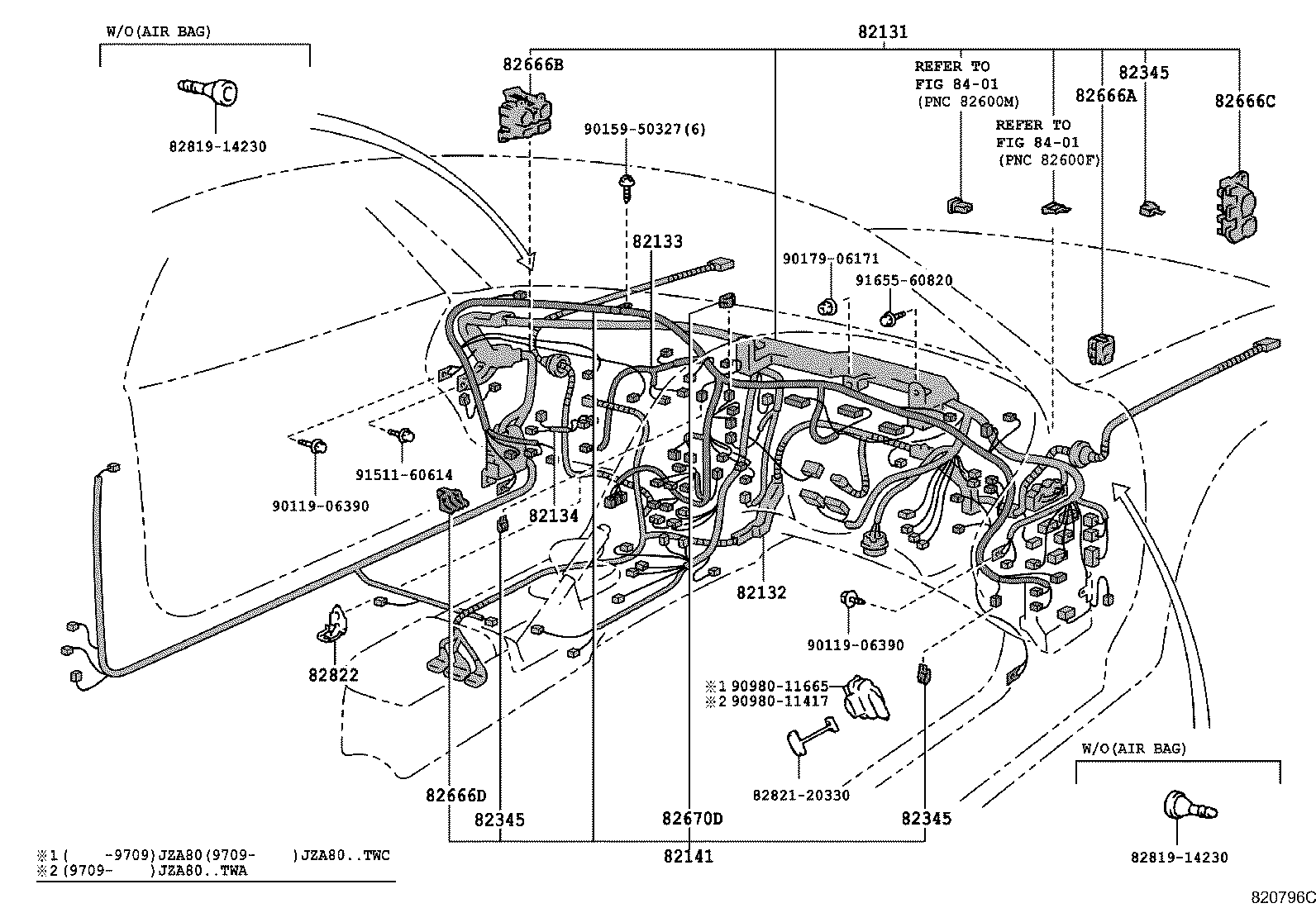

ILLUST NO. 3 OF 1(9305- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-1D650	JZA80..TWC ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)	05/1993 - 08/1994	1
82131-1D641	JZA80..SZ	08/1994 - 05/1995	1
82131-1D651	JZA80..SZ ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ) OR ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ)	08/1994 - 05/1995	1
82131-1D660	JZA80..TWC ｱﾘ(ABS)	05/1993 - 08/1994	1
82131-1D640	JZA80..TWC	05/1993 - 08/1994	1
82131-1D642	JZA80..SZ	05/1995 - 05/1996	1
82131-1D661	JZA80..SZ ｱﾘ(ABS)	08/1994 - 05/1995	1
82131-1D662	JZA80..SZ ｱﾘ(ABS)	05/1995 - 05/1996	1
82131-1D800	JZA80..TWC	05/1996 - 09/1997	1
82131-1D821	JZA80..TWC ｱﾘ(FR;235/45,RR;255/40)	09/1997 - 08/1999	1
82131-1D811	JZA80..TWC ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ)	09/1997 - 08/1999	1
82131-1D820	JZA80..TWC ｱﾘ(FR;235/45,RR;255/40)	05/1996 - 09/1997	1
82131-1D652	JZA80..SZ ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ)	05/1995 - 05/1996	1
82131-1D810	JZA80..TWC ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ)	05/1996 - 09/1997	1
82131-1D801	JZA80..TWC	08/1999 - 12/2999	1
82131-1D801	JZA80..TWC	09/1997 - 08/1999	1
82131-1D821	JZA80..TWC ｱﾘ(FR;235/45,RR;255/40)	08/1999 - 12/2999	1
82131-1D811	JZA80..TWC ｱﾘ(ﾌﾛﾝﾄｽﾎﾟｲﾗ)	08/1999 - 12/2999	1
82132 - WIRE, COWL, NO.2
82132-14020	JZA80 ｱﾘ(*80;ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)	05/1993 - 05/1996	1
82132-14010	JZA80..RZ,RZS,SZ,SZR ｱﾘ(*80;ｳﾝﾃﾝｾｷ)	05/1993 - 05/1996	1
82133 - WIRE, COWL, NO.3
82133-14010	JZA80	08/1999 - 12/2999	1
82133-14010	JZA80	05/1993 - 08/1999	1
82134 - WIRE, COWL, NO.4
82134-14020	JZA80	05/1993 - 08/1999	1
82134-14020	JZA80	08/1999 - 12/2999	1
82141 - WIRE, INSTRUMENT PANEL
82141-1B341	JZA80..TWC	08/1999 - 12/2999	1
82141-1B260	JZA80..TWC	05/1993 - 08/1994	1
82141-1B261	JZA80..TWC	08/1994 - 05/1995	1
82141-1B272	JZA80..TWC ｱﾘ(*80)	05/1995 - 05/1996	1
82141-1B262	JZA80..TWC	05/1995 - 05/1996	1
82141-1B270	JZA80..TWC ｱﾘ(*80)	05/1993 - 08/1994	1
82141-1B271	JZA80..TWC ｱﾘ(*80)	08/1994 - 05/1995	1
82141-1B341	JZA80..TWC	09/1997 - 08/1999	1
82141-1B340	JZA80..TWC	05/1996 - 09/1997	1

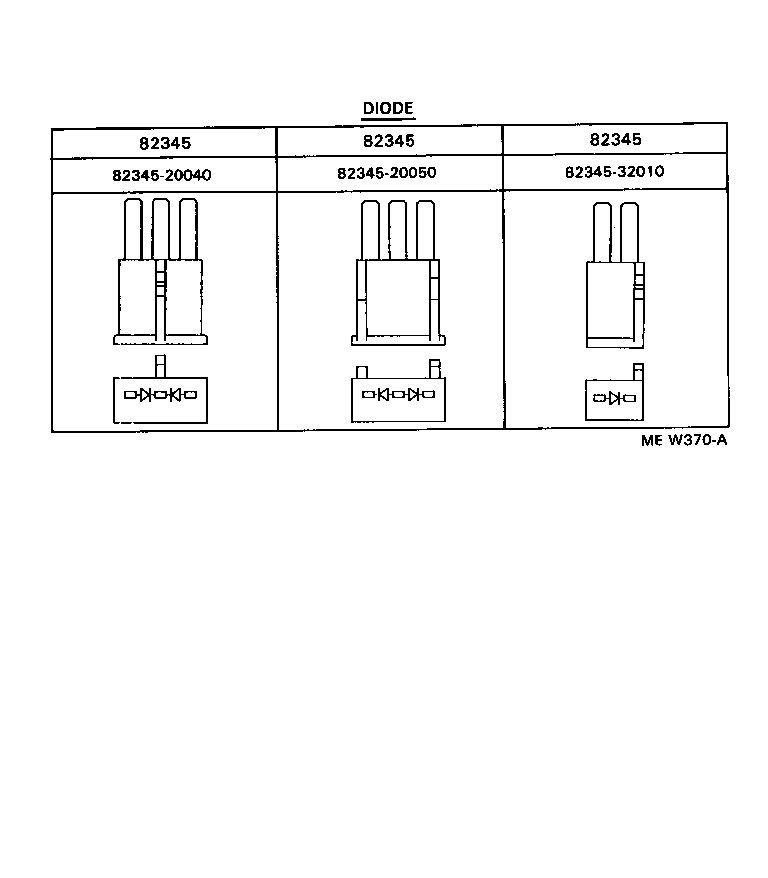

82345 - DIODE
82345-32010	JZA80 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-20050	JZA80..RZ,RZS,SZ TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
82345-20050	JZA80..4FC,5F;JZA80..6F..TWT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-20040	JZA80..4FC,5F;JZA80..6F..TWT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-32010	JZA80 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
82345-20040	JZA80..RZ,RZS,SZ TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
82345 - DIODE
82345-32010	JZA80 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-20050	JZA80..RZ,RZS,SZ TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
82345-20050	JZA80..4FC,5F;JZA80..6F..TWT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-20040	JZA80..4FC,5F;JZA80..6F..TWT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-32010	JZA80 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
82345-20040	JZA80..RZ,RZS,SZ TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
82345 - DIODE
82345-32010	JZA80 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-20050	JZA80..RZ,RZS,SZ TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
82345-20050	JZA80..4FC,5F;JZA80..6F..TWT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-20040	JZA80..4FC,5F;JZA80..6F..TWT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-32010	JZA80 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
82345-20040	JZA80..RZ,RZS,SZ TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-14030	JZA80	05/1993 - 08/1999	1
82666-14030	JZA80	08/1999 - 12/2999	1
82666B - HOLDER, CONNECTOR NO.3
82666-14040	JZA80	08/1999 - 12/2999	1
82666-14040	JZA80	05/1993 - 08/1999	1
82666C - HOLDER, CONNECTOR NO.4
82666-14010	JZA80	05/1993 - 08/1999	1
82666-14010	JZA80	08/1999 - 12/2999	1
82666D - HOLDER, CONNECTOR NO.5
82666-14050	JZA80	05/1993 - 08/1999	1
82666-14050	JZA80	08/1999 - 12/2999	1
82670D - BLOCK ASSY, JUNCTION,NO.2
82670-20890	JZA80	05/1993 - 08/1999	1
82670-20890	JZA80	08/1999 - 12/2999	1
82822 - BRACKET,CONNECTOR BLOCK
82822-14090	JZA80	05/1993 - 08/1999	1
82822-14090	JZA80	08/1999 - 12/2999	1
Common parts
82819-14230
82821-20330
90119-06390
90159-50327
90179-06171
90980-11417
90980-11665
91511-60614
91655-60820

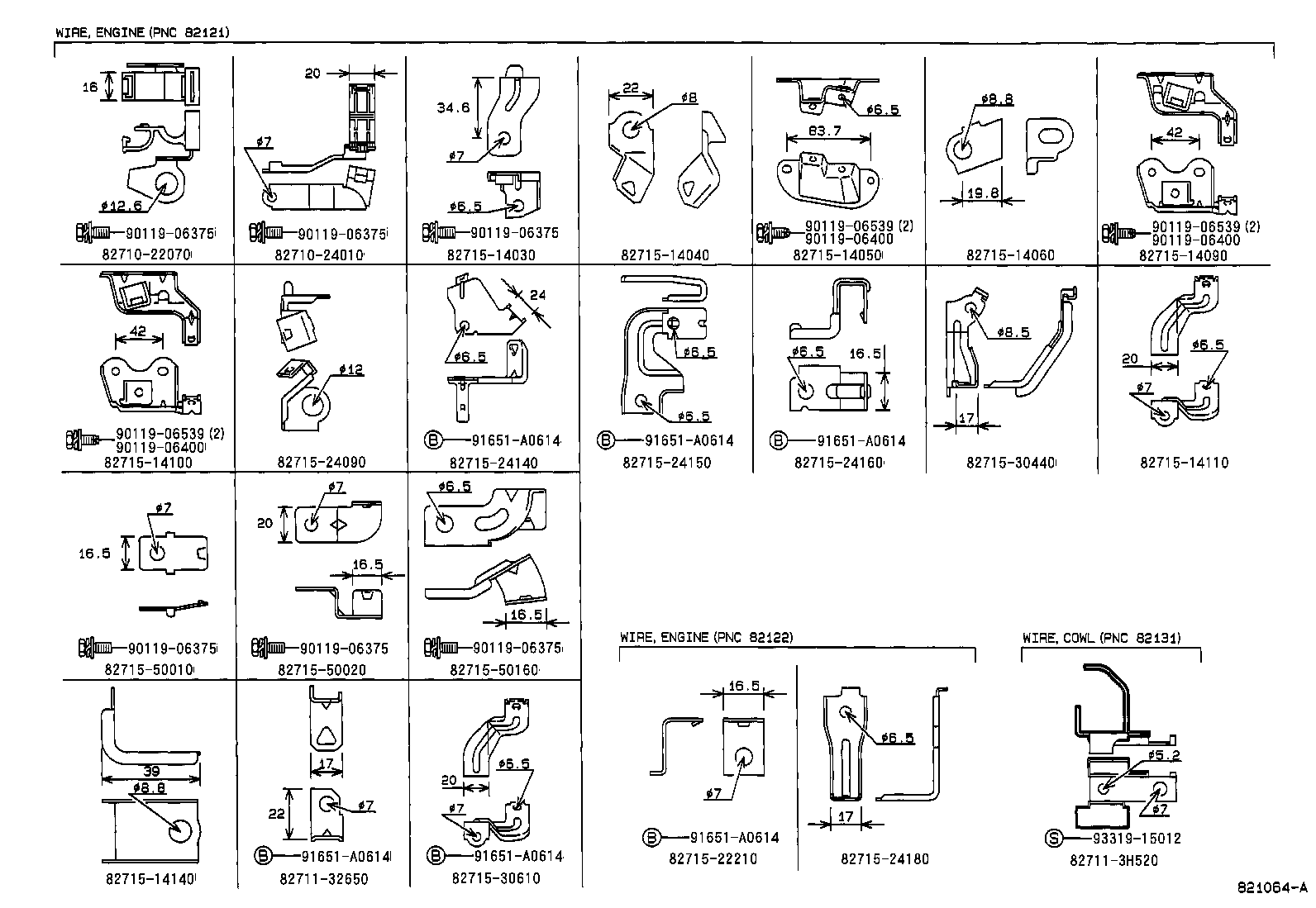

ILLUST NO. 6 OF10(9305- )

Click highlighted areas on diagram

ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

Part #	Description	Period	Qty	Price
Common parts
82710-22070
82710-24010
82711-32650
82711-3H520
82715-14030
82715-14040
82715-14050
82715-14060
82715-14090
82715-14100
82715-14110
82715-14140
82715-22210
82715-24090
82715-24140
82715-24150
82715-24160
82715-24180
82715-30440
82715-30610
82715-50010
82715-50020
82715-50160
90119-06375
90119-06400
90119-06539
91651-A0614
93319-15012

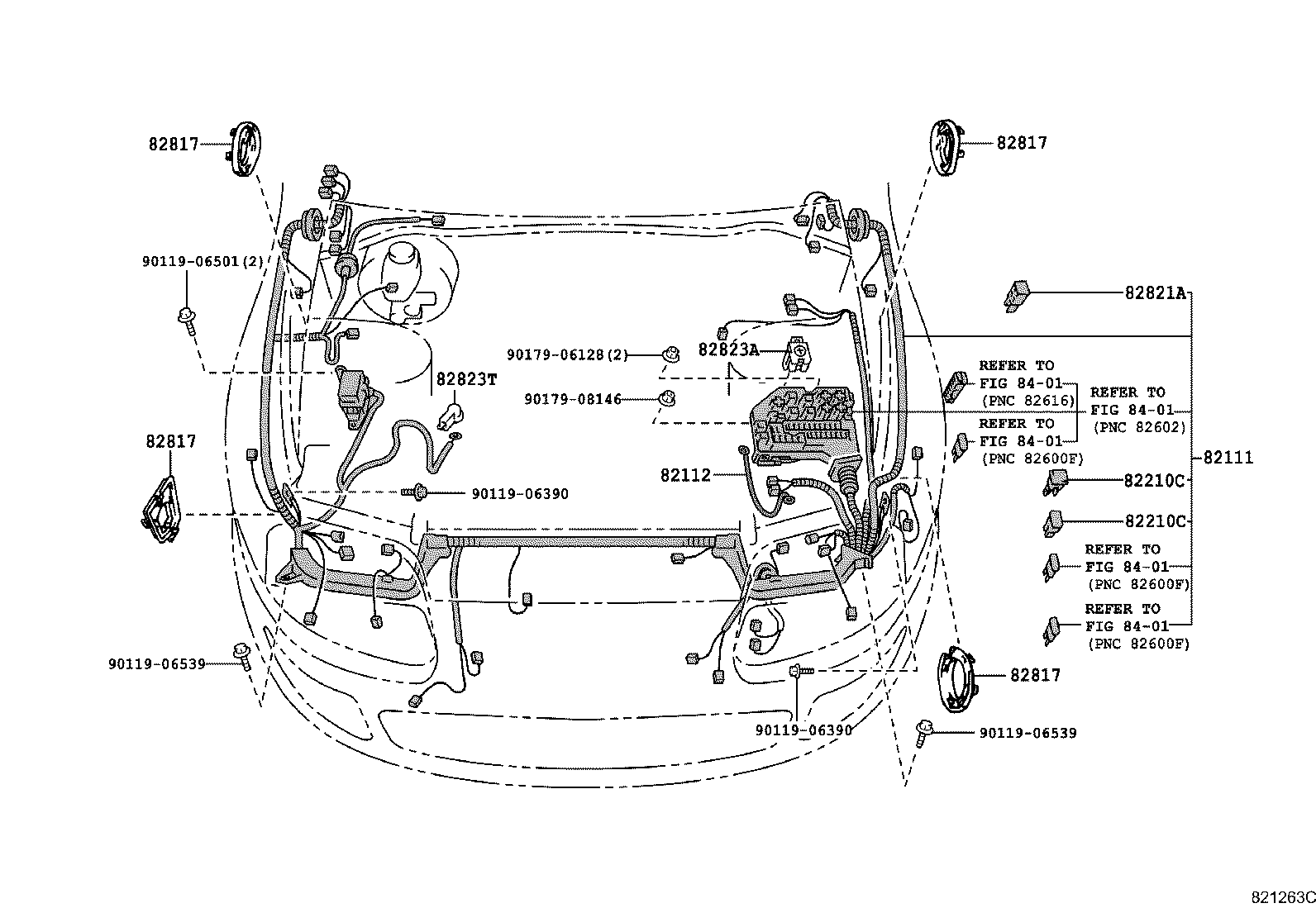

ILLUST NO. 1 OF10(9305- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙ-ﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-1B470	JZA80..TWC	05/1993 - 08/1994	1
82111-1B480	JZA80..TWC ｱﾘ(ABS)	05/1993 - 08/1994	1
82111-1B482	JZA80..SZ ｱﾘ(ABS)	05/1995 - 05/1996	1
82111-1B472	JZA80..SZ	05/1995 - 05/1996	1
82111-1B481	JZA80..SZ ｱﾘ(ABS)	08/1994 - 05/1995	1
82111-1B471	JZA80..SZ	08/1994 - 05/1995	1
82111-1B600	JZA80..TWC	05/1996 - 12/2999	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-14020	JZA80	05/1993 - 08/1999	1
82112-14020	JZA80	08/1999 - 12/2999	1
82210C - FUSIBLE LINK
90982-08227	JZA80 50A,ﾒｽ端子,赤	05/1996 - 12/2999	3
90982-08190	JZA80 60A,ﾒｽ端子,黄	05/1993 - 12/2999	2
90982-08277	JZA80 50A,ﾒｽ端子,赤	05/1993 - 05/1996	2
90982-08271	JZA80 120A,ｵｽ端子,白	05/1993 - 12/2999	1
90982-08188	JZA80 30A,ﾒｽ端子,ﾋﾟﾝｸ	05/1993 - 05/1996	1
90982-08283	JZA80 30A,ﾒｽ端子,桃	05/1996 - 12/2999	2
82210C - FUSIBLE LINK
90982-08227	JZA80 50A,ﾒｽ端子,赤	05/1996 - 12/2999	3
90982-08190	JZA80 60A,ﾒｽ端子,黄	05/1993 - 12/2999	2
90982-08277	JZA80 50A,ﾒｽ端子,赤	05/1993 - 05/1996	2
90982-08271	JZA80 120A,ｵｽ端子,白	05/1993 - 12/2999	1
90982-08188	JZA80 30A,ﾒｽ端子,ﾋﾟﾝｸ	05/1993 - 05/1996	1
90982-08283	JZA80 30A,ﾒｽ端子,桃	05/1996 - 12/2999	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-24480	JZA80 FRONT LH APRN	05/1993 - 12/2999	1
82817-24511	JZA80 REAR APRN	05/1993 - 12/2999	2
82817-24500	JZA80..TWC FRONT RH APRN	05/1993 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-24480	JZA80 FRONT LH APRN	05/1993 - 12/2999	1
82817-24511	JZA80 REAR APRN	05/1993 - 12/2999	2
82817-24500	JZA80..TWC FRONT RH APRN	05/1993 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-24480	JZA80 FRONT LH APRN	05/1993 - 12/2999	1
82817-24511	JZA80 REAR APRN	05/1993 - 12/2999	2
82817-24500	JZA80..TWC FRONT RH APRN	05/1993 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-24480	JZA80 FRONT LH APRN	05/1993 - 12/2999	1
82817-24511	JZA80 REAR APRN	05/1993 - 12/2999	2
82817-24500	JZA80..TWC FRONT RH APRN	05/1993 - 12/2999	1
82821A - COVER, CONNECTOR
82821-30460	JZA80..TWC ｱﾘ(ABS)	05/1993 - 10/1993	2
82821-30460	JZA80..TWC	05/1993 - 10/1993	3
82823A - CAP, TERMINAL, NO.2
82823-14100	JZA80	05/1993 - 12/2999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-24030	JZA80	05/1993 - 12/2999	1
Common parts
90119-06390
90119-06501
90119-06539
90179-06128
90179-08146

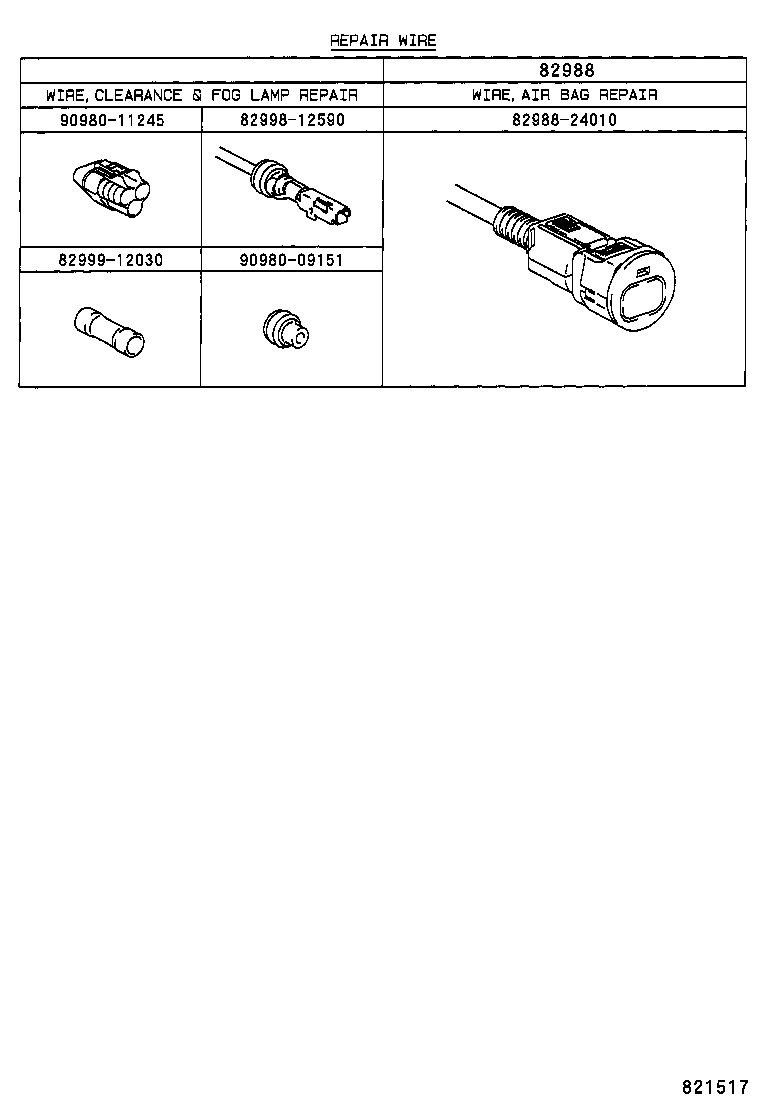

ILLUST NO. 9 OF10(9305-9605)

Click highlighted areas on diagram

ﾘﾍﾟｱﾜｲﾔ

Part #	Description	Period	Qty
82988 - WIRE, AIR BAG REPAIR
82988-24010	JZA80	05/1993 - 05/1996	1
Common parts
82988-24010
82998-12590
82999-12030
90980-09151
90980-11245

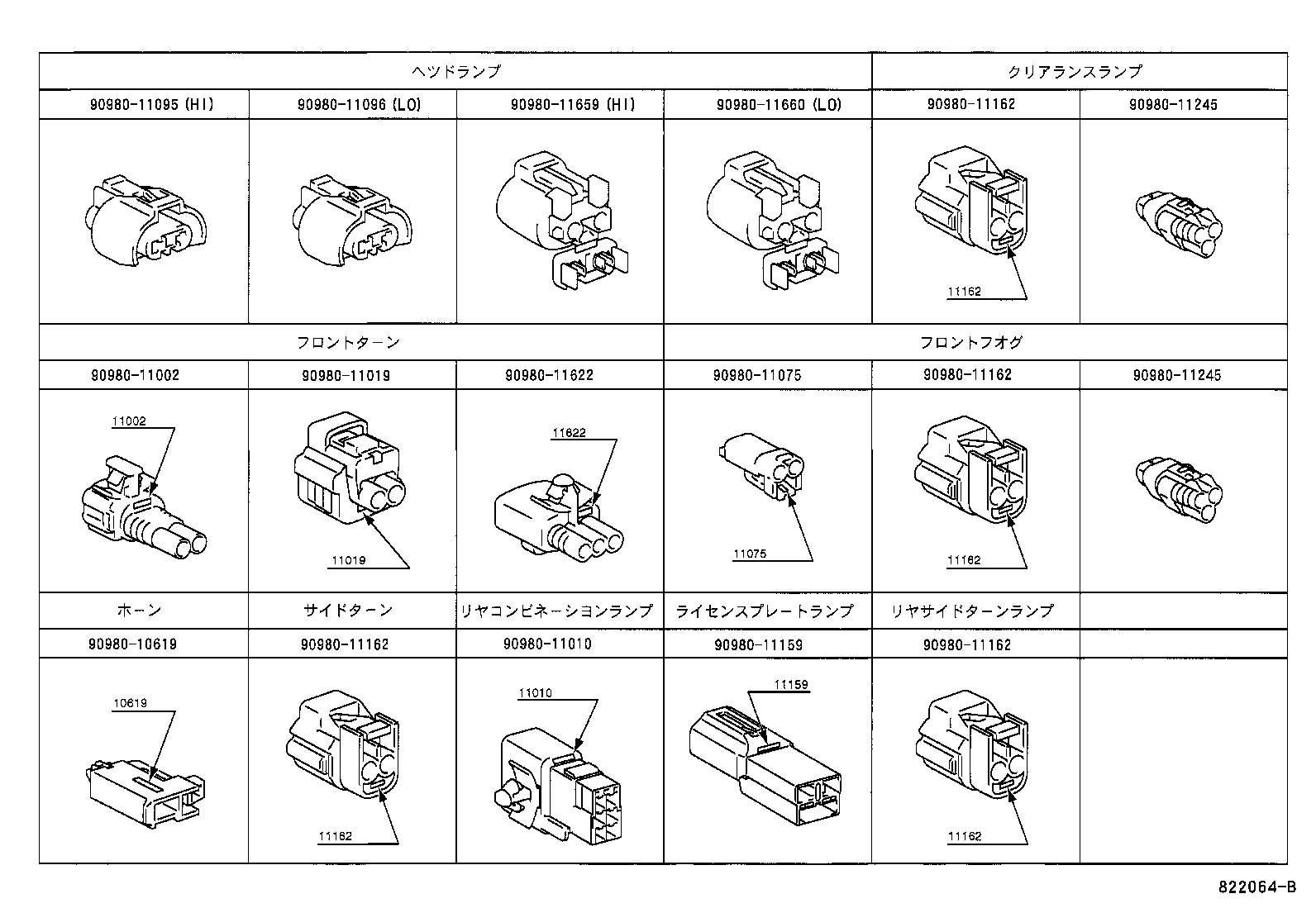

ILLUST NO.10 OF10(9305- )

Click highlighted areas on diagram

ｺﾈｸﾀ

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-11002
90980-11010
90980-11019
90980-11075
90980-11095
90980-11096
90980-11159
90980-11162
90980-11245
90980-11622
90980-11659
90980-11660

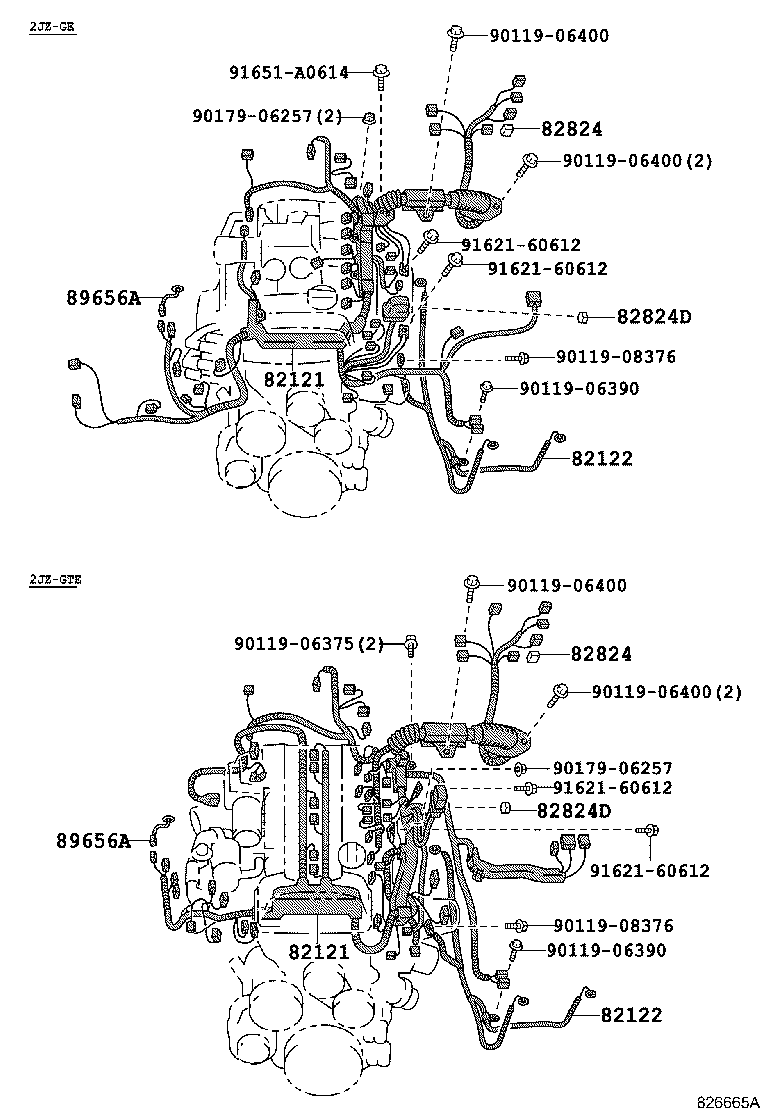

ILLUST NO. 2 OF10(9305- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-14790	JZA80..4FC..TWC	05/1993 - 11/1993	1
82121-14791	JZA80..4FC..TWC	11/1993 - 08/1994	1
82121-14793	JZA80..4FC..TWC	05/1995 - 05/1996	1
82121-14794	JZA80..4FC..TWC	05/1996 - 09/1997	1
82121-14795	JZA80..4FC..TWC	08/1999 - 12/2999	1
82121-14792	JZA80..4FC..TWC	08/1994 - 05/1995	1
82121-14795	JZA80..4FC..TWC	09/1997 - 08/1999	1
82121 - WIRE, ENGINE
82121-14790	JZA80..4FC..TWC	05/1993 - 11/1993	1
82121-14791	JZA80..4FC..TWC	11/1993 - 08/1994	1
82121-14793	JZA80..4FC..TWC	05/1995 - 05/1996	1
82121-14794	JZA80..4FC..TWC	05/1996 - 09/1997	1
82121-14795	JZA80..4FC..TWC	08/1999 - 12/2999	1
82121-14792	JZA80..4FC..TWC	08/1994 - 05/1995	1
82121-14795	JZA80..4FC..TWC	09/1997 - 08/1999	1
82122 - WIRE, ENGINE, NO.2
82122-14531	JZA80..TWC ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 08/1999	1
82122-14560	JZA80..SZ	09/1997 - 08/1999	1
82122-14540	JZA80..TWC	05/1995 - 09/1997	1
82122-14531	JZA80..TWC ｶﾝﾚｲﾁｼﾖｳ	08/1999 - 12/2999	1
82122-14560	JZA80..SZ	08/1999 - 12/2999	1
82122-14531	JZA80..TWC	04/1994 - 05/1995	1
82122-14530	JZA80..TWC	05/1993 - 04/1994	1
82122 - WIRE, ENGINE, NO.2
82122-14531	JZA80..TWC ｶﾝﾚｲﾁｼﾖｳ	05/1995 - 08/1999	1
82122-14560	JZA80..SZ	09/1997 - 08/1999	1
82122-14540	JZA80..TWC	05/1995 - 09/1997	1
82122-14531	JZA80..TWC ｶﾝﾚｲﾁｼﾖｳ	08/1999 - 12/2999	1
82122-14560	JZA80..SZ	08/1999 - 12/2999	1
82122-14531	JZA80..TWC	04/1994 - 05/1995	1
82122-14530	JZA80..TWC	05/1993 - 04/1994	1
82824 - CONNECTOR, WIRING HARNESS
82824-22060	JZA80	05/1993 - 05/1996	1
82824 - CONNECTOR, WIRING HARNESS
82824-22060	JZA80	05/1993 - 05/1996	1
82824D - CONNECTOR, WIRING HARNESS
82824-24010	JZA80	05/1993 - 08/1999	1
82824-24010	JZA80	08/1999 - 12/2999	1
82824D - CONNECTOR, WIRING HARNESS
82824-24010	JZA80	05/1993 - 08/1999	1
82824-24010	JZA80	08/1999 - 12/2999	1
89656A - WIRE, POWER STEERING EARTH
89656-14010	JZA80	05/1993 - 08/1994	1
89656A - WIRE, POWER STEERING EARTH
89656-14010	JZA80	05/1993 - 08/1994	1
Common parts
90119-06375
90119-06390
90119-06400
90119-08376
90179-06257
91621-60612
91651-A0614

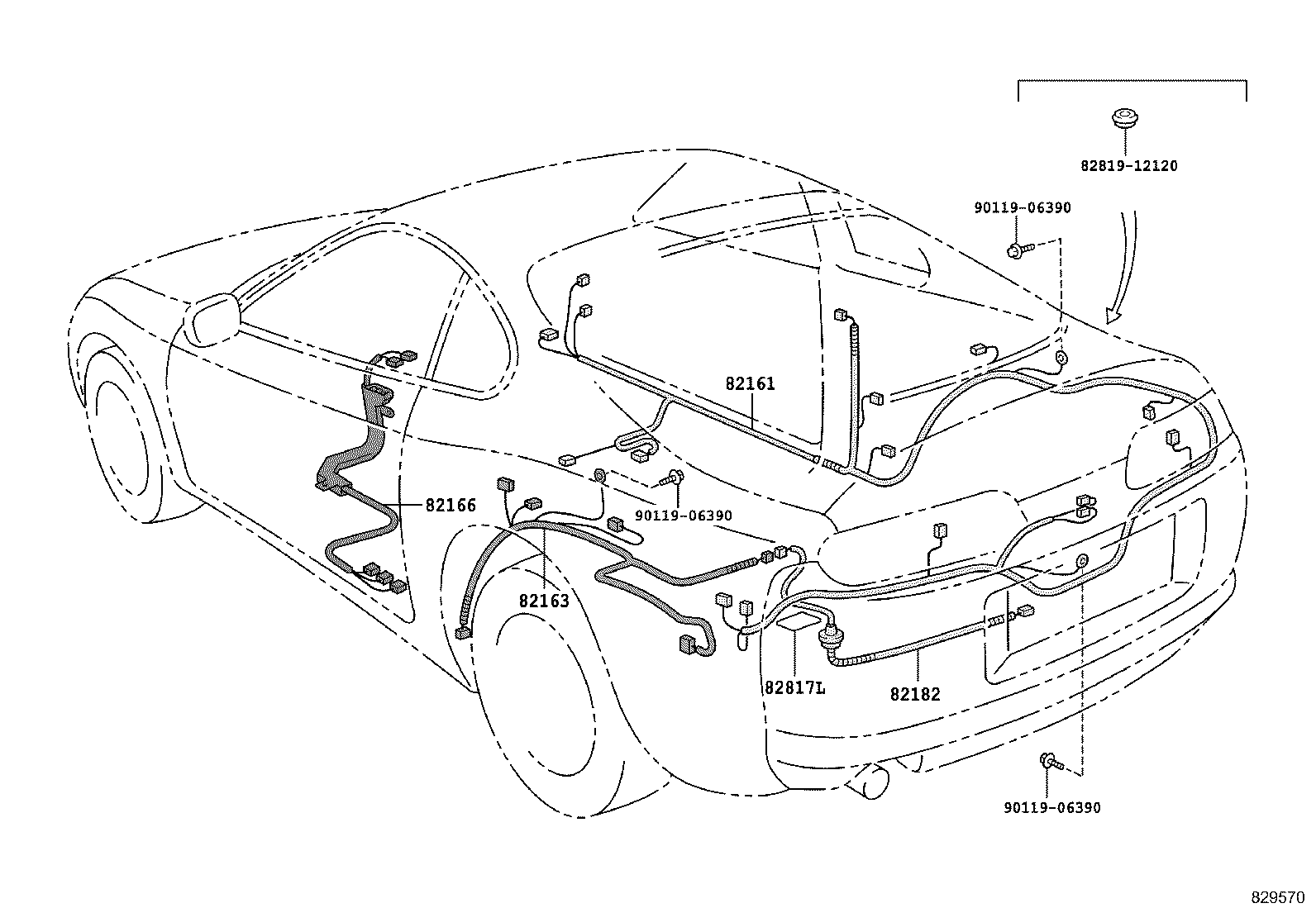

ILLUST NO. 4 OF10(9305- )

Click highlighted areas on diagram

ﾌﾛｱ

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-1B050	JZA80..GZ,RZS,SZ,SZR	05/1995 - 05/1996	1
82161-1B050	JZA80	05/1993 - 05/1995	1
82161-1B070	JZA80..GZ,RZS,SZ,SZR ｱﾘ(ﾚｶﾛｼ-ﾄ)	05/1995 - 05/1996	1
82161-1B081	JZA80..RZS,SZ	09/1997 - 08/1999	1
82161-1B090	JZA80..RZS,SZ ｱﾘ(ﾚｶﾛｼ-ﾄ)	05/1996 - 09/1997	1
82161-1B080	JZA80..RZS,SZ	05/1996 - 09/1997	1
82161-1B081	JZA80..RZS,SZ	08/1999 - 12/2999	1
82161-1B091	JZA80..RZS,SZ ｱﾘ(ﾚｶﾛｼ-ﾄ)	08/1999 - 12/2999	1
82161-1B091	JZA80..RZS,SZ ｱﾘ(ﾚｶﾛｼ-ﾄ)	09/1997 - 08/1999	1
82163 - WIRE, FLOOR, NO.3
82163-14031	JZA80..SZ ｱﾘ(ABS)	12/1993 - 05/1995	1
82163-14033	JZA80	08/1999 - 12/2999	1
82163-14030	JZA80..TWC ｱﾘ(ABS)	05/1993 - 12/1993	1
82163-14020	JZA80..TWC	05/1993 - 12/1993	1
82163-14032	JZA80..SZ ｱﾘ(ABS)	05/1995 - 05/1996	1
82163-14021	JZA80..SZ	12/1993 - 05/1995	1
82163-14022	JZA80..SZ	05/1995 - 05/1996	1
82163-14033	JZA80	05/1996 - 08/1999	1
82166 - WIRE, CONSOLE BOX
82166-14081	JZA80	05/1996 - 08/1999	1
82166-14081	JZA80	08/1999 - 12/2999	1
82166-14080	JZA80	08/1994 - 05/1996	1
82166-14080	JZA80..GZ,SZ	05/1993 - 08/1994	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-14021	JZA80	08/1999 - 12/2999	1
82182-14020	JZA80	05/1993 - 12/1993	1
82182-14021	JZA80	12/1993 - 08/1999	1
82817L - PROTECTOR, WIRING HARNESS, NO.11
61825-20100	JZA80	05/1993 - 12/1993	1
Common parts
82819-12120
90119-06390

ILLUST NO. 5 OF10(9305- )

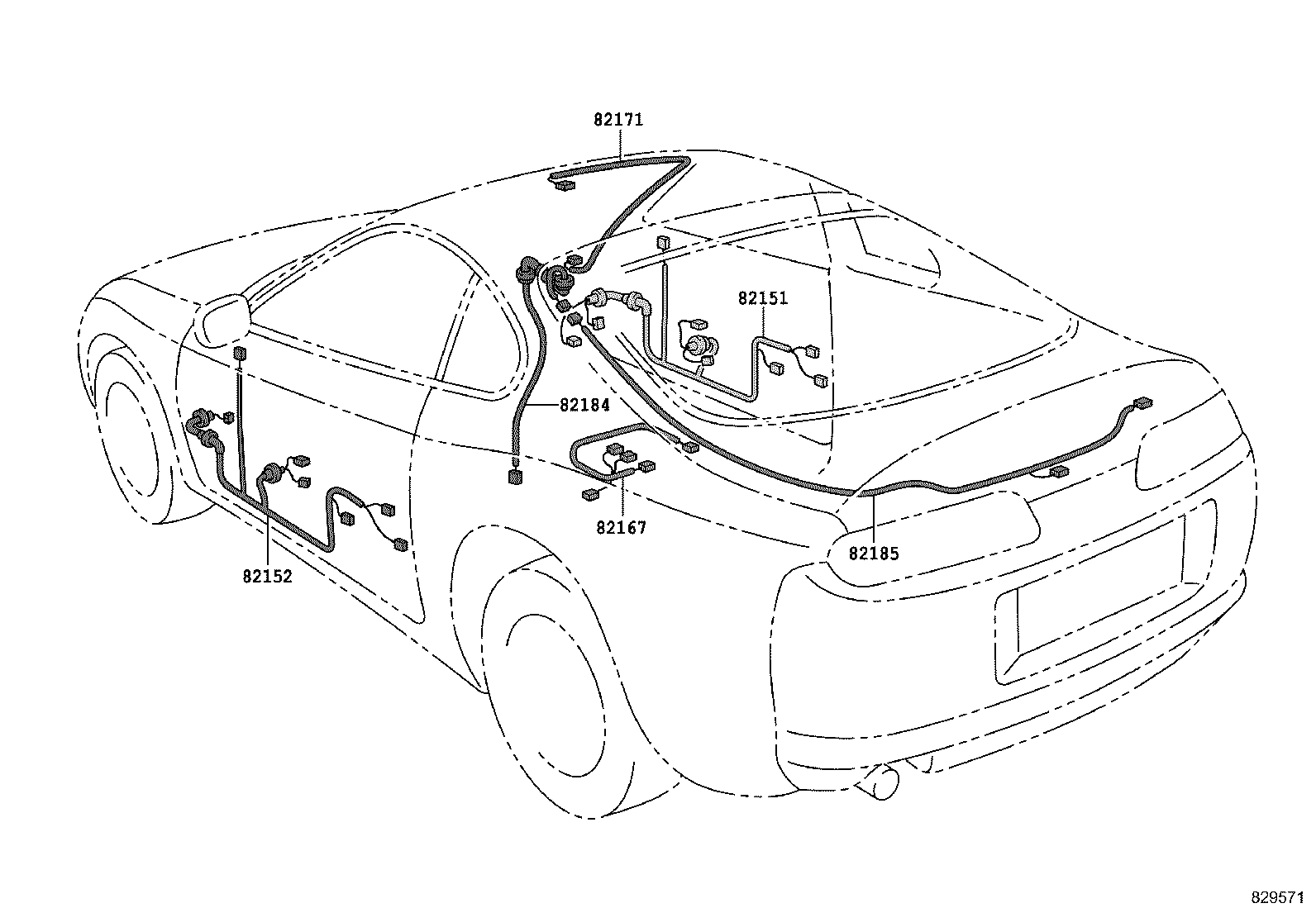

Click highlighted areas on diagram

ﾄﾞｱ, ｼ-ﾄ & ﾊﾞﾂｸﾄﾞｱ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-14590	JZA80	05/1993 - 08/1994	1
82151-14600	JZA80 ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	05/1993 - 08/1994	1
82151-14620	JZA80	05/1996 - 08/1999	1
82151-14591	JZA80	08/1994 - 05/1996	1
82151-14620	JZA80	08/1999 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-14460	JZA80 ｱﾘ(ﾌｴﾝﾀﾞﾐﾗ-)	05/1993 - 08/1994	1
82152-14451	JZA80	08/1994 - 05/1996	1
82152-14481	JZA80	08/1999 - 12/2999	1
82152-14450	JZA80	05/1993 - 08/1994	1
82152-14480	JZA80	05/1996 - 09/1997	1
82152-14481	JZA80	09/1997 - 08/1999	1
82167 - WIRE, SEAT, NO.1
82167-14130	JZA80..RZS,SZ	08/1999 - 12/2999	1
82167-14130	JZA80	05/1993 - 05/1995	1
82167-14130	JZA80..4FC,5F;JZA80..6F..RZS	05/1995 - 08/1999	1
82171 - WIRE, ROOF, NO.1
82171-14290	JZA80	05/1995 - 08/1999	1
82171-14290	JZA80	08/1999 - 12/2999	1
82171-14290	JZA80..TWC	05/1993 - 05/1995	1
82184 - WIRE, BACK DOOR, NO.1
82184-14100	JZA80	05/1993 - 05/1995	1
82184-14101	JZA80	08/1999 - 12/2999	1
82184-14101	JZA80	05/1995 - 08/1999	1
82185 - WIRE, BACK DOOR, NO.2
82185-14181	JZA80	08/1999 - 12/2999	1
82185-14181	JZA80	05/1995 - 08/1999	1
82185-14180	JZA80	05/1993 - 05/1995	1

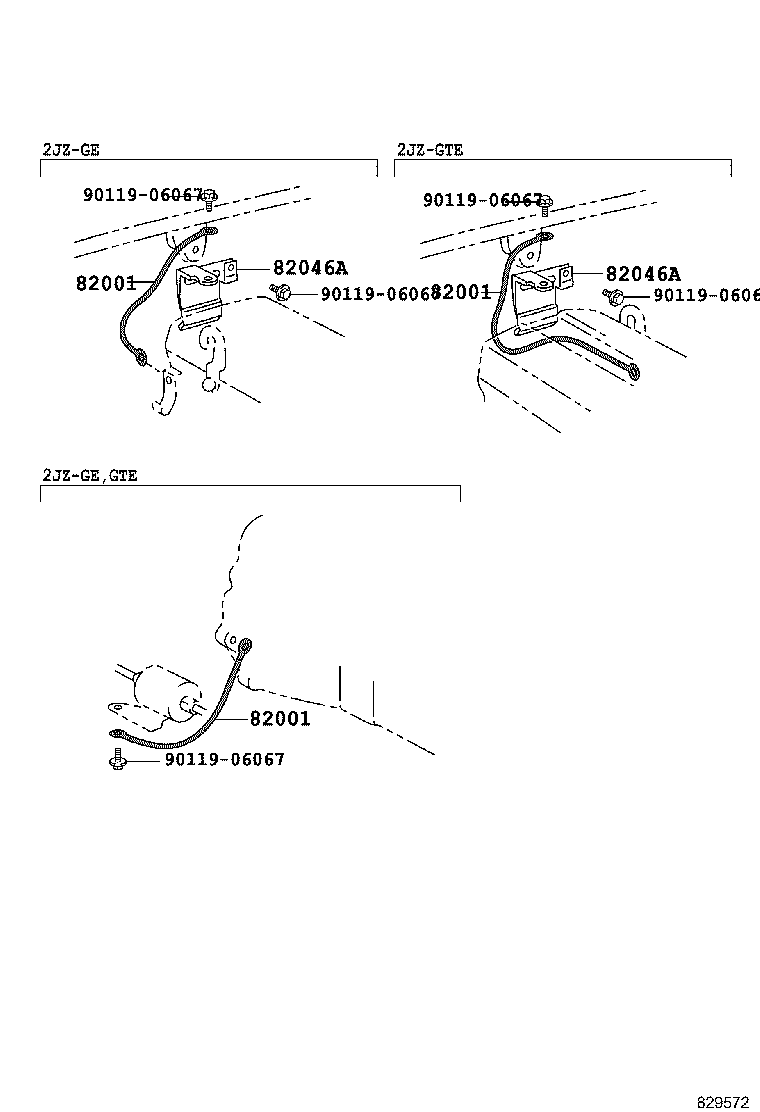

ILLUST NO. 8 OF10(9305- )

Click highlighted areas on diagram

ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07313	JZA80..TWC E/G HEAD COWLTOP	05/1996 - 08/1999	1
90980-07345	JZA80 T/M-FLOOR	05/1993 - 08/1999	1
90980-07313	JZA80..TWC E/G HEAD COWLTOP	08/1999 - 12/2999	1
90980-07345	JZA80 T/M-FLOOR	08/1999 - 12/2999	1
90980-07313	JZA80..TWC E/G HEAD-COWLTOP	05/1993 - 05/1996	1
82001 - CABLE, BOND, NO.1
90980-07313	JZA80..TWC E/G HEAD COWLTOP	05/1996 - 08/1999	1
90980-07345	JZA80 T/M-FLOOR	05/1993 - 08/1999	1
90980-07313	JZA80..TWC E/G HEAD COWLTOP	08/1999 - 12/2999	1
90980-07345	JZA80 T/M-FLOOR	08/1999 - 12/2999	1
90980-07313	JZA80..TWC E/G HEAD-COWLTOP	05/1993 - 05/1996	1
82001 - CABLE, BOND, NO.1
90980-07313	JZA80..TWC E/G HEAD COWLTOP	05/1996 - 08/1999	1
90980-07345	JZA80 T/M-FLOOR	05/1993 - 08/1999	1
90980-07313	JZA80..TWC E/G HEAD COWLTOP	08/1999 - 12/2999	1
90980-07345	JZA80 T/M-FLOOR	08/1999 - 12/2999	1
90980-07313	JZA80..TWC E/G HEAD-COWLTOP	05/1993 - 05/1996	1
82046A - WIRE SUB-ASSY, BODY GROUND, NO.1
82046-14130	JZA80	08/1999 - 12/2999	1
82046-14130	JZA80	05/1993 - 08/1999	1
82046A - WIRE SUB-ASSY, BODY GROUND, NO.1
82046-14130	JZA80	08/1999 - 12/2999	1
82046-14130	JZA80	05/1993 - 08/1999	1
Common parts
90119-06067

ILLUST NO. 7 OF10(9305- )

Click highlighted areas on diagram

ﾀﾞｲｵ-ﾄﾞ

Part #	Description	Period	Qty
82345 - DIODE
82345-32010	JZA80 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-20050	JZA80..RZ,RZS,SZ TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
82345-20050	JZA80..4FC,5F;JZA80..6F..TWT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-20040	JZA80..4FC,5F;JZA80..6F..TWT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-32010	JZA80 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
82345-20040	JZA80..RZ,RZS,SZ TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
82345 - DIODE
82345-32010	JZA80 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-20050	JZA80..RZ,RZS,SZ TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
82345-20050	JZA80..4FC,5F;JZA80..6F..TWT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-20040	JZA80..4FC,5F;JZA80..6F..TWT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-32010	JZA80 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
82345-20040	JZA80..RZ,RZS,SZ TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
82345 - DIODE
82345-32010	JZA80 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-20050	JZA80..RZ,RZS,SZ TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
82345-20050	JZA80..4FC,5F;JZA80..6F..TWT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-20040	JZA80..4FC,5F;JZA80..6F..TWT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	05/1993 - 08/1999	1
82345-32010	JZA80 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
82345-20040	JZA80..RZ,RZS,SZ TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1999 - 12/2999	1
Common parts
82345-20040
82345-20050
82345-32010

ILLUST NO. 9 OF10(9305-9605)

Click highlighted areas on diagram

ﾘﾍﾟｱﾜｲﾔ

Part #	Description	Period	Qty	Price
Common parts
82998-12590
82998-12600
82998-12610
82999-12030
90980-09151
90980-09396
90980-10598
90980-10619
90980-11002
90980-11019
90980-11095
90980-11096

JZA80-ALPVF (1993)

ILLUST NO. 3 OF 1(9305- )

ILLUST NO. 6 OF10(9305- )

ILLUST NO. 1 OF10(9305- )

ILLUST NO. 9 OF10(9305-9605)

ILLUST NO.10 OF10(9305- )

ILLUST NO. 2 OF10(9305- )

ILLUST NO. 4 OF10(9305- )

ILLUST NO. 5 OF10(9305- )

ILLUST NO. 8 OF10(9305- )

ILLUST NO. 7 OF10(9305- )

ILLUST NO. 9 OF10(9305-9605)

Part Price Details
