JZA80-ALPVF (1993)
Toyota Supra
Production
May 1993
-
Aug 2002
Engine
2JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

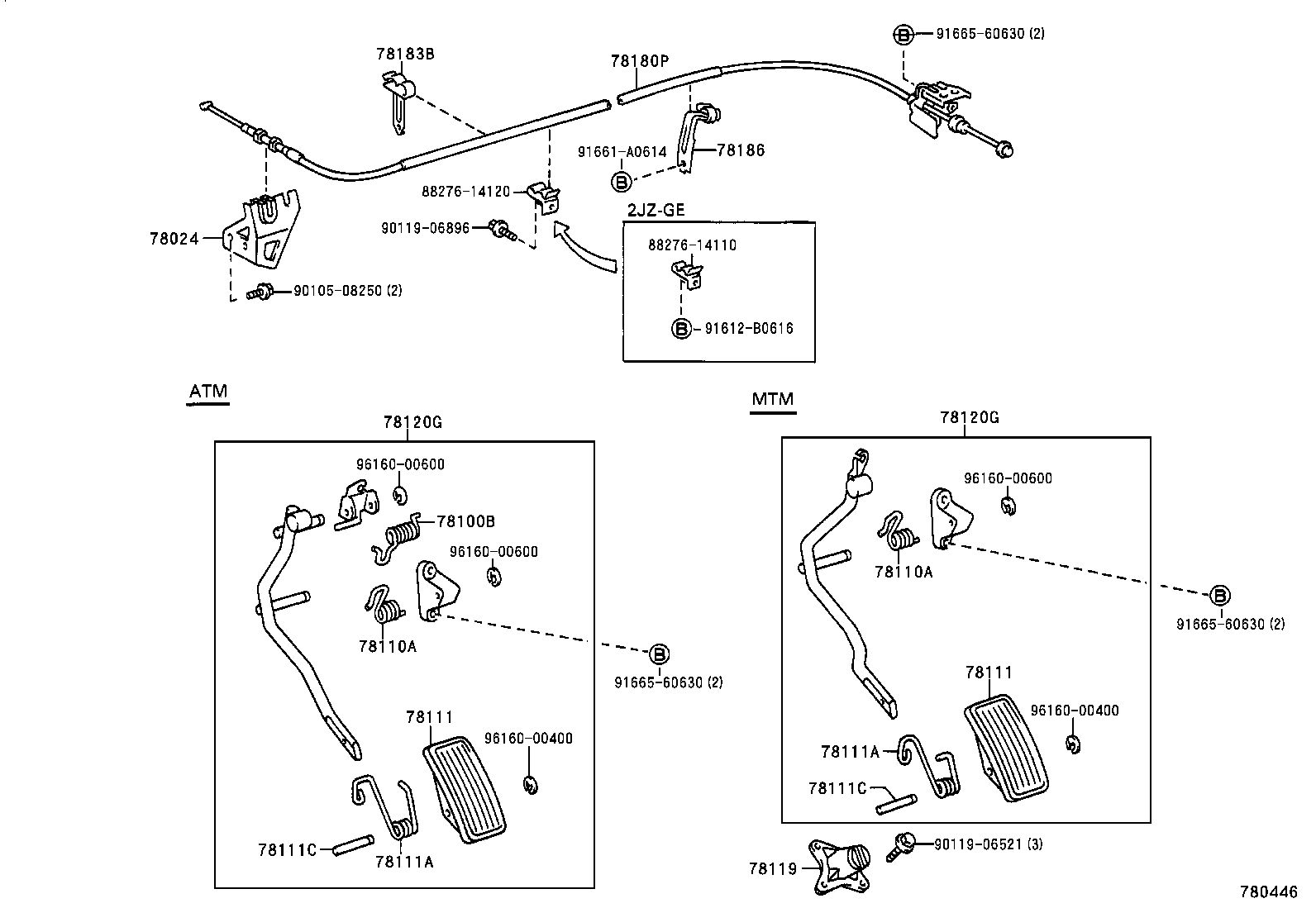

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100B - SPRING (FOR ACCELERATOR LINK) | ||||
| 90508-29022 |
JZA80..4FC |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-23076 |
JZA80 |
1 | ||
| 90508-23076 |
JZA80 |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-23076 |
JZA80 |
1 | ||
| 90508-23076 |
JZA80 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
JZA80 |
1 | ||
| 78111-12100 |
JZA80 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
JZA80 |
1 | ||
| 78111-12100 |
JZA80 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23088 |
JZA80..4FC |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23088 |
JZA80..4FC |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
JZA80 |
1 | ||
| 90249-05001 |
JZA80 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
JZA80 |
1 | ||
| 90249-05001 |
JZA80 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-14450 |
JZA80..4FC |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-14450 |
JZA80..4FC |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-1B100 |
JZA80..TWC |
1 | ||
| 78180-1B100 |
JZA80..TWC |
1 | ||
| Common parts | ||||
| 88276-14110 | ||||
| 88276-14120 | ||||
| 90105-08250 | ||||
| 90119-06521 | ||||
| 90119-06896 | ||||
| 91612-B0616 | ||||
| 91661-A0614 | ||||
| 91665-60630 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
