JZA80-ALPVF (1993)
Toyota Supra
Production
May 1993
-
Aug 2002
Engine
2JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305-9709) ; (9709- )RZS,SZ

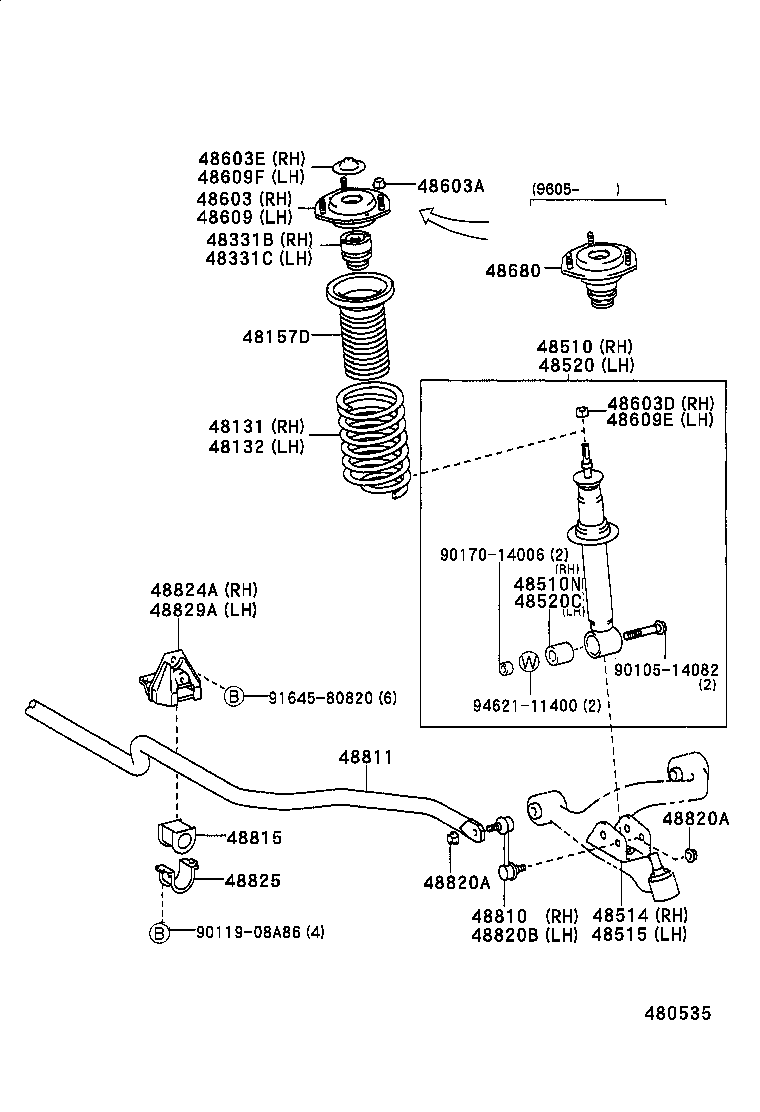

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-1D670 |
JZA80..SZ |
1 | ||
| 48131-1D582 |
JZA80..TWC |
1 | ||
| 48131-1D561 |
JZA80..TWC |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-1D561 |
JZA80..TWC |
1 | ||
| 48131-1D582 |
JZA80..TWC |
1 | ||
| 48131-1D670 |
JZA80..SZ |
1 | ||
| 48157D - INSULATOR, FRONT COIL SPRING | ||||
| 48157-24010 |
JZA80 |
2 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-14080 |
JZA80 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-14080 |
JZA80 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-19285 |
JZA80..SZ ﾏｰｸ 48510−14690 |
1 | ||
| 48510-19555 |
JZA80..SZ ﾏｰｸ 48510−14710 |
1 | ||
| 48510-19275 |
JZA80..SZ ﾏｰｸ 48510−14660,ｱﾘ(ﾌﾛﾝﾄ 235/45 ﾀｲﾔ) |
1 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90389-14028 |
JZA80..GZ,RZS,SZ |
1 | ||
| 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH | ||||
| 48514-24010 |
JZA80..RZS,SZ |
1 | ||
| 48514-24010 |
JZA80 |
1 | ||
| 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH | ||||
| 48515-24010 |
JZA80 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-19285 |
JZA80..SZ ﾏｰｸ 48510−14690 |
1 | ||
| 48510-19275 |
JZA80..SZ ﾏｰｸ 48510−14660,ｱﾘ(ﾌﾛﾝﾄ 235/45 ﾀｲﾔ) |
1 | ||
| 48510-19555 |
JZA80..SZ ﾏｰｸ 48510−14710 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90389-14028 |
JZA80..GZ,RZS,SZ |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48680-14051 |
JZA80 |
1 | ||
| 48680-14050 |
JZA80 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-10200 |
JZA80 |
6 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 94187-11200 |
JZA80 |
1 | ||
| 90177-12002 |
JZA80 |
1 | ||
| 48603E - PLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90950-01659 |
JZA80 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48680-14051 |
JZA80 |
1 | ||
| 48680-14050 |
JZA80 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 94187-11200 |
JZA80 |
1 | ||
| 90177-12002 |
JZA80 |
1 | ||
| 48609F - PLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90950-01659 |
JZA80 |
1 | ||
| 48680 - SUPPORT ASSY, FRONT SUSPENSION | ||||
| 48680-14060 |
JZA80 |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-24010 |
JZA80 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-14440 |
JZA80..TWC |
1 | ||
| 48811-14460 |
JZA80..TWC |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-14090 |
JZA80..TWC |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10054 |
JZA80 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10054 |
JZA80 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-24010 |
JZA80 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48809-24010 |
JZA80 |
1 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48824-24030 |
JZA80 |
2 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48809-24020 |
JZA80 |
1 | ||
| Common parts | ||||
| 90105-14082 | ||||
| 90119-08A86 | ||||
| 90170-14006 | ||||
| 91645-80820 | ||||
| 94621-11400 | ||||
