JZA80-ALPQZ (1993)
Toyota Supra

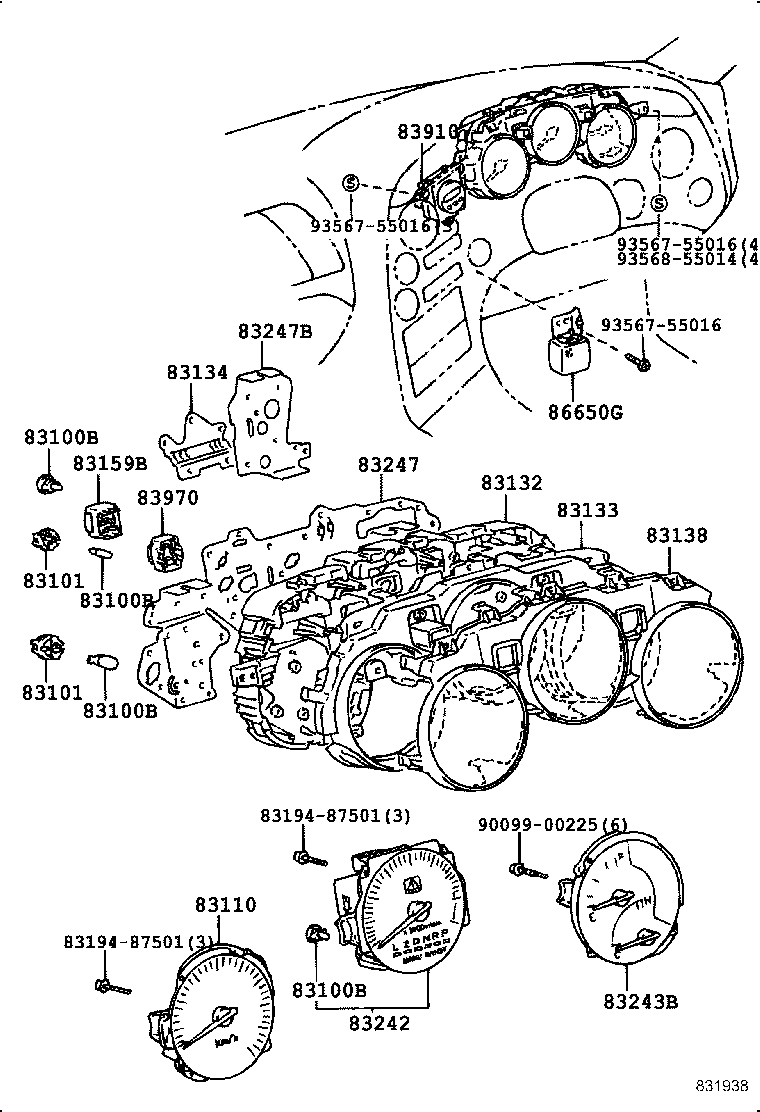

ILLUST NO. 1 OF 2(9305-9605)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
JZA80 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83119-24670 |
JZA80..4FC 14V 1.12W ｿｹｯﾄ付き |
8 | ||
| 83109-24010 |
JZA80 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
1 | ||
| 90981-11018 |
JZA80..TWT 12V 1.2W ｿｹｯﾄ無し |
5 | ||
| 83109-24020 |
JZA80 12V 3.4W ｷｬｯﾌﾟ付き |
3 | ||
| 83119-32010 |
JZA80 14V 3.0W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
JZA80 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83119-24670 |
JZA80..4FC 14V 1.12W ｿｹｯﾄ付き |
8 | ||
| 83109-24010 |
JZA80 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
1 | ||
| 90981-11018 |
JZA80..TWT 12V 1.2W ｿｹｯﾄ無し |
5 | ||
| 83109-24020 |
JZA80 12V 3.4W ｷｬｯﾌﾟ付き |
3 | ||
| 83119-32010 |
JZA80 14V 3.0W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
JZA80 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83119-24670 |
JZA80..4FC 14V 1.12W ｿｹｯﾄ付き |
8 | ||
| 83109-24010 |
JZA80 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
1 | ||
| 90981-11018 |
JZA80..TWT 12V 1.2W ｿｹｯﾄ無し |
5 | ||
| 83109-24020 |
JZA80 12V 3.4W ｷｬｯﾌﾟ付き |
3 | ||
| 83119-32010 |
JZA80 14V 3.0W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83101-20080 |
JZA80 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 83119-24670 |
JZA80..4FC 14V 1.12W ｿｹｯﾄ付き |
8 | ||
| 83109-24010 |
JZA80 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
1 | ||
| 90981-11018 |
JZA80..TWT 12V 1.2W ｿｹｯﾄ無し |
5 | ||
| 83109-24020 |
JZA80 12V 3.4W ｷｬｯﾌﾟ付き |
3 | ||
| 83119-32010 |
JZA80 14V 3.0W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
JZA80 12V 3.4W |
3 | ||
| 83101-24010 |
JZA80 14V 3.0W |
3 | ||
| 83101-14040 |
JZA80..TWT 12V 1.4W |
6 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
JZA80 12V 3.4W |
3 | ||
| 83101-24010 |
JZA80 14V 3.0W |
3 | ||
| 83101-14040 |
JZA80..TWT 12V 1.4W |
6 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1B250 |
JZA80 DENSO |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1J260 |
JZA80..4FC |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1D270 |
JZA80 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-1D310 |
JZA80..4FC |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1B270 |
JZA80 |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22370 |
JZA80 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1U230 |
JZA80..4FC..TWT |
1 | ||
| 83243B - GAUGE ASSY, COMBINATION | ||||
| 83243-1B470 |
JZA80..TWT |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-1U010 |
JZA80..TWT |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83247-1U170 |
JZA80..4FC |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-14400 |
JZA80 |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
JZA80..4FC |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-14040 |
JZA80 |
1 | ||
| Common parts | ||||
| 83194-87501 | ||||
| 90099-00225 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||

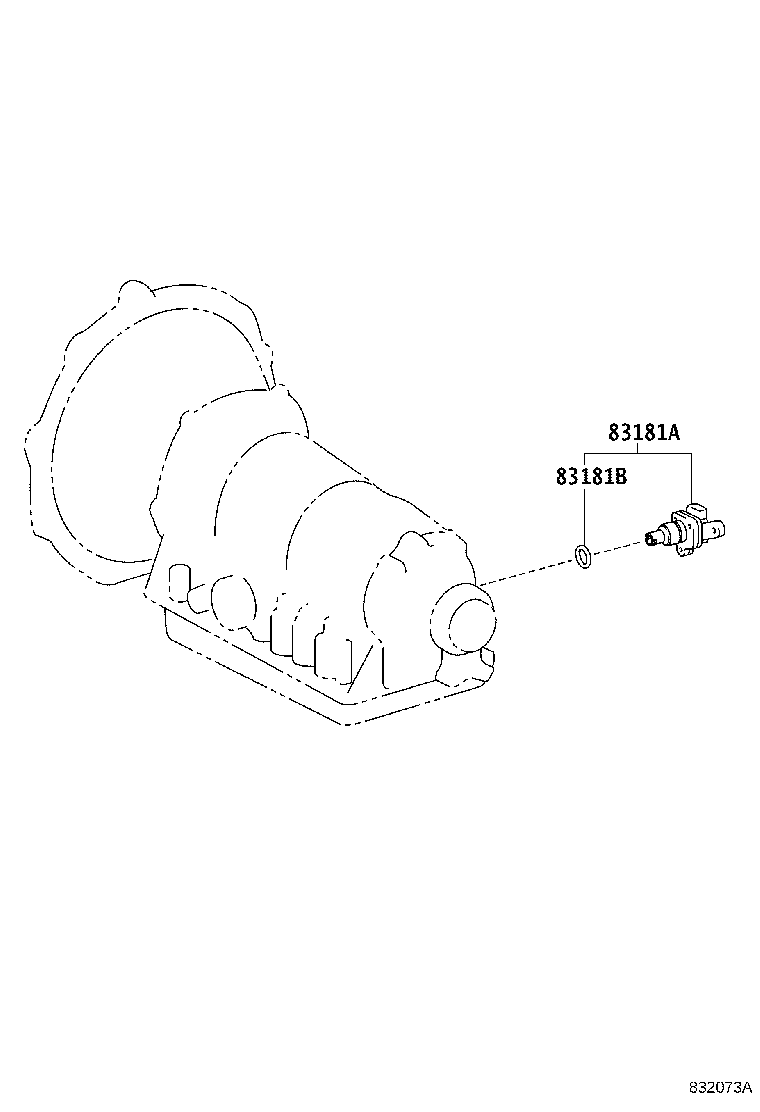

ILLUST NO. 2 OF 2(9305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-24040 |
JZA80..4FC..TWT |
1 | ||
