JZA80-ALPQZ (1993)
Toyota Supra
Production
May 1993
-
May 1995
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

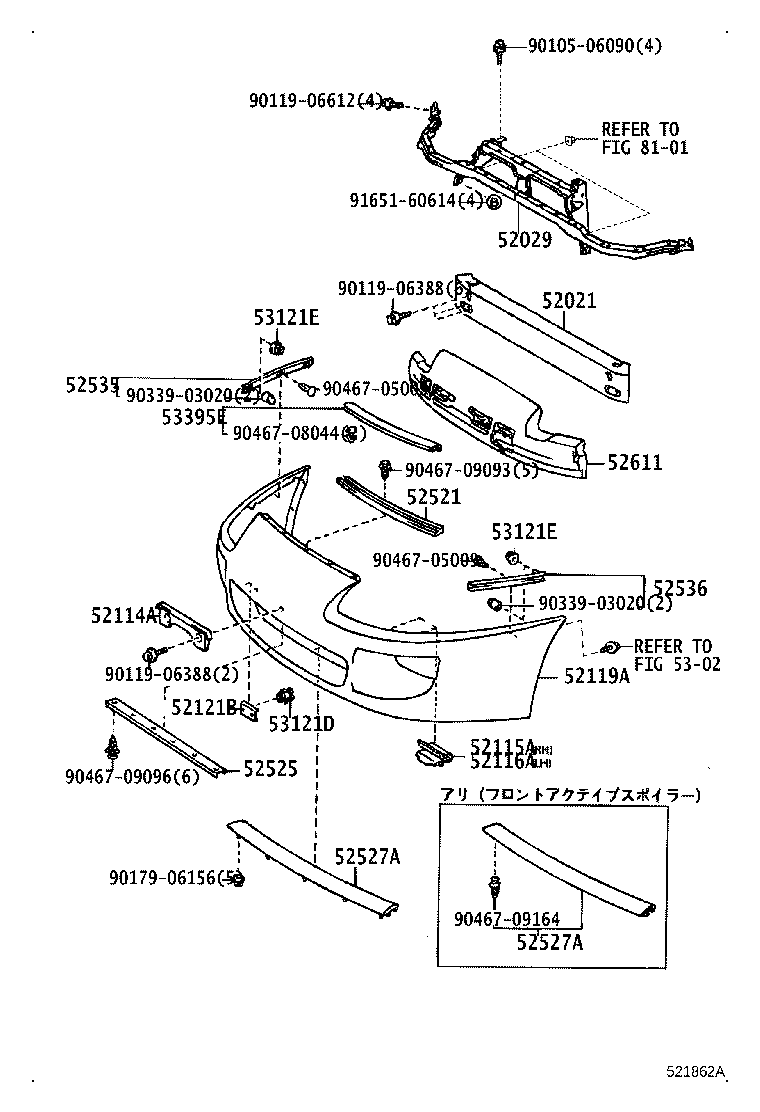

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-14180 |
JZA80 |
1 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-14030 |
JZA80 |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-14120 |
JZA80 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-14130 |
JZA80 |
2 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52115-14130 |
JZA80 |
2 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-14350B0 |
JZA80 DARK BROWNISH GRAY M,1A1 |
1 | ||
| 52119-14350C0 |
JZA80 BLACK,202 |
1 | ||
| 52119-14350D0 |
JZA80 SUPER RED 4,3L2 |
1 | ||
| 52119-14350H0 |
JZA80 DEEP TEAL ME,752 |
1 | ||
| 52119-14350A0 |
JZA80 SUPER WHITE 2,040 |
1 | ||
| 52119-14350B1 |
JZA80 SILVER ME,199 |
1 | ||
| 52121B - BRACKET, FRONT LICENCE PLATE MOUNTING | ||||
| 52121-24020 |
JZA80 |
2 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-14090 |
JZA80 |
1 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52525-24030 |
JZA80 |
2 | ||
| 52527A - RETAINER, FRONT BUMPER, LOWER CENTER NO.2 | ||||
| 52527-14060 |
JZA80..RZ ｱﾘ(ﾌﾛﾝﾄ ｱｸﾃｲﾌﾞ ｽﾎﾟｲﾗ) |
1 | ||
| 52527-14060 |
JZA80..RZ,RZS,SZ,SZR ｱﾘ(ﾌﾛﾝﾄ ｱｸﾃｲﾌﾞ ｽﾎﾟｲﾗ) |
1 | ||
| 52527-14050 |
JZA80..RZ,RZS,SZ,SZR |
1 | ||
| 52527A - RETAINER, FRONT BUMPER, LOWER CENTER NO.2 | ||||
| 52527-14060 |
JZA80..RZ ｱﾘ(ﾌﾛﾝﾄ ｱｸﾃｲﾌﾞ ｽﾎﾟｲﾗ) |
1 | ||
| 52527-14060 |
JZA80..RZ,RZS,SZ,SZR ｱﾘ(ﾌﾛﾝﾄ ｱｸﾃｲﾌﾞ ｽﾎﾟｲﾗ) |
1 | ||
| 52527-14050 |
JZA80..RZ,RZS,SZ,SZR |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-14070 |
JZA80 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-14030 |
JZA80 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-14120 |
JZA80 |
1 | ||
| 53121D - CLIP(FOR FRONT BUMPER), NO.2 | ||||
| 90468-04079 |
JZA80 |
2 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90179-06132 |
JZA80 |
4 | ||
| 90179-06097 |
JZA80 |
4 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90179-06132 |
JZA80 |
4 | ||
| 90179-06097 |
JZA80 |
4 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-14010 |
JZA80 |
1 | ||
| Common parts | ||||
| 90105-06090 | ||||
| 90119-06388 | ||||
| 90119-06612 | ||||
| 90179-06156 | ||||
| 90339-03020 | ||||
| 90467-05009 | ||||
| 90467-08044 | ||||
| 90467-09093 | ||||
| 90467-09096 | ||||
| 90467-09164 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 8101 | ||||
