JZA80-ALPQZ (1993)

Toyota Supra

Production May 1993 - May 1995
Engine 2JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )2JZGTE

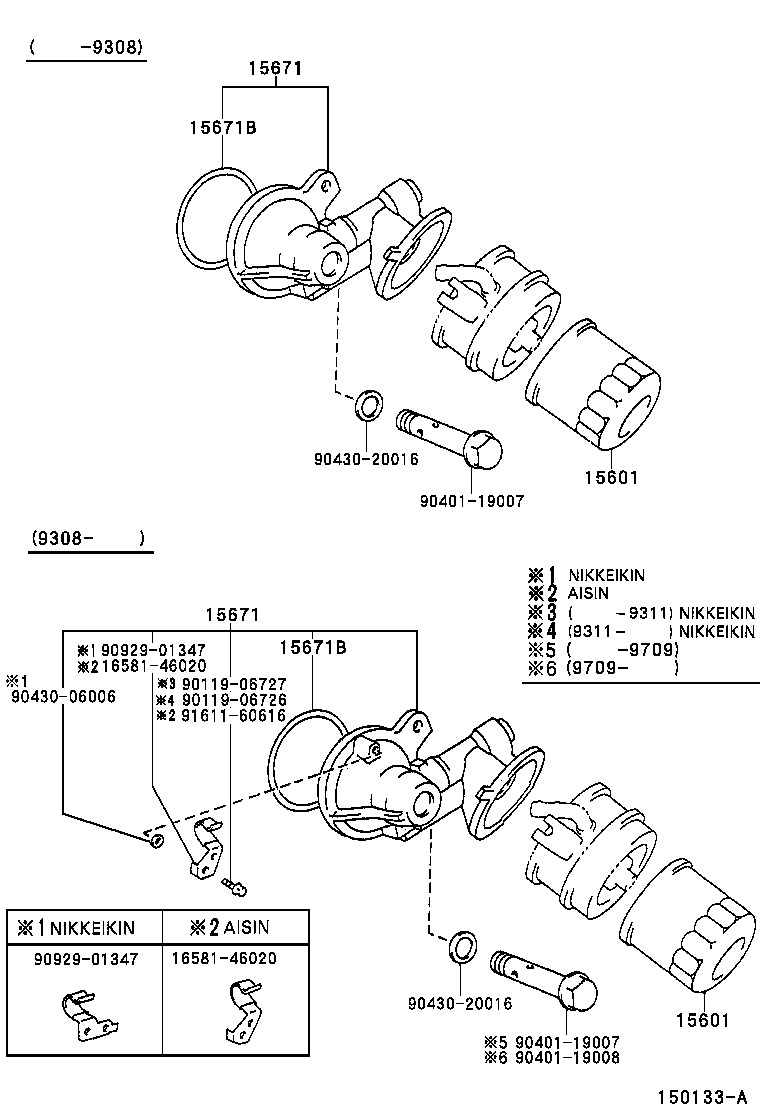

Click highlighted areas on diagram

diagram 15601 15601 15671 15671 15671B 15671B 1658146020 1658146020 9011906726 9011906727 9040119007 9040119007 9040119008 9043006006 9043020016 9043020016 9092901347 9092901347 9161160616
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-20001

2JZ#..JZA80

 1
15601 - FILTER SUB-ASSY, OIL
90915-20001

2JZ#..JZA80

 1
15671 - BRACKET, OIL FILTER
15670-46060

2JZGTE..JZA80

 1
15670-46110

2JZGTE..JZA80

 1
15670-46062

2JZGTE..JZA80

 1
15671 - BRACKET, OIL FILTER
15670-46060

2JZGTE..JZA80

 1
15670-46110

2JZGTE..JZA80

 1
15670-46062

2JZGTE..JZA80

 1
15671B - GASKET, OIL FILTER BRACKET
90301-68004

2JZ#..JZA80

 1
15671B - GASKET, OIL FILTER BRACKET
90301-68004

2JZ#..JZA80

 1
Common parts
16581-46020
90119-06726
90119-06727
90401-19007
90401-19008
90430-06006
90430-20016
90929-01347
91611-60616
