JZA80-ALMVF (1993)
Toyota Supra
Production
May 1993
-
Aug 2002
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

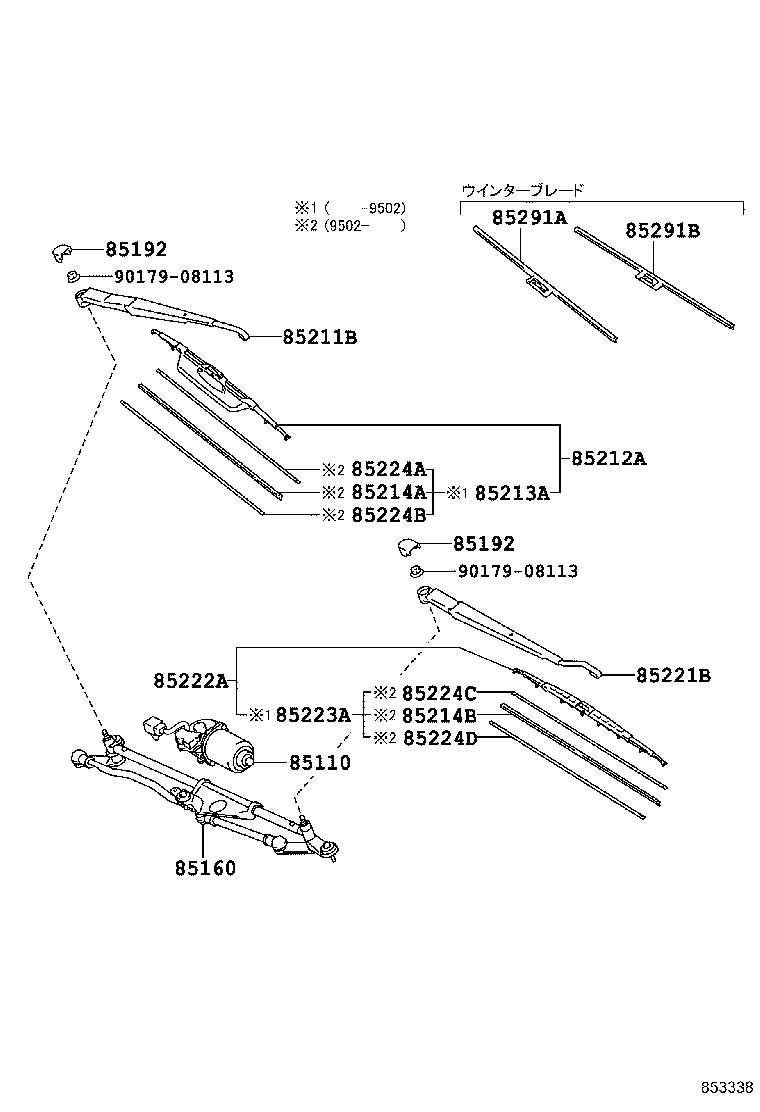

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-14310 |
JZA80 |
1 | ||
| 85110-14310 |
JZA80 |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-14310 |
JZA80 |
1 | ||
| 85150-14310 |
JZA80 |
1 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85292-12020 |
JZA80 |
2 | ||
| 85292-12020 |
JZA80 |
2 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85292-12020 |
JZA80 |
2 | ||
| 85292-12020 |
JZA80 |
2 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-14300 |
JZA80 |
1 | ||
| 85211-14300 |
JZA80 |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-14300 |
JZA80 |
1 | ||
| 85212-14300 |
JZA80 |
1 | ||
| 85213A - RUBBER, WIPER BLADE, RH | ||||
| 85213-20310 |
JZA80 |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-33060 |
JZA80 |
1 | ||
| 85214-33060 |
JZA80 |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-30250 |
JZA80 |
1 | ||
| 85214-30250 |
JZA80 |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-14300 |
JZA80 |
1 | ||
| 85221-14300 |
JZA80 |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-14590 |
JZA80 |
1 | ||
| 85222-14590 |
JZA80 |
1 | ||
| 85223A - RUBBER, FRONT WIPER BLADE, LH | ||||
| 85223-14590 |
JZA80 |
1 | ||
| 85224A - PLATE, WIPER RUBBER BACKING, NO.1 | ||||
| 85224-33050 |
JZA80 |
1 | ||
| 85224-33050 |
JZA80 |
1 | ||
| 85224B - PLATE, WIPER RUBBER BACKING, NO.2 | ||||
| 85224-33050 |
JZA80 |
1 | ||
| 85224-33050 |
JZA80 |
1 | ||
| 85224C - PLATE, WIPER RUBBER BACKING, NO.3 | ||||
| 85224-60040 |
JZA80 |
1 | ||
| 85224-60040 |
JZA80 |
1 | ||
| 85224D - PLATE, WIPER RUBBER BACKING, NO.4 | ||||
| 85224-60040 |
JZA80 |
1 | ||
| 85224-60040 |
JZA80 |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-22050 |
JZA80 |
1 | ||
| 85291-22050 |
JZA80 |
1 | ||
| 85291B - BLADE, FRONT WIPER, WINTER, LH | ||||
| 85291-24060 |
JZA80 |
1 | ||
| 85291-24060 |
JZA80 |
1 | ||
| Common parts | ||||
| 90179-08113 | ||||
