JZA80-ALMVF (1993)
Toyota Supra
Production
May 1993
-
Aug 2002
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

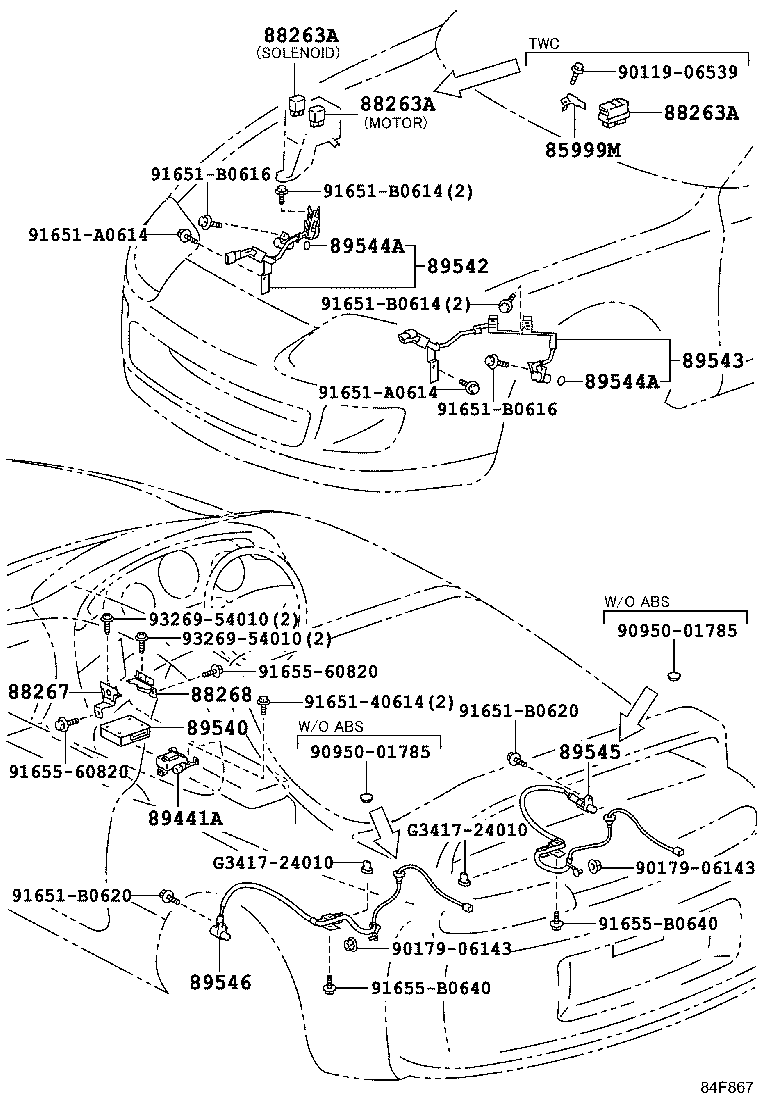

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85999M - BRACKET, RELAY | ||||
| 85999-14230 |
JZA80..TWC |
1 | ||
| 85999-14230 |
JZA80..TWC |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-12070 |
JZA80..TWC |
1 | ||
| 88263-35090 |
JZA80..TWC |
1 | ||
| 88263-35090 |
JZA80..TWC |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-12070 |
JZA80..TWC |
1 | ||
| 88263-35090 |
JZA80..TWC |
1 | ||
| 88263-35090 |
JZA80..TWC |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-12070 |
JZA80..TWC |
1 | ||
| 88263-35090 |
JZA80..TWC |
1 | ||
| 88263-35090 |
JZA80..TWC |
1 | ||
| 88267 - BRACKET, SKID CONTROL COMPUTER, NO.1 | ||||
| 88267-14130 |
JZA80 |
1 | ||
| 88267-14150 |
JZA80 |
1 | ||
| 88267-14150 |
JZA80 |
1 | ||
| 88268 - BRACKET, SKID CONTROL COMPUTER, NO.2 | ||||
| 88268-14130 |
JZA80 |
1 | ||
| 88268-14150 |
JZA80 |
1 | ||
| 88268-14150 |
JZA80 |
1 | ||
| 89441A - SENSOR, DECELERATION | ||||
| 89441-20050 |
JZA80 |
1 | ||
| 89440-14010 |
JZA80..MTM |
1 | ||
| 89441-20050 |
JZA80 |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89541-14060 |
JZA80..RZS,SZ,SZR |
1 | ||
| 89541-14060 |
JZA80..RZS,SZ,SZR |
1 | ||
| 89541-14040 |
JZA80 |
1 | ||
| 89541-14070 |
JZA80..RZS,SZ,SZR ｱﾘ(FR;235/45,RR;255/40) |
1 | ||
| 89541-14070 |
JZA80..RZS,SZ,SZR ｱﾘ(FR;235/45,RR;255/40) |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-14020 |
JZA80 |
1 | ||
| 89542-14030 |
JZA80 |
1 | ||
| 89542-14030 |
JZA80 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-14020 |
JZA80 |
1 | ||
| 89543-14030 |
JZA80 |
1 | ||
| 89543-14030 |
JZA80 |
1 | ||
| 89544A - RING, O (FOR SKID CONTROL SENSOR) | ||||
| 96721-19016 |
JZA80 |
2 | ||
| 96721-19016 |
JZA80 |
2 | ||
| 89544A - RING, O (FOR SKID CONTROL SENSOR) | ||||
| 96721-19016 |
JZA80 |
2 | ||
| 96721-19016 |
JZA80 |
2 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-14020 |
JZA80 |
1 | ||
| 89545-14020 |
JZA80 |
1 | ||
| 89545-14010 |
JZA80 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-14010 |
JZA80 |
1 | ||
| 89546-14020 |
JZA80 |
1 | ||
| 89546-14020 |
JZA80 |
1 | ||
| Common parts | ||||
| 90119-06539 | ||||
| 90179-06143 | ||||
| 90950-01785 | ||||
| 91651-40614 | ||||
| 91651-A0614 | ||||
| 91651-B0614 | ||||
| 91651-B0616 | ||||
| 91651-B0620 | ||||
| 91655-60820 | ||||
| 91655-B0640 | ||||
| 93269-54010 | ||||
| G3417-24010 | ||||
