JZA80-ALMVF (1993)

Toyota Supra

Production May 1993 - Aug 2002
Engine 2JZGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )

Click highlighted areas on diagram

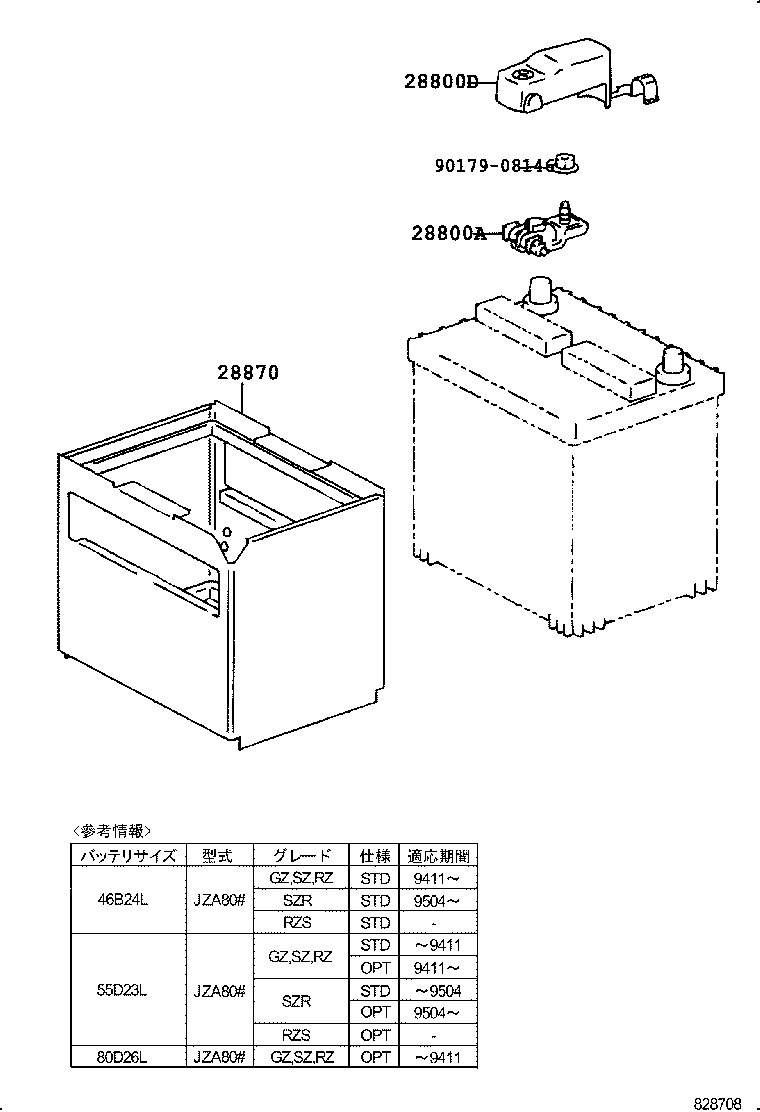

diagram 28800A 28800D 28870 9017908146
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05036

2JZ#..JZA80

 1
90982-05037

2JZ#..JZA80

ｶﾝﾚｲﾁ ｼﾖｳ

 1
90982-05037

2JZ#..JZA80

ｶﾝﾚｲﾁ ｼﾖｳ

 1
90982-05037

2JZ#..JZA80

 1
90982-05036

2JZ#..JZA80

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-50050

2JZ#..JZA80

 1
82821-50050

2JZ#..JZA80

 1
28870 - INSULATOR ASSY, BATTERY
28870-46030

2JZ#..JZA80

 1
28870-46070

2JZ#..JZA80

 1
28870-46090

2JZ#..JZA80

ｶﾝﾚｲﾁ ｼﾖｳ

 1
28870-46090

2JZ#..JZA80

ｶﾝﾚｲﾁ ｼﾖｳ

 1
28870-46070

2JZ#..JZA80

 1
28870-46030

2JZ#..JZA80

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
90179-08146
