JZA80-ALFZZ (1993)

Toyota Supra

Production May 1993 - May 1995
Engine 2JZGTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

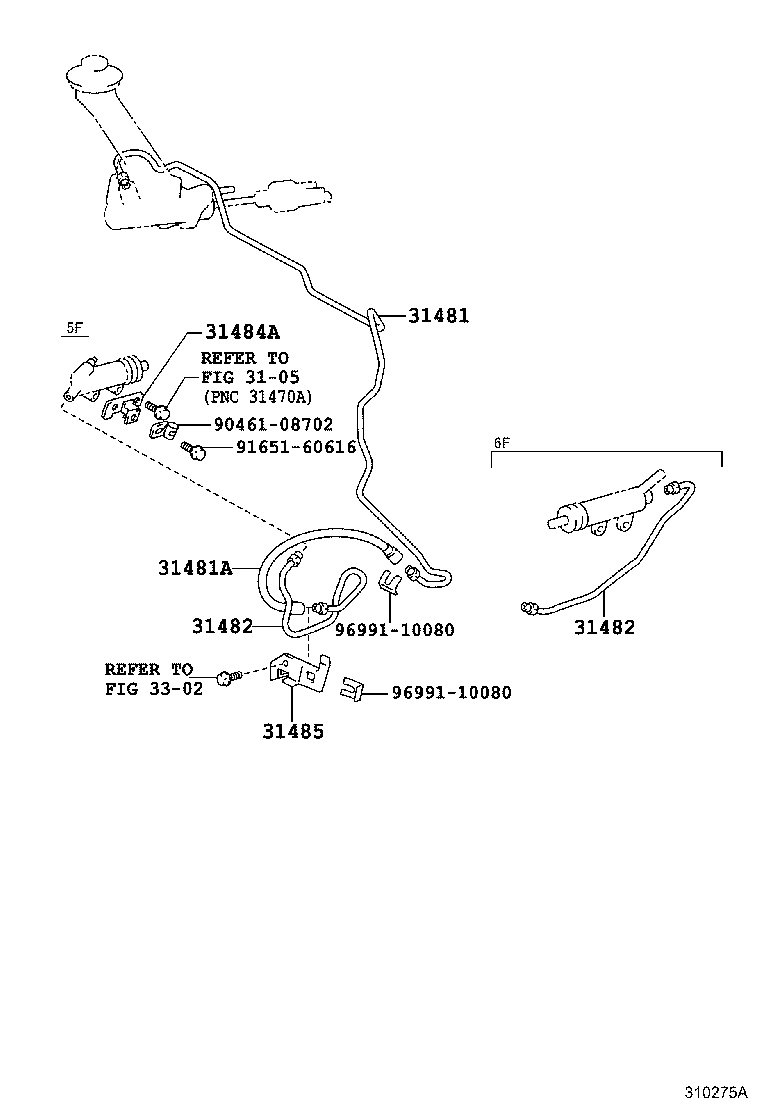

ILLUST NO. 2 OF 2(9305- )MTM

Click highlighted areas on diagram

diagram 3105 31481 31481A 31482 31482 31484A 31485 3302 9046108702 9165160616 9699110080 9699110080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-14240

JZA80..MTM..(GZ,RZ,RZS,SZR)

 1
31481A - HOSE, CLUTCH, NO.1
96816-50335

JZA80..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-14050

JZA80..6F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-14050

JZA80..6F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-24010

JZA80..MTM

 1
Common parts
90461-08702
91651-60616
96991-10080
Linked diagrams
3105
3302

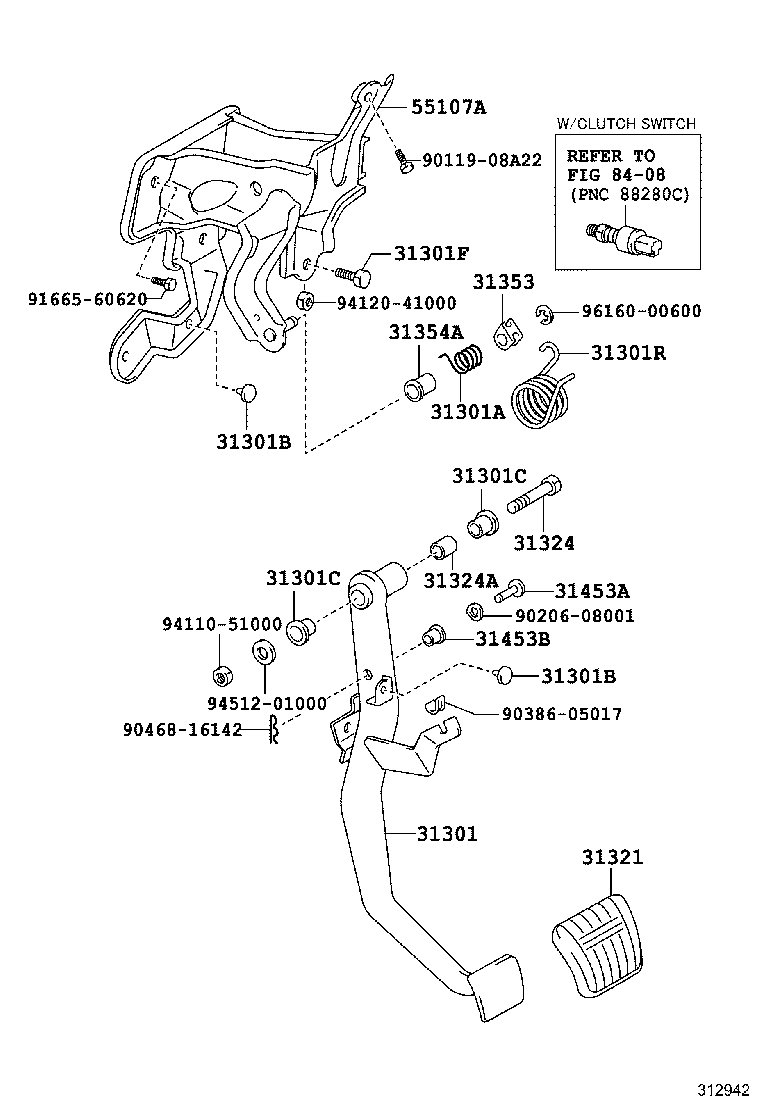

ILLUST NO. 1 OF 2(9305- )MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31301R 31321 31324 31324A 31353 31354A 31453A 31453B 55107A 8408 9011908A22 9020608001 9038605017 9046816142 9166560620 9411051000 9412041000 9451201000 9616000600
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-14110

JZA80..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90949-03010

JZA80..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

JZA80..MTM

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

JZA80..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

JZA80..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

JZA80..MTM

 2
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03012

JZA80..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

JZA80..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

JZA80..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

JZA80..MTM

 1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-14010

JZA80..MTM

 1
31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90386-13015

JZA80..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

JZA80..MTM

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033

JZA80..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-14120

JZA80..MTM

 1
Common parts
90119-08A22
90206-08001
90386-05017
90468-16142
91665-60620
94110-51000
94120-41000
94512-01000
96160-00600
Linked diagrams
8408
