JZA80-ALFVZ (1995)
Toyota Supra
Production
May 1995
-
Aug 2002
Engine
2JZGTE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

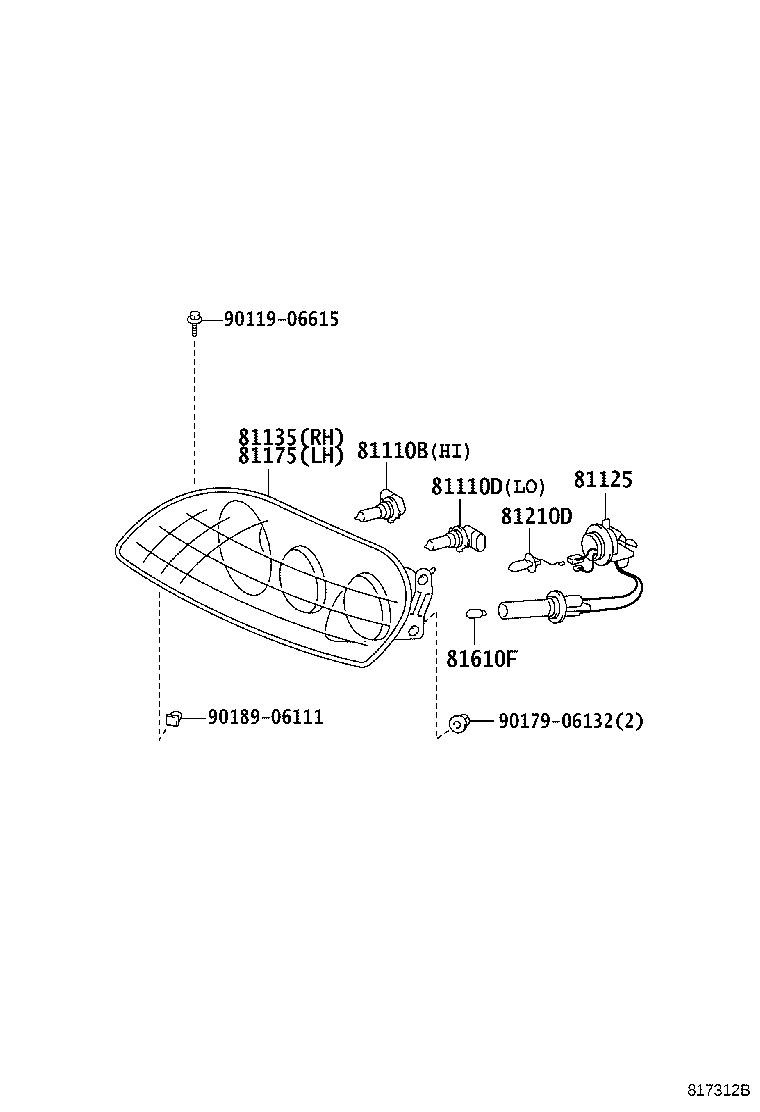

(9305-9605)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 |
JZA80 12V 65W |
2 | ||
| 90080-81041 |
JZA80 12V 65W |
2 | ||
| 90981-13053 |
JZA80 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13054 |
JZA80 12V 55W,*HAL,*WH |
2 | ||
| 90981-13054 |
JZA80 12V 55W,*HAL,*WH |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-1B160 |
JZA80 右側 |
1 | ||
| 81165-1B160 |
JZA80 左側 |
1 | ||
| 81165-1B230 |
JZA80 左側 |
1 | ||
| 81125-1B230 |
JZA80 右側 |
1 | ||
| 81125-1B230 |
JZA80 右側 |
1 | ||
| 81165-1B230 |
JZA80 左側 |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-1B250 |
JZA80 |
1 | ||
| 81111-1B231 |
JZA80 |
1 | ||
| 81111-1B231 |
JZA80 |
1 | ||
| 81111-1B230 |
JZA80 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81151-1B231 |
JZA80 |
1 | ||
| 81170-1B250 |
JZA80 |
1 | ||
| 81151-1B230 |
JZA80 |
1 | ||
| 81151-1B231 |
JZA80 |
1 | ||
| 81210D - BULB, FOG LAMP | ||||
| 90981-13048 |
JZA80 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13071 |
JZA80 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-11038 |
JZA80 12V 5W |
2 | ||
| Common parts | ||||
| 90119-06615 | ||||
| 90179-06132 | ||||
| 90189-06111 | ||||

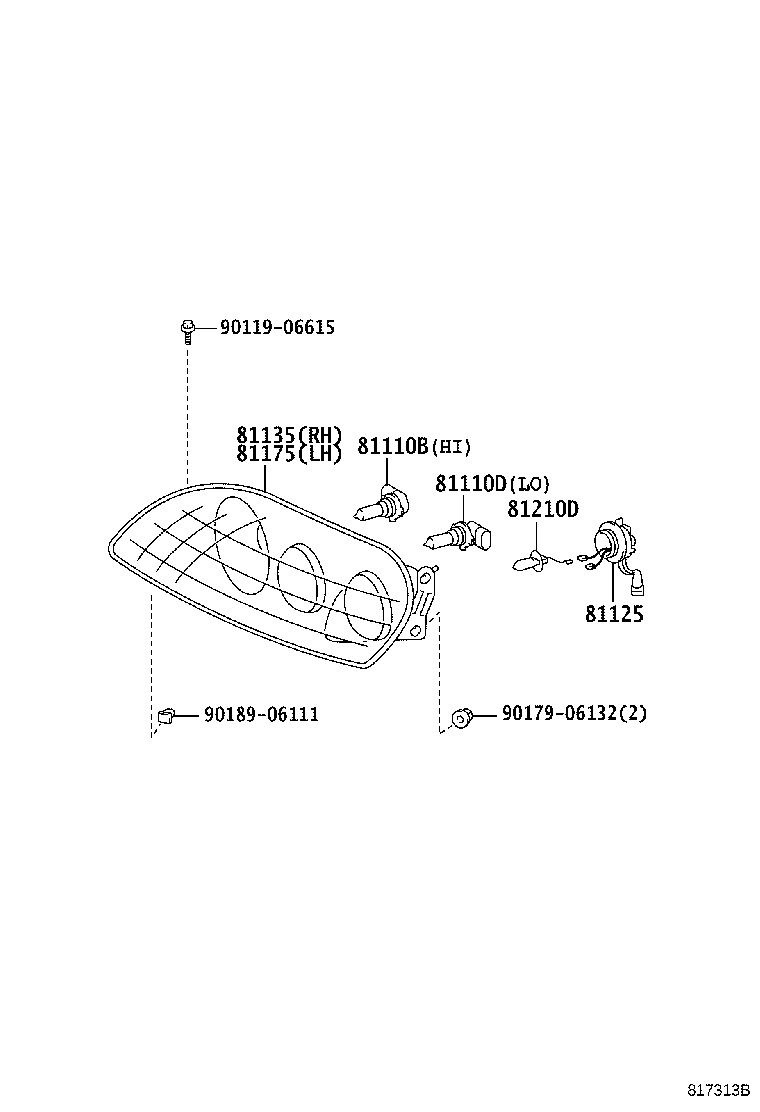

(9605- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 |
JZA80 12V 65W |
2 | ||
| 90080-81041 |
JZA80 12V 65W |
2 | ||
| 90981-13053 |
JZA80 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13054 |
JZA80 12V 55W,*HAL,*WH |
2 | ||
| 90981-13054 |
JZA80 12V 55W,*HAL,*WH |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-1B160 |
JZA80 右側 |
1 | ||
| 81165-1B160 |
JZA80 左側 |
1 | ||
| 81165-1B230 |
JZA80 左側 |
1 | ||
| 81125-1B230 |
JZA80 右側 |
1 | ||
| 81125-1B230 |
JZA80 右側 |
1 | ||
| 81165-1B230 |
JZA80 左側 |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-1B250 |
JZA80 |
1 | ||
| 81111-1B231 |
JZA80 |
1 | ||
| 81111-1B231 |
JZA80 |
1 | ||
| 81111-1B230 |
JZA80 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81151-1B231 |
JZA80 |
1 | ||
| 81170-1B250 |
JZA80 |
1 | ||
| 81151-1B230 |
JZA80 |
1 | ||
| 81151-1B231 |
JZA80 |
1 | ||
| 81210D - BULB, FOG LAMP | ||||
| 90981-13048 |
JZA80 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13071 |
JZA80 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| Common parts | ||||
| 90119-06615 | ||||
| 90179-06132 | ||||
| 90189-06111 | ||||
