JZA80-ALFSF (1996)
Toyota Supra

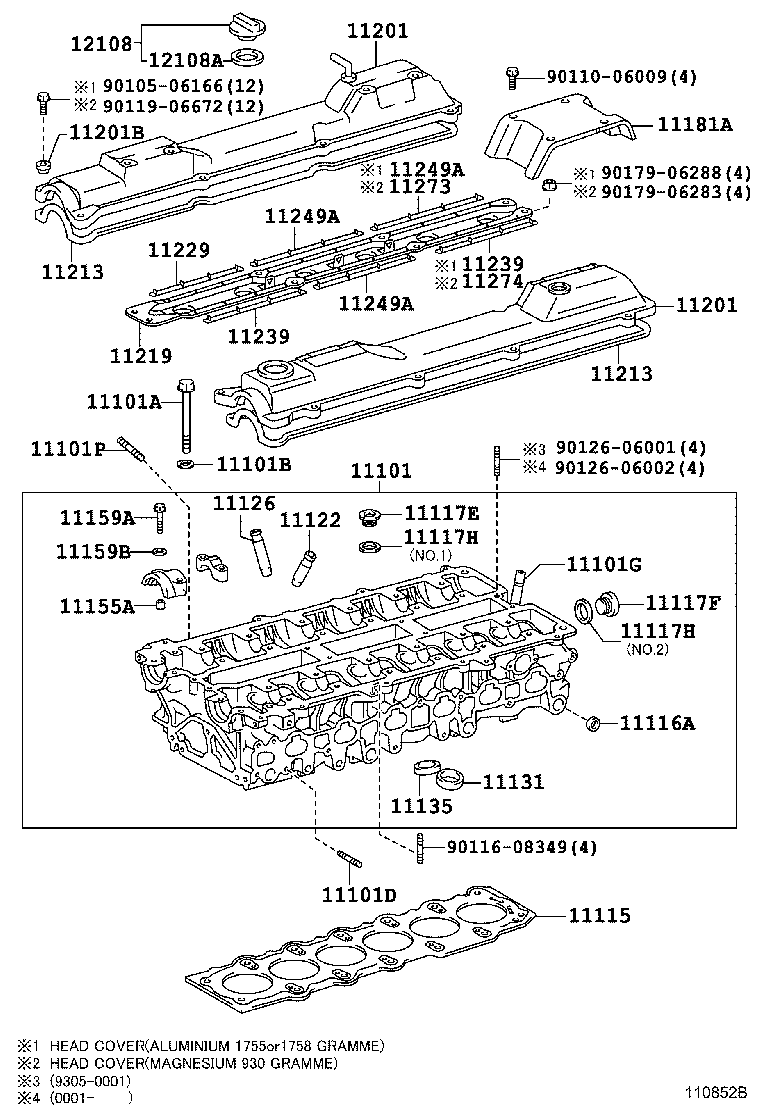

(9707- )2JZGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-49357 |
2JZGE..JZA80 |
1 | ||
| 11101-49337 |
2JZGE..JZA80 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02102 |
2JZ#..JZA80 |
14 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11018 |
2JZ#..JZA80 |
14 | ||
| 90201-11034 |
2JZ#..JZA80 |
14 | ||
| 11101D - BOLT, STUD(FOR WATER OUTLET) | ||||
| 90116-08348 |
2JZGE..JZA80 |
2 | ||
| 11101G - UNION(FOR CYLINDER HEAD) | ||||
| 90406-17017 |
2JZGE..JZA80 |
1 | ||
| 11101P - BOLT, STUD(FOR DISTRIBUTOR) | ||||
| 90116-08348 |
2JZGE..JZA80 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-46040 |
2JZGE..JZA80 |
1 | ||
| 11115-46044 |
2JZGE..JZA80 |
1 | ||
| 11115-46045 |
2JZGE..JZA80 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-42000 |
2JZGE..JZA80 |
4 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-24010 |
2JZ#..JZA80 |
3 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-36001 |
2JZ#..JZA80 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-24010 |
2JZ#..JZA80 NO.1 |
3 | ||
| 90430-36003 |
2JZ#..JZA80 NO.2 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-24010 |
2JZ#..JZA80 NO.1 |
3 | ||
| 90430-36003 |
2JZ#..JZA80 NO.2 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-74030 |
2JZ#..JZA80 STD |
12 | ||
| 11123-74030 |
2JZ#..JZA80 O/S 0.05 |
12 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-16010 |
2JZ#..JZA80 STD |
12 | ||
| 11123-16010 |
2JZ#..JZA80 O/S 0.05 |
12 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-46020 |
2JZ#..JZA80 STD |
12 | ||
| 11132-46020 |
2JZ#..JZA80 O/S 0.03 |
12 | ||
| 11131-46050 |
2JZGE..JZA80 STD |
12 | ||
| 11132-46050 |
2JZGE..JZA80 O/S 0.03 |
12 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-46020 |
2JZGE..JZA80 O/S 0.03 |
12 | ||
| 11135-46020 |
2JZGE..JZA80 STD |
12 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
2JZ#..JZA80 |
28 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-08890 |
2JZGE..JZA80 |
28 | ||
| 90119-08890 |
2JZ#..JZA80 |
28 | ||
| 11159B - WASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90210-08033 |
2JZ#..JZA80 |
4 | ||
| 11181A - COVER, CYLINDER HEAD, REAR | ||||
| 11181-46022 |
2JZGE..JZA80 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0W010 |
2JZGE..JZA80 ｲﾝﾃｰｸ側 |
1 | ||
| 11202-0W020 |
2JZGE..JZA80 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11202-46010 |
2JZGE..JZA80 (ｱﾙﾐ 1755ｸﾞﾗﾑ),ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11201-46030 |
2JZGE..JZA80 (ｱﾙﾐ 1758ｸﾞﾗﾑ),ｲﾝﾃｰｸ側 |
1 | ||
| 11201-46032 |
2JZGE..JZA80 ｲﾝﾃｰｸ側 |
1 | ||
| 11201-46031 |
2JZGE..JZA80 (ｱﾙﾐ 1758ｸﾞﾗﾑ),ｲﾝﾃｰｸ側 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0W010 |
2JZGE..JZA80 ｲﾝﾃｰｸ側 |
1 | ||
| 11202-0W020 |
2JZGE..JZA80 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11202-46010 |
2JZGE..JZA80 (ｱﾙﾐ 1755ｸﾞﾗﾑ),ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11201-46030 |
2JZGE..JZA80 (ｱﾙﾐ 1758ｸﾞﾗﾑ),ｲﾝﾃｰｸ側 |
1 | ||
| 11201-46032 |
2JZGE..JZA80 ｲﾝﾃｰｸ側 |
1 | ||
| 11201-46031 |
2JZGE..JZA80 (ｱﾙﾐ 1758ｸﾞﾗﾑ),ｲﾝﾃｰｸ側 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-07001 |
2JZ#..JZA80 |
16 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11214-46010 |
2JZ#..JZA80 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11213-46020 |
2JZGE..JZA80 ｲﾝﾃｰｸ側 |
1 | ||
| 11213-46020 |
2JZ#..JZA80 ｲﾝﾃｰｸ側 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11214-46010 |
2JZ#..JZA80 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11213-46020 |
2JZGE..JZA80 ｲﾝﾃｰｸ側 |
1 | ||
| 11213-46020 |
2JZ#..JZA80 ｲﾝﾃｰｸ側 |
1 | ||
| 11219 - COVER, CYLINDER HEAD, NO.3 | ||||
| 11219-46021 |
2JZGE..JZA80 |
1 | ||
| 11219-46021 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ) |
1 | ||
| 11219-46012 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ｱﾙﾐ 1758 & 1755ｸﾞﾗﾑ) |
1 | ||
| 11229 - GASKET, CYLINDER HEAD COVER, NO.3 | ||||
| 11229-46020 |
2JZGE..JZA80 |
1 | ||
| 11229-46010 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ｱﾙﾐ 1758 & 1755ｸﾞﾗﾑ) |
1 | ||
| 11229-46020 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ) |
1 | ||
| 11239 - GASKET, CLINDER HEAD CONER, NO.4 | ||||
| 11239-46010 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ｱﾙﾐ 1758 & 1755ｸﾞﾗﾑ) |
2 | ||
| 11239-46020 |
2JZGE..JZA80 |
1 | ||
| 11239-46020 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ) |
1 | ||
| 11239 - GASKET, CLINDER HEAD CONER, NO.4 | ||||
| 11239-46010 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ｱﾙﾐ 1758 & 1755ｸﾞﾗﾑ) |
2 | ||
| 11239-46020 |
2JZGE..JZA80 |
1 | ||
| 11239-46020 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ) |
1 | ||
| 11249A - GASKET, CLINDER HEAD CONER, NO.5 | ||||
| 11249-46010 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ｱﾙﾐ 1758 & 1755ｸﾞﾗﾑ) |
3 | ||
| 11249-46020 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ) |
2 | ||
| 11249-46020 |
2JZGE..JZA80 |
2 | ||
| 11249A - GASKET, CLINDER HEAD CONER, NO.5 | ||||
| 11249-46010 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ｱﾙﾐ 1758 & 1755ｸﾞﾗﾑ) |
3 | ||
| 11249-46020 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ) |
2 | ||
| 11249-46020 |
2JZGE..JZA80 |
2 | ||
| 11249A - GASKET, CLINDER HEAD CONER, NO.5 | ||||
| 11249-46010 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ｱﾙﾐ 1758 & 1755ｸﾞﾗﾑ) |
3 | ||
| 11249-46020 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ) |
2 | ||
| 11249-46020 |
2JZGE..JZA80 |
2 | ||
| 11273 - GASKET, CYLINDER BLOCK SIDE COVER | ||||
| 11273-46010 |
2JZGE..JZA80 |
1 | ||
| 11274 - GASKET, CYLINDER HEAD COVER, NO.7 | ||||
| 11274-46010 |
2JZGE..JZA80 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-20030 |
2JZ#..JZA80 |
1 | ||
| 12180-46010 |
2JZ#..JZA80 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-20020 |
2JZ#..JZA80 |
1 | ||
| 12195-46011 |
2JZ#..JZA80 |
1 | ||
| Common parts | ||||
| 90105-06166 | ||||
| 90110-06009 | ||||
| 90116-08349 | ||||
| 90119-06672 | ||||
| 90126-06001 | ||||
| 90126-06002 | ||||
| 90179-06283 | ||||
| 90179-06288 | ||||

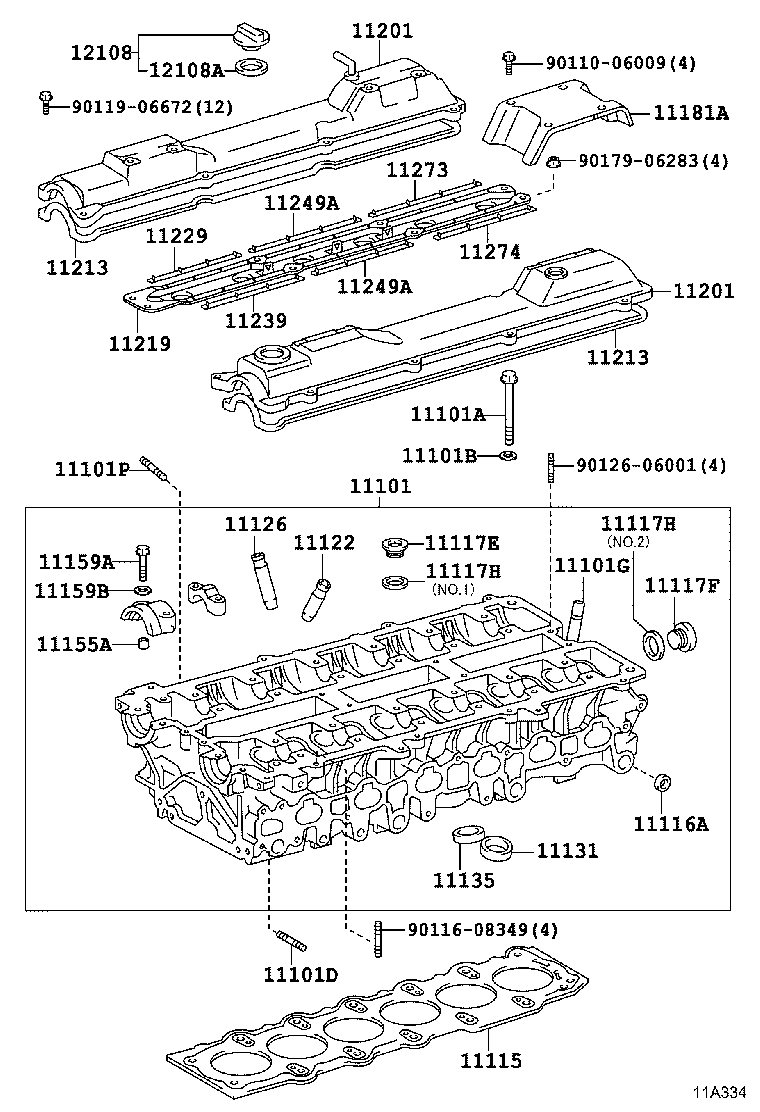

(9305-9707)2JZGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-49357 |
2JZGE..JZA80 |
1 | ||
| 11101-49337 |
2JZGE..JZA80 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02102 |
2JZ#..JZA80 |
14 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11018 |
2JZ#..JZA80 |
14 | ||
| 90201-11034 |
2JZ#..JZA80 |
14 | ||
| 11101D - BOLT, STUD(FOR WATER OUTLET) | ||||
| 90116-08348 |
2JZGE..JZA80 |
2 | ||
| 11101G - UNION(FOR CYLINDER HEAD) | ||||
| 90406-17017 |
2JZGE..JZA80 |
1 | ||
| 11101P - BOLT, STUD(FOR DISTRIBUTOR) | ||||
| 90116-08348 |
2JZGE..JZA80 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-46040 |
2JZGE..JZA80 |
1 | ||
| 11115-46044 |
2JZGE..JZA80 |
1 | ||
| 11115-46045 |
2JZGE..JZA80 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-42000 |
2JZGE..JZA80 |
4 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-24010 |
2JZ#..JZA80 |
3 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-36001 |
2JZ#..JZA80 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-24010 |
2JZ#..JZA80 NO.1 |
3 | ||
| 90430-36003 |
2JZ#..JZA80 NO.2 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-24010 |
2JZ#..JZA80 NO.1 |
3 | ||
| 90430-36003 |
2JZ#..JZA80 NO.2 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-74030 |
2JZ#..JZA80 STD |
12 | ||
| 11123-74030 |
2JZ#..JZA80 O/S 0.05 |
12 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-16010 |
2JZ#..JZA80 STD |
12 | ||
| 11123-16010 |
2JZ#..JZA80 O/S 0.05 |
12 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-46020 |
2JZ#..JZA80 STD |
12 | ||
| 11132-46020 |
2JZ#..JZA80 O/S 0.03 |
12 | ||
| 11131-46050 |
2JZGE..JZA80 STD |
12 | ||
| 11132-46050 |
2JZGE..JZA80 O/S 0.03 |
12 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-46020 |
2JZGE..JZA80 O/S 0.03 |
12 | ||
| 11135-46020 |
2JZGE..JZA80 STD |
12 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
2JZ#..JZA80 |
28 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-08890 |
2JZGE..JZA80 |
28 | ||
| 90119-08890 |
2JZ#..JZA80 |
28 | ||
| 11159B - WASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90210-08033 |
2JZ#..JZA80 |
4 | ||
| 11181A - COVER, CYLINDER HEAD, REAR | ||||
| 11181-46022 |
2JZGE..JZA80 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0W010 |
2JZGE..JZA80 ｲﾝﾃｰｸ側 |
1 | ||
| 11202-0W020 |
2JZGE..JZA80 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11202-46010 |
2JZGE..JZA80 (ｱﾙﾐ 1755ｸﾞﾗﾑ),ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11201-46030 |
2JZGE..JZA80 (ｱﾙﾐ 1758ｸﾞﾗﾑ),ｲﾝﾃｰｸ側 |
1 | ||
| 11201-46032 |
2JZGE..JZA80 ｲﾝﾃｰｸ側 |
1 | ||
| 11201-46031 |
2JZGE..JZA80 (ｱﾙﾐ 1758ｸﾞﾗﾑ),ｲﾝﾃｰｸ側 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0W010 |
2JZGE..JZA80 ｲﾝﾃｰｸ側 |
1 | ||
| 11202-0W020 |
2JZGE..JZA80 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11202-46010 |
2JZGE..JZA80 (ｱﾙﾐ 1755ｸﾞﾗﾑ),ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11201-46030 |
2JZGE..JZA80 (ｱﾙﾐ 1758ｸﾞﾗﾑ),ｲﾝﾃｰｸ側 |
1 | ||
| 11201-46032 |
2JZGE..JZA80 ｲﾝﾃｰｸ側 |
1 | ||
| 11201-46031 |
2JZGE..JZA80 (ｱﾙﾐ 1758ｸﾞﾗﾑ),ｲﾝﾃｰｸ側 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11214-46010 |
2JZ#..JZA80 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11213-46020 |
2JZGE..JZA80 ｲﾝﾃｰｸ側 |
1 | ||
| 11213-46020 |
2JZ#..JZA80 ｲﾝﾃｰｸ側 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11214-46010 |
2JZ#..JZA80 ｴｷｿﾞｰｽﾄ側 |
1 | ||
| 11213-46020 |
2JZGE..JZA80 ｲﾝﾃｰｸ側 |
1 | ||
| 11213-46020 |
2JZ#..JZA80 ｲﾝﾃｰｸ側 |
1 | ||
| 11219 - COVER, CYLINDER HEAD, NO.3 | ||||
| 11219-46021 |
2JZGE..JZA80 |
1 | ||
| 11219-46021 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ) |
1 | ||
| 11219-46012 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ｱﾙﾐ 1758 & 1755ｸﾞﾗﾑ) |
1 | ||
| 11229 - GASKET, CYLINDER HEAD COVER, NO.3 | ||||
| 11229-46020 |
2JZGE..JZA80 |
1 | ||
| 11229-46010 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ｱﾙﾐ 1758 & 1755ｸﾞﾗﾑ) |
1 | ||
| 11229-46020 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ) |
1 | ||
| 11239 - GASKET, CLINDER HEAD CONER, NO.4 | ||||
| 11239-46010 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ｱﾙﾐ 1758 & 1755ｸﾞﾗﾑ) |
2 | ||
| 11239-46020 |
2JZGE..JZA80 |
1 | ||
| 11239-46020 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ) |
1 | ||
| 11249A - GASKET, CLINDER HEAD CONER, NO.5 | ||||
| 11249-46010 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ｱﾙﾐ 1758 & 1755ｸﾞﾗﾑ) |
3 | ||
| 11249-46020 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ) |
2 | ||
| 11249-46020 |
2JZGE..JZA80 |
2 | ||
| 11249A - GASKET, CLINDER HEAD CONER, NO.5 | ||||
| 11249-46010 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ｱﾙﾐ 1758 & 1755ｸﾞﾗﾑ) |
3 | ||
| 11249-46020 |
2JZGE..JZA80 ﾍﾂﾄﾞｶﾊﾞｰ(ﾏｸﾞﾈｼｳﾑ 930ｸﾞﾗﾑ) |
2 | ||
| 11249-46020 |
2JZGE..JZA80 |
2 | ||
| 11273 - GASKET, CYLINDER BLOCK SIDE COVER | ||||
| 11273-46010 |
2JZGE..JZA80 |
1 | ||
| 11274 - GASKET, CYLINDER HEAD COVER, NO.7 | ||||
| 11274-46010 |
2JZGE..JZA80 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-20030 |
2JZ#..JZA80 |
1 | ||
| 12180-46010 |
2JZ#..JZA80 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-20020 |
2JZ#..JZA80 |
1 | ||
| 12195-46011 |
2JZ#..JZA80 |
1 | ||
| Common parts | ||||
| 90110-06009 | ||||
| 90116-08349 | ||||
| 90119-06672 | ||||
| 90126-06001 | ||||
| 90179-06283 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
