JZA80-AJPZZ (1993)
Toyota Supra
Production
May 1993
-
May 1995
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

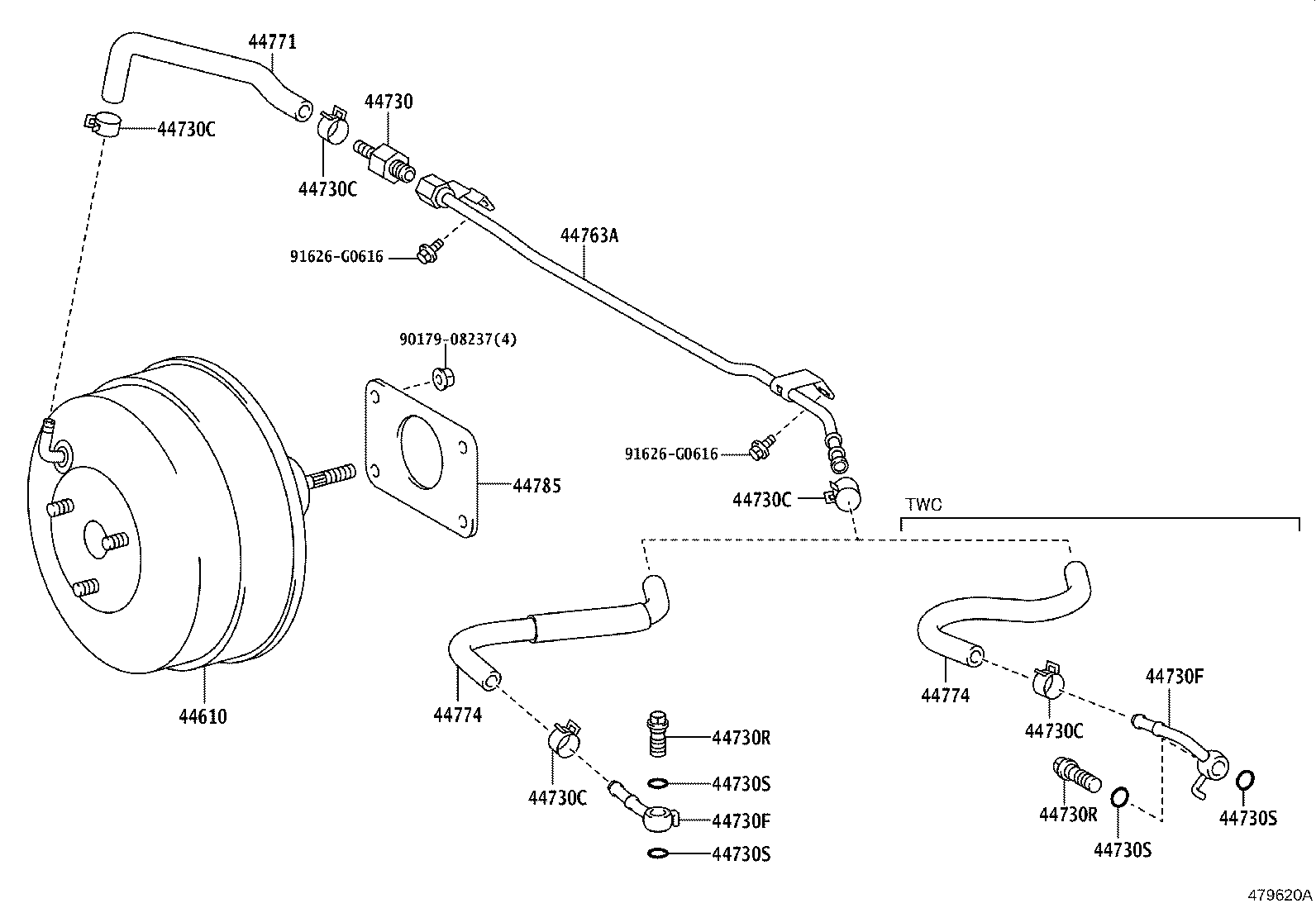

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-14870 |
JZA80..TWT FR;235/45,RR;255/40 |
1 | ||
| 44610-14850 |
JZA80 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22120 |
JZA80 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
JZA80 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
JZA80 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
JZA80 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
JZA80 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
JZA80 |
4 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90405-09173 |
JZA80..TWT |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90405-09173 |
JZA80..TWT |
1 | ||
| 44730R - BOLT, UNION(FOR VACUUM HOSE UNION) | ||||
| 90401-12012 |
JZA80 |
1 | ||
| 44730R - BOLT, UNION(FOR VACUUM HOSE UNION) | ||||
| 90401-12012 |
JZA80 |
1 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-12005 |
JZA80 |
2 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-12005 |
JZA80 |
2 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-12005 |
JZA80 |
2 | ||
| 44730S - GASKET(FOR VACUUM HOSE UNION) | ||||
| 90430-12005 |
JZA80 |
2 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-14080 |
JZA80 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-14010 |
JZA80 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-14100 |
JZA80..TWT |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-14100 |
JZA80..TWT |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-14020 |
JZA80 |
1 | ||
| Common parts | ||||
| 90179-08237 | ||||
| 91626-G0616 | ||||
