JZA80-AJPZZ (1993)

Toyota Supra

Production May 1993 - May 1995
Engine 2JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )2JZGTE

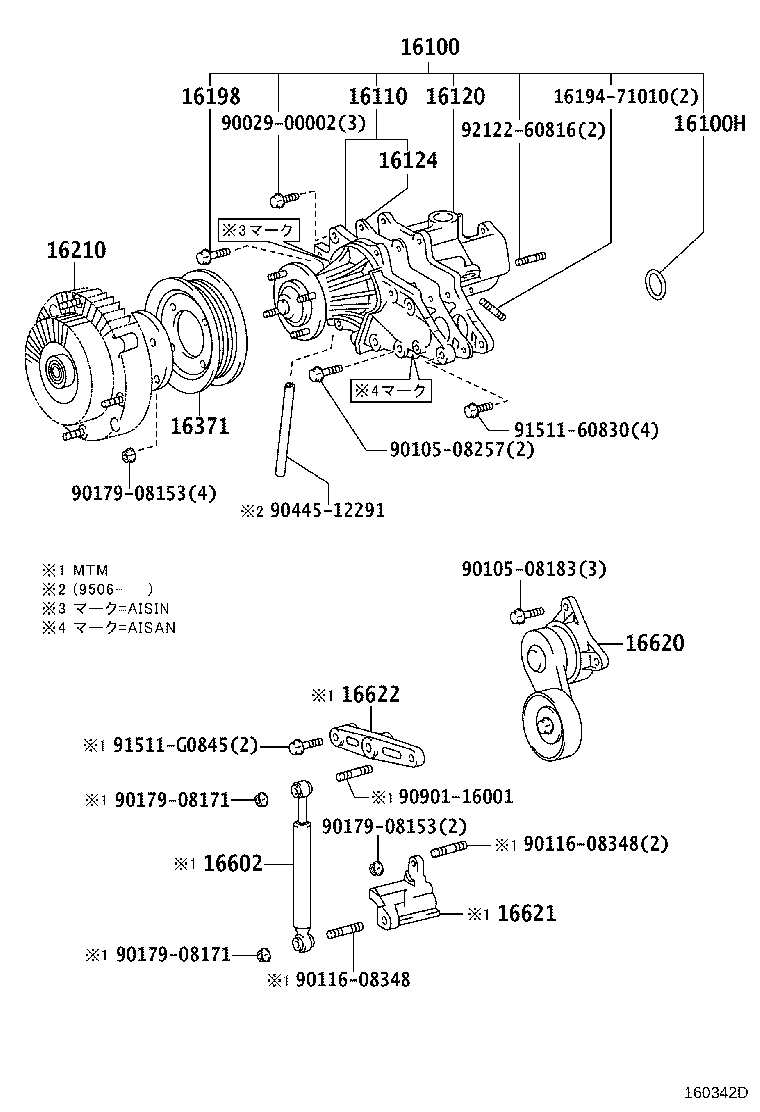

Click highlighted areas on diagram

diagram 16100 16100H 16110 16120 16124 1619471010 16198 16210 16371 16602 16620 16621 16622 9002900002 9010508183 9010508257 9011608348 9011608348 9017908153 9017908153 9017908171 9017908171 9044512291 9090116001 9151160830 91511G0845 9212260816
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-49845

2JZGTE..JZA80

 1
16100H - RING, O(FOR WATER PUMP)
96761-24040

2JZ#..JZA80

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-49125

2JZGTE..JZA80

ﾏｰｸ=AISIN

 1
16120 - COVER ASSY, WATER PUMP
16120-88400

2JZGTE..JZA80

 1
16124 - GASKET, WATER PUMP COVER
16124-46030

2JZGTE..JZA80

 1
16198 - BOLT, STUD(FOR WATER PUMP PULLEY SEAT)
16198-46031

2JZGTE..JZA80

 1
16210 - COUPLING ASSY, FLUID
16210-46030

2JZ#..JZA80

 1
16371 - PULLEY, FAN
16371-46020

2JZ#..JZA80

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0W020

2JZ#..JZA80..4FC

 1
16620-0W021

2JZ#..JZA80..4FC

 1
Common parts
16194-71010
90029-00002
90105-08183
90105-08257
90116-08348
90179-08153
90179-08171
90445-12291
90901-16001
91511-60830
91511-G0845
92122-60816
