JZA80-AJPVF (1993)
Toyota Supra
(9305-9605)TWC ; (9605- )SZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

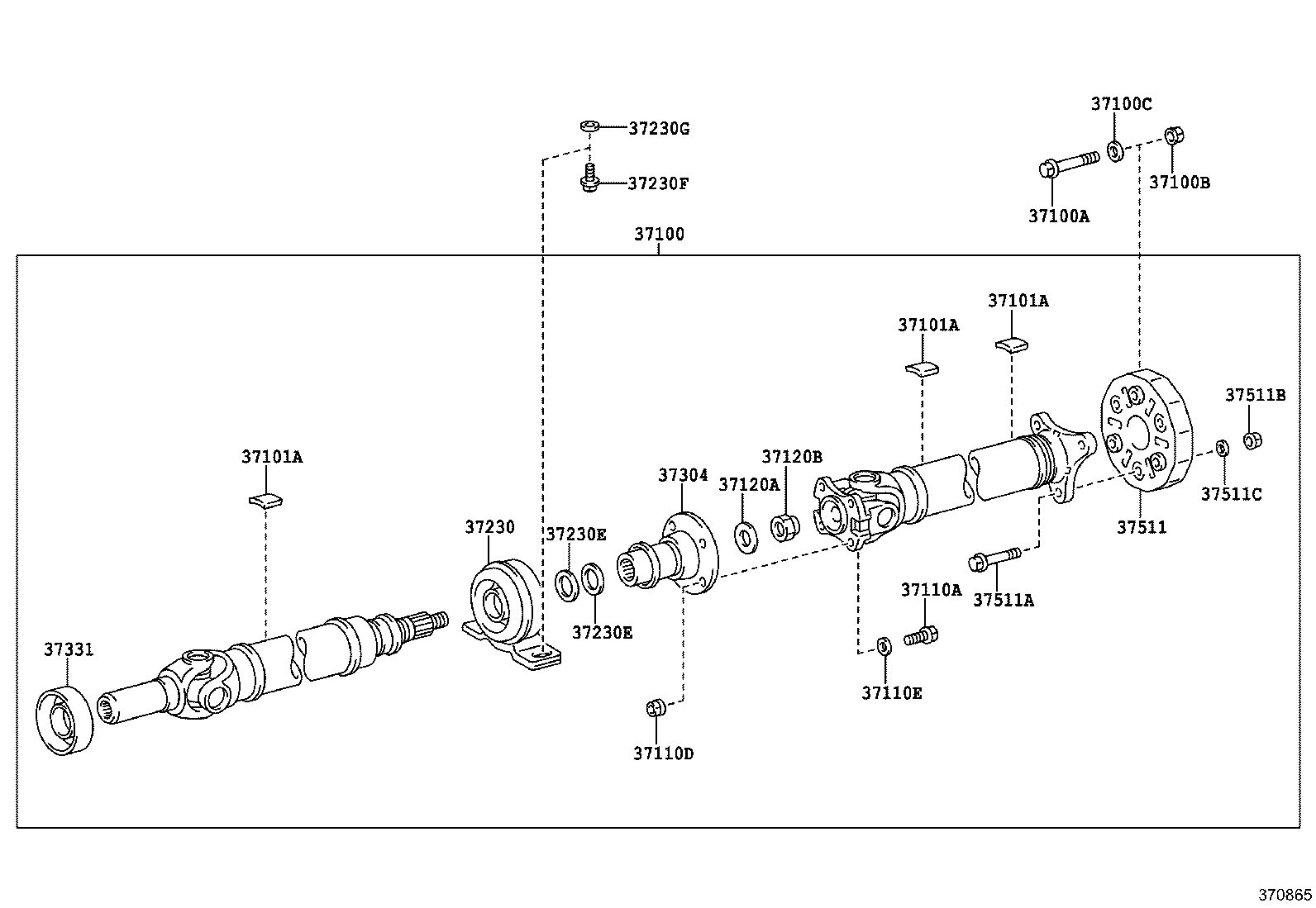

| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-14790 |
JZA80..4FC..TWC |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-12264 |
JZA80..(4FC,5F)..TWC |
3 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-12128 |
JZA80 |
3 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90560-12059 |
JZA80 |
3 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01343 |
JZA80 2G |
1 | ||
| 90937-01346 |
JZA80 5G |
1 | ||
| 90937-01350 |
JZA80 12G |
1 | ||
| 90937-01347 |
JZA80 6G |
1 | ||
| 90937-01452 |
JZA80 1G |
1 | ||
| 90937-01349 |
JZA80 10G |
1 | ||
| 90937-01352 |
JZA80 16G |
1 | ||
| 90937-01366 |
JZA80 7G |
1 | ||
| 90937-01345 |
JZA80 4G |
1 | ||
| 90937-01344 |
JZA80 3G |
1 | ||
| 90937-01351 |
JZA80 14G |
1 | ||
| 90937-01348 |
JZA80 8G |
1 | ||
| 90937-01353 |
JZA80 18G |
1 | ||
| 90937-01354 |
JZA80 20G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01343 |
JZA80 2G |
1 | ||
| 90937-01346 |
JZA80 5G |
1 | ||
| 90937-01350 |
JZA80 12G |
1 | ||
| 90937-01347 |
JZA80 6G |
1 | ||
| 90937-01452 |
JZA80 1G |
1 | ||
| 90937-01349 |
JZA80 10G |
1 | ||
| 90937-01352 |
JZA80 16G |
1 | ||
| 90937-01366 |
JZA80 7G |
1 | ||
| 90937-01345 |
JZA80 4G |
1 | ||
| 90937-01344 |
JZA80 3G |
1 | ||
| 90937-01351 |
JZA80 14G |
1 | ||
| 90937-01348 |
JZA80 8G |
1 | ||
| 90937-01353 |
JZA80 18G |
1 | ||
| 90937-01354 |
JZA80 20G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01343 |
JZA80 2G |
1 | ||
| 90937-01346 |
JZA80 5G |
1 | ||
| 90937-01350 |
JZA80 12G |
1 | ||
| 90937-01347 |
JZA80 6G |
1 | ||
| 90937-01452 |
JZA80 1G |
1 | ||
| 90937-01349 |
JZA80 10G |
1 | ||
| 90937-01352 |
JZA80 16G |
1 | ||
| 90937-01366 |
JZA80 7G |
1 | ||
| 90937-01345 |
JZA80 4G |
1 | ||
| 90937-01344 |
JZA80 3G |
1 | ||
| 90937-01351 |
JZA80 14G |
1 | ||
| 90937-01348 |
JZA80 8G |
1 | ||
| 90937-01353 |
JZA80 18G |
1 | ||
| 90937-01354 |
JZA80 20G |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
JZA80..(4FC,5F)..TWC *10−1.00PX27−13 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
JZA80..(4FC,5F)..TWC |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
JZA80..(4FC,5F)..TWC |
4 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
JZA80..(4FC,5F)..TWC 外径=33.5,厚さ=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
JZA80..(4FC,5F)..TWC |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-24100 |
JZA80..(4FC,5F)..TWC |
1 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-25006 |
JZA80..(4FC,5F)..TWC |
2 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-25006 |
JZA80..(4FC,5F)..TWC |
2 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10217 |
JZA80 長さ=40 |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10127 |
JZA80 厚さ=6.0 |
2 | ||
| 90201-10128 |
JZA80 厚さ=8.5 |
2 | ||
| 90201-10123 |
JZA80 厚さ=2.0 |
2 | ||
| 90201-10125 |
JZA80 厚さ=4.0 |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-35041 |
JZA80..(4FC,5F)..TWC |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-24010 |
JZA80..4FC..TWC |
1 | ||
| 37511 - COUPLING, FLEXIBLE | ||||
| 37511-24010 |
JZA80..(4FC,5F)..TWC |
1 | ||
| 37511A - BOLT (FOR FLEXIBLE COUPLING) | ||||
| 90105-12265 |
JZA80 *12X1.25PX59.5−20 |
3 | ||
| 37511B - NUT (FOR FLEXIBLE COUPLING) | ||||
| 90179-12128 |
JZA80 |
3 | ||
| 37511C - WASHER, PLATE (FOR FLEXIBLE COUPLING) | ||||
| 90560-12059 |
JZA80 |
3 | ||
