JZA70-BLPZZ (1990)

Toyota Supra

Production Aug 1990 - May 1993
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )JZA70..4FC

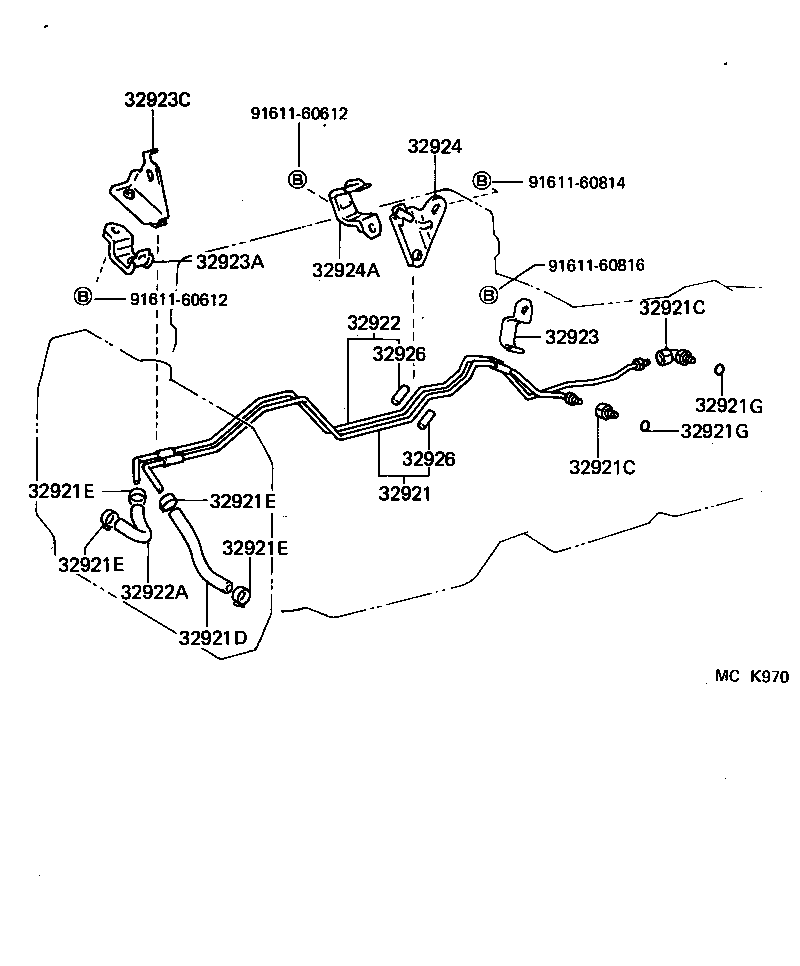

Click highlighted areas on diagram

A342E

diagram 32921 32921C 32921C 32921D 32921E 32921E 32921E 32921E 32921G 32921G 32922 32922A 32923 32923A 32923C 32924 32924A 32926 32926 9161160612 9161160612 9161160814 9161160816
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-14250

JZA70..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16009

GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR)

OUTLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16009

GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR)

OUTLET

 1
32921D - HOSE(FOR OIL COOLER INLET)
32941-14050

JZA70..4FC

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90467-16013

GA70,JZA70,MA70..4FC..(GTL,GTT,GTTR)

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90467-16013

GA70,JZA70,MA70..4FC..(GTL,GTT,GTTR)

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90467-16013

GA70,JZA70,MA70..4FC..(GTL,GTT,GTTR)

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90467-16013

GA70,JZA70,MA70..4FC..(GTL,GTT,GTTR)

 4
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR)

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

GA70,JZA70,MA70..4FC..(GT,GTL,GTT,GTTR)

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-14250

JZA70..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17109

JZA70..4FC

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32929-30140

JZA70..4FC

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32929-22050

JZA70..4FC

 1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32924-22090

JZA70..4FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-14030

JZA70..4FC

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
32929-22050

JZA70..4FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

JZA70..4FC

長さ=35,内径=10

 6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

JZA70..4FC

長さ=35,内径=10

 6
Common parts
91611-60612
91611-60814
91611-60816
