JZA70-BLPVZ (1990)
Toyota Supra

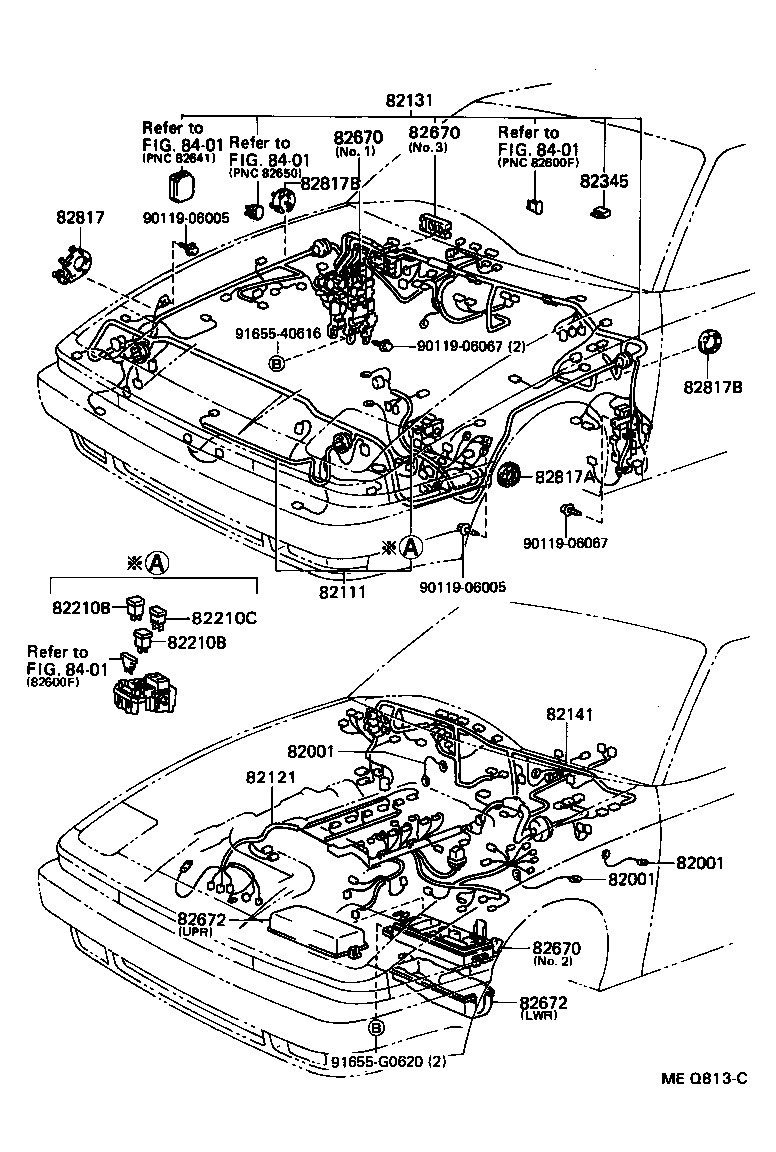

ILLUST NO. 1 OF 4(9008- )JZA70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07268 |
JZA70 TO EXTENSION |
1 | ||
| 90980-07176 |
GA70,JZA70,MA70 TO CLUTCH |
1 | ||
| 90980-07338 |
JZA70 TO ENGINE |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07268 |
JZA70 TO EXTENSION |
1 | ||
| 90980-07176 |
GA70,JZA70,MA70 TO CLUTCH |
1 | ||
| 90980-07338 |
JZA70 TO ENGINE |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07268 |
JZA70 TO EXTENSION |
1 | ||
| 90980-07176 |
GA70,JZA70,MA70 TO CLUTCH |
1 | ||
| 90980-07338 |
JZA70 TO ENGINE |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1B360 |
JZA70..GTT,GTTR ｱﾘ(*66) |
1 | ||
| 82111-1B350 |
JZA70..GTT,GTTR |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-14680 |
JZA70..4FC |
1 | ||
| 82121-14681 |
JZA70..4FC |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1D420 |
GA70,JZA70..4FC..(GT,GTT,GTTR) |
1 | ||
| 82131-1D430 |
GA70..4FC..GT;JZA70..4FC..(GTT,GTTR);GA70..LB..NOB..4FC..GTT ｱﾘ(*66) |
1 | ||
| 82131-1D450 |
JZA70..4FC..(GTL,GTT) ｱﾘ(*80) |
1 | ||
| 82131-1D431 |
GA70..NOB..4FC;JZA70..4FC..(GTT,GTTR) ｱﾘ(*66) |
1 | ||
| 82131-1D421 |
GA70,JZA70..4FC..(GT,GTT,GTTR) |
1 | ||
| 82131-1D451 |
JZA70..4FC;GA70..NOB..4FC ｱﾘ(*80) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1B140 |
JZA70..GTT,GTTR |
1 | ||
| 82141-1B141 |
JZA70..GTT,GTTR |
1 | ||
| 82210B - FUSIBLE LINK | ||||
| 90982-08189 |
GA70,JZA70,MA70 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08190 |
MA70..GTL,GTT;GA70,JZA70..G,GT,GTL 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08190 |
JZA70..GTT,GTTR;GA70..NOB..5F..GTT;GA70..LB..NOB..4FC..GTT 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08188 |
GA70,JZA70 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82210B - FUSIBLE LINK | ||||
| 90982-08189 |
GA70,JZA70,MA70 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08190 |
MA70..GTL,GTT;GA70,JZA70..G,GT,GTL 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08190 |
JZA70..GTT,GTTR;GA70..NOB..5F..GTT;GA70..LB..NOB..4FC..GTT 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08188 |
GA70,JZA70 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
GA70,JZA70 100A,ｵｽ端子,青 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
GA70,JZA70 |
2 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82671-14020 |
GA70,JZA70,MA70 NO.3 |
1 | ||
| 82671-24010 |
GA70,JZA70,MA70 NO.2 |
1 | ||
| 82671-20030 |
GA70,JZA70,MA70 NO.1 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82671-14020 |
GA70,JZA70,MA70 NO.3 |
1 | ||
| 82671-24010 |
GA70,JZA70,MA70 NO.2 |
1 | ||
| 82671-20030 |
GA70,JZA70,MA70 NO.1 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82671-14020 |
GA70,JZA70,MA70 NO.3 |
1 | ||
| 82671-24010 |
GA70,JZA70,MA70 NO.2 |
1 | ||
| 82671-20030 |
GA70,JZA70,MA70 NO.1 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-24010 |
GA70,JZA70,MA70 下側 |
1 | ||
| 82672-24050 |
GA70,JZA70 上側 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-24010 |
GA70,JZA70,MA70 下側 |
1 | ||
| 82672-24050 |
GA70,JZA70 上側 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24140 |
GA70,JZA70 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-24100 |
GA70,JZA70,MA70 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-24110 |
GA70,JZA70,MA70 |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-24110 |
GA70,JZA70,MA70 |
2 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 91655-40616 | ||||
| 91655-G0620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
