JZA70-BLPQZ (1990)

Toyota Supra

Production Aug 1990 - May 1993
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )JZA70

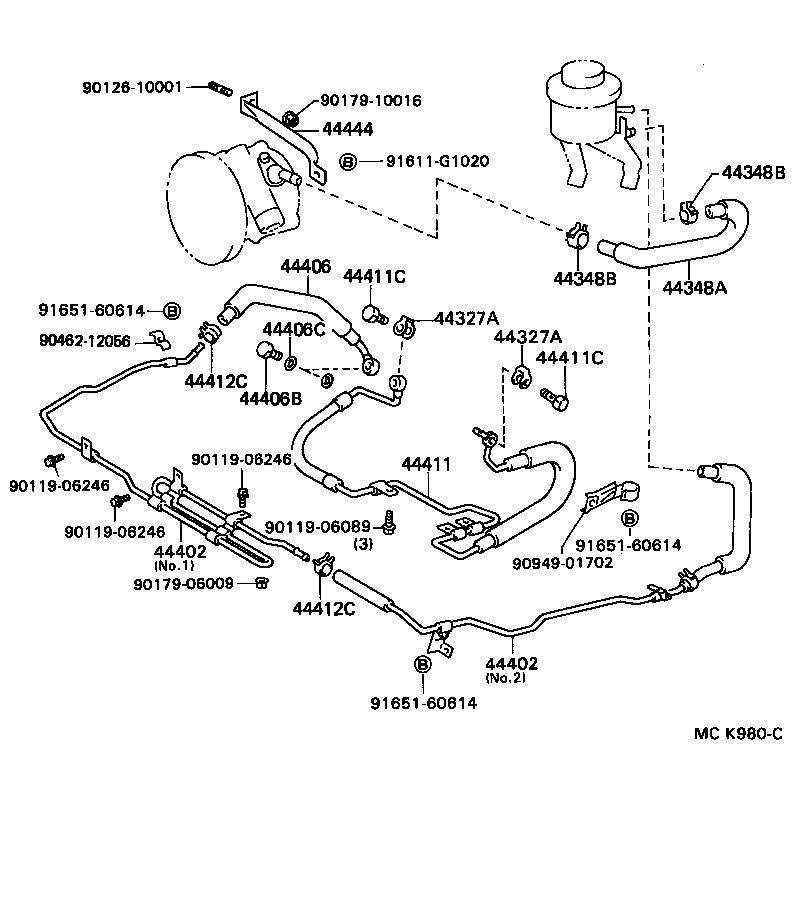

Click highlighted areas on diagram

diagram 44327A 44327A 44348A 44348B 44348B 44402 44402 44406 44406B 44406C 44411 44411C 44411C 44412C 44412C 44444 9011906089 9011906246 9011906246 9011906246 9012610001 9017906009 9017910016 9046212056 9094901702 91611G1020 9165160614 9165160614 9165160614
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR

 2
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR

 2
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-14110

JZA70

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90467-21005

GA70,JZA70,MA70

 2
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90467-21005

GA70,JZA70,MA70

 2
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-14200

JZA70

NO.1

 1
44402-14210

JZA70

NO.2

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-14200

JZA70

NO.1

 1
44402-14210

JZA70

NO.2

 1
44406 - TUBE SUB-ASSY, RETURN
44406-24030

GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR

 1
44406B - BOLT, UNION(FOR RETURN TUBE)
90401-17002

GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR

 1
44406C - GASKET(FOR RETURN TUBE)
90430-17005

GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR

 2
44411 - HOSE, PRESSURE FEED
44411-14220

JZA70

 1
44411-14221

JZA70

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16013

GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR

 2
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16013

GA70,JZA70,MA70..GTL,GTT,GTTL,GTTR

 2
44412C - CLAMP(FOR RETURN HOSE)
90467-16008

GA70,JZA70,MA70

 3
44412C - CLAMP(FOR RETURN HOSE)
90467-16008

GA70,JZA70,MA70

 3
44444 - STAY, PUMP, REAR
44444-22090

JZA70

 1
Common parts
90119-06089
90119-06246
90126-10001
90179-06009
90179-10016
90462-12056
90949-01702
91611-G1020
91651-60614
