JZA70-BLMVZ (1990)
Toyota Supra
Production
Aug 1990
-
May 1993
Engine
1JZGTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9008- )WIB..GTL,GTT

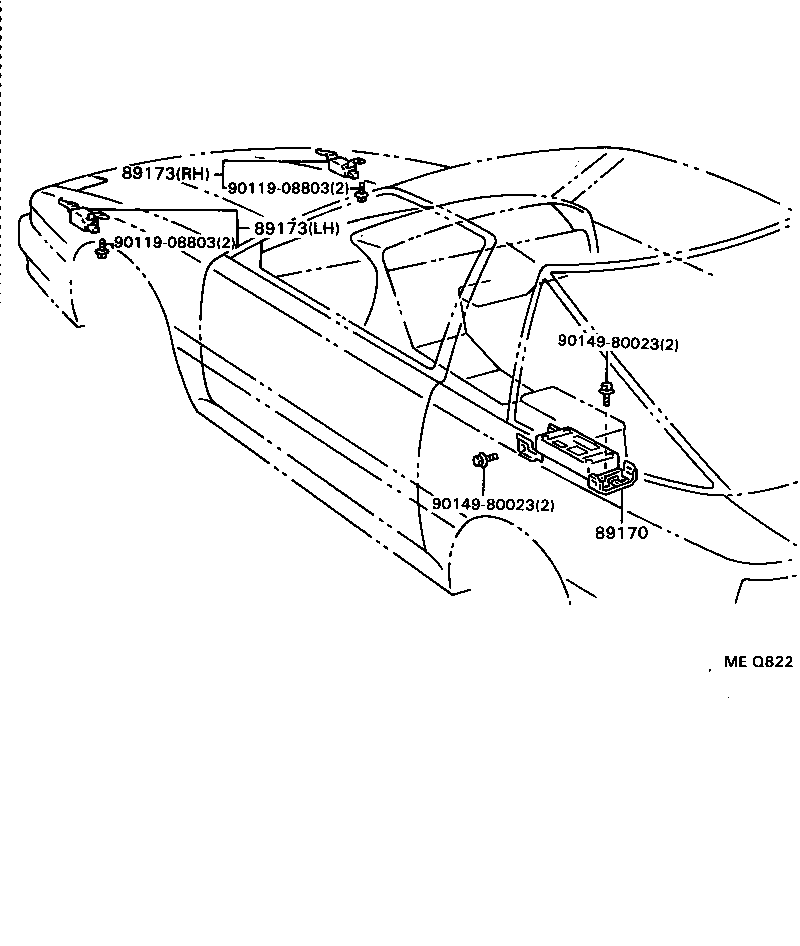

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-14010 |
GA70,JZA70 |
1 | ||
| 89170-14010 |
GA70,JZA70..WIB..(GTL,GTT) |
1 | ||
| 89173 - SENSOR, AIR BAG, FRONT | ||||
| 89173-19015 |
GA70,JZA70..WIB..(GTL,GTT) 右側 |
1 | ||
| 89173-19015 |
GA70,JZA70 右側 |
1 | ||
| 89173-19025 |
GA70,JZA70 左側 |
1 | ||
| 89173-19025 |
GA70,JZA70..WIB..(GTL,GTT) 左側 |
1 | ||
| 89173 - SENSOR, AIR BAG, FRONT | ||||
| 89173-19015 |
GA70,JZA70..WIB..(GTL,GTT) 右側 |
1 | ||
| 89173-19015 |
GA70,JZA70 右側 |
1 | ||
| 89173-19025 |
GA70,JZA70 左側 |
1 | ||
| 89173-19025 |
GA70,JZA70..WIB..(GTL,GTT) 左側 |
1 | ||
| Common parts | ||||
| 90119-08803 | ||||
| 90149-80023 | ||||
