JZA70-BLMVZ (1990)

Toyota Supra

Production Aug 1990 - May 1993
Engine 1JZGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )1JZGTE

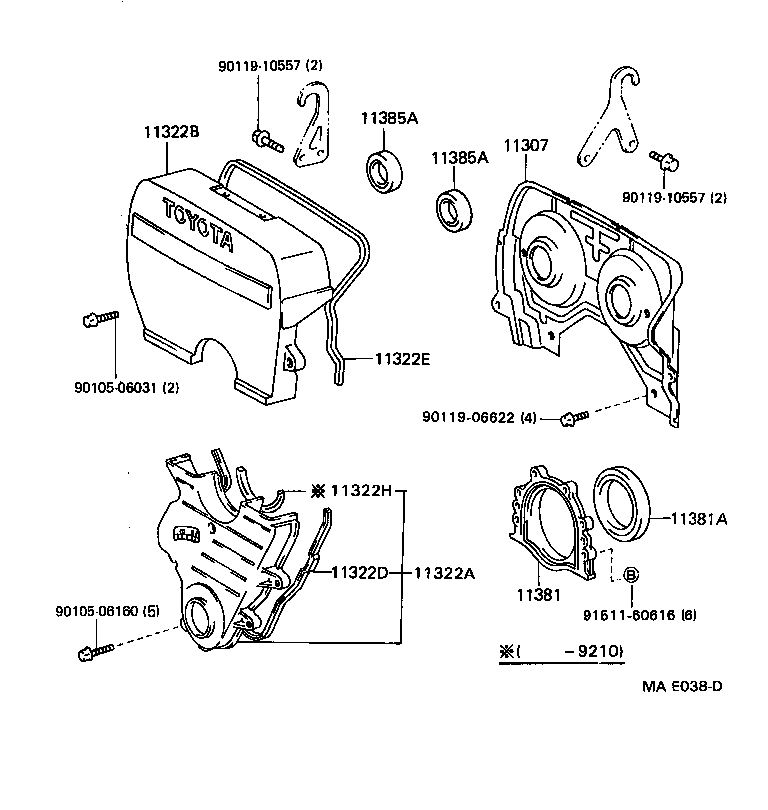

Click highlighted areas on diagram

diagram 11307 11322A 11322B 11322D 11322E 11322H 11381 11381A 11385A 11385A 9010506031 9010506160 9011906622 9011910557 9011910557 9151160616
Part # Description Qty Price
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-88400

1JZGTE..JZA70

 1
11322A - COVER, TIMING BELT, NO.1
11302-46021

1JZGTE..JZA70

 1
11302-46020

1JZGTE..JZA70

 1
11322B - COVER, TIMING BELT, NO.2
11322-88400

1JZGTE..JZA70

 1
11322D - GASKET, TIMING BELT COVER, NO.1
11328-46020

1JZGTE..JZA70

 1
11328-46021

1JZGTE..JZA70

 1
11322E - GASKET, TIMING BELT COVER, NO.2
11329-88400

1JZGTE..JZA70

 1
11322H - GASKET, TIMING BELT COVER, NO.3
11319-46010

1JZGTE..JZA70

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-46010

1JZGTE..JZA70

 1
11381A - SEAL, ENGINE REAR OIL
90311-90006

1JZGTE..JZA70

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-38041

1JZGTE..JZA70

 2
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-38041

1JZGTE..JZA70

 2
Common parts
90105-06031
90105-06160
90119-06622
90119-10557
91511-60616
