JZA70-BLMQZ (1990)
Toyota Supra
Production
Aug 1990
-
May 1993
Engine
1JZGTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

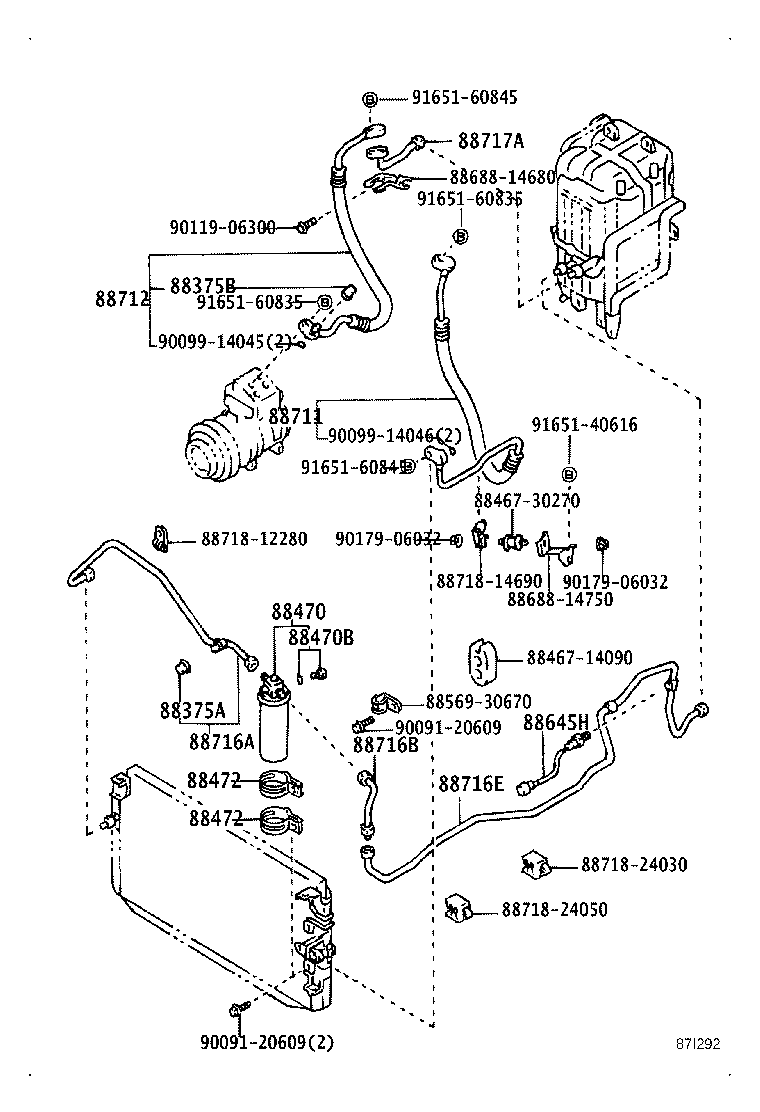

ILLUST NO. 2 OF 3(9008- )JZA70
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-20010 |
GA70,JZA70 |
2 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30270 |
JZA70 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95401 |
GA70,JZA70,MA70 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
GA70,JZA70,MA70 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
GA70,JZA70,MA70 |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
GA70,JZA70,MA70 |
2 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-50010 |
JZA70 |
1 | ||
| 88645-20040 |
JZA70 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-14640 |
JZA70 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-1B120 |
JZA70 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-24151 |
GA70,JZA70 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-24160 |
GA70,JZA70,MA70 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1B190 |
JZA70 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-14300 |
GA70,JZA70 |
1 | ||
| Common parts | ||||
| 88467-14090 | ||||
| 88467-30270 | ||||
| 88569-30670 | ||||
| 88688-14680 | ||||
| 88688-14750 | ||||
| 88718-12280 | ||||
| 88718-14690 | ||||
| 88718-24030 | ||||
| 88718-24050 | ||||
| 90091-20609 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90119-06300 | ||||
| 90179-06032 | ||||
| 91651-40616 | ||||
| 91651-60835 | ||||
| 91651-60845 | ||||
