JZA70-BJMVZ (1990)

Toyota Supra

Production Aug 1990 - May 1993
Engine 1JZGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9108)

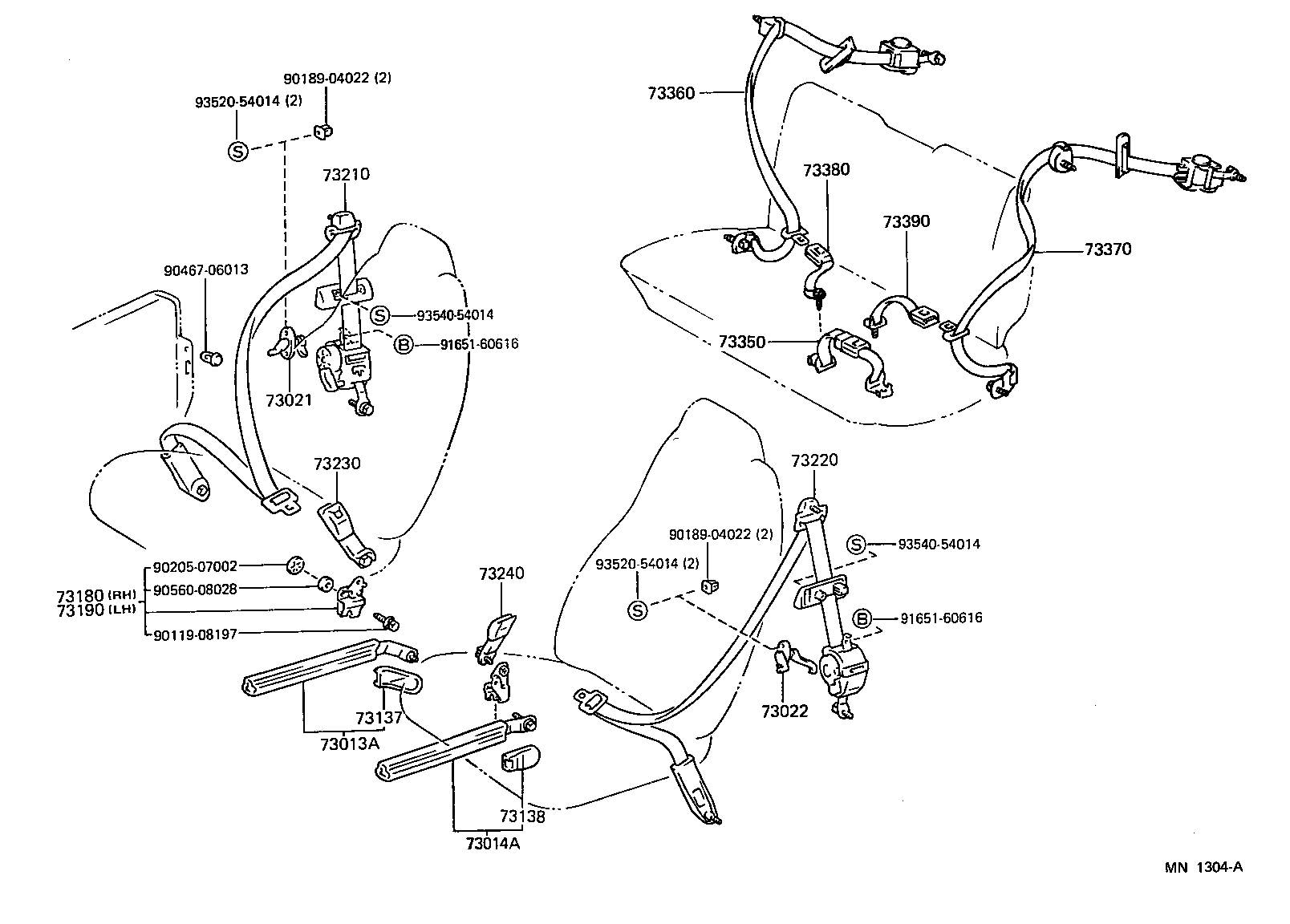

Click highlighted areas on diagram

diagram 73013A 73014A 73021 73022 73137 73138 73180 73190 73210 73220 73230 73240 73330 73340 73350 9011908197 9018904022 9018904022 9020507002 9046706013 9056008028 9165160616 9165160616 9352054014 9352054014 9354054014 9354054014
Part # Description Qty Price
73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73013-1403012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73013-1403013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73014A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73014-1403013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73014-1403012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73021 - LEVER SUB-ASSY, SEAT BELT COMFORT, RH
73021-14031

GA70,JZA70,MA70

 1
73022 - LEVER SUB-ASSY, SEAT BELT COMFORT, LH
73022-14031

GA70,JZA70,MA70

 1
73137 - CAP, FRONT SEAT BELT INNER ANCHOR, RH
73137-1403013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73137-1403012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73138 - CAP, FRONT SEAT BELT INNER ANCHOR, LH
73138-1403013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73138-1403012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73011-14020

GA70,JZA70,MA70

 1
73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73012-14020

GA70,JZA70,MA70

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1448012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73210-1448013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1442012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73220-1442013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1444012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73230-1444013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73230-1446003

GA70,JZA70..GT,GTL,GTT

SHADOW GRAY,TRIM1#

 1
73230-1446002

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-1415012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73240-1415013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-1419112

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73330-1419113

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-1419112

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73330-1419113

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-1405012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73350-1405013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73350-1408002

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73350-1408003

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
Common parts
90119-08197
90189-04022
90205-07002
90467-06013
90560-08028
91651-60616
93520-54014
93540-54014

(9108- )

Click highlighted areas on diagram

diagram 73013A 73014A 73021 73022 73137 73138 73180 73190 73210 73220 73230 73240 73350 73360 73370 73380 73390 9011908197 9018904022 9018904022 9020507002 9046706013 9056008028 9165160616 9165160616 9352054014 9352054014 9354054014 9354054014
Part # Description Qty Price
73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73013-1403012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73013-1403013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73014A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73014-1403013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73014-1403012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73021 - LEVER SUB-ASSY, SEAT BELT COMFORT, RH
73021-14031

GA70,JZA70,MA70

 1
73022 - LEVER SUB-ASSY, SEAT BELT COMFORT, LH
73022-14031

GA70,JZA70,MA70

 1
73137 - CAP, FRONT SEAT BELT INNER ANCHOR, RH
73137-1403013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73137-1403012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73138 - CAP, FRONT SEAT BELT INNER ANCHOR, LH
73138-1403013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73138-1403012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73011-14020

GA70,JZA70,MA70

 1
73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73012-14020

GA70,JZA70,MA70

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1448012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73210-1448013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1442012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73220-1442013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1444012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73230-1444013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73230-1446003

GA70,JZA70..GT,GTL,GTT

SHADOW GRAY,TRIM1#

 1
73230-1446002

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-1415012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73240-1415013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-1405012

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73350-1405013

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73350-1408002

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73350-1408003

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-1428003

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73360-1428002

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-1416002

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73370-1416003

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-1420002

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73380-1420003

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-1420002

GA70,JZA70..GT,GTL,GTT

DEEP RED,TRIM3#

 1
73380-1420003

GA70,JZA70

SHADOW GRAY,TRIM1#

 1
Common parts
90119-08197
90189-04022
90205-07002
90467-06013
90560-08028
91651-60616
93520-54014
93540-54014
