GA70-BLPVZ (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 1GGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

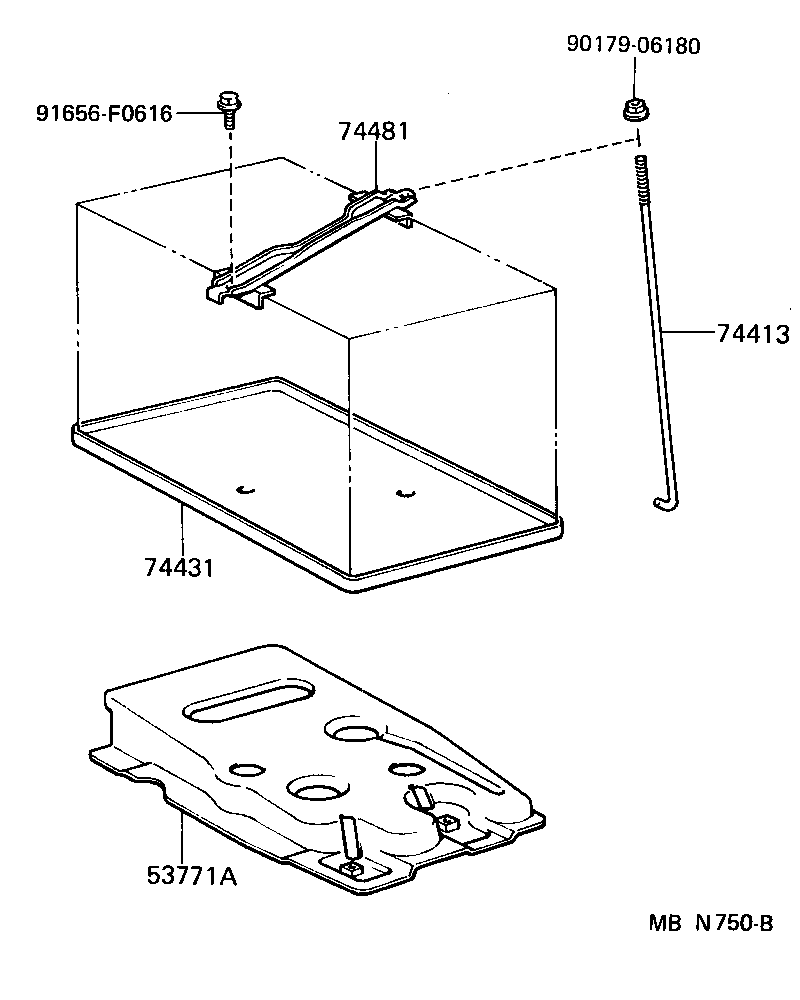

Click highlighted areas on diagram

diagram 53771A 74413 74431 74481 9017906180 91656F0616
Part # Description Qty Price
53771A - SUPPORT, BATTERY CARRIER
53771-14120

GA70,JZA70,MA70

 1
74413 - BOLT, BATTERY CLAMP
74451-14010

GA70,JZA70,MA70

L=236MM

 1
74451-22030

GA70,JZA70

L=227MM

 1
74431 - TRAY, BATTERY
74431-14030

GA70,JZA70,MA70

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-14310

GA70,JZA70,MA70

 1
Common parts
90179-06180
91656-F0616
