Toyota Supra GA70 STEERING WHEEL

GA70-BLPVZ (1988)

Toyota Supra

Production Aug 1988 - May 1993

Engine 1GGTEU

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

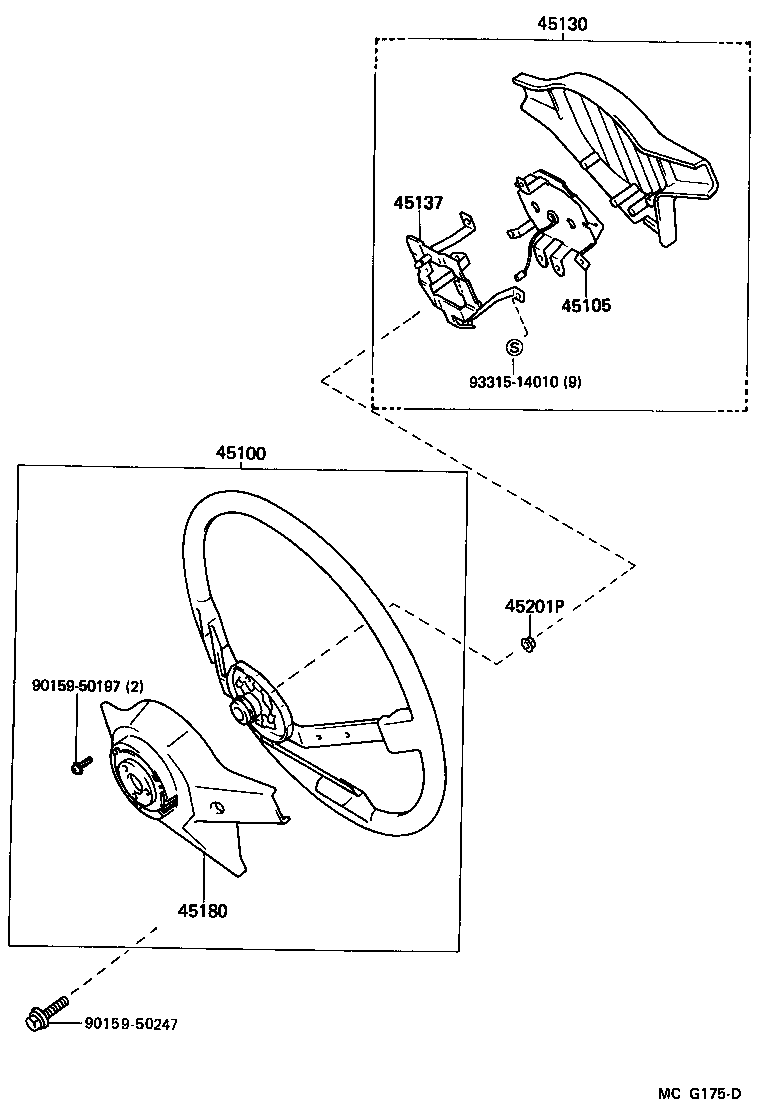

Click highlighted areas on diagram

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-14490	GA70..5F..GTT;GA70..LB..4FC..GTT ｱﾘ(TEMS)	08/1988 - 08/1989	1
45100-14450	GA70..G,GT	08/1988 - 05/1993	1
45100-14480	GA70,JZA70..GTT	08/1988 - 05/1993	1
45100-14520	GA70,JZA70..GT,GTT ｱﾘ(*80)	08/1991 - 05/1993	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-14110	GA70..5F..GTT;GA70..LB..4FC..GTT ｱﾘ(TEMS)	08/1988 - 08/1989	1
45105-14100	GA70,JZA70..G,GT,GTT	08/1988 - 05/1993	1
45130 - BUTTON ASSY, HORN
45130-10150	GA70..GTT BLACK LIMITED	02/1989 - 03/1989	1
45130-14240	GA70,JZA70,MA70..G,GT,GTT	08/1989 - 05/1993	1
45130-14290	GA70,JZA70..GT,GTT,GTTR ｱﾘ(*80)	08/1991 - 05/1993	1
45130-14240	GA70	08/1988 - 08/1989	1
45137 - PLATE, HORN BUTTON STOP
45106-14020	GA70,JZA70,MA70..G,GT,GTL,GTT	08/1988 - 05/1993	1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-14020	GA70	08/1988 - 08/1989	1
45180-14020	GA70,JZA70,MA70..G,GT,GTT	08/1989 - 05/1993	1
45201P - NUT, STEERING WHEEL SET
90179-12086	GA70,JZA70,MA70	08/1988 - 05/1993	1
Common parts
90159-50197
90159-50247
93315-14010

Click highlighted areas on diagram

ｱﾘ(ｵ-ﾄﾄﾞﾗｲﾌﾞ)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-14490	GA70..5F..GTT;GA70..LB..4FC..GTT ｱﾘ(TEMS)	08/1988 - 08/1989	1
45100-14450	GA70..G,GT	08/1988 - 05/1993	1
45100-14480	GA70,JZA70..GTT	08/1988 - 05/1993	1
45100-14520	GA70,JZA70..GT,GTT ｱﾘ(*80)	08/1991 - 05/1993	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-14110	GA70..5F..GTT;GA70..LB..4FC..GTT ｱﾘ(TEMS)	08/1988 - 08/1989	1
45105-14100	GA70,JZA70..G,GT,GTT	08/1988 - 05/1993	1
45112 - PAD, STEERING WHEEL
45112-14150	GA70..GTT BLACK LIMITED	02/1989 - 03/1989	1
45112-14170	MA70..GTL,GTT;GA70..5F..GTT;GA70..LB..4FC..GTT	08/1988 - 08/1989	1
45112-14150	GA70..GTT ﾌﾞﾗﾂｸｽ-ﾌﾟﾗ	04/1989 - 04/1989	1
45137 - PLATE, HORN BUTTON STOP
45106-14020	GA70,JZA70,MA70..G,GT,GTL,GTT	08/1988 - 05/1993	1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-14130	MA70..GTL,GTT;GA70..5F..GTT;GA70..LB..4FC..GTT	08/1988 - 08/1989	1
45184-14110	GA70..GTT BLACK LIMITED	02/1989 - 03/1989	1
45201P - NUT, STEERING WHEEL SET
90179-12086	GA70,JZA70,MA70	08/1988 - 05/1993	1
Common parts
90159-50197
90159-50247
93315-14010
Linked diagrams
8408

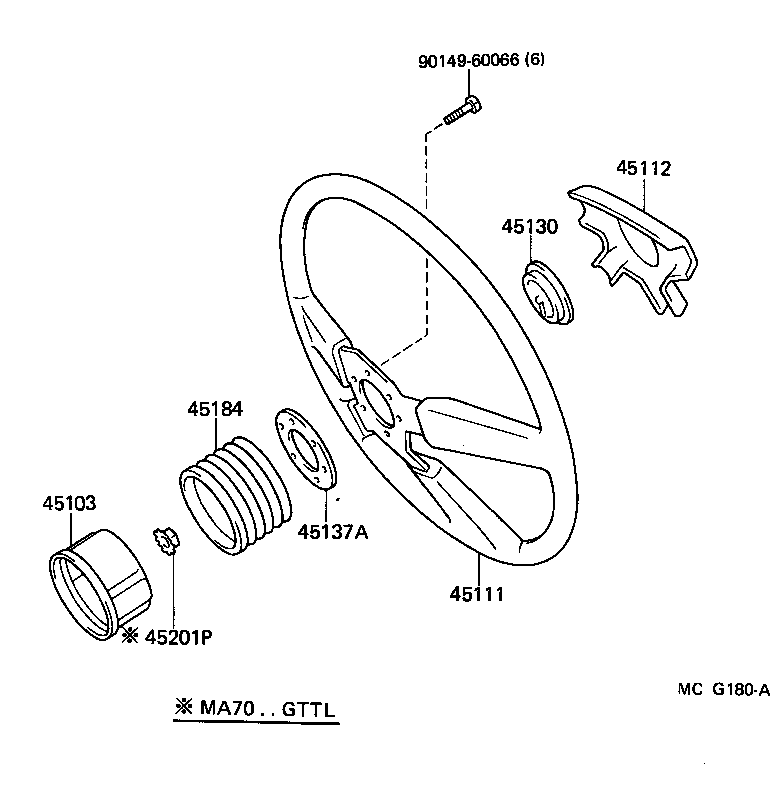

Click highlighted areas on diagram

(8902-8903)BLACK LIMITED

Part #	Description	Period	Qty
45103 - HUB SUB-ASSY, STEERING WHEEL
45103-14220	GA70..GTT BLACK LIMITED	02/1989 - 03/1989	1
45111 - WHEEL, STEERING
45111-14050	GA70..GTT ﾌﾞﾗﾂｸｽ-ﾌﾟﾗ	04/1989 - 04/1989	1
45111-14050	GA70..GTT BLACK LIMITED	02/1989 - 03/1989	1
45112 - PAD, STEERING WHEEL
45112-14150	GA70..GTT BLACK LIMITED	02/1989 - 03/1989	1
45112-14170	MA70..GTL,GTT;GA70..5F..GTT;GA70..LB..4FC..GTT	08/1988 - 08/1989	1
45112-14150	GA70..GTT ﾌﾞﾗﾂｸｽ-ﾌﾟﾗ	04/1989 - 04/1989	1
45130 - BUTTON ASSY, HORN
45130-10150	GA70..GTT BLACK LIMITED	02/1989 - 03/1989	1
45130-14240	GA70,JZA70,MA70..G,GT,GTT	08/1989 - 05/1993	1
45130-14290	GA70,JZA70..GT,GTT,GTTR ｱﾘ(*80)	08/1991 - 05/1993	1
45130-14240	GA70	08/1988 - 08/1989	1
45137A - PLATE, HORN BUTTON CONTACT, NO.2
45137-10010	GA70..GTT BLACK LIMITED	02/1989 - 03/1989	1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-14130	MA70..GTL,GTT;GA70..5F..GTT;GA70..LB..4FC..GTT	08/1988 - 08/1989	1
45184-14110	GA70..GTT BLACK LIMITED	02/1989 - 03/1989	1
45201P - NUT, STEERING WHEEL SET
90179-12086	GA70,JZA70,MA70	08/1988 - 05/1993	1
Common parts
90149-60066
