GA70-BLPVZ (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 1GGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

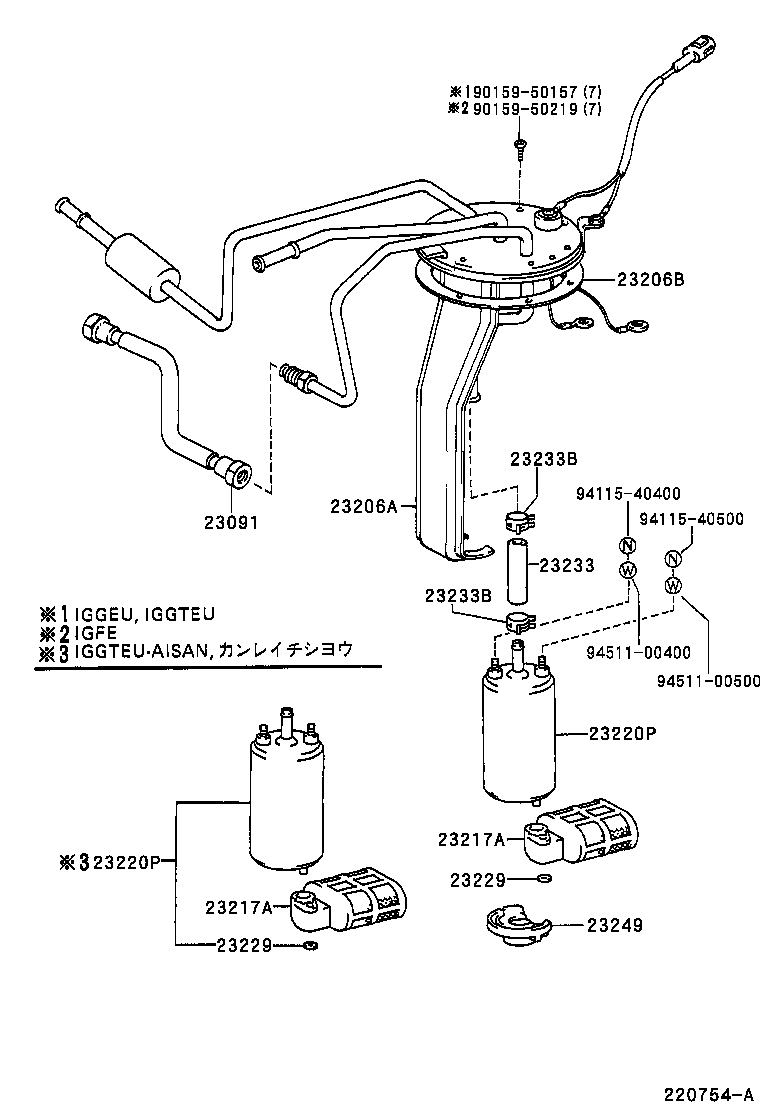

ILLUST NO. 4 OF 4(8808- )1GFE,1GG#

Click highlighted areas on diagram

diagram 23091 23206A 23206B 23217A 23217A 23220P 23220P 23229 23229 23233 23233B 23233B 23249 9015950157 9015950219 9411540400 9411540500 9451100400 9451100500
Part # Description Qty Price
23091 - TUBE SUB-ASSY, FUEL PUMP
23091-42010

1GFE,1GG#..GA70

 1
23206A - BRACKET, FUEL PUMP
23206-70370

1GFE,1GG#..GA70

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23206-42020

1GGTEU..GA70

 1
23206B - GASKET, FUEL PUMP BRACKET
77169-14010

1GFE,1GG#..GA70

 1
23217A - FILTER, FUEL PUMP
23217-16030

1GFE,1GG#..GA70

NIPPONDENSO

 1
23217-16043

1GFE,1GG#..GA70

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23217-16030

1GGTEU..GA70

NIPPONDENSO

 1
23217-74500

1GGTEU..GA70

AISAN

 1
23217-16043

1GFE,1GG#..GA70

AISAN

 1
23217-74500

1GGTEU..GA70

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23217A - FILTER, FUEL PUMP
23217-16030

1GFE,1GG#..GA70

NIPPONDENSO

 1
23217-16043

1GFE,1GG#..GA70

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23217-16030

1GGTEU..GA70

NIPPONDENSO

 1
23217-74500

1GGTEU..GA70

AISAN

 1
23217-16043

1GFE,1GG#..GA70

AISAN

 1
23217-74500

1GGTEU..GA70

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23220P - PUMP ASSY, FUEL
23220-79015

1GGTEU..GA70

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23220-70170

1GGTEU..GA70

ND

 1
23220-79015

1GGTEU..GA70

AISAN

 1
23220-79015

1GGTEU..GA70

 1
23220P - PUMP ASSY, FUEL
23220-70170

1GGTEU..GA70

ND

 1
23220-79015

1GGTEU..GA70

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23220-79015

1GGTEU..GA70

AISAN

 1
23220-79015

1GGTEU..GA70

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1GFE,1GG#..GA70

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23229-16010

1GFE,1GG#..GA70

 2
23229-16010

1GGTEU..GA70

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23229-16010

1GGTEU..GA70

 2
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1GFE,1GG#..GA70

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23229-16010

1GFE,1GG#..GA70

 2
23229-16010

1GGTEU..GA70

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23229-16010

1GGTEU..GA70

 2
23233 - HOSE, FUEL PUMP
23239-16010

1GFE,1GG#..GA70

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23239-16010

1GGTEU..GA70

ｶﾝﾚｲﾁ ｼﾖｳ

 1
23239-16010

1GFE,1GG#..GA70

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13001

1GFE,1GG#..GA70

 2
90467-13054

1GG#..GA70

ｶﾝﾚｲﾁ ｼﾖｳ

 2
90467-13054

1GG#..GA70

 2
90467-13001

1GG#..GA70

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13001

1GFE,1GG#..GA70

 2
90467-13054

1GG#..GA70

ｶﾝﾚｲﾁ ｼﾖｳ

 2
90467-13054

1GG#..GA70

 2
90467-13001

1GG#..GA70

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-43080

1GFE,1GG#..GA70

 2
23249-43080

1GFE,1GG#..GA70

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
90159-50157
90159-50219
94115-40400
94115-40500
94511-00400
94511-00500

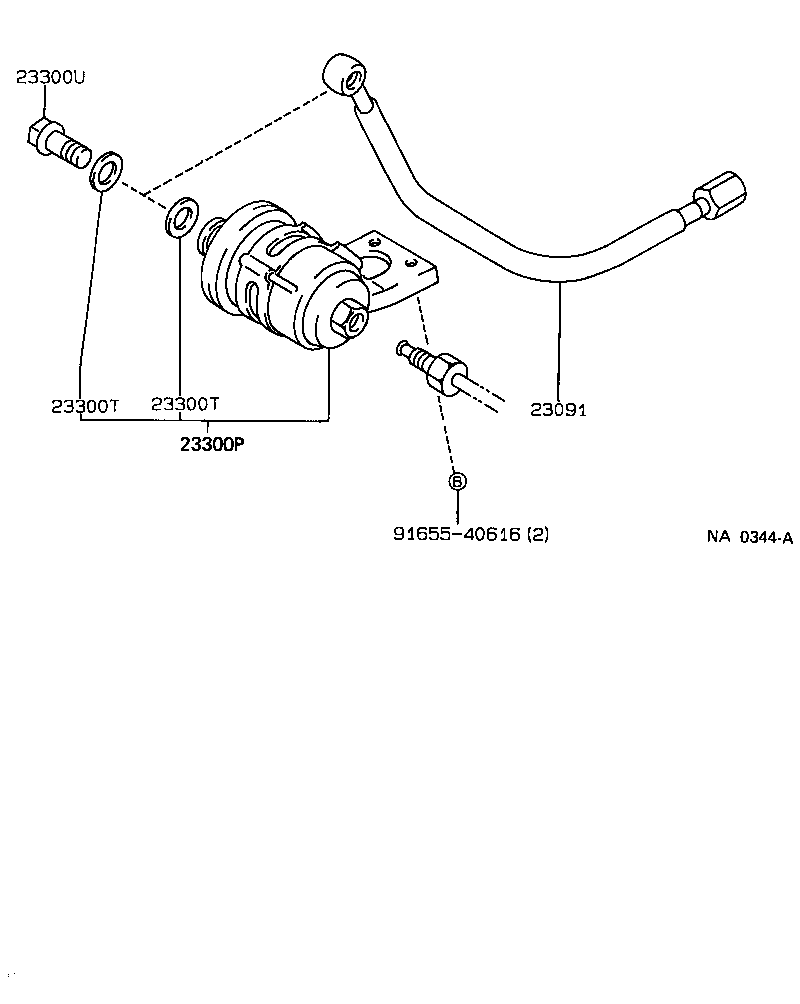

ILLUST NO. 2 OF 3(8808- )1GFE,1GG#

Click highlighted areas on diagram

diagram 23091 23300P 23300T 23300T 23300U 9165540616
Part # Description Qty Price
23091 - TUBE SUB-ASSY, FUEL PUMP
23091-42010

1GFE,1GG#..GA70

 1
23091-42010

1GFE,1GG#..GA70

 1
23300P - FILTER, FUEL(FOR EFI)
23300-79135

1GFE,1GG#..GA70

 1
23300-79135

1GFE,1GG#..GA70

 1
23300-79135

1GG#..GA70

 1
23300-79135

1GG#..GA70

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1GFE,1GG#..GA70

 2
90430-12005

1GFE,1GG#..GA70

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12005

1GFE,1GG#..GA70

 2
90430-12005

1GFE,1GG#..GA70

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

1GFE,1GGTEU..GA70

 1
90401-12097

1GFE,1GGTEU..GA70

 1
Common parts
91655-40616

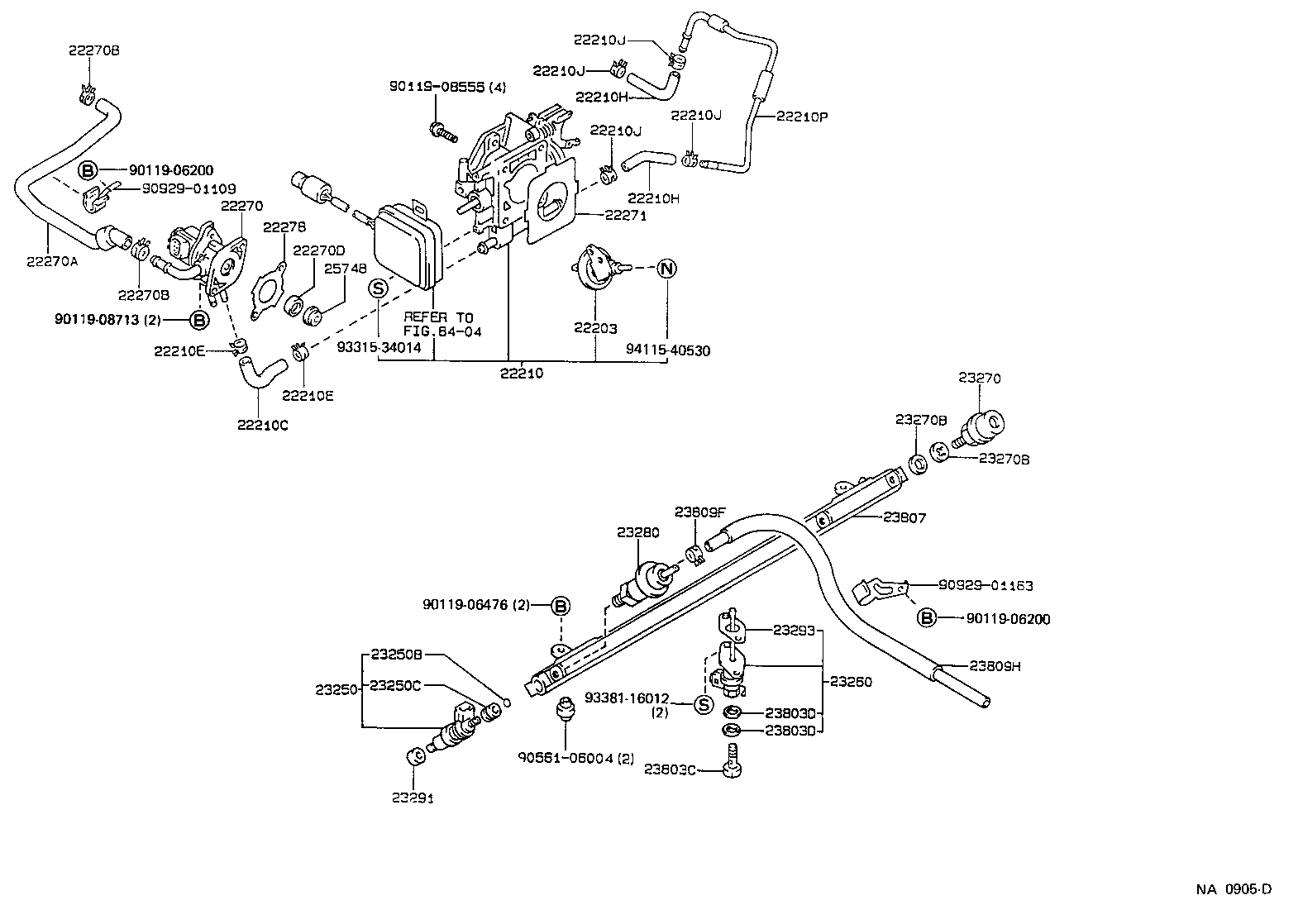

ILLUST NO. 1 OF 4(8808- )1GGTEU

Click highlighted areas on diagram

diagram 22203 22210 22210C 22210E 22210E 22210H 22210H 22210J 22210J 22210J 22210J 22210P 22270 22270A 22270B 22270B 22270D 22271 22278 23250 23250B 23250C 23260 23270 23270B 23270B 23280 23291 23293 23803C 23803D 23803D 23807 23809F 23809H 25748 8404 9011906200 9011906200 9011906476 9011908555 9011908713 9056106004 9092901109 9092901163 9331534014 9338116012 9411540530
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22203-70070

1GGTEU..GA70

 1
22210 - BODY ASSY, THROTTLE
22210-70230

1GGTEU..GA70..4FC

 1
22210C - HOSE, WATER BY-PASS, NO.1
16283-88340

1GGTEU..GA70

 1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-17005

1GGTEU..GA70

 2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-17005

1GGTEU..GA70

 2
22210H - HOSE, WATER BY-PASS, NO.3
90910-05176

1GGTEU..GA70

THROTTLE BODY SIDE

 1
90910-05175

1GGTEU..GA70

PIPE SIDE

 1
22210H - HOSE, WATER BY-PASS, NO.3
90910-05176

1GGTEU..GA70

THROTTLE BODY SIDE

 1
90910-05175

1GGTEU..GA70

PIPE SIDE

 1
22210J - CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-17005

1GGTEU..GA70

 4
22210J - CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-17005

1GGTEU..GA70

 4
22210J - CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-17005

1GGTEU..GA70

 4
22210J - CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-17005

1GGTEU..GA70

 4
22210P - PIPE, WATER BY-PASS
16279-88341

1GGTEU..GA70

 1
16279-88342

1GGTEU..GA70

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-70070

1GGTEU..GA70

 1
22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)
22233-88341

1GGTEU..GA70

 1
22270B - CLIP(FOR AIR HOSE)
90467-21007

1GGTEU..GA70

 2
22270B - CLIP(FOR AIR HOSE)
90467-21007

1GGTEU..GA70

 2
22270D - WASHER, SEAL(FOR IDLE SPEED CONTROL VALVE)
90210-25001

1GGTEU..GA70

 1
22271 - GASKET, THROTTLE BODY
22271-88340

1GGTEU..GA70

 1
22278 - GASKET, IDLE SPEED CONTROL VALVE
22278-88340

1GG#..GA70

 1
23250 - INJECTOR ASSY, FUEL
23209-70080

1GGTEU..GA70

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1GFE,1GG#..GA70

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1GFE,1GG#..GA70

 6
23260 - INJECTOR ASSY, COLD START FUEL
23260-79097

1GGTEU..GA70

 1
23260-79096

1GGTEU..GA70

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-28030

1GFE,1GGTEU..GA70

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-28010

1GFE,1GG#..GA70

DAMPER SIDE

 1
90430-12005

1GFE,1GG#..GA70

DELIVERY SIDE

 1
23232-28010

1GG#..GA70

DAMPER SIDE,*54

 1
23232-41081

1GG#..GA70

DAMPER SIDE

 1
90430-12005

1GG#..GA70

DELIVERY SIDE,*54

 1
90430-12026

1GG#..GA70

DELIVERY PIPE SIDE

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-28010

1GFE,1GG#..GA70

DAMPER SIDE

 1
90430-12005

1GFE,1GG#..GA70

DELIVERY SIDE

 1
23232-28010

1GG#..GA70

DAMPER SIDE,*54

 1
23232-41081

1GG#..GA70

DAMPER SIDE

 1
90430-12005

1GG#..GA70

DELIVERY SIDE,*54

 1
90430-12026

1GG#..GA70

DELIVERY PIPE SIDE

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-70040

1GGTEU..GA70

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1GFE,1GG#..GA70

 6
23293 - GASKET, COLD START INJECTOR
23293-88340

1GGTEU..GA70

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08006

1GFE,1GG#..GA70

 2
90401-08003

1GFE,1GG#..GA70

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08012

1GG#..GA70

 4
90430-08005

1GFE,1GG#..GA70

 4
90430-08005

1GG#..GA70

*54

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08012

1GG#..GA70

 4
90430-08005

1GFE,1GG#..GA70

 4
90430-08005

1GG#..GA70

*54

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-88300

1GGTEU..GA70

 1
23809F - CLIP(FOR FUEL PIPE SUPPORT)
90467-13051

1GFE,1GG#..GA70

 1
23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR
90447-15010

1GG#..GA70

*53

 1
25748 - VALVE, CHECK(FOR IDLE SPEED CONTROL)
25748-88341

1GGTEU..GA70

 1
25748-88341

1GGTEU..GA70

 1
Common parts
90119-06200
90119-06476
90119-08555
90119-08713
90561-06004
90929-01109
90929-01163
93315-34014
93381-16012
94115-40530
Linked diagrams
8404

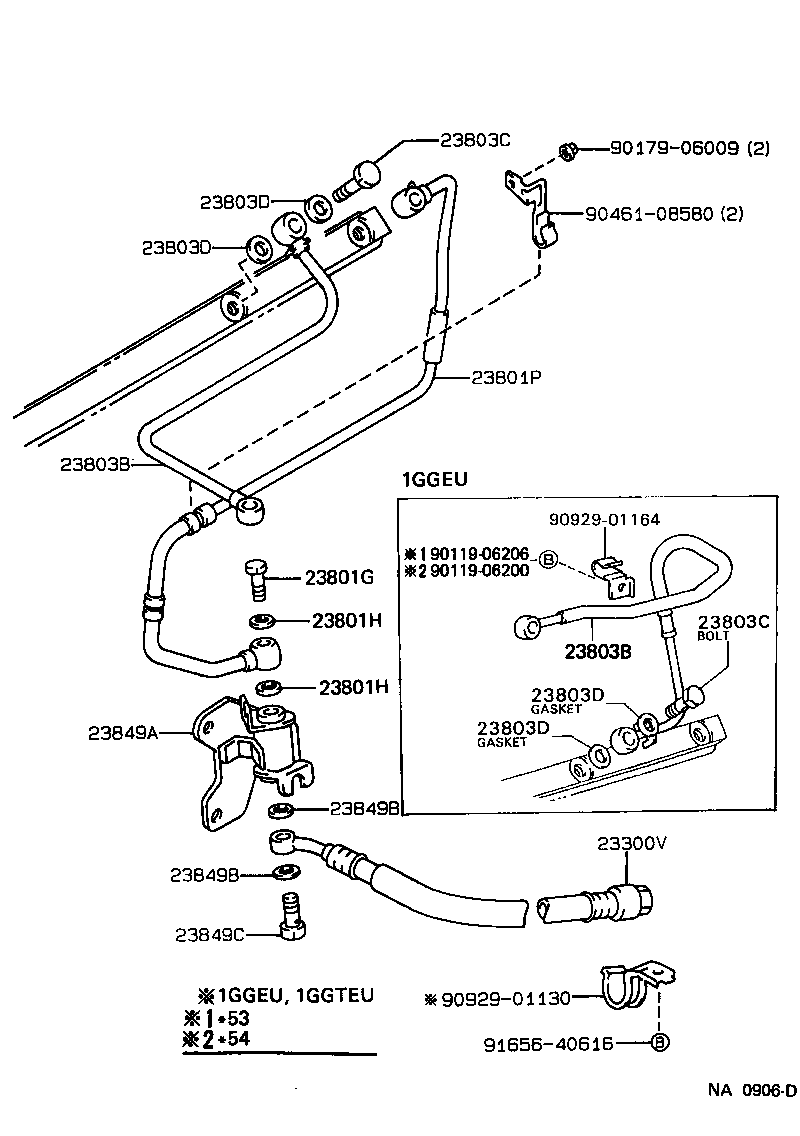

ILLUST NO. 2 OF 4(8808- )1GFE,1GG#

Click highlighted areas on diagram

diagram 23300V 23801G 23801H 23801H 23801P 23803B 23803B 23803C 23803C 23803D 23803D 23803D 23803D 23849A 23849B 23849B 23849C 9011906200 9011906206 9017906009 9046108580 9092901130 9092901164 9165640616
Part # Description Qty Price
23300V - HOSE, FUEL(FOR FUEL INLET)
90923-01341

1GFE,1GG#..GA70

 1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12097

1GFE,1GG#..GA70

 1
90401-12097

1GFE,1GG#..GA70

 1
23801H - GASKET(FOR FUEL PIPE)
90430-12005

1GG#..GA70

 2
90430-12005

1GG#..GA70

*54

 2
90430-12005

1GFE,1GG#..GA70

 2
90430-12026

1GG#..GA70

 2
23801H - GASKET(FOR FUEL PIPE)
90430-12005

1GG#..GA70

 2
90430-12005

1GG#..GA70

*54

 2
90430-12005

1GFE,1GG#..GA70

 2
90430-12026

1GG#..GA70

 2
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-88341

1GGTEU..GA70

 1
23801-88342

1GGTEU..GA70

 1
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-88340

1GGTEU..GA70

 1
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-88340

1GGTEU..GA70

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08006

1GFE,1GG#..GA70

 2
90401-08003

1GFE,1GG#..GA70

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08006

1GFE,1GG#..GA70

 2
90401-08003

1GFE,1GG#..GA70

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08012

1GG#..GA70

 4
90430-08005

1GFE,1GG#..GA70

 4
90430-08005

1GG#..GA70

*54

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08012

1GG#..GA70

 4
90430-08005

1GFE,1GG#..GA70

 4
90430-08005

1GG#..GA70

*54

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08012

1GG#..GA70

 4
90430-08005

1GFE,1GG#..GA70

 4
90430-08005

1GG#..GA70

*54

 4
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08012

1GG#..GA70

 4
90430-08005

1GFE,1GG#..GA70

 4
90430-08005

1GG#..GA70

*54

 4
23849A - SUPPORT, FUEL PIPE
23849-88340

1GFE,1GG#..GA70

 1
23849B - GASKET(FOR FUEL PIPE SUPPORT)
90430-12005

1GFE,1GG#..GA70

 2
90430-12026

1GG#..GA70

 2
23849B - GASKET(FOR FUEL PIPE SUPPORT)
90430-12005

1GFE,1GG#..GA70

 2
90430-12026

1GG#..GA70

 2
23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT)
90401-12097

1GFE,1GGTEU..GA70

 1
Common parts
90119-06200
90119-06206
90179-06009
90461-08580
90929-01130
90929-01164
91656-40616
