GA70-BLPVZ (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 1GGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

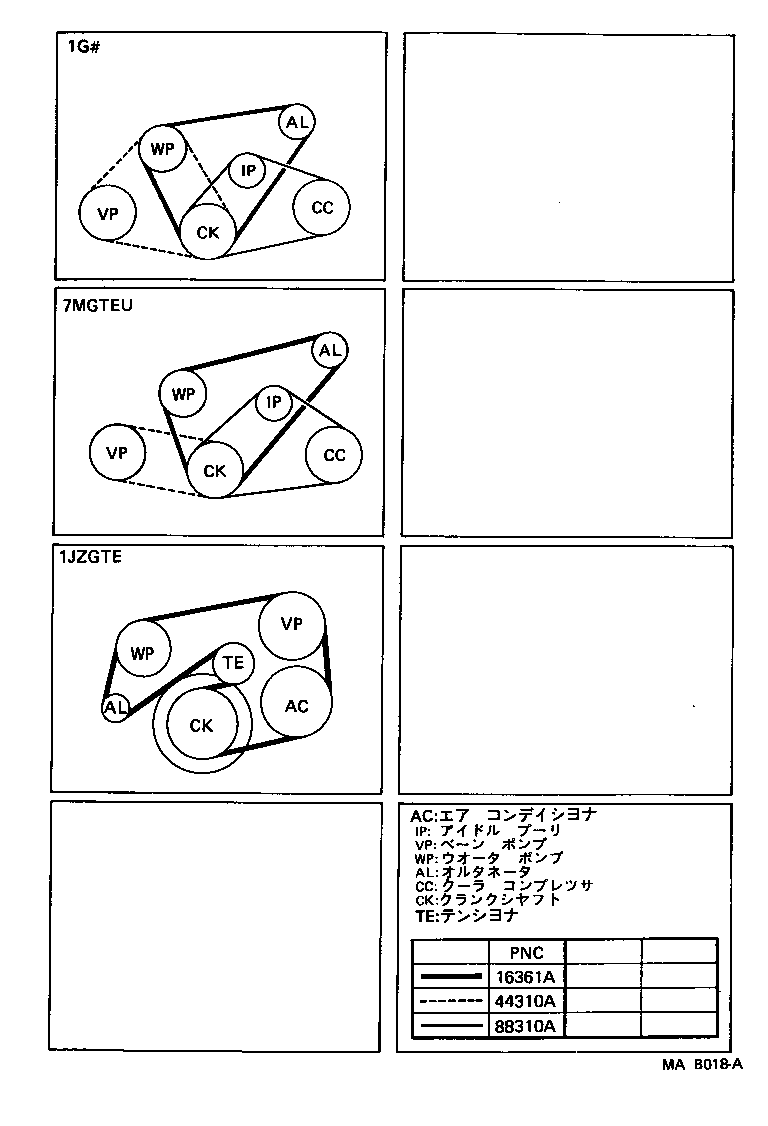

Click highlighted areas on diagram

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99364-51170

1GGTEU..GA70

 1
44310A - BELT, V(FOR VANE PUMP)
99363-00970

GA70..NOB..GTT

 1
99363-00960

GA70..WIB;GA70..G,GT

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-00850

GA70..NOB

長さ=850

 1
99364-00850

GA70

長さ=850

 1
99364-20850

GA70

長さ=850

 1
