GA70-BLPVZ (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )

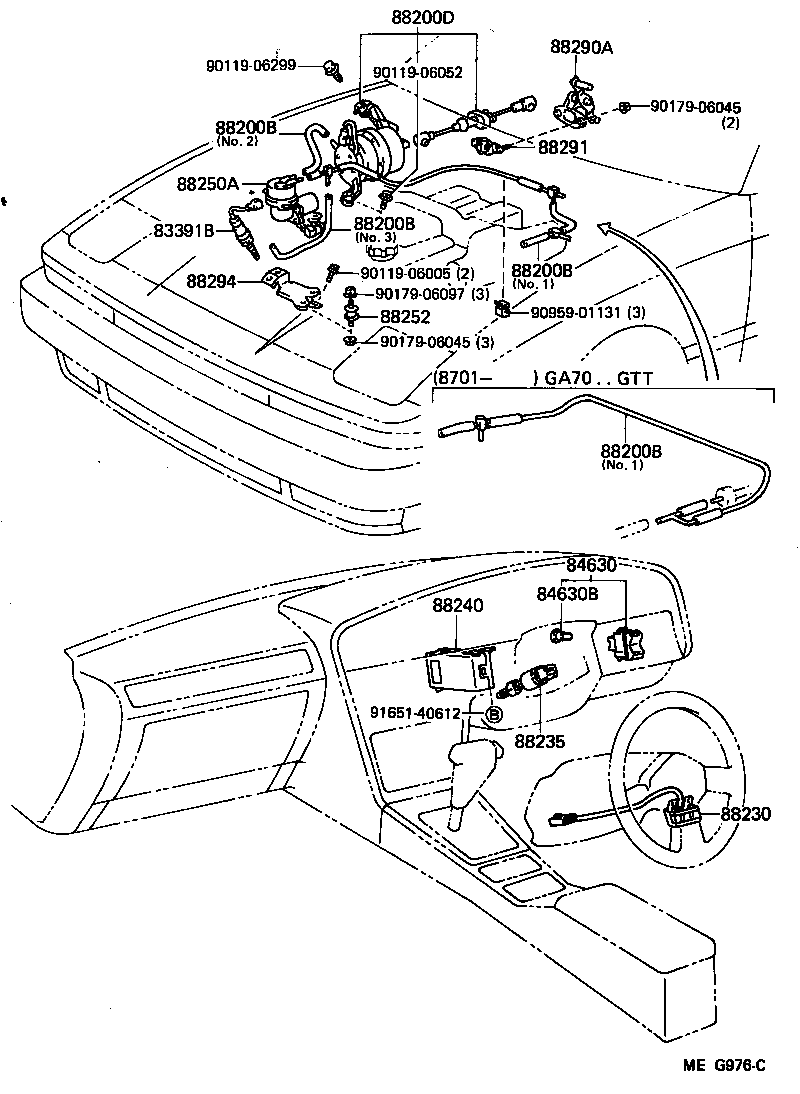

Click highlighted areas on diagram

diagram 83391B 84630 84630B 88200B 88200B 88200B 88200B 88200D 88230 88235 88240 88250A 88252 88290A 88291 88294 9011906005 9011906052 9011906299 9017906045 9017906045 9017906097 9095901131 9165140612
Part # Description Qty Price
83391B - SWITCH, AUTO DRIVE VACUUM
83391-14090

GA70,MA70..GTL,GTT

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-14031

GA70,MA70..GTL,GTT

 1
84630B - BULB(FOR CRUISE CONTROL SWITCH)
84999-10200

GA70,MA70..GTL,GTT

14V 0.56W

 2
88200B - HOSE, CRUISE CONTROL VACUUM
88283-14070

GA70..GTT

NO.1

 1
95411-19930

GA70,MA70..GTL,GTT

*H,L=140,ﾏｰｸ=#*,NO.3

 1
90999-92002

GA70,MA70..GTL,GTT

*H,L=140,ﾏｰｸ=#*,NO.3

 1
88200B - HOSE, CRUISE CONTROL VACUUM
88283-14070

GA70..GTT

NO.1

 1
95411-19930

GA70,MA70..GTL,GTT

*H,L=140,ﾏｰｸ=#*,NO.3

 1
90999-92002

GA70,MA70..GTL,GTT

*H,L=140,ﾏｰｸ=#*,NO.3

 1
88200B - HOSE, CRUISE CONTROL VACUUM
88283-14070

GA70..GTT

NO.1

 1
95411-19930

GA70,MA70..GTL,GTT

*H,L=140,ﾏｰｸ=#*,NO.3

 1
90999-92002

GA70,MA70..GTL,GTT

*H,L=140,ﾏｰｸ=#*,NO.3

 1
88200B - HOSE, CRUISE CONTROL VACUUM
88283-14070

GA70..GTT

NO.1

 1
95411-19930

GA70,MA70..GTL,GTT

*H,L=140,ﾏｰｸ=#*,NO.3

 1
90999-92002

GA70,MA70..GTL,GTT

*H,L=140,ﾏｰｸ=#*,NO.3

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-14110

GA70,MA70..GTL,GTT

 1
88200-14111

GA70,MA70..GTL,GTT

 1
88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88230-1411003

GA70,MA70..GTL,GTT

GRAY,GRAY,TRIM1#

 1
88230-1411002

GA70,MA70..GTL,GTT

MAROON,MAROON,TRIM3#

 1
88230-1411004

GA70,MA70..GTL,GTT

BLUE,DEEP BLUE,TRIM8#

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-14150

GA70..GTT

 1
88240-14101

GA70..GTT

 1
88250A - PUMP ASSY, CRUISE CONTROL
88251-14110

GA70,MA70..GTL,GTT

 1
88251-14111

GA70,MA70..GTL,GTT

 1
88252 - CUSHION, VACUUM PUMP
88252-14110

GA70,MA70..GTL,GTT

 1
88290A - BELLCRANK ASSY, CRUISE CONTROL
88290-14020

GA70,MA70..GTL,GTT

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-14070

GA70,MA70..GTL,GTT

 1
88294 - BRACKET, CRUISE CONTROL(AUTO DRIVE) MAIN SWITCH
88294-14010

GA70,MA70..GTL,GTT

 1
Common parts
90119-06005
90119-06052
90119-06299
90179-06045
90179-06097
90959-01131
91651-40612
