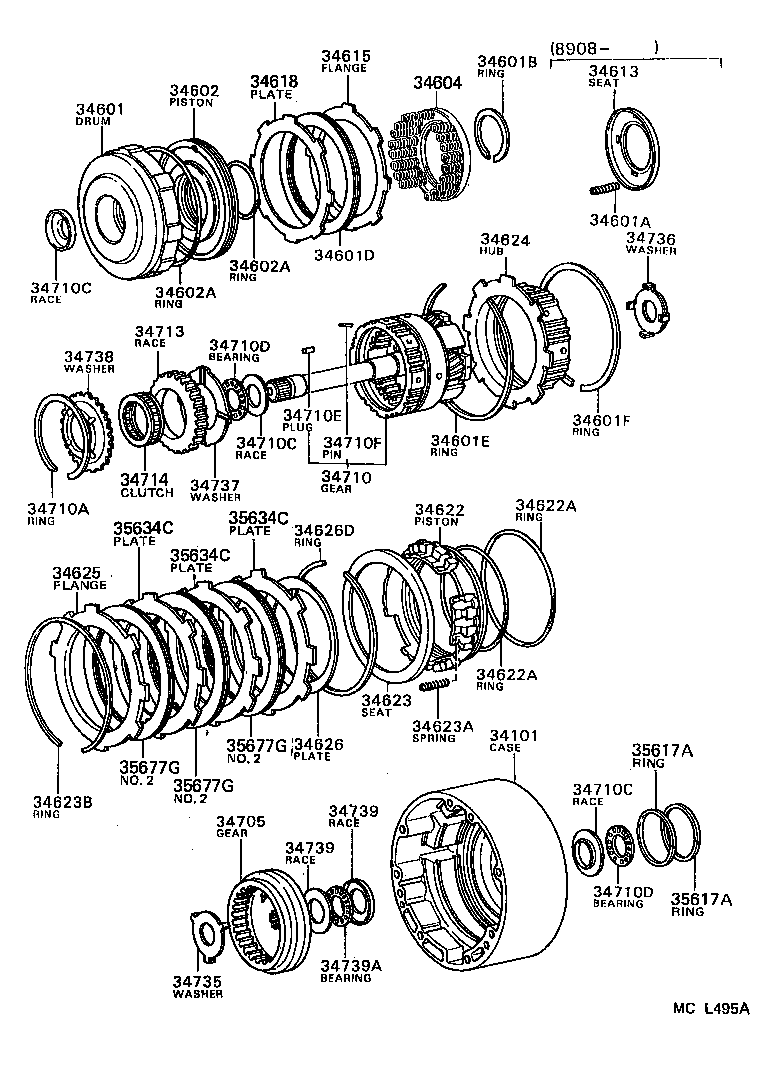

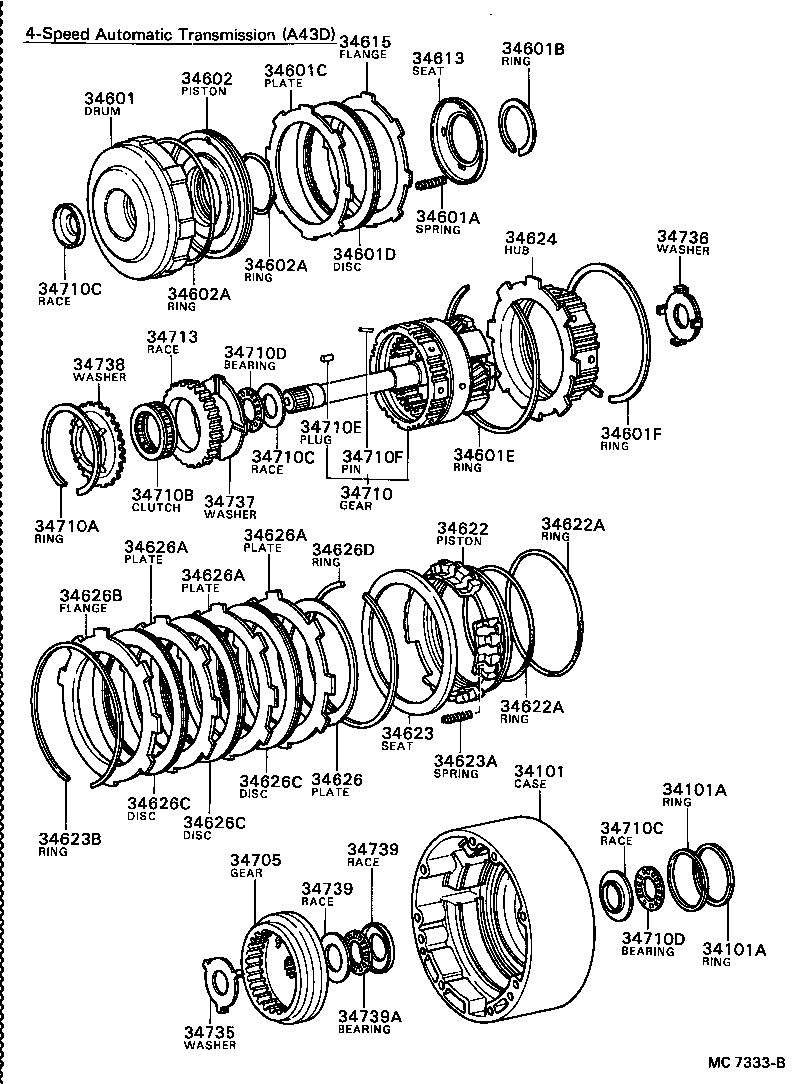

GA70-BLPVZ (1986)
Toyota Supra
(8602- )4FC..G,GT,S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34101 - CASE SUB-ASSY, OVERDRIVE | ||||
| 34101-30062 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34101A - RING, OIL SEAL (FOR OVERDRIVE CASE) | ||||
| 35617-16010 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34101A - RING, OIL SEAL (FOR OVERDRIVE CASE) | ||||
| 35617-16010 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-30030 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34601-30022 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34601A - SPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 90501-11023 |
GA70..4FC..(G,GT,S) |
18 | ||
| 34601B - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 90520-52262 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34601C - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-30070 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34601D - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-30030 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34601E - RING, HOLE SNAP, NO.1 (FOR OVERDRIVE) | ||||
| 90521-99146 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34601F - RING, HOLE SNAP, NO.2 (FOR OVERDRIVE) | ||||
| 90521-99001 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-30020 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34602-30030 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99016 |
GA70..4FC..(G,GT,S) OD=117.6,ID=123.8 |
1 | ||
| 90301-57188 |
GA70..4FC..(G,GT,S) OD=59.4,ID=56.8 |
1 | ||
| 90301-65005 |
GA70,MA70..4FC..(GTL,GTT) INNER,ID=65 |
1 | ||
| 90301-99036 |
GA70,MA70..4FC..(GTL,GTT) OUTER,ID=112.5 |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99016 |
GA70..4FC..(G,GT,S) OD=117.6,ID=123.8 |
1 | ||
| 90301-57188 |
GA70..4FC..(G,GT,S) OD=59.4,ID=56.8 |
1 | ||
| 90301-65005 |
GA70,MA70..4FC..(GTL,GTT) INNER,ID=65 |
1 | ||
| 90301-99036 |
GA70,MA70..4FC..(GTL,GTT) OUTER,ID=112.5 |
1 | ||
| 34613 - SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING | ||||
| 34613-30010 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34615 - FLANGE, OVERDRIVE CLUTCH | ||||
| 34615-30050 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.3,T=3.3 |
1 | ||
| 34615-30020 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.6,T=3.6 |
1 | ||
| 34615-30040 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.4,T=3.4 |
1 | ||
| 34615-30070 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.1,T=3.1 |
1 | ||
| 34615-30030 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.5,T=3.5 |
1 | ||
| 35675-22010 |
GA70..4FC..(G,GT,S) 厚さ=4.0 |
1 | ||
| 34615-30060 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.2,T=3.2 |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 34622-30030 |
GA70..4FC..GTT |
1 | ||
| 34622-30040 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99008 |
GA70..4FC..(G,GT,S) OD=126.9,ID=124.2 |
1 | ||
| 90301-99009 |
GA70..4FC..(G,GT,S) OD=111.9,ID=109.2 |
1 | ||
| 90301-99037 |
GA70,MA70..4FC..(GTL,GTT) OUTER,ID=145.6 |
1 | ||
| 90301-99035 |
GA70,MA70..4FC..(GTL,GTT) INNER,ID=131.6 |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99008 |
GA70..4FC..(G,GT,S) OD=126.9,ID=124.2 |
1 | ||
| 90301-99009 |
GA70..4FC..(G,GT,S) OD=111.9,ID=109.2 |
1 | ||
| 90301-99037 |
GA70,MA70..4FC..(GTL,GTT) OUTER,ID=145.6 |
1 | ||
| 90301-99035 |
GA70,MA70..4FC..(GTL,GTT) INNER,ID=131.6 |
1 | ||
| 34623 - SEAT, OVERDRIVE BRAKE RETURN SPRING | ||||
| 34623-30020 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34623A - SPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING | ||||
| 90501-11023 |
GA70..4FC..GT |
12 | ||
| 90501-11023 |
GA70..4FC..(G,S) |
20 | ||
| 90501-10671 |
GA70..4FC..(G,S) |
12 | ||
| 34623B - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT | ||||
| 90521-99004 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34624 - HUB, OVERDRIVE BRAKE | ||||
| 34624-32010 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34626 - PLATE, OVERDRIVE BRAKE CUSHION | ||||
| 34626-30050 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34626A - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-30080 |
GA70..4FC..GT T=2.0 |
2 | ||
| 34634-30010 |
GA70..4FC..GT |
2 | ||
| 35634-30080 |
GA70..4FC..(G,S) |
3 | ||
| 34626A - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-30080 |
GA70..4FC..GT T=2.0 |
2 | ||
| 34634-30010 |
GA70..4FC..GT |
2 | ||
| 35634-30080 |
GA70..4FC..(G,S) |
3 | ||
| 34626A - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-30080 |
GA70..4FC..GT T=2.0 |
2 | ||
| 34634-30010 |
GA70..4FC..GT |
2 | ||
| 35634-30080 |
GA70..4FC..(G,S) |
3 | ||
| 34626B - FLANGE, REAR CLUTCH (FOR OVERDRIVE) | ||||
| 34625-26010 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34626C - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-30040 |
GA70..4FC..(G,GT,S) |
3 | ||
| 34626C - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-30040 |
GA70..4FC..(G,GT,S) |
3 | ||
| 34626C - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35677-30040 |
GA70..4FC..(G,GT,S) |
3 | ||
| 34626D - RING, HOLE SNAP (FOR OVERDRIVE) | ||||
| 90521-99004 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34705 - GEAR SUB-ASSY, OVERDRIVE PLANETARY RING | ||||
| 34705-30020 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34705-30021 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-30030 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34710-14011 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34710A - RING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90521-99003 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34710B - CLUTCH, 1WAY, NO.1(FOR OVERDRIVE) | ||||
| 35791-30030 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30031 |
GA70..4FC..(G,GT,S) CTR |
1 | ||
| 35789-22010 |
GA70..4FC..(G,GT,S) RR |
1 | ||
| 35789-30050 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34739-30041 |
GA70..4FC..(G,GT,S) FR |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30031 |
GA70..4FC..(G,GT,S) CTR |
1 | ||
| 35789-22010 |
GA70..4FC..(G,GT,S) RR |
1 | ||
| 35789-30050 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34739-30041 |
GA70..4FC..(G,GT,S) FR |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30031 |
GA70..4FC..(G,GT,S) CTR |
1 | ||
| 35789-22010 |
GA70..4FC..(G,GT,S) RR |
1 | ||
| 35789-30050 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34739-30041 |
GA70..4FC..(G,GT,S) FR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-25005 |
GA70,MA70..4FC..(GTL,GTT) RR |
1 | ||
| 90374-24001 |
GA70..4FC..(G,GT,S) CTR |
1 | ||
| 90374-23012 |
GA70..4FC..(G,GT,S) RR |
1 | ||
| 90374-28008 |
GA70,MA70..4FC..(GTL,GTT) FR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-25005 |
GA70,MA70..4FC..(GTL,GTT) RR |
1 | ||
| 90374-24001 |
GA70..4FC..(G,GT,S) CTR |
1 | ||
| 90374-23012 |
GA70..4FC..(G,GT,S) RR |
1 | ||
| 90374-28008 |
GA70,MA70..4FC..(GTL,GTT) FR |
1 | ||
| 34710E - PLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90334-03001 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34710F - PIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90250-03024 |
GA70..4FC..(G,GT,S) |
4 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-30020 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34713-32010 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34735 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1 | ||||
| 34735-30010 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34735-30020 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34736 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2 | ||||
| 34736-30010 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34737 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3 | ||||
| 34737-30020 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34737-30030 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34738 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4 | ||||
| 34738-30020 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 34739-30020 |
GA70..4FC..(G,GT,S) FR |
1 | ||
| 35789-22030 |
GA70..4FC..(G,GT,S) RR |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 34739-30020 |
GA70..4FC..(G,GT,S) FR |
1 | ||
| 35789-22030 |
GA70..4FC..(G,GT,S) RR |
1 | ||
| 34739A - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE) | ||||
| 90374-28014 |
GA70..4FC..(G,GT,S) |
1 | ||

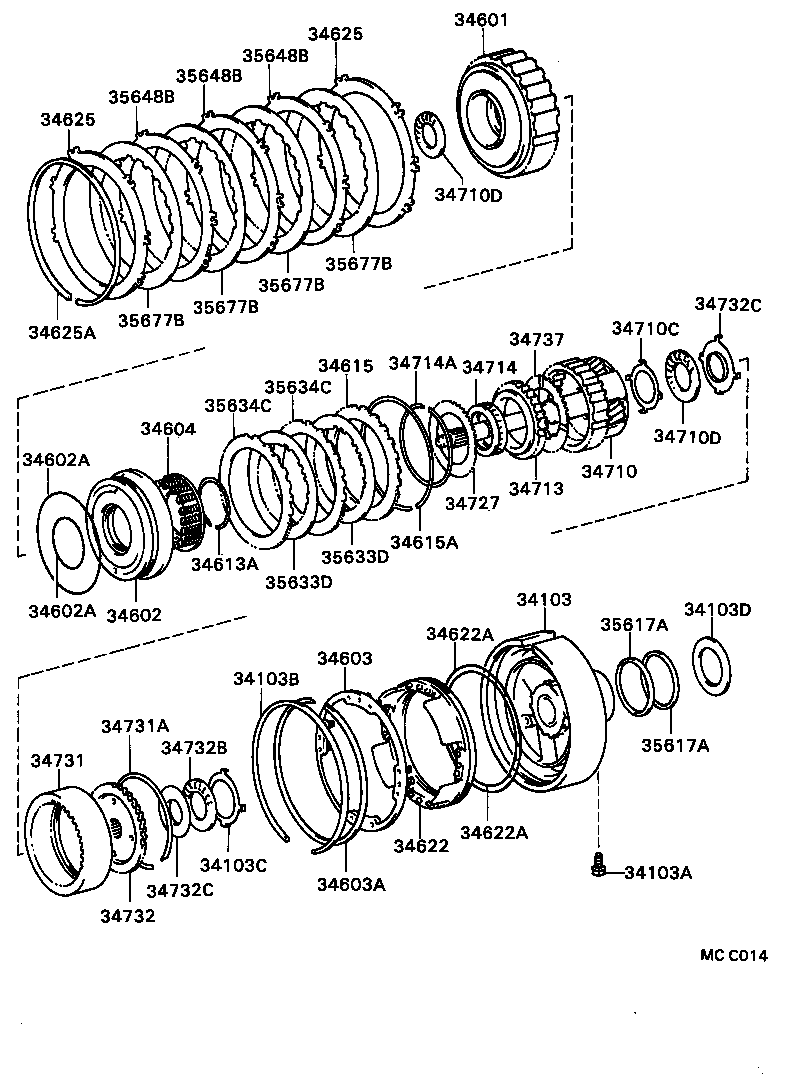

(8602- )4FC..GTL,GTT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34103 - SUPPORT SUB-ASSY, OVERDRIVE | ||||
| 34103-30011 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34103A - BOLT (FOR OVERDRIVE SUPPORT) | ||||
| 90105-08065 |
GA70,MA70..4FC..(GTL,GTT) |
2 | ||
| 34103B - RING, HOLE SNAP (FOR OVERDRIVE SUPPORT) | ||||
| 90521-99033 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34103C - RACE, THRUST BEARING (FOR OVERDRIVE SUPPORT FRONT) | ||||
| 35789-30080 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34103D - RACE, THRUST BEARING (FOR OVERDRIVE SUPPORT REAR) | ||||
| 35789-30090 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-30030 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34601-30022 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-30020 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34602-30030 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99016 |
GA70..4FC..(G,GT,S) OD=117.6,ID=123.8 |
1 | ||
| 90301-57188 |
GA70..4FC..(G,GT,S) OD=59.4,ID=56.8 |
1 | ||
| 90301-65005 |
GA70,MA70..4FC..(GTL,GTT) INNER,ID=65 |
1 | ||
| 90301-99036 |
GA70,MA70..4FC..(GTL,GTT) OUTER,ID=112.5 |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99016 |
GA70..4FC..(G,GT,S) OD=117.6,ID=123.8 |
1 | ||
| 90301-57188 |
GA70..4FC..(G,GT,S) OD=59.4,ID=56.8 |
1 | ||
| 90301-65005 |
GA70,MA70..4FC..(GTL,GTT) INNER,ID=65 |
1 | ||
| 90301-99036 |
GA70,MA70..4FC..(GTL,GTT) OUTER,ID=112.5 |
1 | ||
| 34603 - SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN | ||||
| 34603-30010 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34603A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING) | ||||
| 90521-99031 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34604 - SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN | ||||
| 34604-30010 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34613A - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SP | ||||
| 90520-58001 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34615 - FLANGE, OVERDRIVE CLUTCH | ||||
| 34615-30050 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.3,T=3.3 |
1 | ||
| 34615-30020 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.6,T=3.6 |
1 | ||
| 34615-30040 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.4,T=3.4 |
1 | ||
| 34615-30070 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.1,T=3.1 |
1 | ||
| 34615-30030 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.5,T=3.5 |
1 | ||
| 35675-22010 |
GA70..4FC..(G,GT,S) 厚さ=4.0 |
1 | ||
| 34615-30060 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.2,T=3.2 |
1 | ||
| 34615A - RING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE) | ||||
| 90521-99001 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 34622-30030 |
GA70..4FC..GTT |
1 | ||
| 34622-30040 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99008 |
GA70..4FC..(G,GT,S) OD=126.9,ID=124.2 |
1 | ||
| 90301-99009 |
GA70..4FC..(G,GT,S) OD=111.9,ID=109.2 |
1 | ||
| 90301-99037 |
GA70,MA70..4FC..(GTL,GTT) OUTER,ID=145.6 |
1 | ||
| 90301-99035 |
GA70,MA70..4FC..(GTL,GTT) INNER,ID=131.6 |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99008 |
GA70..4FC..(G,GT,S) OD=126.9,ID=124.2 |
1 | ||
| 90301-99009 |
GA70..4FC..(G,GT,S) OD=111.9,ID=109.2 |
1 | ||
| 90301-99037 |
GA70,MA70..4FC..(GTL,GTT) OUTER,ID=145.6 |
1 | ||
| 90301-99035 |
GA70,MA70..4FC..(GTL,GTT) INNER,ID=131.6 |
1 | ||
| 34625 - FLANGE, OVERDRIVE BRAKE, NO.1 | ||||
| 34625-30040 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.9,T=3.9 |
1 | ||
| 34625-30050 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.8,T=3.8 |
1 | ||
| 34625-30080 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.5,T=3.5 |
1 | ||
| 34625-30030 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=4.0,ﾏｰｸ 1,T=4.0 |
2 | ||
| 34625-30070 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.6,T=3.6 |
1 | ||
| 34625-30090 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.3,T=3.3 |
1 | ||
| 34625-30060 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.7,T=3.7 |
1 | ||
| 34625 - FLANGE, OVERDRIVE BRAKE, NO.1 | ||||
| 34625-30040 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.9,T=3.9 |
1 | ||
| 34625-30050 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.8,T=3.8 |
1 | ||
| 34625-30080 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.5,T=3.5 |
1 | ||
| 34625-30030 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=4.0,ﾏｰｸ 1,T=4.0 |
2 | ||
| 34625-30070 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.6,T=3.6 |
1 | ||
| 34625-30090 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.3,T=3.3 |
1 | ||
| 34625-30060 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=3.7,T=3.7 |
1 | ||
| 34625A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE) | ||||
| 90521-99027 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-30030 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34710-14011 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30031 |
GA70..4FC..(G,GT,S) CTR |
1 | ||
| 35789-22010 |
GA70..4FC..(G,GT,S) RR |
1 | ||
| 35789-30050 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34739-30041 |
GA70..4FC..(G,GT,S) FR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-25005 |
GA70,MA70..4FC..(GTL,GTT) RR |
1 | ||
| 90374-24001 |
GA70..4FC..(G,GT,S) CTR |
1 | ||
| 90374-23012 |
GA70..4FC..(G,GT,S) RR |
1 | ||
| 90374-28008 |
GA70,MA70..4FC..(GTL,GTT) FR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-25005 |
GA70,MA70..4FC..(GTL,GTT) RR |
1 | ||
| 90374-24001 |
GA70..4FC..(G,GT,S) CTR |
1 | ||
| 90374-23012 |
GA70..4FC..(G,GT,S) RR |
1 | ||
| 90374-28008 |
GA70,MA70..4FC..(GTL,GTT) FR |
1 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-30020 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34713-32010 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34714 - CLUTCH, 1 WAY(FOR OVERDRIVE) | ||||
| 35791-30040 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34714A - RING, HOLE SNAP(FOR 1 WAY CLUTCH) | ||||
| 90521-99028 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34727 - PLATE, RETAINING (FOR OVERDRIVE) | ||||
| 34727-32010 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34731 - GEAR, OVERDRIVE PLANETARY RING | ||||
| 34731-30030 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34731A - RING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR) | ||||
| 90521-99024 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34732 - FLANGE, OVERDRIVE PLANETARY RING GEAR | ||||
| 34732-30030 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34732B - BEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANG | ||||
| 90374-32004 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 34732C - RACE, THRUST BEARING (FOR OVERDRIVE PLANETARY RING GEAR | ||||
| 35789-30070 |
GA70,MA70..4FC..(GTL,GTT) RR |
1 | ||
| 35789-30060 |
GA70,MA70..4FC..(GTL,GTT) FR |
1 | ||
| 34732C - RACE, THRUST BEARING (FOR OVERDRIVE PLANETARY RING GEAR | ||||
| 35789-30070 |
GA70,MA70..4FC..(GTL,GTT) RR |
1 | ||
| 35789-30060 |
GA70,MA70..4FC..(GTL,GTT) FR |
1 | ||
| 34737 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3 | ||||
| 34737-30020 |
GA70..4FC..(G,GT,S) |
1 | ||
| 34737-30030 |
GA70,MA70..4FC..(GTL,GTT) |
1 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-30020 |
GA70,MA70..4FC..(GTL,GTT) |
2 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-30020 |
GA70,MA70..4FC..(GTL,GTT) |
2 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-30040 |
GA70,MA70..4FC..(GTL,GTT) |
2 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-30040 |
GA70,MA70..4FC..(GTL,GTT) |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 34616-30010 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=2.0 |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 34616-30010 |
GA70,MA70..4FC..(GTL,GTT) 厚さ=2.0 |
2 | ||
| 35648B - PLATE, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34634-30020 |
GA70,MA70..4FC..(GTL,GTT) |
3 | ||
| 35648B - PLATE, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34634-30020 |
GA70,MA70..4FC..(GTL,GTT) |
3 | ||
| 35648B - PLATE, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34634-30020 |
GA70,MA70..4FC..(GTL,GTT) |
3 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34633-30010 |
GA70,MA70..4FC..(GTL,GTT) |
4 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34633-30010 |
GA70,MA70..4FC..(GTL,GTT) |
4 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34633-30010 |
GA70,MA70..4FC..(GTL,GTT) |
4 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34633-30010 |
GA70,MA70..4FC..(GTL,GTT) |
4 | ||
(8808-9008)4FC..G
A42DL
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
