GA70-BLPVF (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GGEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8602- )

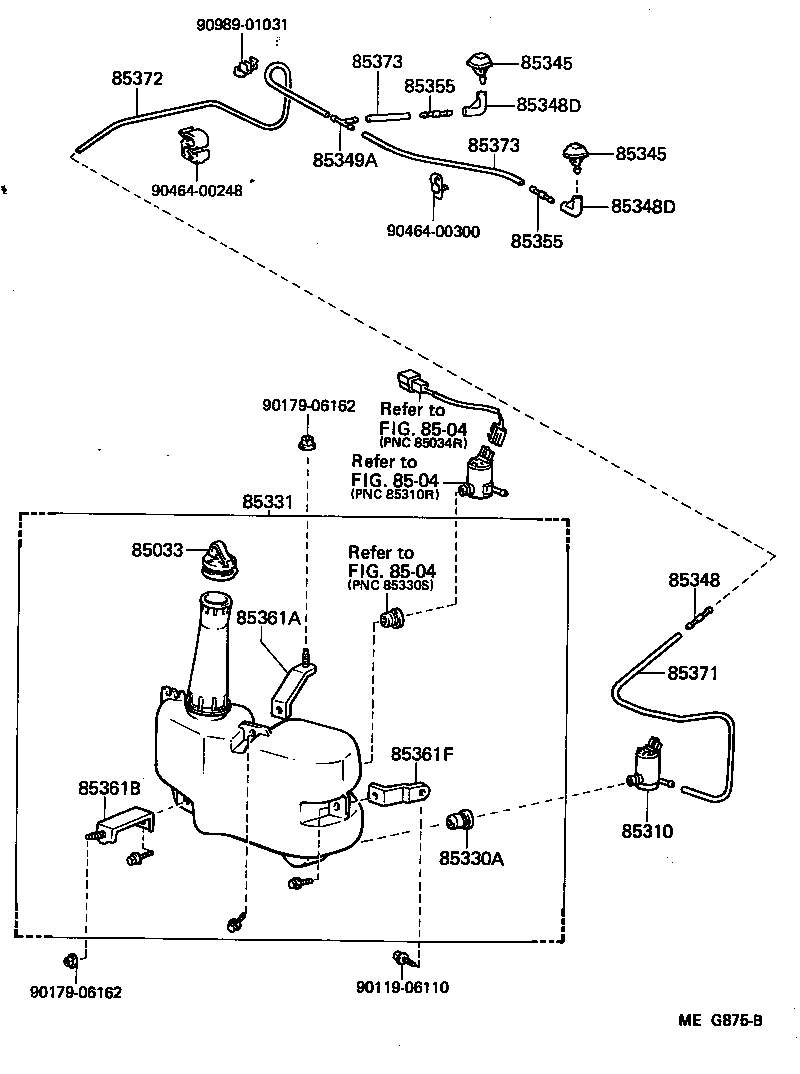

Click highlighted areas on diagram

diagram 85033 8504 8504 8504 85310 85330A 85331 85345 85345 85348 85348D 85348D 85349A 85355 85355 85361A 85361B 85361F 85371 85372 85373 85373 9011906110 9017906162 9017906162 9046400248 9046400300 9098901031
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-20441

GA70,MA70

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

GA70,MA70

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GA70,MA70

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85331-14680

GA70,MA70

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-14310

GA70,MA70

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-14310

GA70,MA70

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

GA70,MA70

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

GA70,MA70

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

GA70,MA70

 2
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85348-14510

GA70,MA70

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

GA70,MA70

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

GA70,MA70

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-14600

GA70,MA70

 1
85361B - BRACKET, WINDSHIELD WASHER, NO.2
85362-14600

GA70,MA70

 1
85361F - BRACKET, WINDSHIELD WASHER, NO.3
85363-14600

GA70,MA70

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

GA70,MA70

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

GA70,MA70

L=1450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GA70,MA70

L=1450

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GA70,MA70

L=1450

 2
Common parts
90119-06110
90179-06162
90464-00248
90464-00300
90989-01031
Linked diagrams
8504
