GA70-BLPVF (1986)

Toyota Supra

Production Feb 1986 - Aug 1988
Engine 1GGEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

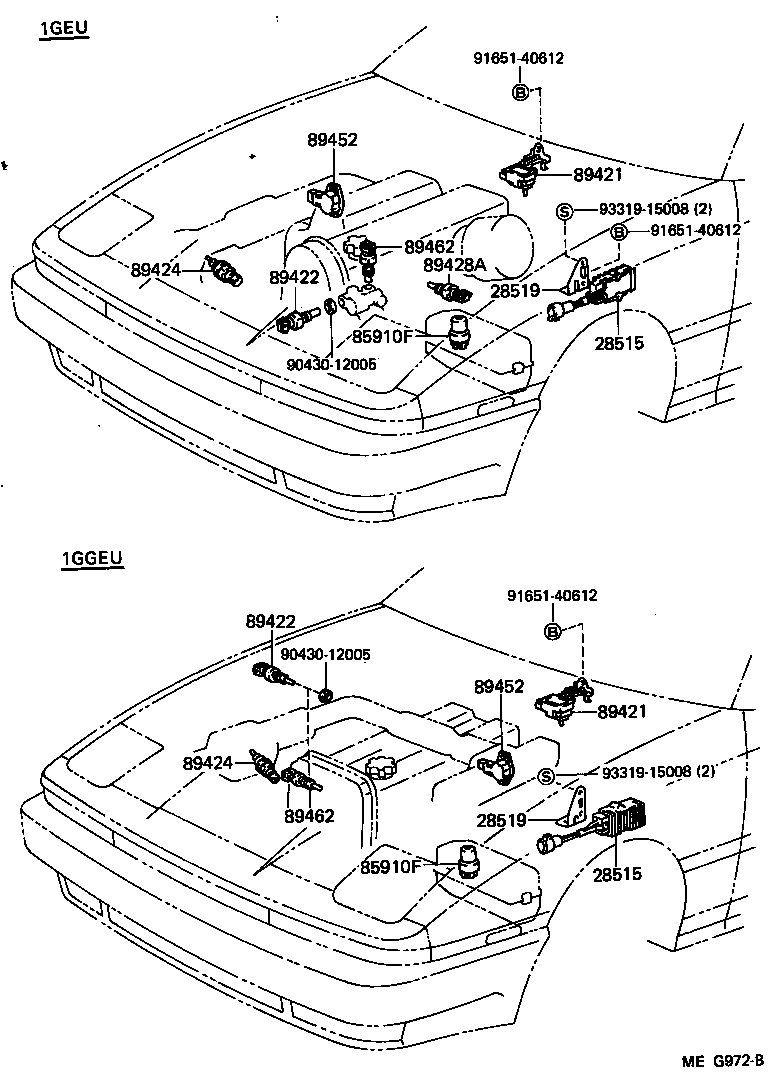

ILLUST NO. 1 OF 2(8602- )

Click highlighted areas on diagram

diagram 28515 28515 28519 28519 85910F 85910F 89421 89421 89422 89422 89424 89424 89428A 89452 89452 89462 89462 9043012005 9043012005 9165140612 9165140612 9165140612 9331915008 9331915008
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-43040

1GGEU..GA70

 1
28515 - RESISTOR, SOLENOID
28515-43040

1GGEU..GA70

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-70020

1GGEU..GA70

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-70020

1GGEU..GA70

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

GA70,MA70

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

GA70,MA70

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-14030

GA70..G,GT,S

 1
89420-24020

GA70..G,GT,S

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-14030

GA70..G,GT,S

 1
89420-24020

GA70..G,GT,S

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30020

GA70,MA70

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30020

GA70,MA70

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-28010

GA70..G,GT,S

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-28010

GA70..G,GT,S

 1
89428A - SWITCH, WATER TEMPERATURE (FOR E.F.I)
89428-14070

GA70..G,S

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-28040

GA70..G,GT,S

 1
89452-28030

GA70..GT

 1
89452-28040

GA70..G,S

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-28040

GA70..G,GT,S

 1
89452-28030

GA70..GT

 1
89452-28040

GA70..G,S

 1
89462 - SWITCH, START INJECTOR TIME
89462-40010

GA70,MA70

 1
89462 - SWITCH, START INJECTOR TIME
89462-40010

GA70,MA70

 1
Common parts
90430-12005
91651-40612
93319-15008

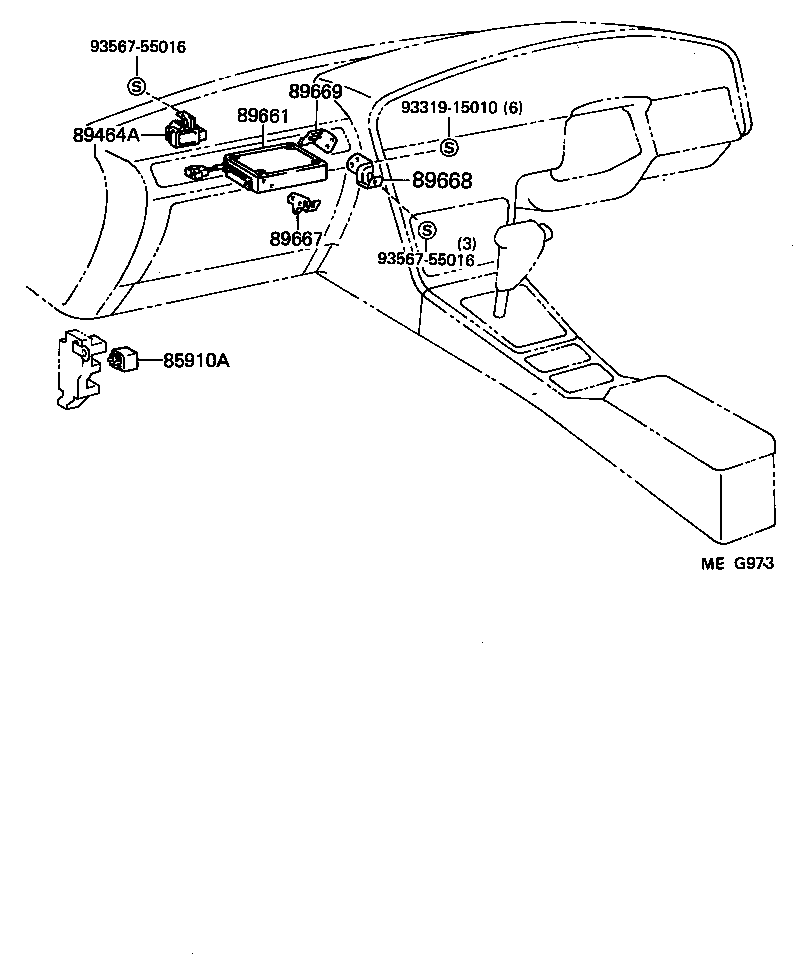

ILLUST NO. 2 OF 2(8602- )

Click highlighted areas on diagram

diagram 85910A 89464A 89661 89667 89668 89669 9331915010 9356755016 9356755016
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-30050

GA70,MA70

 1
89661 - COMPUTER, ENGINE CONTROL
89661-30201

GA70..G,S

DENSO

 1
89661-30211

GA70..G,S

TEN

 1
89661-30212

GA70..G,S

TEN

 1
89661-30191

GA70..GT

 1
89661-14150

GA70..4FC..GT

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-14050

GA70..GT

 1
89667-14040

GA70..G,S

 2
89667-14060

GA70..GT

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-14010

GA70,MA70

 2
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-14010

GA70,MA70

 2
Common parts
93319-15010
93567-55016

ILLUST NO. 1 OF 2(8602- )

Click highlighted areas on diagram

diagram 28380 28380 28515 28515 28519 28519 8271114110 85910F 85910F 89421A 89421A 89422 89422 89452 89452 89462 89462 9043012005 9043012005 9046400082 9046707016 9165140612 9165140612 9165140612 9165140612 9331915008 9331915008 9541110060 9541110095
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-43040

1GGEU..GA70

 1
28515 - RESISTOR, SOLENOID
28515-43040

1GGEU..GA70

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-70020

1GGEU..GA70

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-70020

1GGEU..GA70

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

GA70,MA70

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

GA70,MA70

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30020

GA70,MA70

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30020

GA70,MA70

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-28040

GA70..G,GT,S

 1
89452-28030

GA70..GT

 1
89452-28040

GA70..G,S

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-28040

GA70..G,GT,S

 1
89452-28030

GA70..GT

 1
89452-28040

GA70..G,S

 1
89462 - SWITCH, START INJECTOR TIME
89462-40010

GA70,MA70

 1
89462 - SWITCH, START INJECTOR TIME
89462-40010

GA70,MA70

 1
Common parts
82711-14110
90430-12005
90464-00082
90467-07016
91651-40612
93319-15008
95411-10060
95411-10095
