GA70-BLPVF (1988)
Toyota Supra

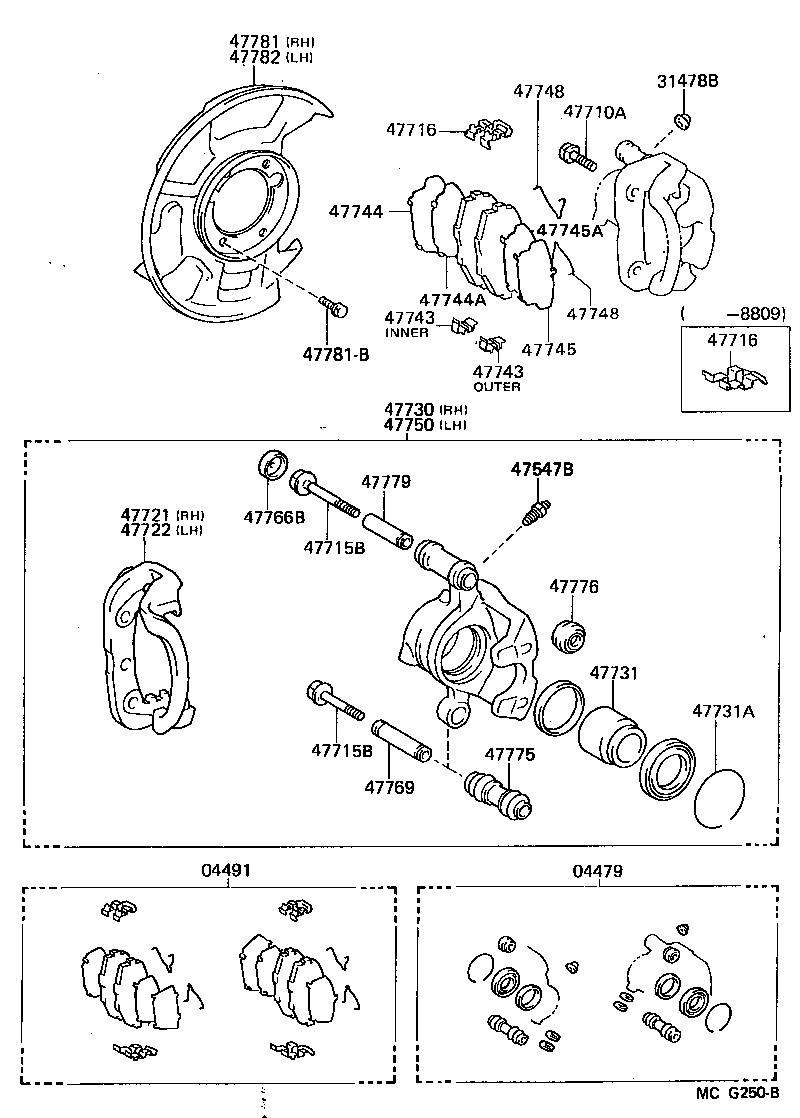

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-14100 |
GA70,JZA70,MA70 |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-14270 |
GA70..GT,GTT |
1 | ||
| 04491-14240 |
GA70..GT,GTT |
1 | ||
| 04491-14271 |
GA70..GT,GTT |
1 | ||
| 04491-14250 |
GA70..G |
1 | ||
| 04491-14280 |
GA70 |
1 | ||
| 04491-24050 |
GA70..LB;GA70..AET..WIB |
1 | ||
| 04491-14271 |
GA70,MA70..GT,GTL,GTT |
1 | ||
| 04491-14251 |
GA70..G |
1 | ||
| 04491-24050 |
GA70 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
GA70,JZA70,MA70 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
GA70,JZA70,MA70 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90119-12058 |
GA70,JZA70,MA70 *12−1.25PX31−20 |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-10141 |
GA70,JZA70,MA70 上側 |
2 | ||
| 90119-10403 |
GA70,JZA70,MA70 下側 |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-10141 |
GA70,JZA70,MA70 上側 |
2 | ||
| 90119-10403 |
GA70,JZA70,MA70 下側 |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-14110 |
GA70..G |
4 | ||
| 47716-14120 |
GA70..GT,GTT |
2 | ||
| 47716-14110 |
GA70..G |
2 | ||
| 47716-14120 |
GA70,MA70..GT,GTL,GTT,GTTL |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-14110 |
GA70..G |
4 | ||
| 47716-14120 |
GA70..GT,GTT |
2 | ||
| 47716-14110 |
GA70..G |
2 | ||
| 47716-14120 |
GA70,MA70..GT,GTL,GTT,GTTL |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-14100 |
GA70..GT,GTT |
1 | ||
| 47721-14090 |
GA70..G |
1 | ||
| 47721-14140 |
GA70 |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-14140 |
GA70 |
1 | ||
| 47721-14100 |
GA70..GT,GTT |
1 | ||
| 47721-14090 |
GA70..G |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-14170 |
GA70..GT,GTT |
1 | ||
| 47730-14160 |
GA70..G |
1 | ||
| 47730-14210 |
GA70 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-28020 |
GA70,JZA70,MA70 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-67001 |
GA70,JZA70,MA70 |
2 | ||
| 47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47748-24010 |
GA70 外側 |
2 | ||
| 47743-24010 |
GA70 内側 |
2 | ||
| 47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47748-24010 |
GA70 外側 |
2 | ||
| 47743-24010 |
GA70 内側 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47745-14050 |
GA70,MA70..G,GT,GTL,GTT |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47744-14120 |
GA70,MA70..G,GT,GTL,GTT |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47742-24010 |
GA70,MA70 |
2 | ||
| 47742-24010 |
GA70 |
2 | ||
| 47745-14050 |
GA70,MA70..G,GT,GTL,GTT |
2 | ||
| 47745A - SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47744-14120 |
GA70,MA70..G,GT,GTL,GTT |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-14070 |
GA70,JZA70,MA70 |
4 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-14070 |
GA70,JZA70,MA70 |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-14170 |
GA70 |
1 | ||
| 47750-14190 |
GA70..GT,GTT |
1 | ||
| 47750-14180 |
GA70..G |
1 | ||
| 47766B - CAP, CYLINDER SLIDE PIN | ||||
| 47766-14010 |
GA70,JZA70,MA70 |
2 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-28020 |
GA70,JZA70,MA70 |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-28020 |
GA70,JZA70,MA70 |
2 | ||
| 47776 - BOOT, MAIN PIN(FOR FRONT DISC BRAKE) | ||||
| 47776-20010 |
GA70,JZA70,MA70 |
2 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-14020 |
GA70,JZA70,MA70 |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-14100 |
GA70,MA70..G,GT,GTL,GTT |
1 | ||
| 47781-14130 |
GA70,JZA70,MA70 |
1 | ||
| 47781B - BOLT(FOR DUST COVER SETTING) | ||||
| 90119-08571 |
GA70,JZA70,MA70 *8−1.25PX18−5.5 |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-14100 |
GA70,MA70..G,GT,GTL,GTT |
1 | ||
| 47782-14130 |
GA70,JZA70,MA70 |
1 | ||
ILLUST NO. 1 OF 2(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06205 | ||||
| 90119-06570 | ||||
| 90179-06247 | ||||
| 90201-10114 | ||||
| 91651-B0616 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-14360 |
GA70..G |
1 | ||
| 04465-14370 |
GA70,MA70..GT,GTL,GTT |
1 | ||
| 04465-24030 |
GA70 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-24010 |
GA70,MA70..GT,GTL,GTT |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-14270 |
GA70..G |
1 | ||
| 04947-14290 |
GA70,MA70..G,GT,GTL,GTT |
1 | ||
| 04947-14290 |
GA70 |
1 | ||
| 04947-14290 |
GA70,MA70..GT,GTL,GTT |
1 | ||
